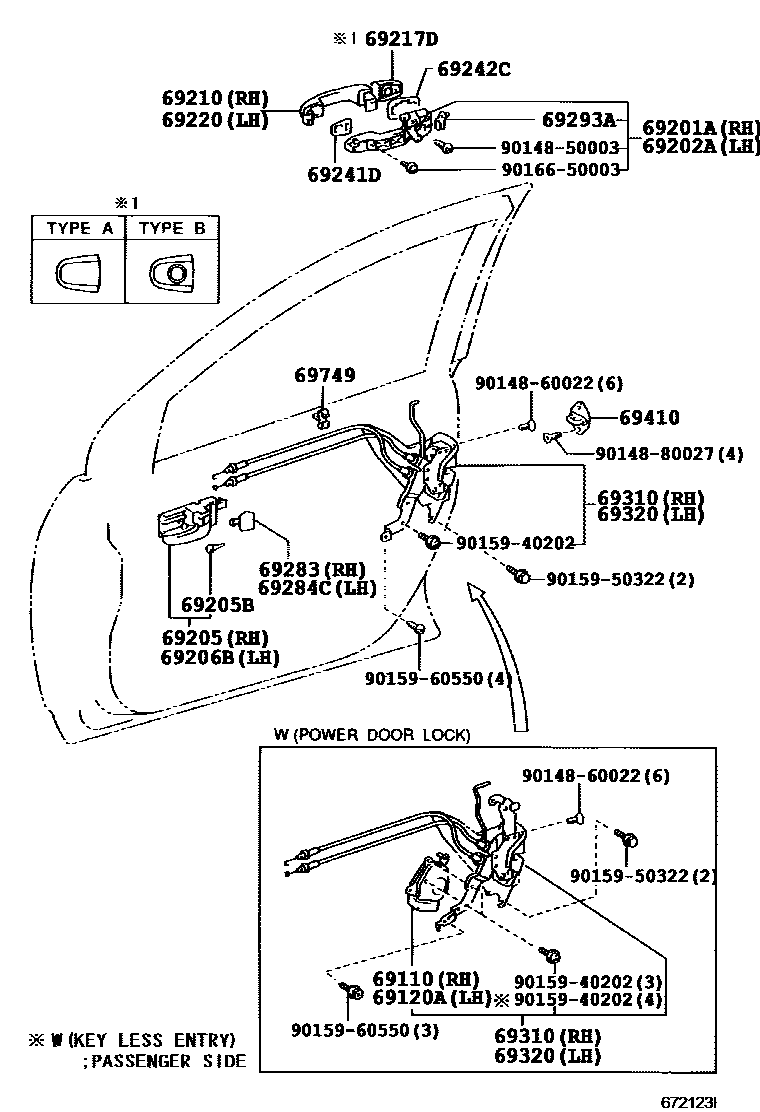

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69110 | Right front door lock actuator assembly | 69110-12070 · 69110-12080 · 69110-12090 |
| 69120A | Left front door lock actuator assembly | 69120-12070 · 69120-12080 · 69120-12090 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-52010 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-52010 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04027 |
| 69210 | Right front door outer handle assembly | 69210-12260 · 69211-12200 · 69211-12220 · 69211-12902 · 69211-12903 · 69211-42010 |
| 69217D | Front door outer handle cover | 69217-12010 · 69217-12030 · 69217-12050 · 69217-42010 · 69217-42020 · 69217-42903 |
| 69220 | Left front door outer handle assembly | 69210-12260 · 69211-12200 · 69211-12220 · 69211-12902 · 69211-12903 · 69211-42010 |
| 69241D | Right front door outer handle pad | 69241-42020 |
| 69242C | Left front door outer handle pad | 69242-42010 · 69242-52020 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 |
| 69310 | Right front door lock assembly | 69030-12460 · 69030-12510 · 69030-12520 · 69310-02130 · 69310-12650 |
| 69320 | Left front door lock assembly | 69040-12510 · 69040-12530 · 69040-12540 · 69320-02130 · 69320-12700 |
| 69410 | Front door lock plate assembly | 69410-02070 · 69410-20110 · 69410-33010 |
| 69749 | Front door lock link clip | 69749-32040 |
