Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 7 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

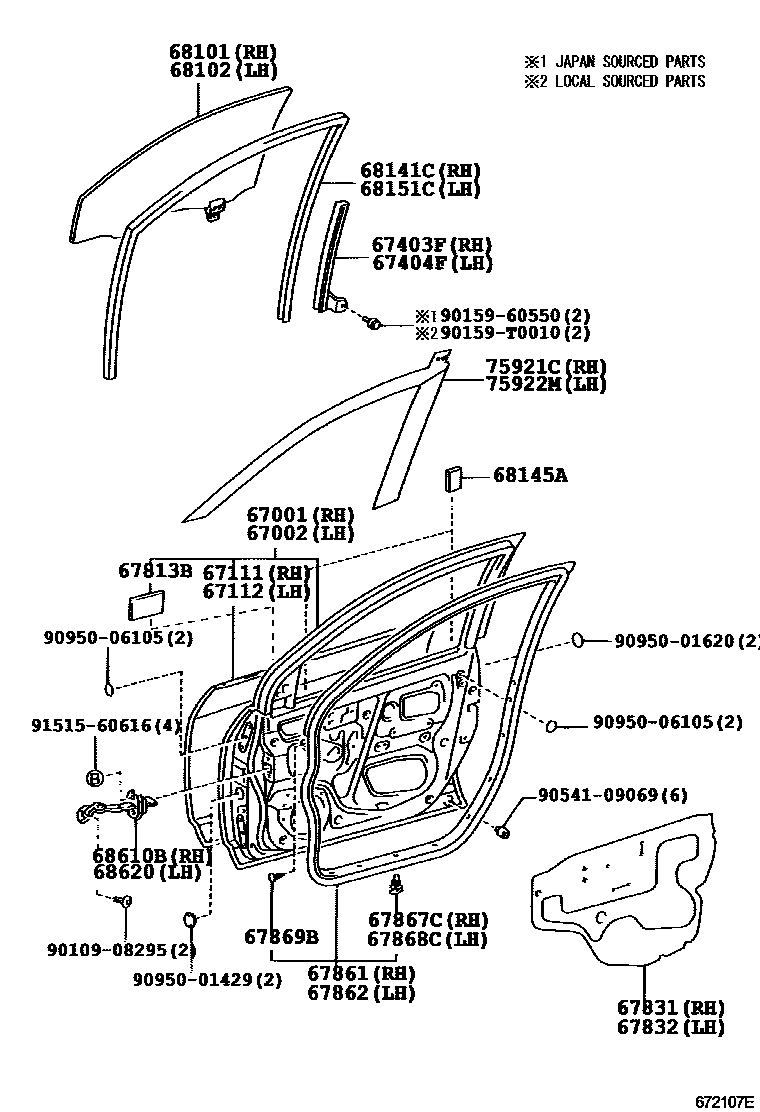

| 67001 | Right front door panel sub-assembly | 67001-1A620 · 67001-1A670 · 67001-1A680 · 67001-1A681 |
| 67002 | Left front door panel sub-assembly | 67002-1A580 · 67002-1A630 · 67002-1A640 |
| 67111 | Outer right front door panel | 67111-12670 |
| 67112 | Outer left front door panel | 67112-12660 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-12220 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-12200 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-12460 · 67491-12470 · 67491-12480 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-12460 · 67492-12470 · 67492-12480 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67771-12060 |
| 67601A | Fixings (for front door trim) | 67771-12050 |
| 67602A | Left door trim panel fixing | 67771-12050 |
| 67813B | door guard seals | 67817-47010 |
| 67831 | Right front door access hole cover | 67831-12590 · 67831-12630 |
| 67832 | Left front door access hole cover | 67832-12380 · 67832-12410 |
| 67861 | Right front door seal | 67861-02100 · 67861-1A020 |
| 67862 | Left front door seal | 67862-02100 · 67862-12870 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67869B | Front door seal strip clip | 67869-12050 · 67869-20030 |
| 68101 | Right front door glass sub-assembly | 68101-12A00 · 68101-1A480 · 68101-1A490 · 68101-1A530 |
| 68102 | Left front door glass sub-assembly | 68102-12A00 · 68102-1A480 · 68102-1A490 · 68102-1A530 |
| 68141C | Right front door glass lift channel | 68141-02060 · 68141-12510 · 68141-12511 · 68141-12512 |
| 68145A | Front door window cushion | 69759-12060 · 69759-12110 |
| 68151C | Left front door glass lift channel | 68151-02050 · 68151-12210 · 68151-12211 · 68151-12212 |
| 68170 | Front door glass inner sealing strip assembly | 68171-12290 · 68171-12320 · 68172-12210 · 68172-12240 |
| 68610B | Right front door opening limiter assembly | 68610-12160 · 68610-12161 |
| 68620 | Left front door opening limiter assembly | 68620-12090 · 68620-12091 |
| 75921C | No. 1 right side light-shielding film | 75921-12030 · 75921-12031 · 75921-12032 |
| 75922M | No. 1 left shading film | 75922-12030 · 75922-12031 · 75922-12032 |
| 86262E | front speaker cover | 86262-17010 |
