Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

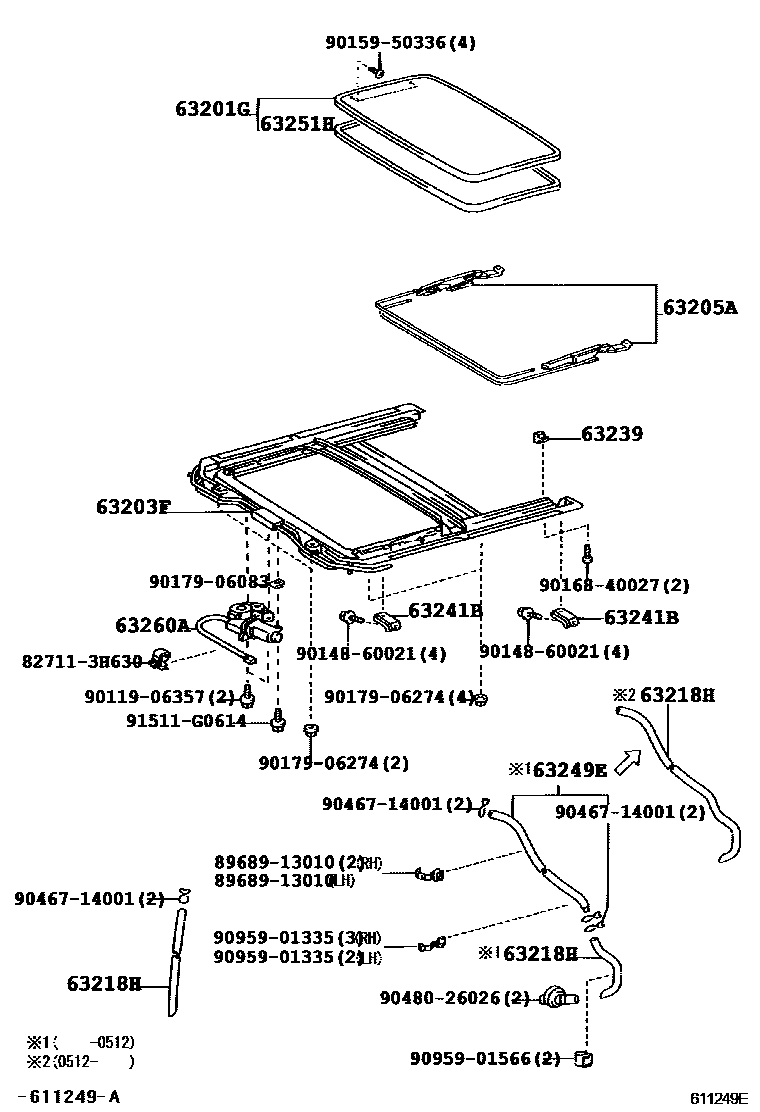

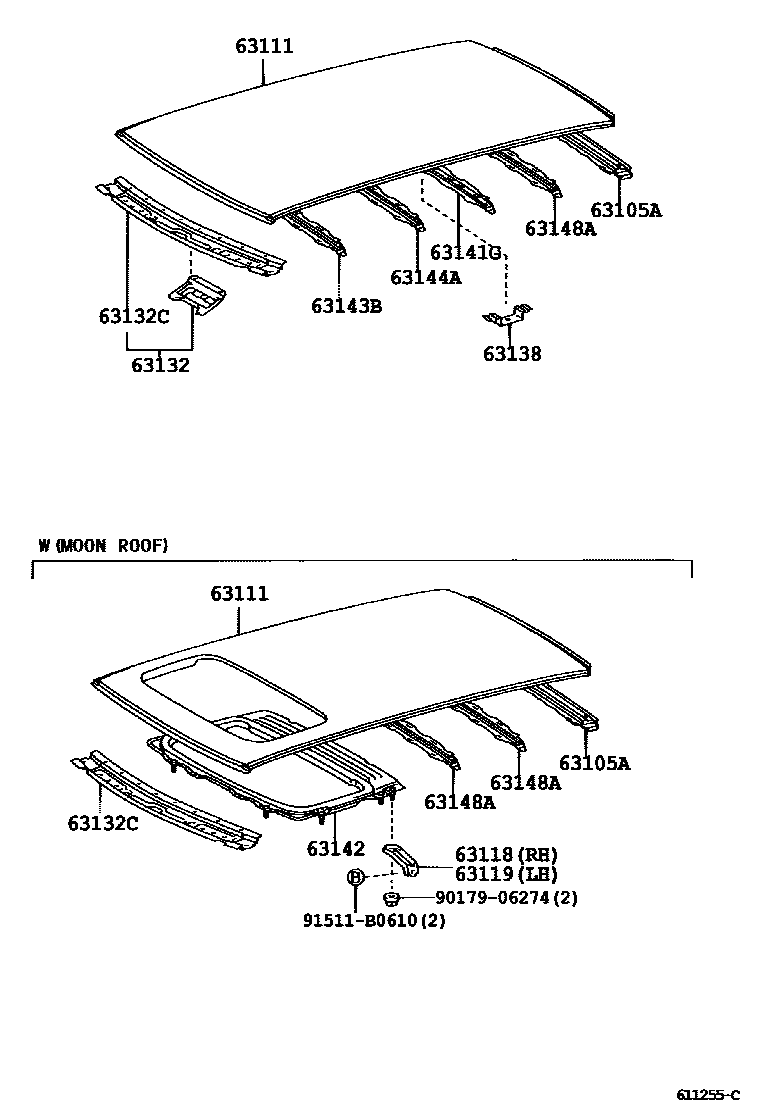

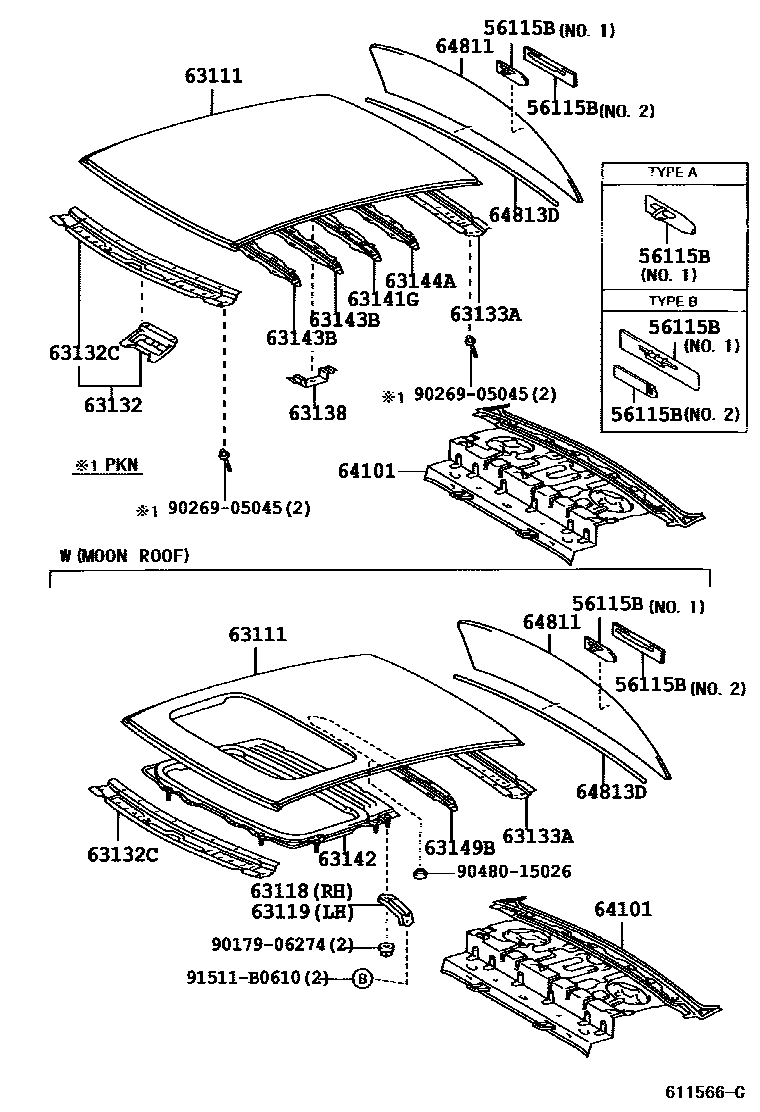

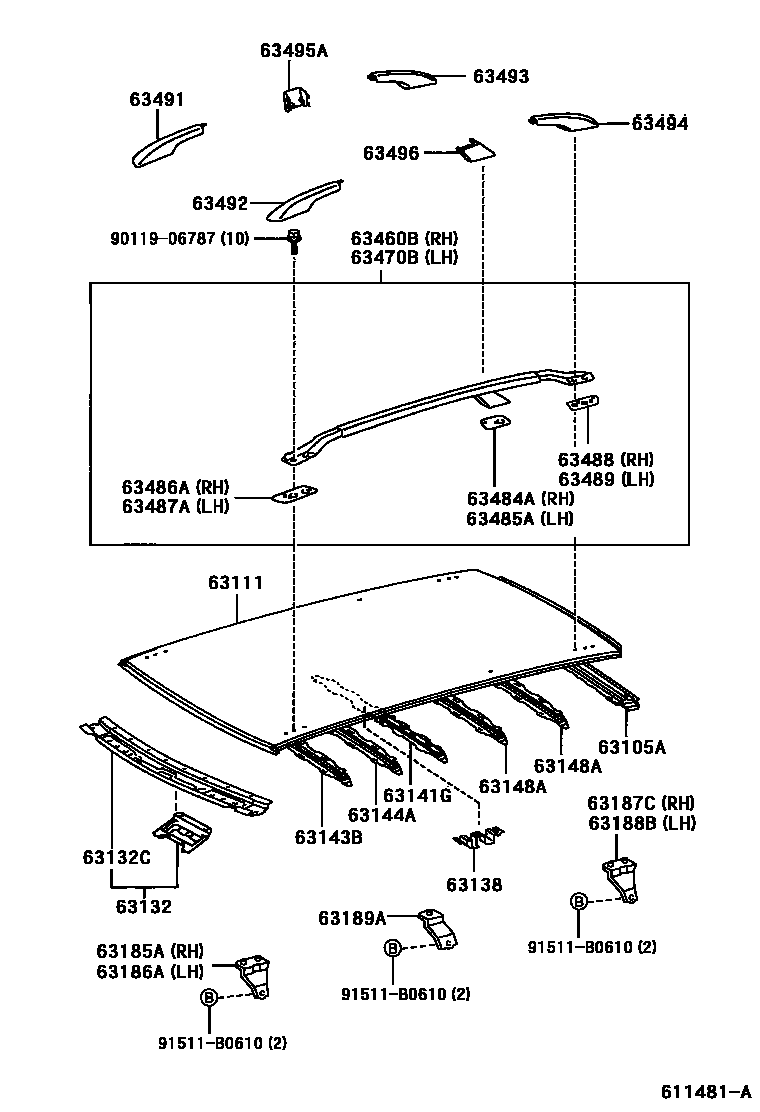

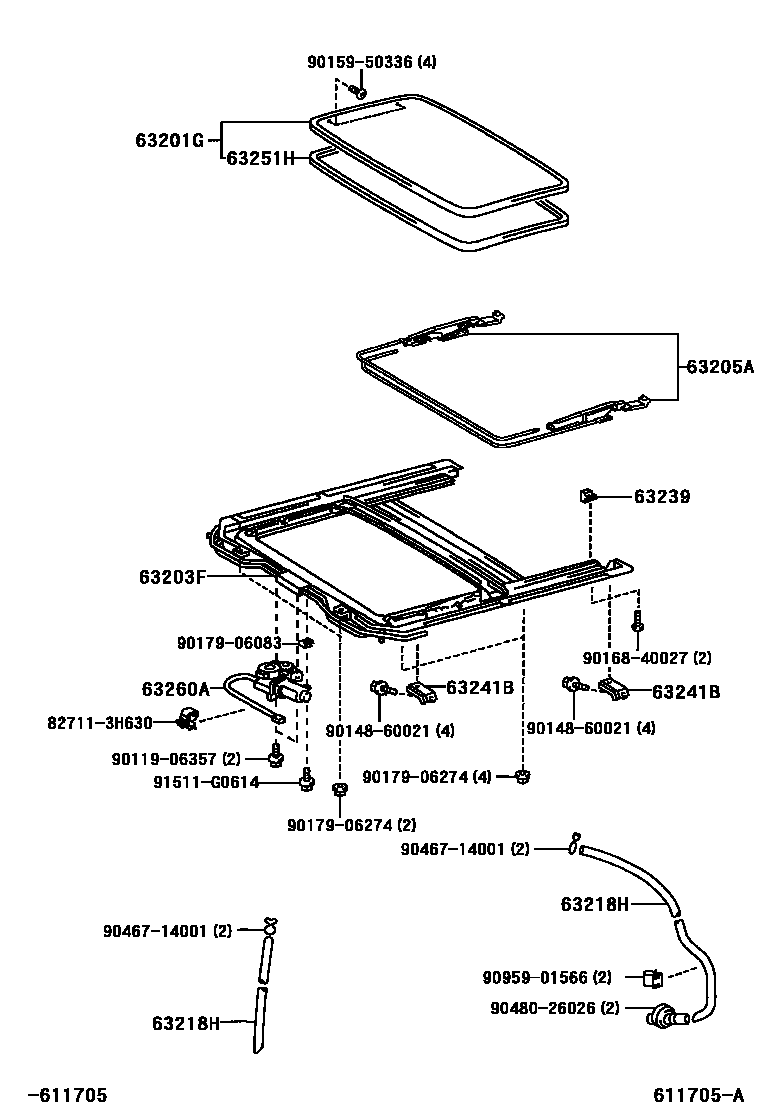

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 5 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-02020 · 56115-30100 · 56116-02020 · 56116-22050 |
| 63105A | Back door opening frame sub-assembly | 63105-13160 |
| 63111 | roof panel | 63111-12760 · 63111-12770 · 63111-13260 · 63111-13270 · 63111-13280 · 63111-13290 · 63111-13400 · 63111-13410 · 63111-13420 · 63111-13430 |
| 63118 | Right roof panel bracket | 63118-12100 |
| 63119 | Left roof panel bracket | 63118-12100 |
| 63132 | Windshield inner roof panel | 63102-12150 · 63102-12190 · 63102-13100 |
| 63132C | Windshield inner roof panel | 63132-12240 · 63132-12300 |
| 63133A | upper frame of back window | 63133-12260 |
| 63138 | No. 2 ceiling light bracket | 63138-12010 · 63138-12011 |
| 63141G | No. 1 roof panel reinforcement | 63141-12260 · 63141-13080 |
| 63142 | No. 2 roof panel reinforcement | 63142-12100 |
| 63143B | No. 3 roof panel reinforcement | 63143-12100 |
| 63144A | No. 4 roof panel reinforcement | 63144-12080 · 63144-13030 |
| 63148A | No. 7 roof panel reinforcement | 63148-13020 |
| 63149B | No. 1 rear roof panel reinforcement | 63149-12020 |
| 63185A | Right front roof rack bracket | 63185-13070 · 63185-13071 |
| 63186A | Left front roof rack bracket | 63186-13070 · 63186-13071 |
| 63187C | Right rear roof rack No. 1 bracket | 63187-13020 |
| 63188B | Left rear roof rack No. 1 bracket | 63188-13020 |
| 63189A | Center roof rack bracket | 63189-13060 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-12260 · 63201-12261 · 63201-12262 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-12150 · 63203-13030 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-12150 |
| 63218H | Sliding skylight drain hose | 63249-12320 · 63249-12330 · 63249-12331 · 63249-13050 · 63249-13180 |
| 63239 | Sliding roof panel stop | 63239-12030 |
| 63241B | Sliding sunroof frame bracket No. 1 | 63241-12110 |
| 63249E | Sliding skylight drain hose | 63220-13020 |
| 63251H | Sliding skylight seal | 63251-12160 · 63251-12161 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12110 · 63260-12120 |
| 63460B | Roof right luggage rack assembly | 63460-13110 |
| 63470B | Roof left luggage rack assembly | 63470-13110 |
| 63484A | Right center roof rack foot cushion | 63484-13050 |
| 63485A | Left center roof rack foot cushion | 63485-13050 |
| 63486A | Right front roof rack support foot cushion | 63486-13050 |
| 63487A | Left front roof rack support foot cushion | 63487-13050 |
| 63488 | Right rear roof rack foot cushion pad | 63488-13060 |
| 63489 | Left rear roof rack support foot cushion pad | 63489-13060 |
| 63491 | Right front roof rack leg cover | 63491-13090 |
| 63492 | Left front roof rack leg cover | 63492-13090 |
| 63493 | Right rear roof rack foot cover | 63493-13100 |
| 63494 | Left rear roof rack leg cover | 63494-13100 |
| 63495A | Center roof rack foot cover | 63495-13090 |
| 63496 | Left center roof rack foot cover | 63496-13090 |
| 64101 | Upper back panel sub-assembly | 64101-12690 · 64101-12700 · 64101-12760 · 64101-12810 |
| 64811 | back window glass | 64811-02140 · 64811-02150 · 64811-1E290 · 64811-1E291 · 64811-1E340 · 64811-1E341 · 64811-1E390 |
| 64813D | Back window glass adhesive seal | 56117-12240 · 56117-47010 |
