Toyota COROLLA 仪表板和手套箱 — Figure 5501

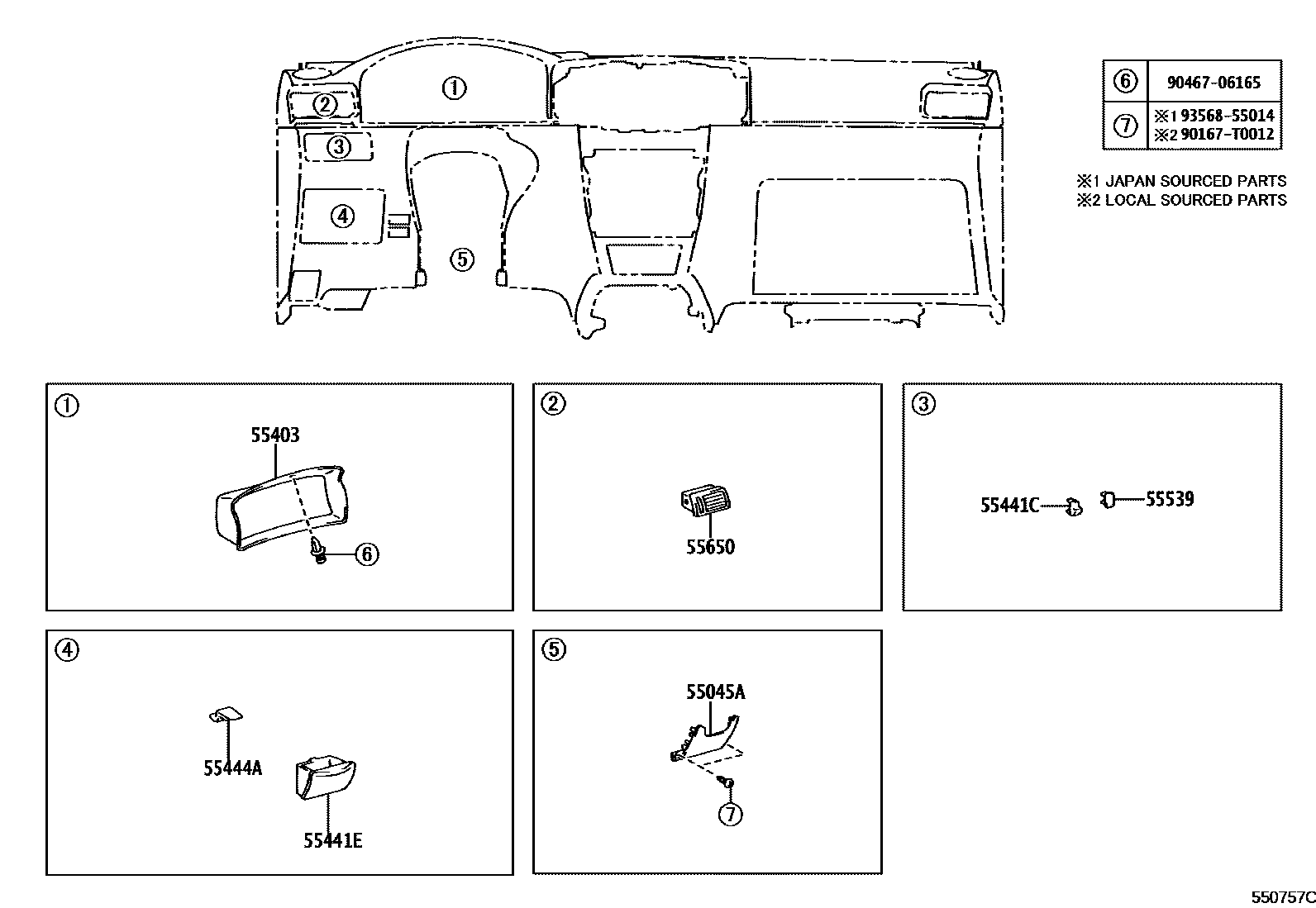

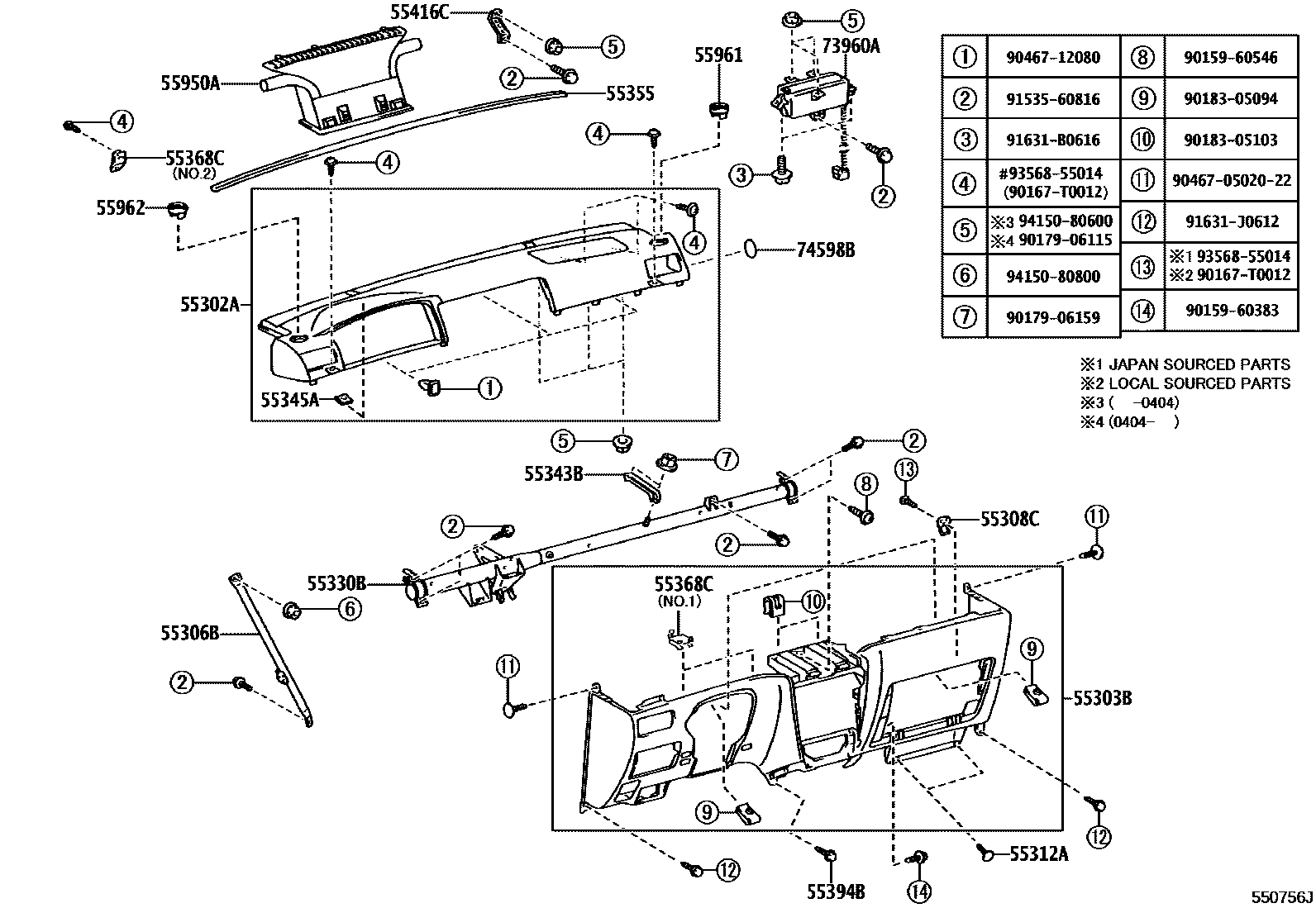

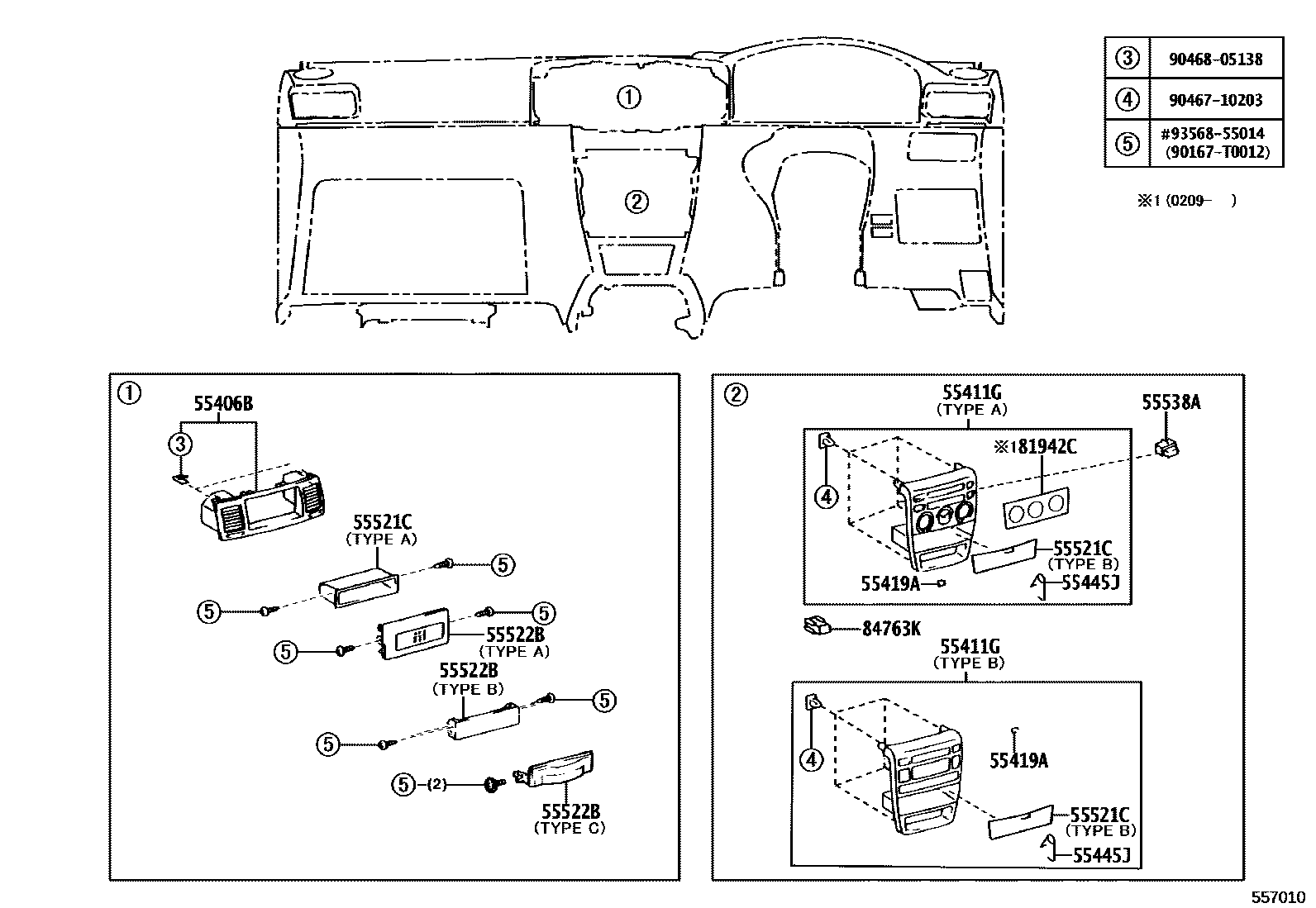

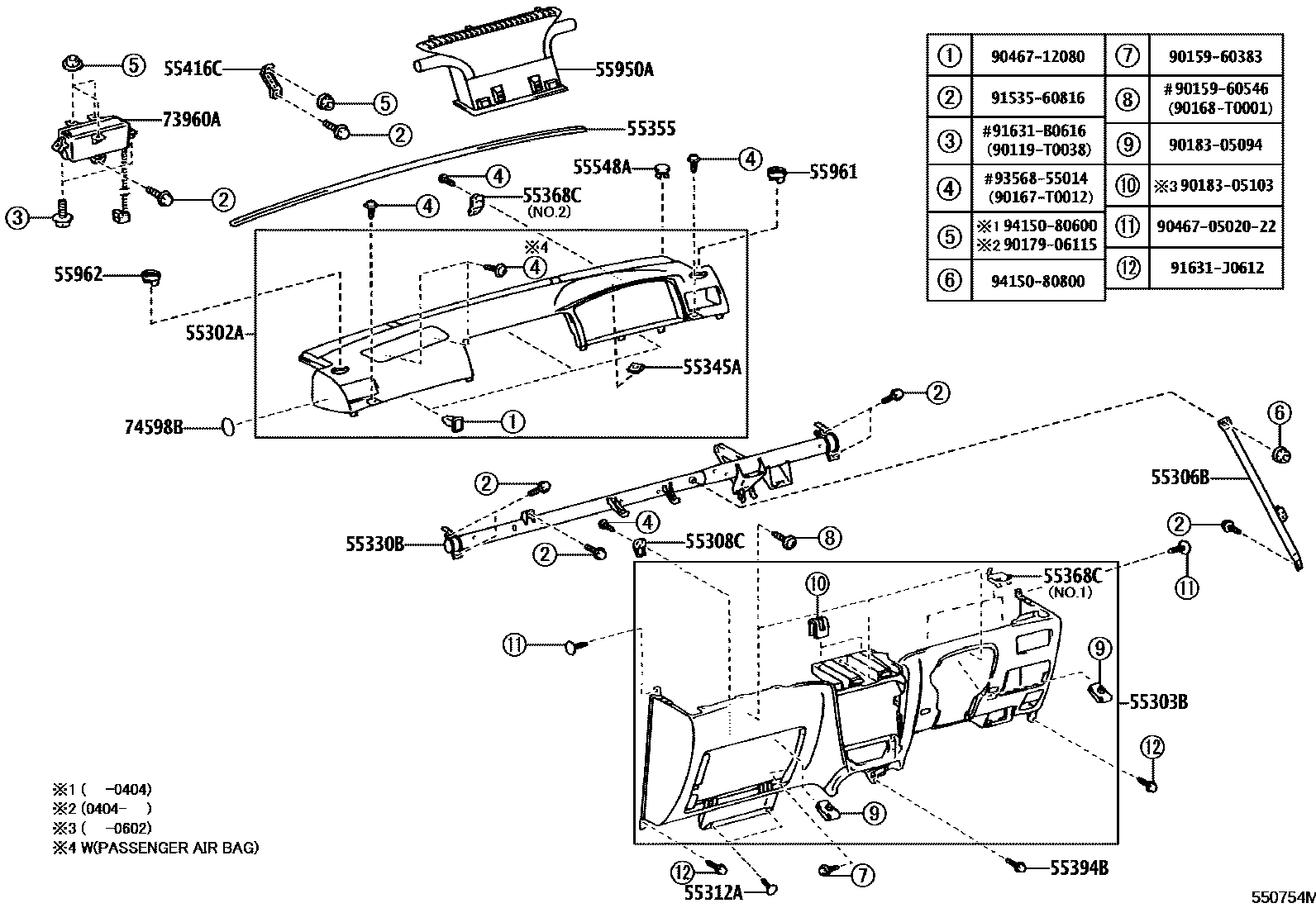

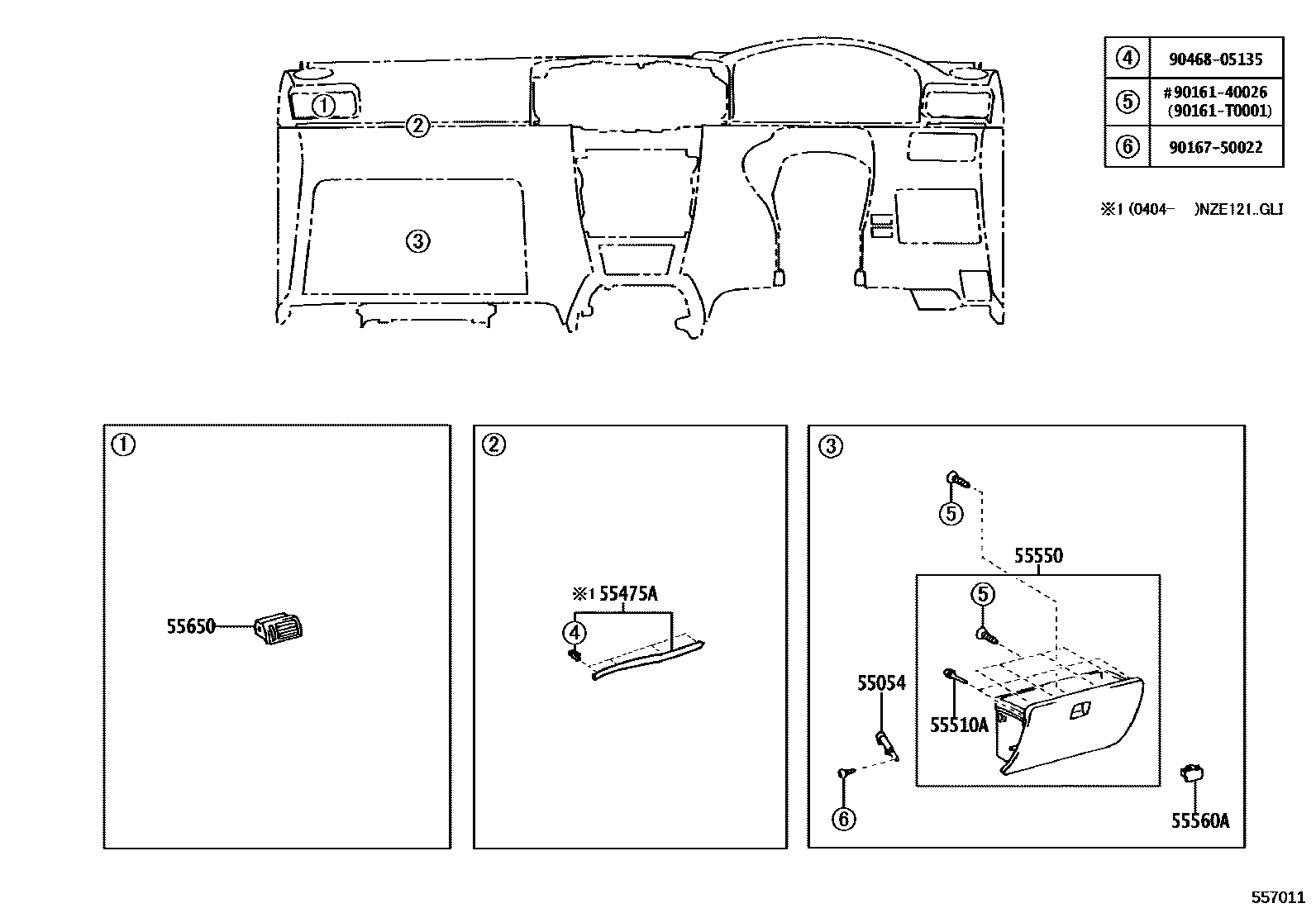

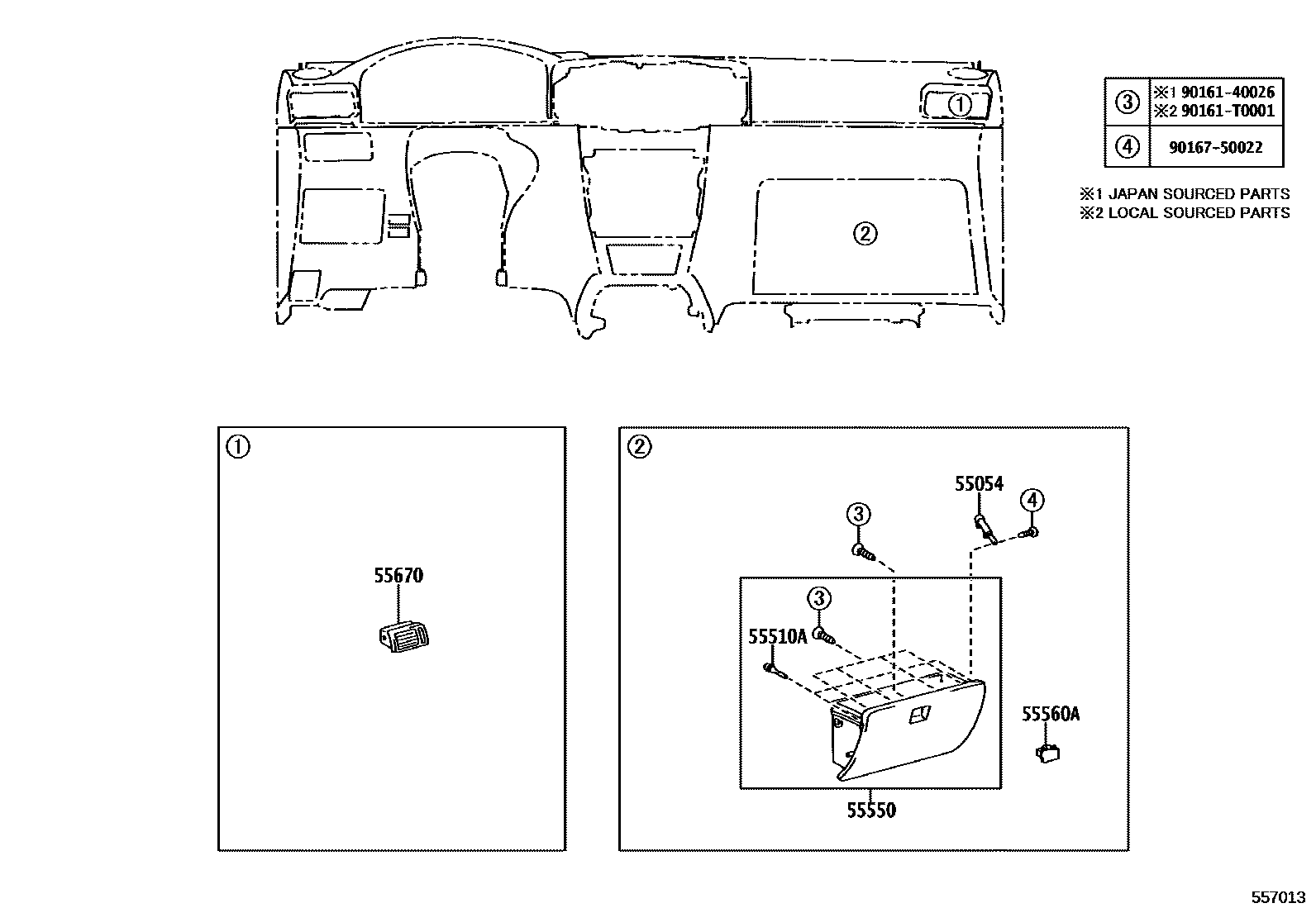

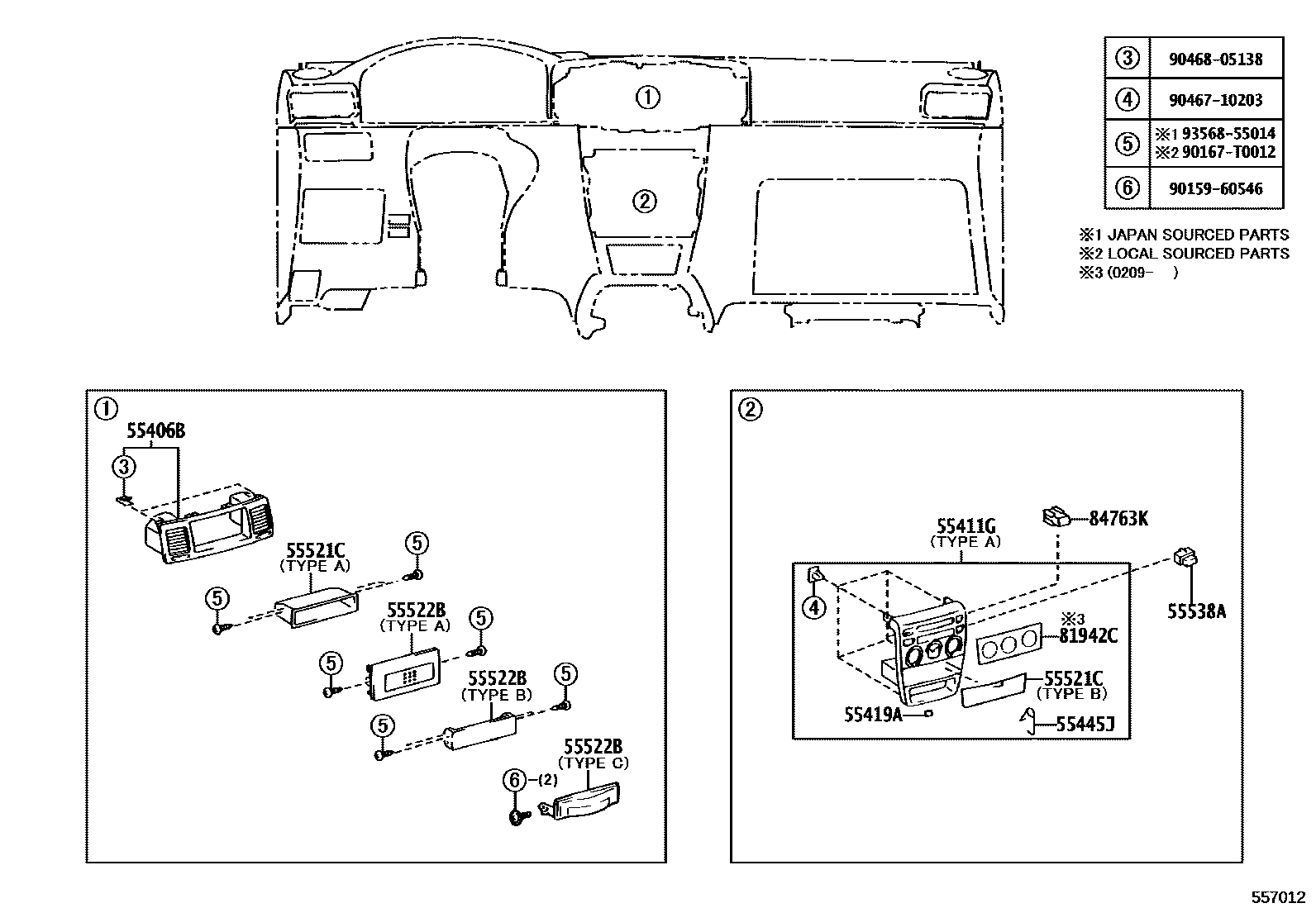

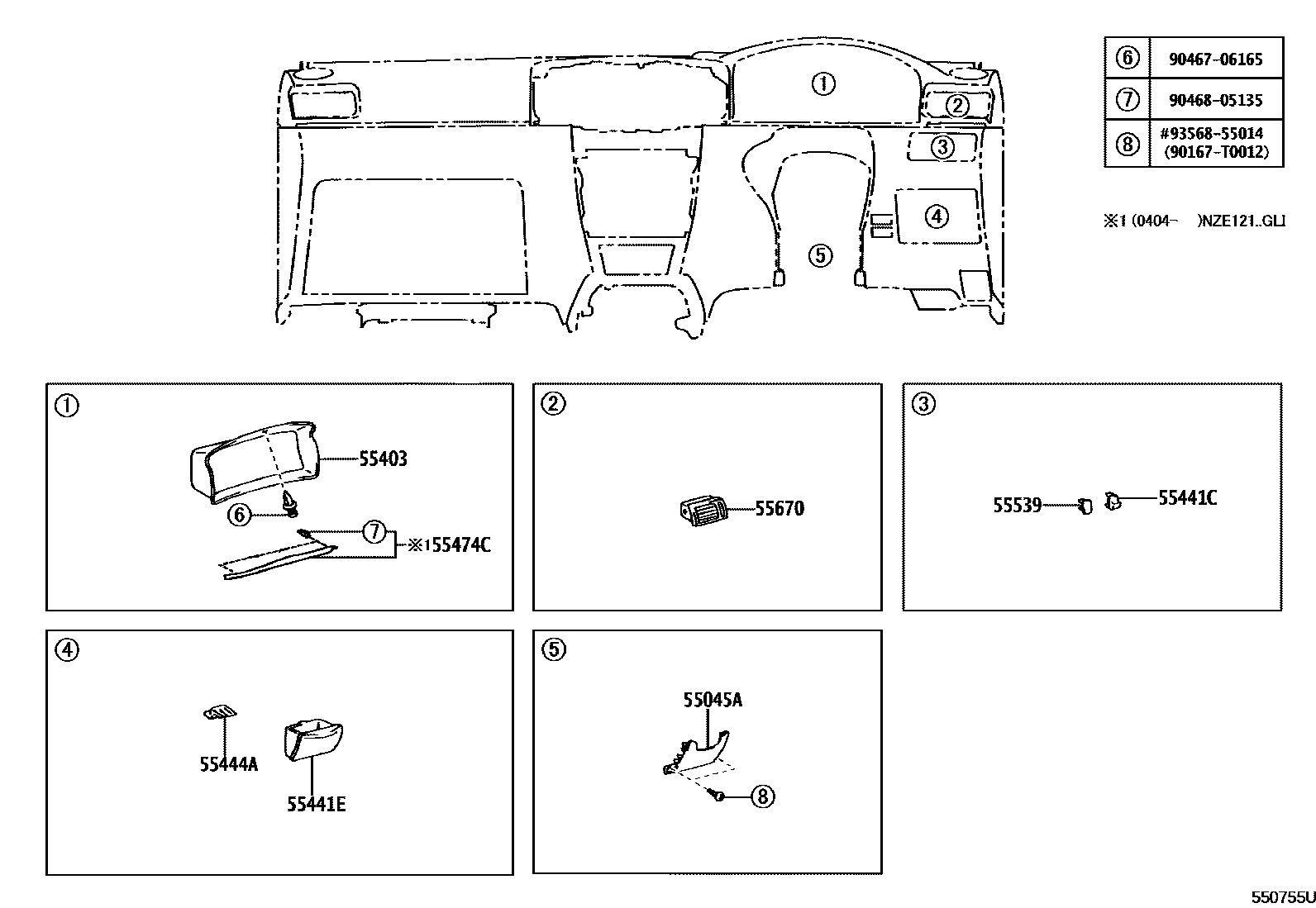

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 8 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-12010 |
| 55306B | Dashboard to cowl bracket sub-assembly | 55306-02090 · 55306-12270 · 55306-12310 · 55306-12320 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-02080 · 55308-12280 |
| 55330B | Instrument panel reinforcement assembly | 55330-02100 · 55330-02150 · 55330-12350 · 55330-12351 · 55330-12390 · 55330-12400 · 55330-12490 · 55330-12500 · 55330-12501 · 55330-12510 · 55330-12511 · 55330-12740 |
| 55343B | Center bracket (dashboard to cowl) | 55343-12060 |
| 55345A | Dashboard Clip No. 1 | 55345-12060 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-02070 · 55355-52012 |
| 55368C | Instrument mounting bracket | 55362-12050 · 55368-02070 · 55368-12090 · 55368-12100 |
| 55394B | Dashboard bolts | 55394-12010 · 55394-12020 |
| 55403 | Instrument cover sub-assembly | 55403-02030 · 55403-12030 · 55403-12040 · 55403-12050 |
| 55411G | Instrument cluster No. 1 decorative panel | 55420-12310 |
| 55416C | Instrument cluster decorative panel fixings | 55416-12030 |
| 55419A | Instrument cluster decorative panel cushion | 55419-32020 |
| 55444A | Dashboard storage box spring | 55444-12080 |
| 55445J | Dashboard storage box spring | 55445-12110 |
| 55474C | Instrument cluster No. 1 decorative panel decorative parts | 55474-12160 |
| 55475A | Instrument cluster No. 2 decorative panel decorative parts | 55475-12040 |
| 55510A | Cushion (for glovebox lid) | 90541-04002 · 90541-05020 |
| 55521C | stereo system hole cover | 55520-12040 · 55520-12050 · 55521-0A010 · 55521-16030 |
| 55522B | Radio tuner opening cover | 55522-12180 · 55522-52010 · 55522-52020 |
| 55538A | Cooler switch hole cover | 55538-12090 · 55538-12100 |
| 55950A | Defroster nozzle assembly | 55950-02030 · 55950-12240 · 55950-12250 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-12030 · 73960-12060 · 73960-12110 |
| 74598B | Passenger air bag warning label | 74598-20010 · 74598-30040 |
| 81942C | Heater control nameplate | 81942-12750 · 81942-12770 |
| 84763K | switch board | 84763-12120 · 84763-12130 |
