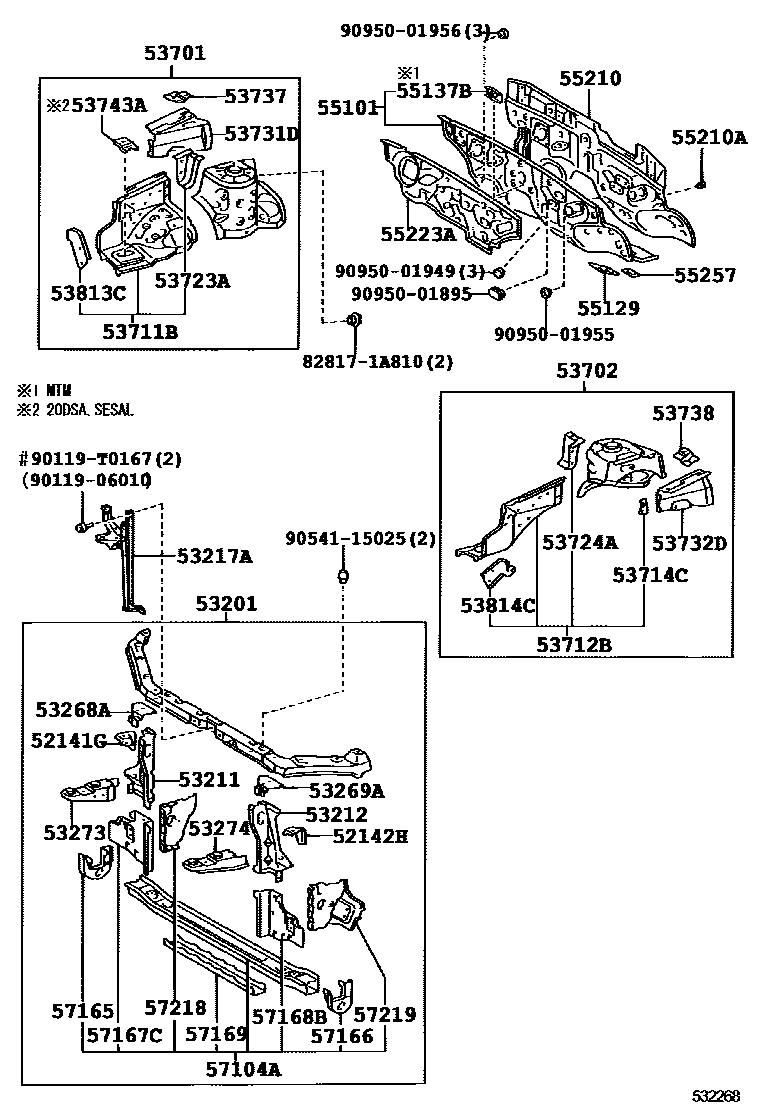

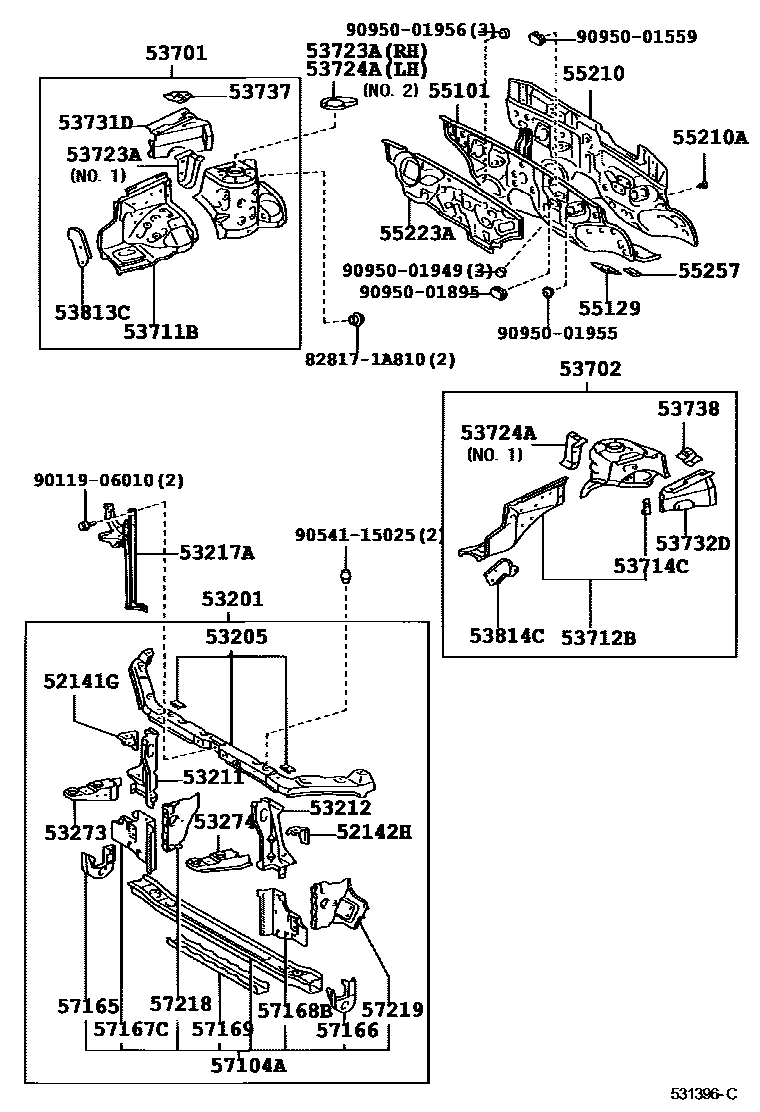

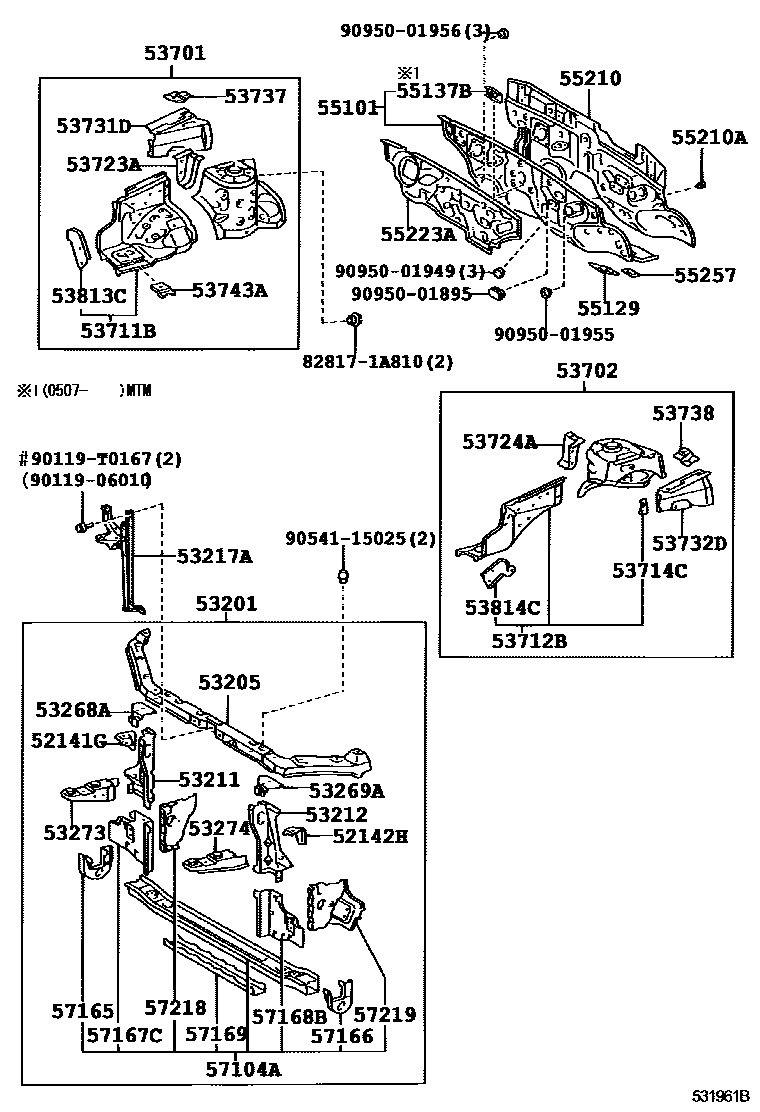

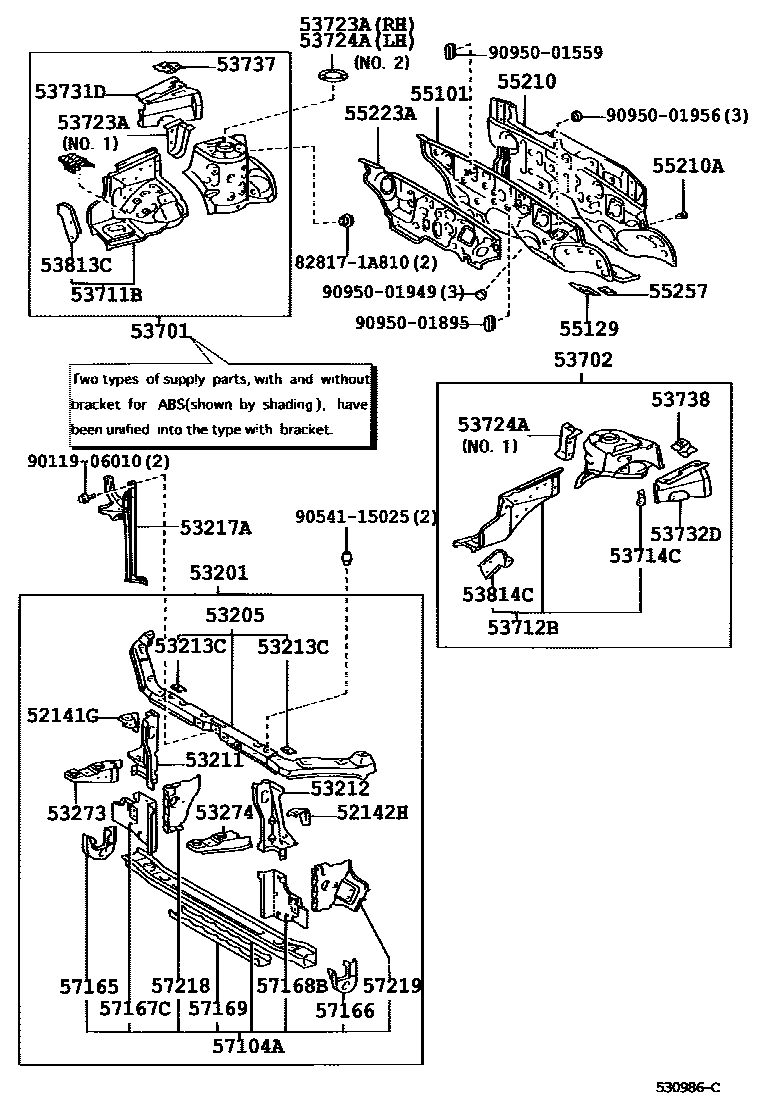

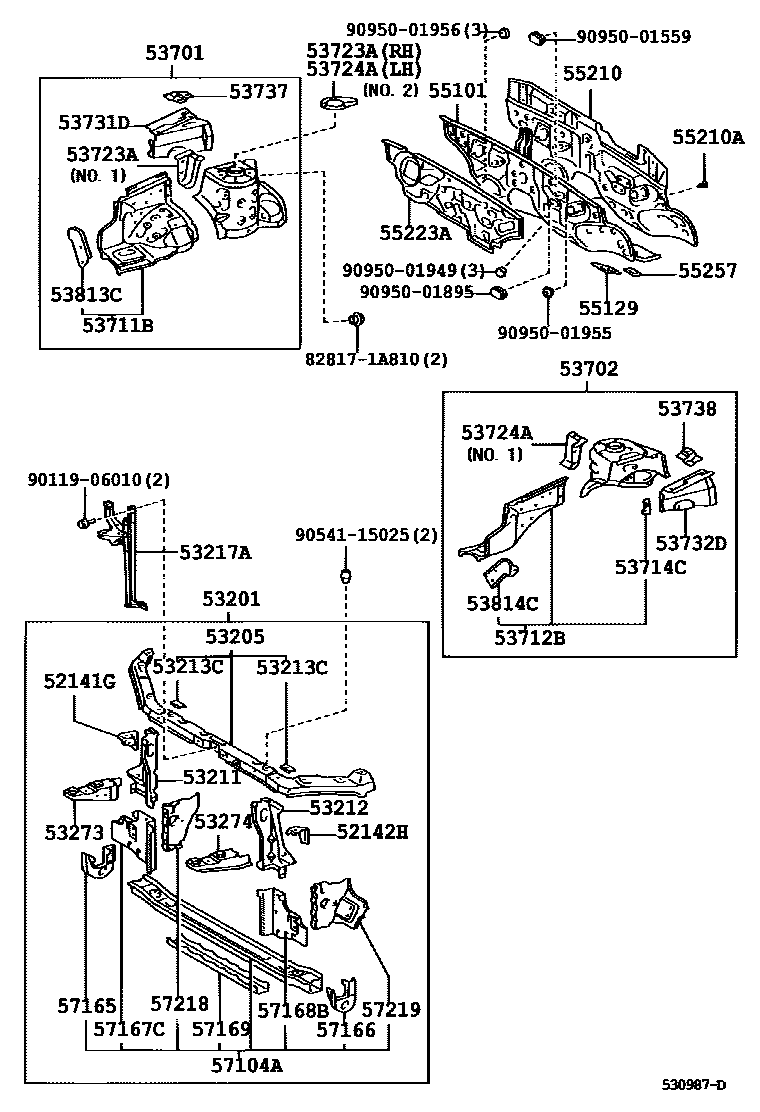

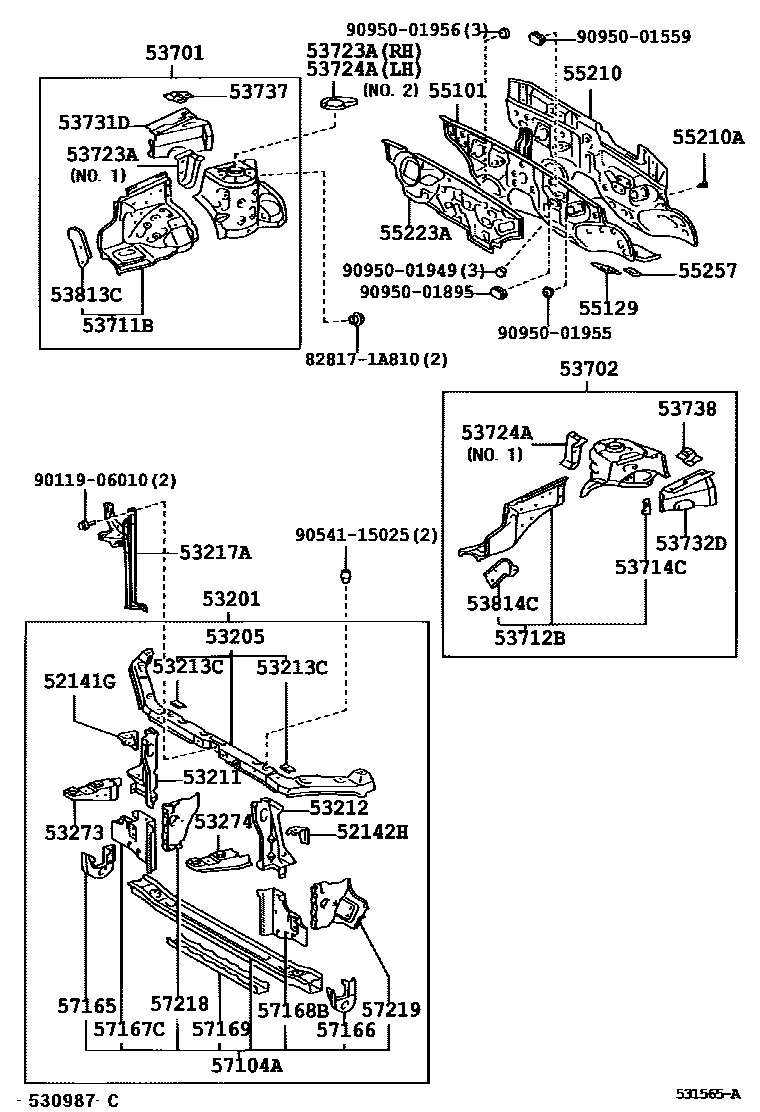

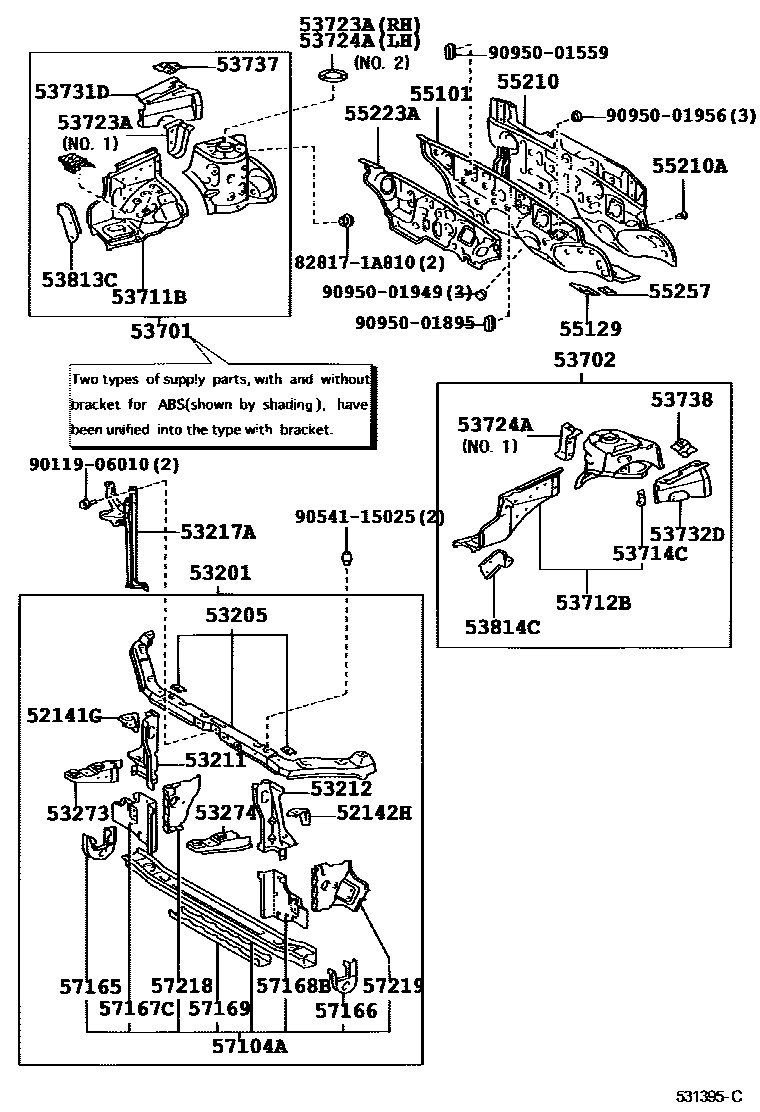

Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304
Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 7 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52141G | Front bumper right side stay | 52141-12480 · 52141-12500 · 52141-12510 |
| 52142H | Front bumper left stay | 52142-12410 · 52142-12430 · 52142-12440 |
| 53201 | Radiator bracket sub-assembly | 53201-12A60 · 53201-12A90 · 53201-1A210 · 53201-1A240 · 53201-1A320 · 53201-1A330 |
| 53205 | Radiator upper bracket sub-assembly | 53205-12200 · 53205-12270 · 53216-02904 · 53216-12935 |
| 53211 | Radiator right side support | 53211-12410 · 53211-12420 |
| 53212 | Radiator left support | 53212-12350 · 53212-12360 |
| 53213C | Radiator front upper bracket | 53213-12110 |
| 53217A | engine cover lock bracket | 53208-12450 · 53208-12500 · 53208-12520 |
| 53268A | Install reinforcement on the right side of the radiator | 53268-12130 |
| 53269A | Install reinforcement on the left side of the radiator | 53269-12110 |
| 53273 | Front bumper arm right mounting bracket | 53273-12030 · 53273-12060 · 53273-12100 |
| 53274 | Front bumper arm left mounting bracket | 53274-12030 · 53274-12060 · 53274-12100 |
| 53701 | Right front fender fender sub-assembly | 53701-02200 · 53701-02210 · 53701-02901 · 53701-1A090 · 53701-1A120 · 53701-1A130 |
| 53702 | Left front fender fender sub-assembly | 53702-02160 · 53702-1A060 · 53702-1A080 |
| 53711B | Right front fender front fender | 53711-02901 · 53711-12230 · 53711-12905 · 53711-12909 · 53711-12910 |
| 53712B | Left front fender front fender | 53712-02901 · 53712-02912 · 53712-12190 · 53712-12902 · 53712-12904 · 53712-12907 |
| 53714C | Left front fender fender front extension | 53714-12150 · 53714-13020 |
| 53723A | Front spring bracket right side reinforcement | 53723-02090 · 53723-12080 · 53723-12090 · 53723-12091 |
| 53724A | Front spring bracket left reinforcement | 53723-12090 · 53723-12091 · 53724-02060 · 53724-12070 |
| 53731D | Right front fender to cowl side upper beam | 53731-02080 · 53731-12160 |
| 53732D | Left front fender to cowl side upper beam | 53732-02090 · 53732-12140 |
| 53737 | Right front fender to front wall side sill | 53737-12060 |
| 53738 | Left front fender to front wall side sill | 53738-12030 |
| 53743A | Right front fender fender front reinforcement | 53743-12050 |
| 53813C | Right front fender extension | 53813-12060 · 53813-12070 |
| 53814C | Left front fender extension | 53814-12020 · 53814-12030 |
| 55101 | Front apron sub-assembly | 55101-13290 · 55101-13340 · 55101-13900 · 55101-13901 · 55101-19025 · 55101-19035 · 55101-19045 · 55101-19085 · 55101-19095 · 55101-19105 · 55101-1E840 · 55101-1E851 · 55101-1E905 · 55101-1E906 · 55101-1E907 |
| 55129 | Front panel hole cover | 55129-02050 · 55129-32030 · 55139-02040 · 55139-32010 |
| 55137B | Right front panel beam reinforcement | 55137-12010 |
| 55210 | Front wall insulation pad assembly | 55210-02050 · 55210-12490 · 55210-12491 · 55210-12500 |
| 55223A | Front wall outer heat insulation pad | 55223-02110 · 55223-12090 · 55223-12100 |
| 55257 | cowl opening cover | 55257-32010 |
| 57104A | Front cross member sub-assembly | 57104-12110 · 57104-12120 · 57104-12170 · 57104-12180 · 57104-12190 · 57104-12240 · 57104-12250 · 57104-12260 |
| 57165 | Front cross member lower right reinforcement | 57165-12070 |
| 57166 | Front cross member lower left reinforcement | 57166-12020 |
| 57167C | Front cross member right corner panel | 57167-12110 |
| 57168B | Front cross member left corner panel | 57168-12110 |
| 57169 | Front floor right front bracket | 57169-12020 · 57169-42030 |
| 57218 | No. 1 front longitudinal beam corner plate | 57218-12010 · 57218-12020 · 57218-12030 |
| 57219 | No. 2 front longitudinal beam corner plate | 57219-12010 · 57219-12030 |
