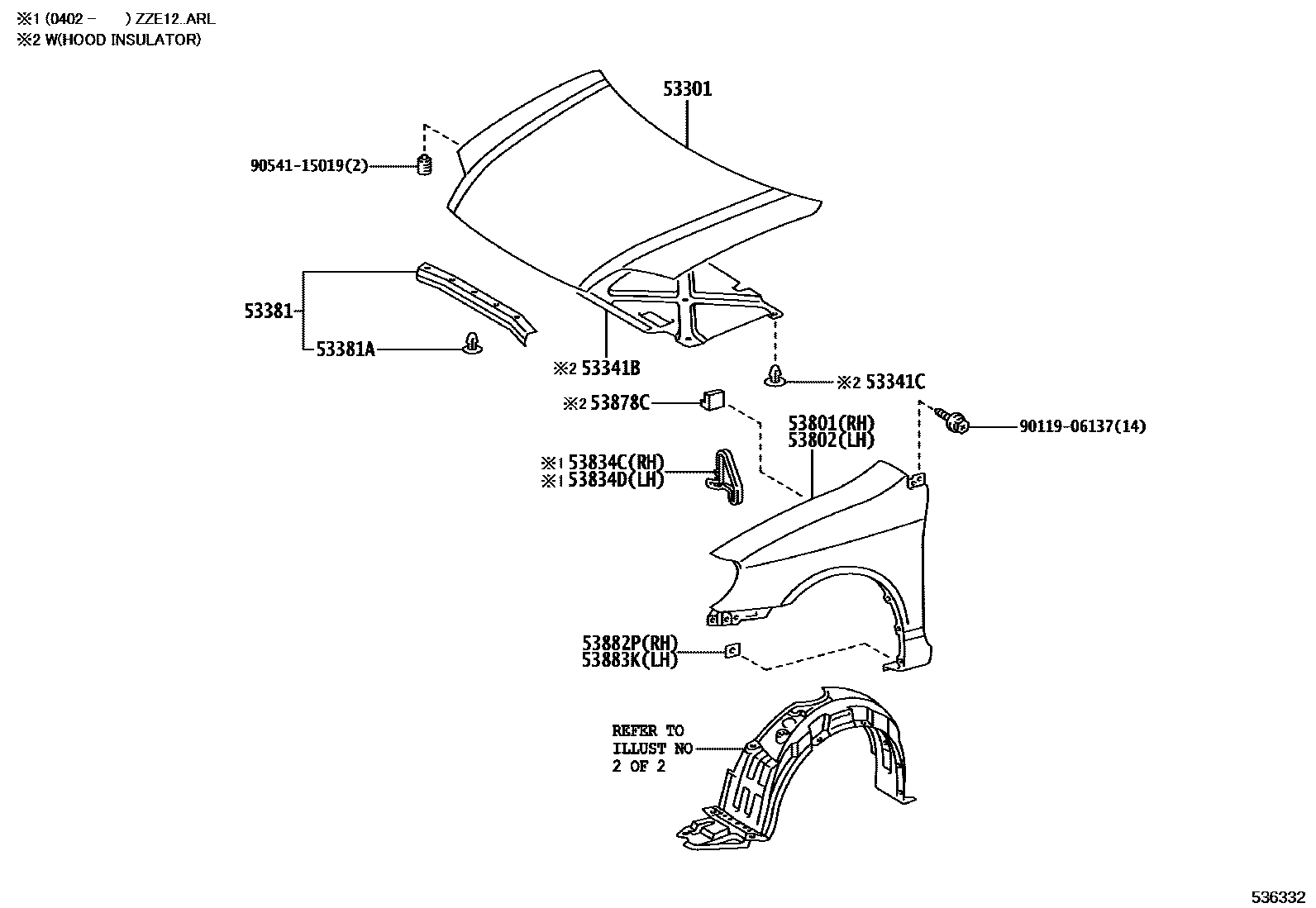

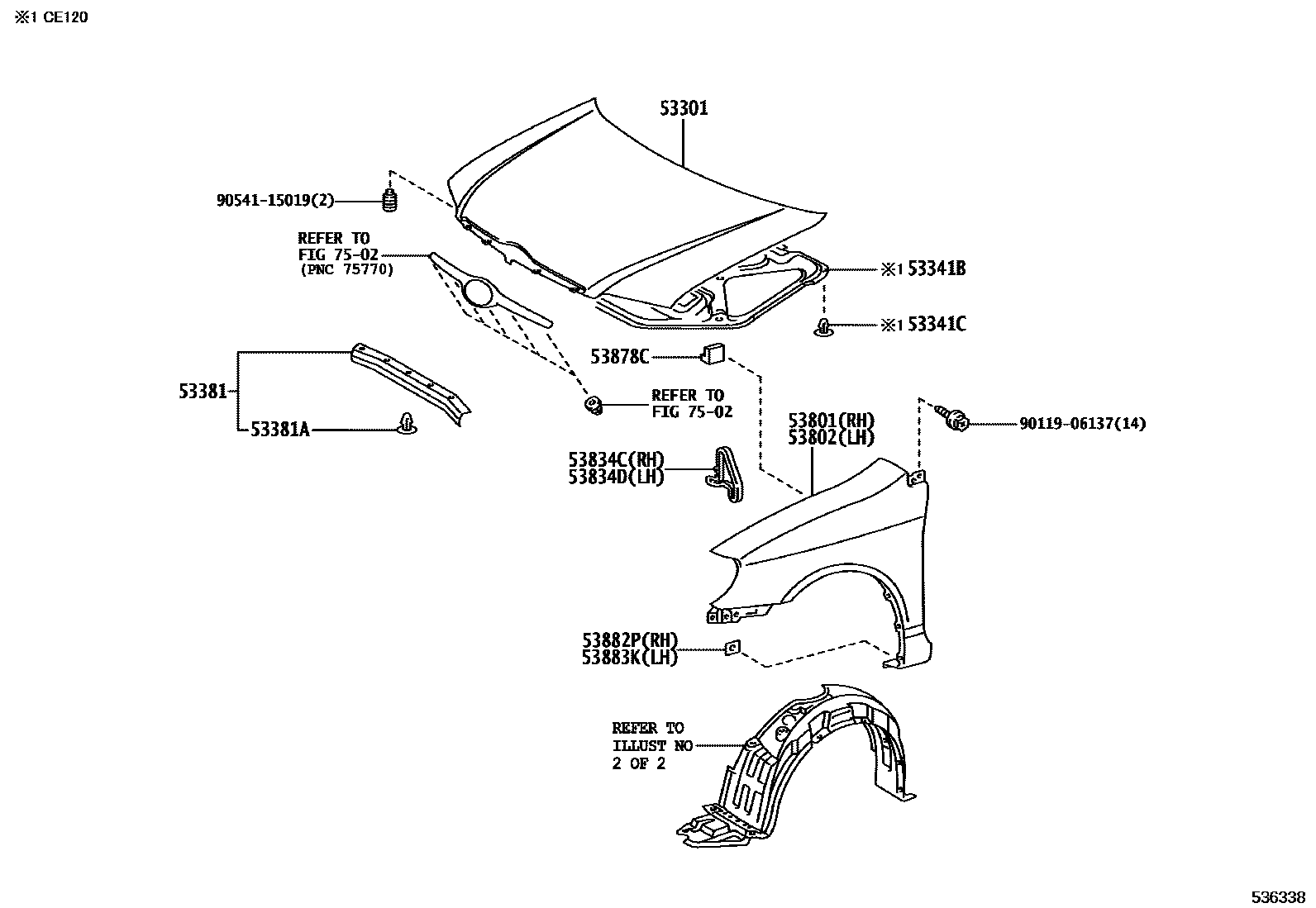

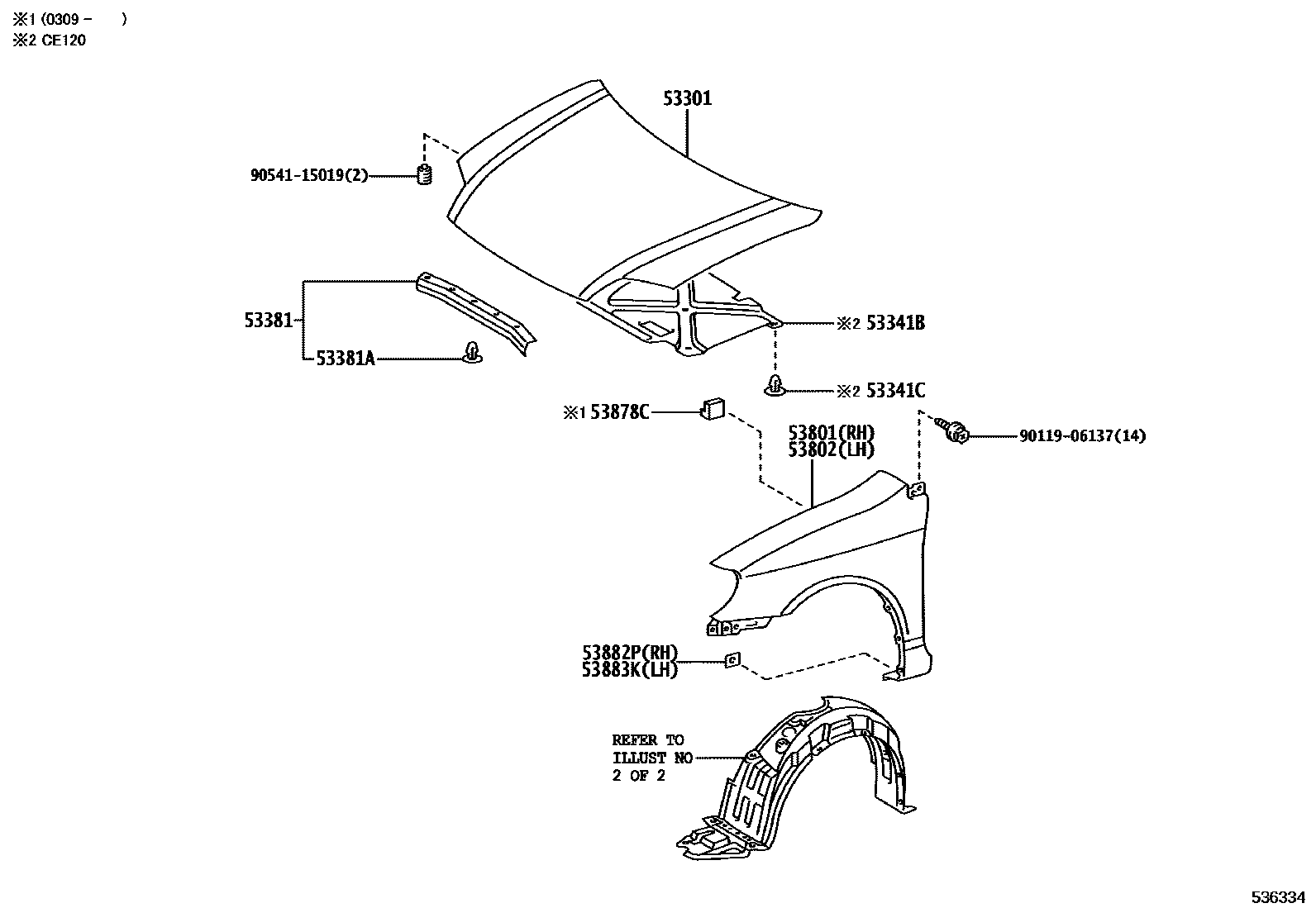

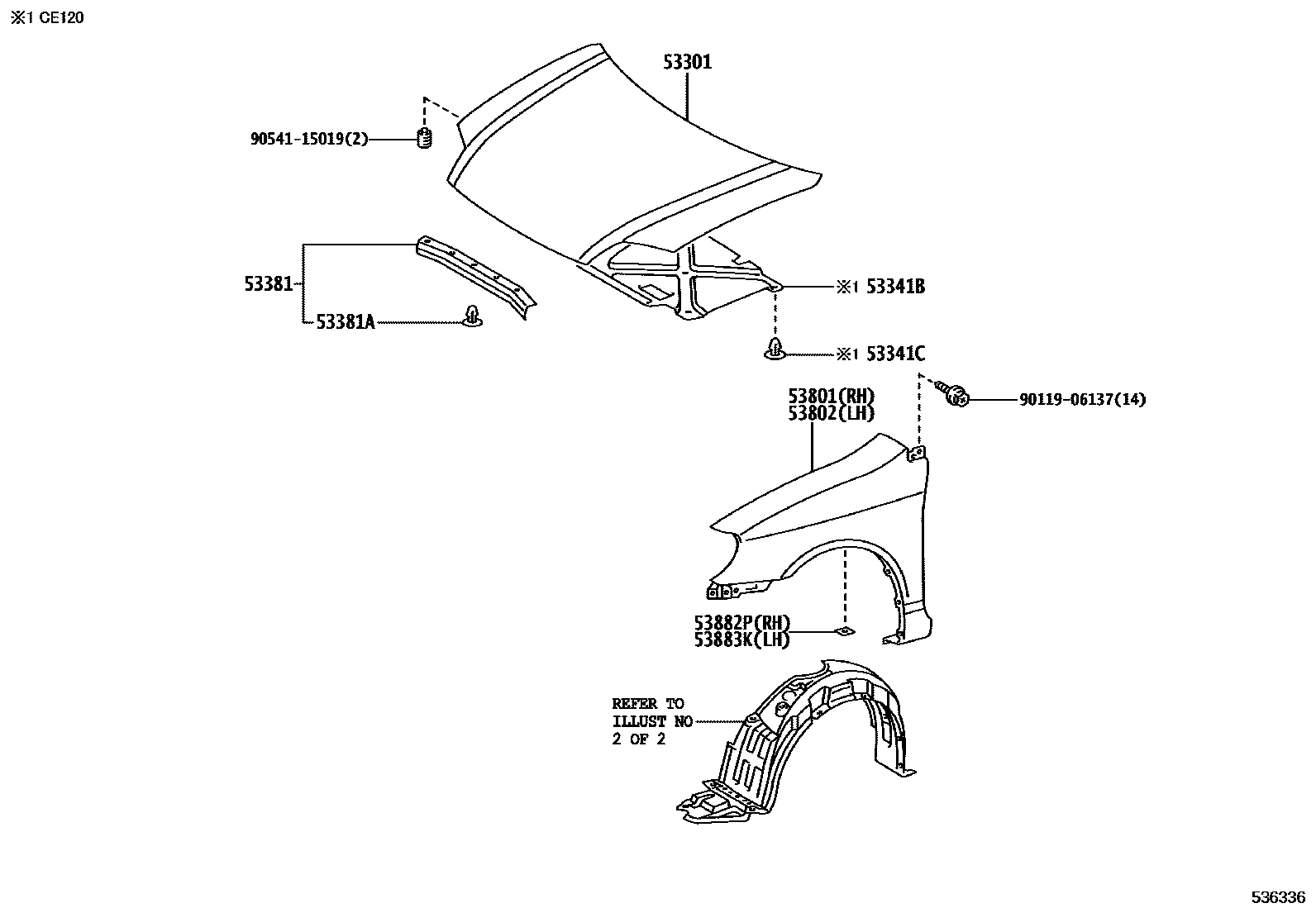

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 8 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-12870 · 53301-12880 · 53301-12A00 |
| 53341B | engine cover gasket | 53341-12140 · 53341-12150 · 53341-12170 · 53341-12200 |
| 53341C | Clip (for engine cover gasket) | 90467-08124 · 90467-09050 |
| 53381 | Engine cover to radiator bracket seal | 53381-02040 · 53381-12180 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53801 | Right front fender sub-assembly | 53811-13130 · 53811-1H100 · 53811-1H120 · 53811-1H140 · 53811-1H170 · 53811-1H190 · 53811-1H210 · 53811-1H220 |
| 53802 | Left front fender sub-assembly | 53812-13120 · 53812-1E870 · 53812-1E890 · 53812-1H020 · 53812-1H050 · 53812-1H070 · 53812-1H090 · 53812-1H100 |
| 53834C | Right front fender support plate | 53834-12120 |
| 53834D | Left front fender support plate | 53834-12120 |
| 53851C | No. 1 front fender outer panel pad | 53851-13010 |

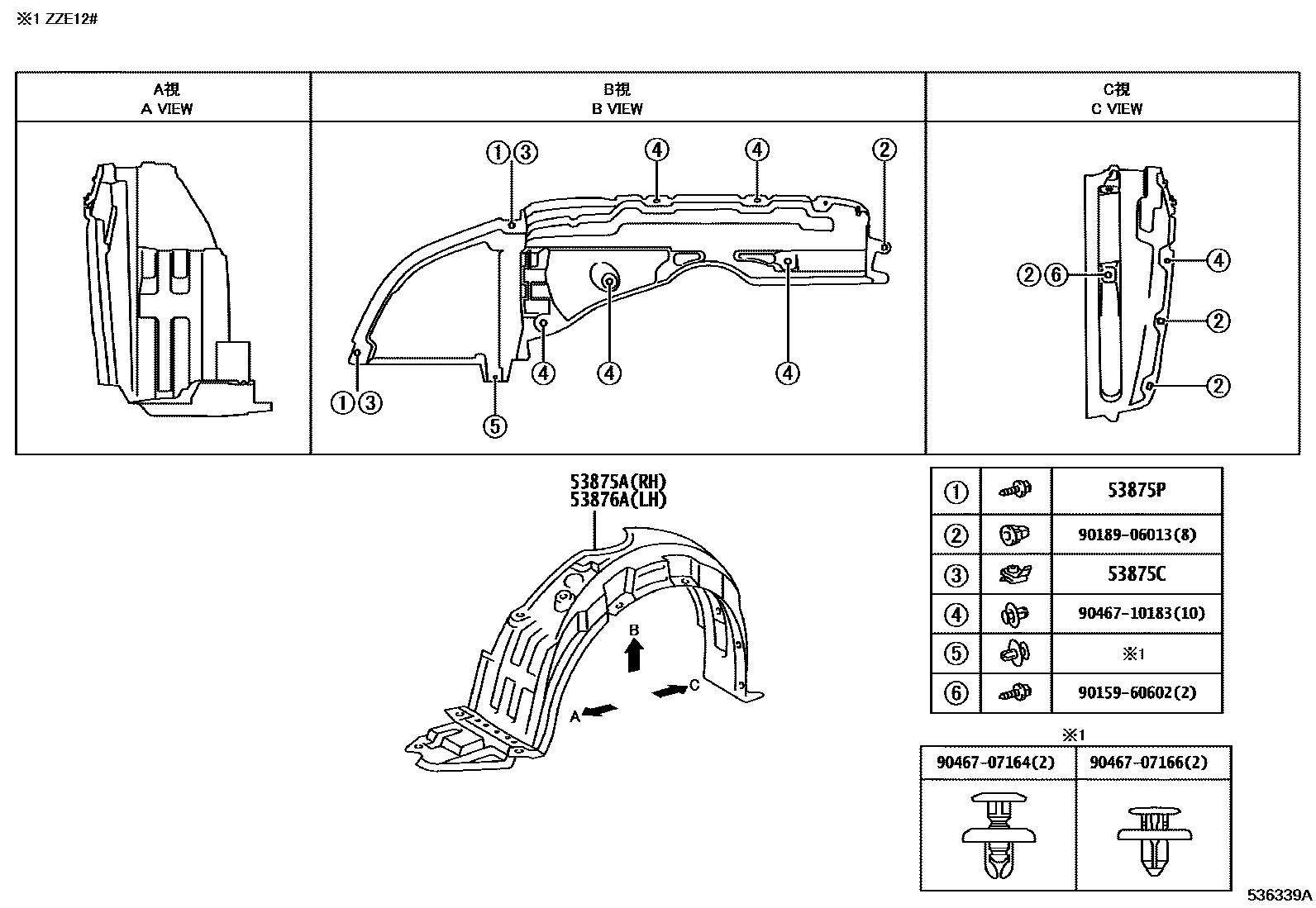

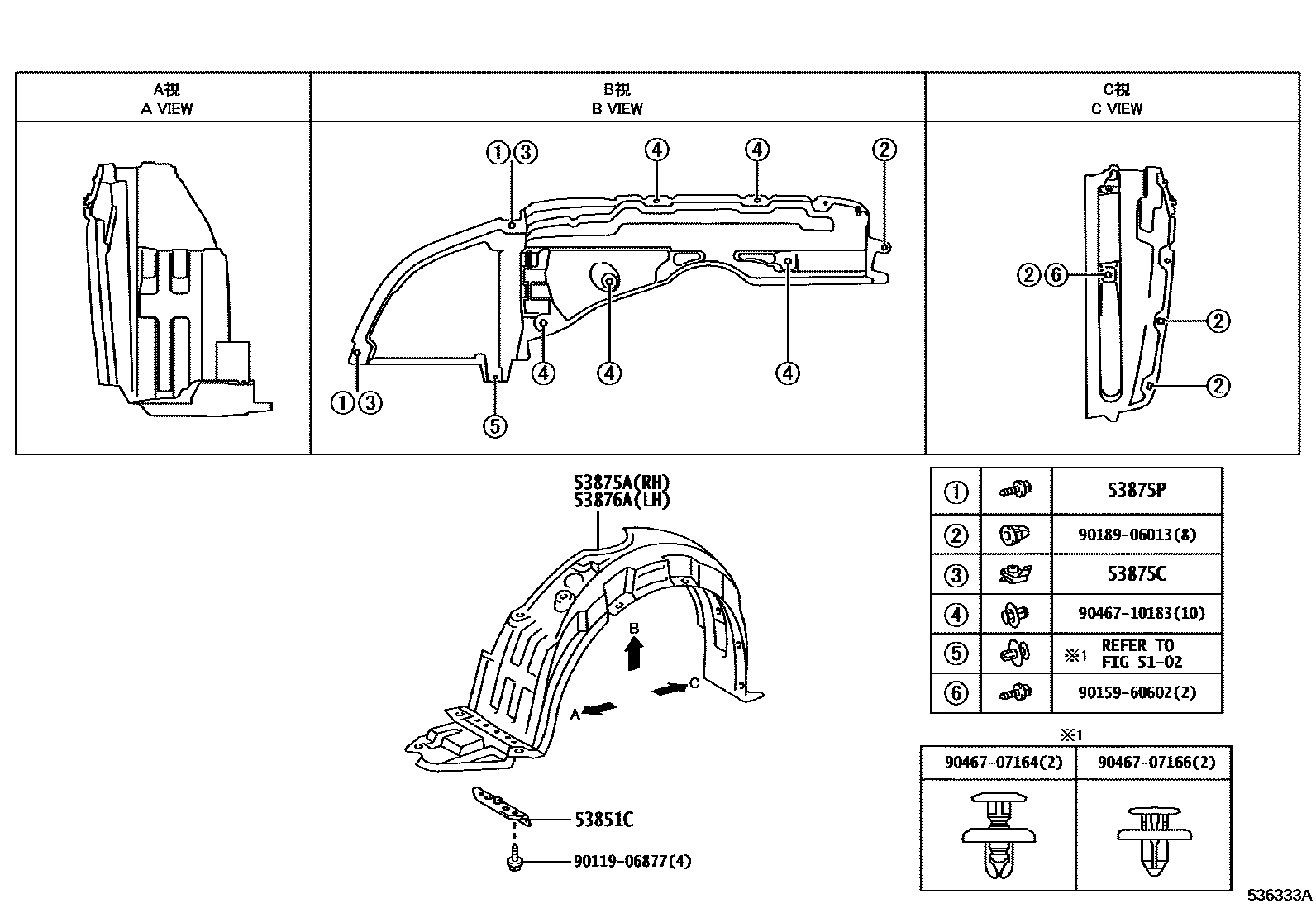

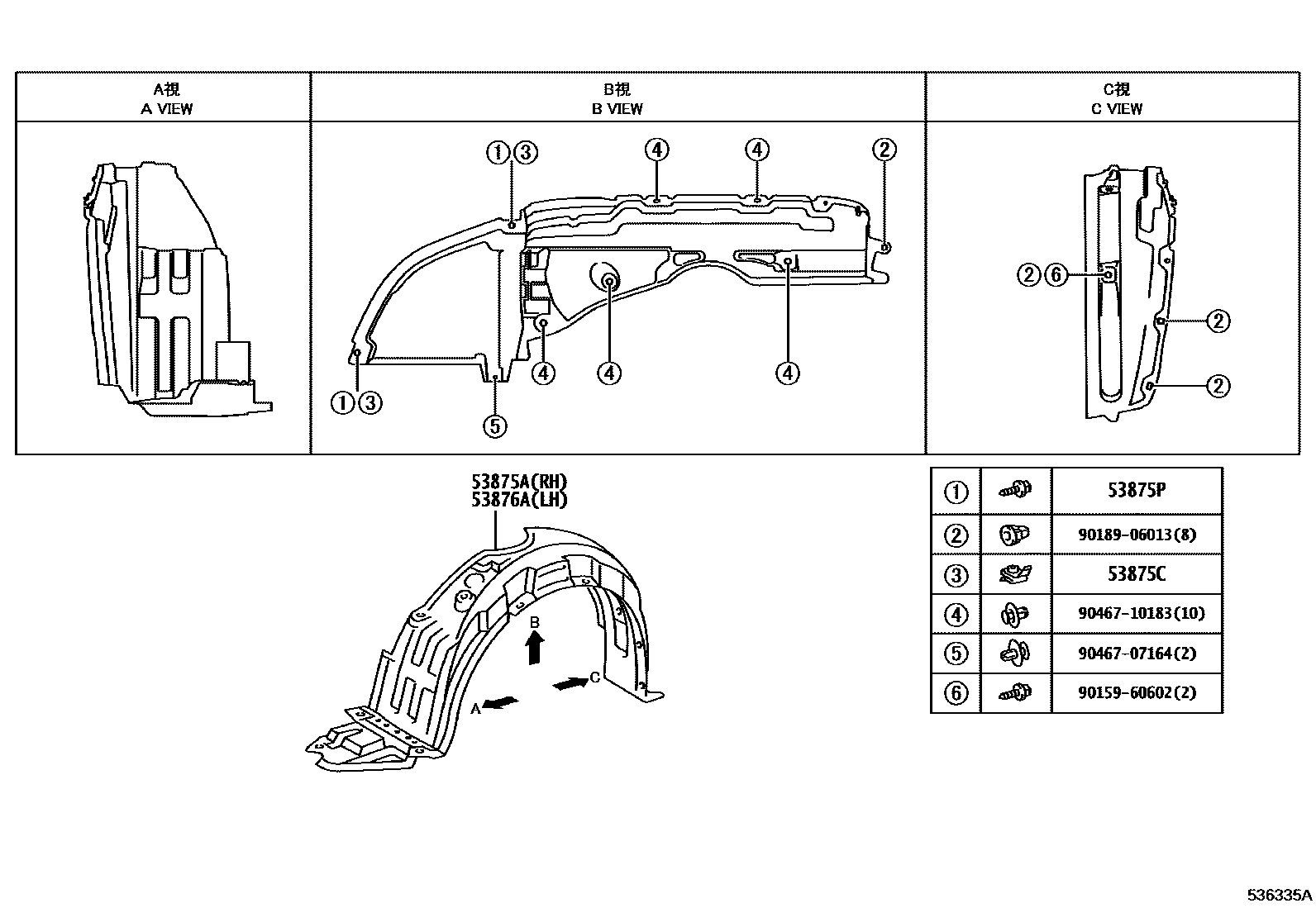

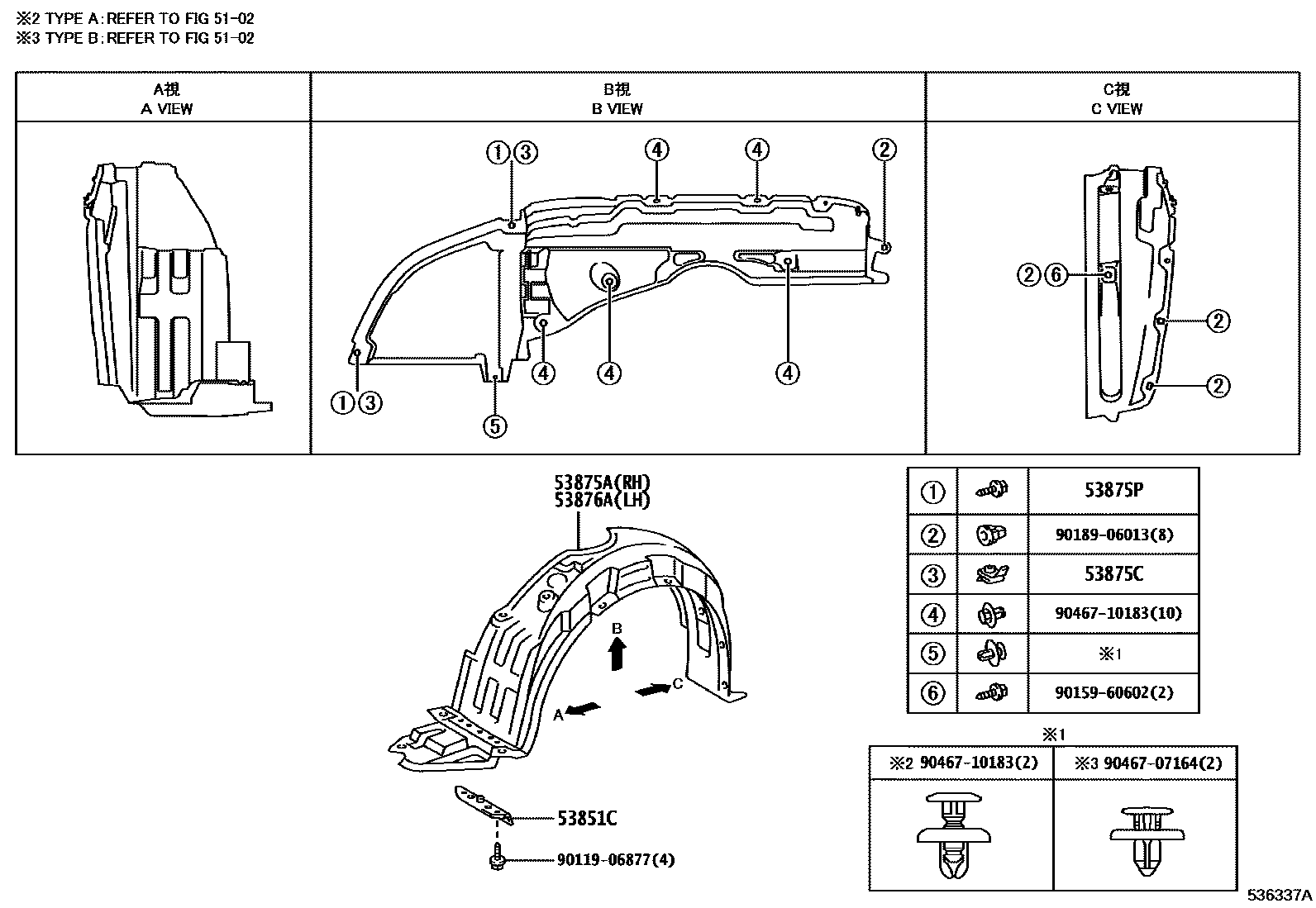

| 53875A | Right front fender lining | 53875-12280 · 53875-12290 · 53875-12310 · 53875-12360 · 53875-12370 · 53875-13040 |
| 53875C | Front fender lining clip | 90467-05138 |
| 53875P | Screw No. 1 | 90159-60488 |
| 53876A | Left front fender lining | 53876-12270 · 53876-12280 · 53876-12300 · 53876-12350 · 53876-12360 · 53876-13040 |
| 53878C | front fender spacer | 53878-12010 |
| 53882P | Right front fender seal | 53882-16030 |
| 53883K | Left front fender seal | 53882-16030 |
