Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 5 images and 3 PNC and OE references.

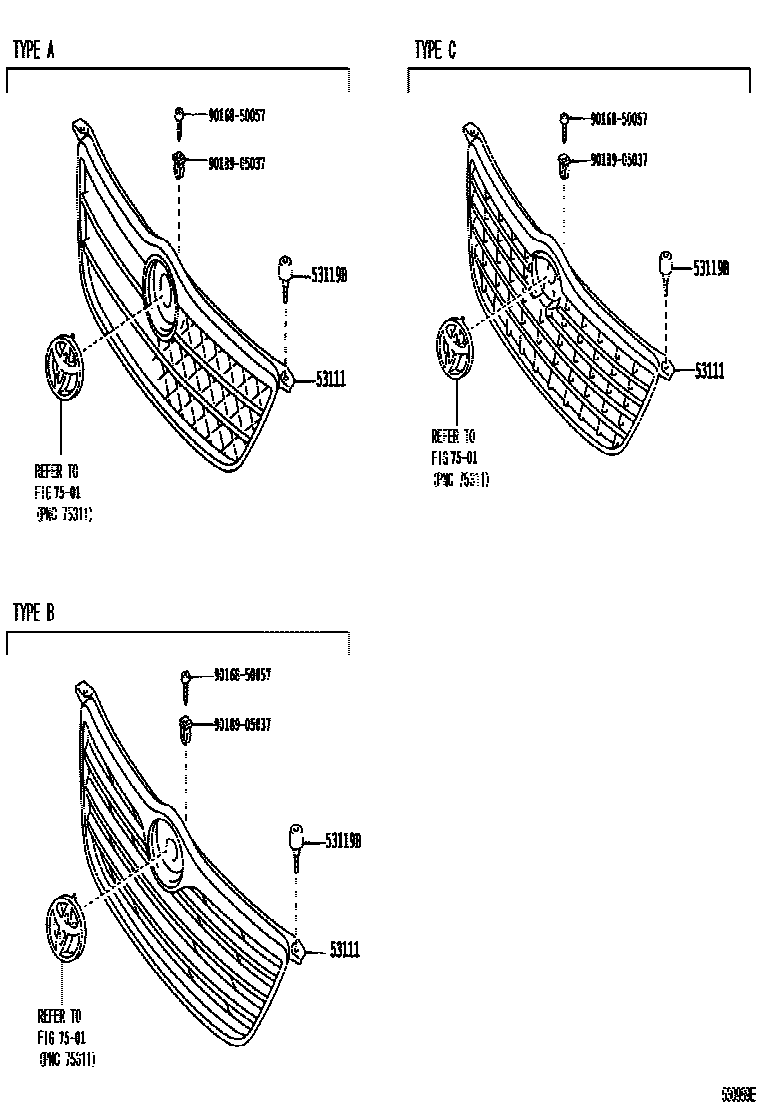

Toyota COROLLA radiator grille EPC diagram — 530989E
radiator grille — 530989E (200008 – 200404)

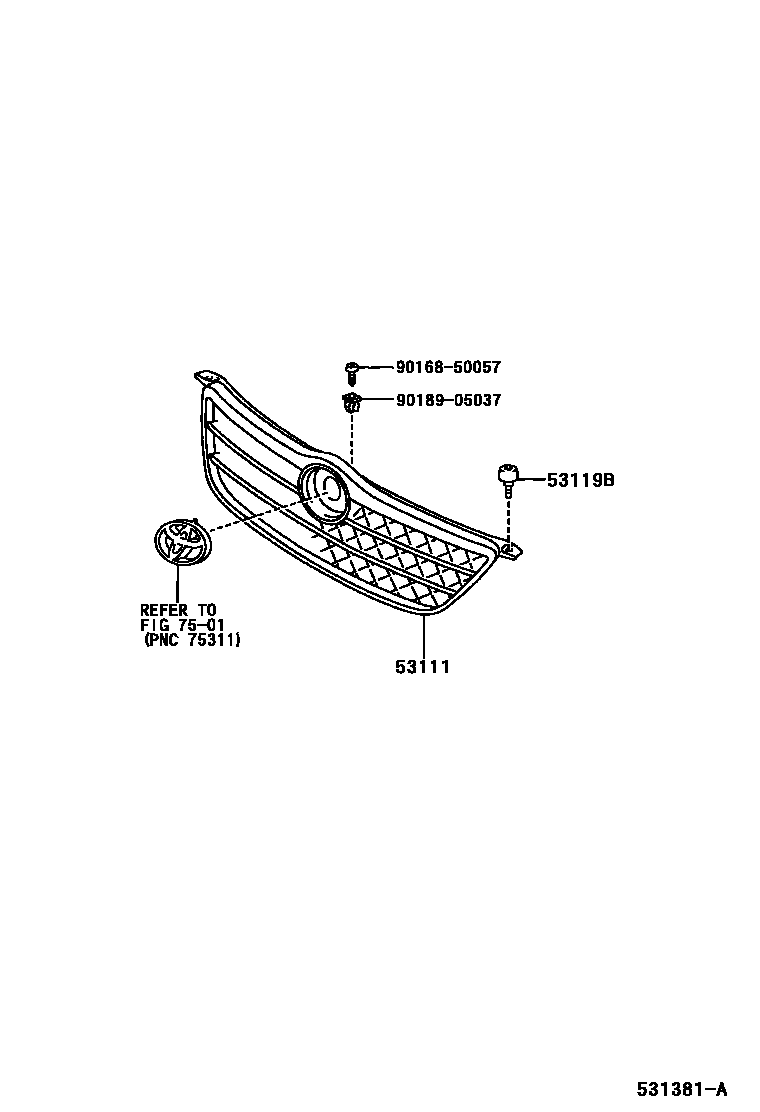

Toyota COROLLA radiator grille EPC diagram — 531381A
radiator grille — 531381A (200110 – 200404)

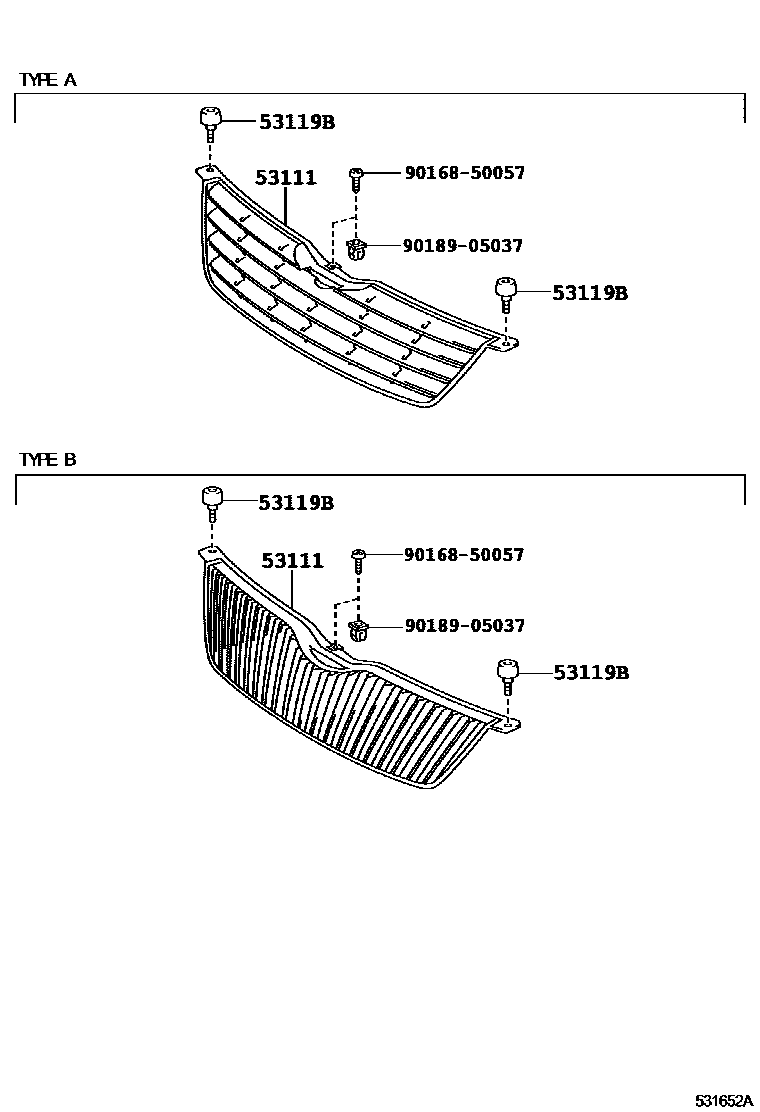

Toyota COROLLA radiator grille EPC diagram — 531652A
radiator grille — 531652A (200404 – 999999)

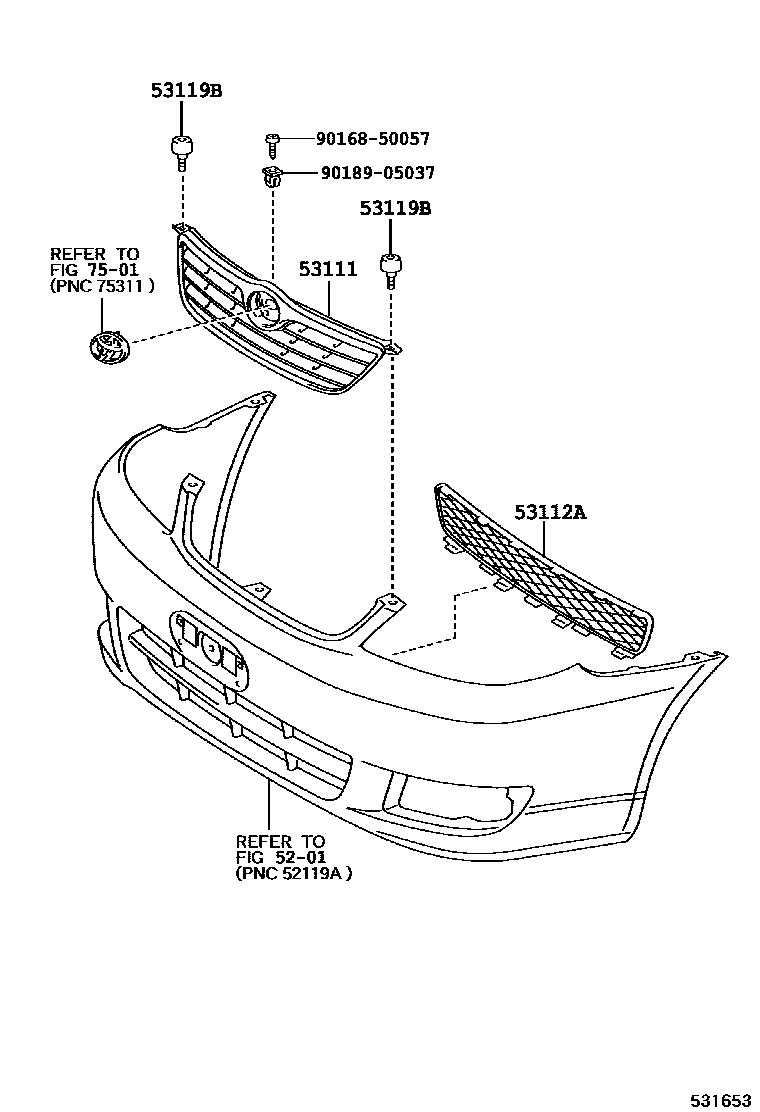

Toyota COROLLA radiator grille EPC diagram — 531653
radiator grille — 531653 (200404 – 999999)

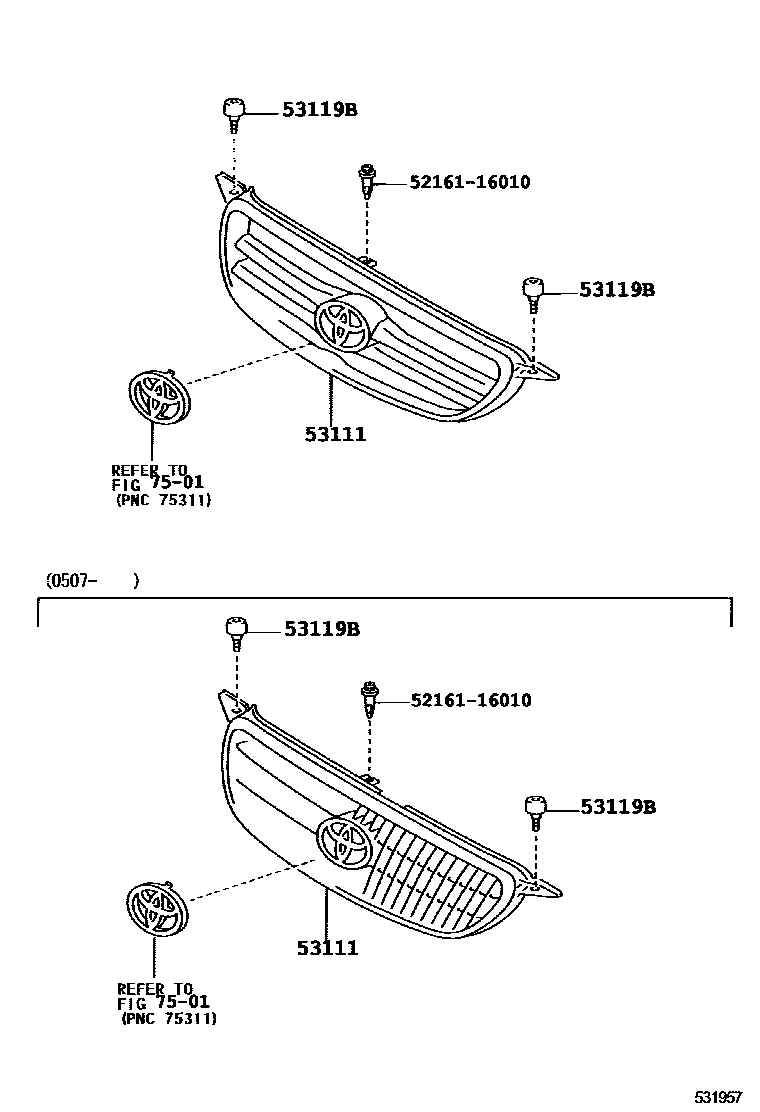

Toyota COROLLA radiator grille EPC diagram — 531957
radiator grille — 531957 (200202 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53111-02120 · 53111-02140 · 53111-12A20 · 53111-12A30 · 53111-12A50 · 53111-1A390 · 53111-1A450 · 53111-1A500 · 53111-1A510 · 53111-1A902 · 53111-1A903
53112ALower radiator grille53112-02050
53119BRadiator grille protector53119-12150
