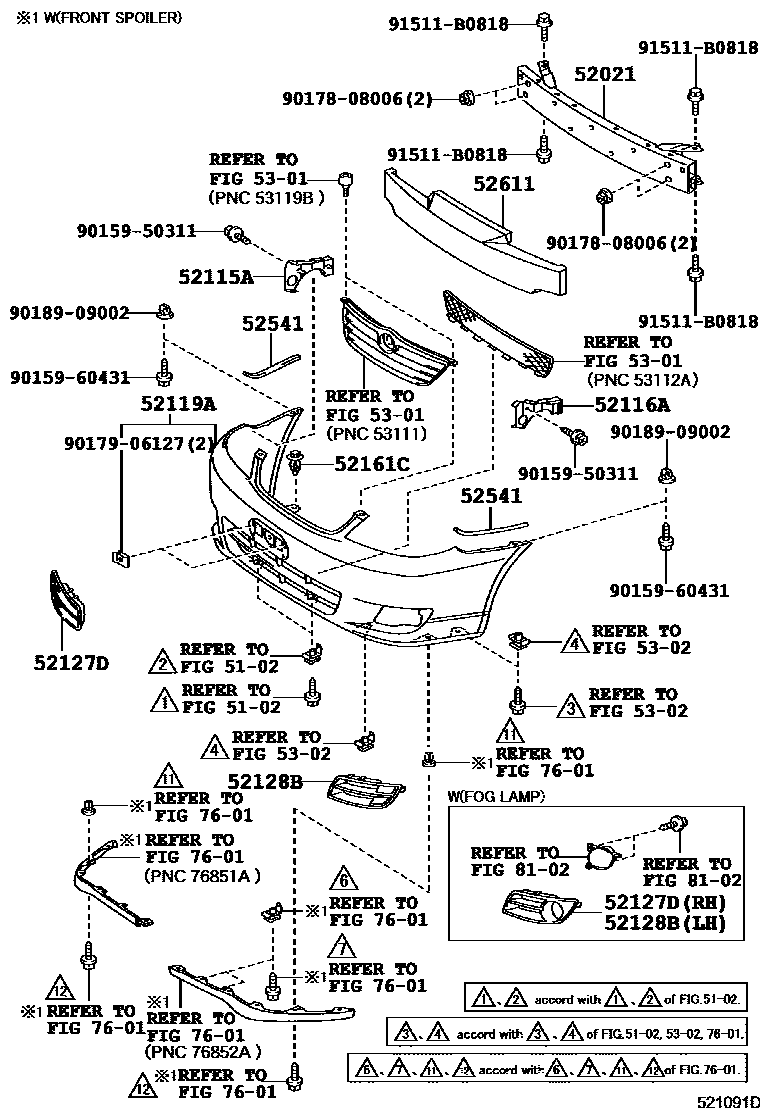

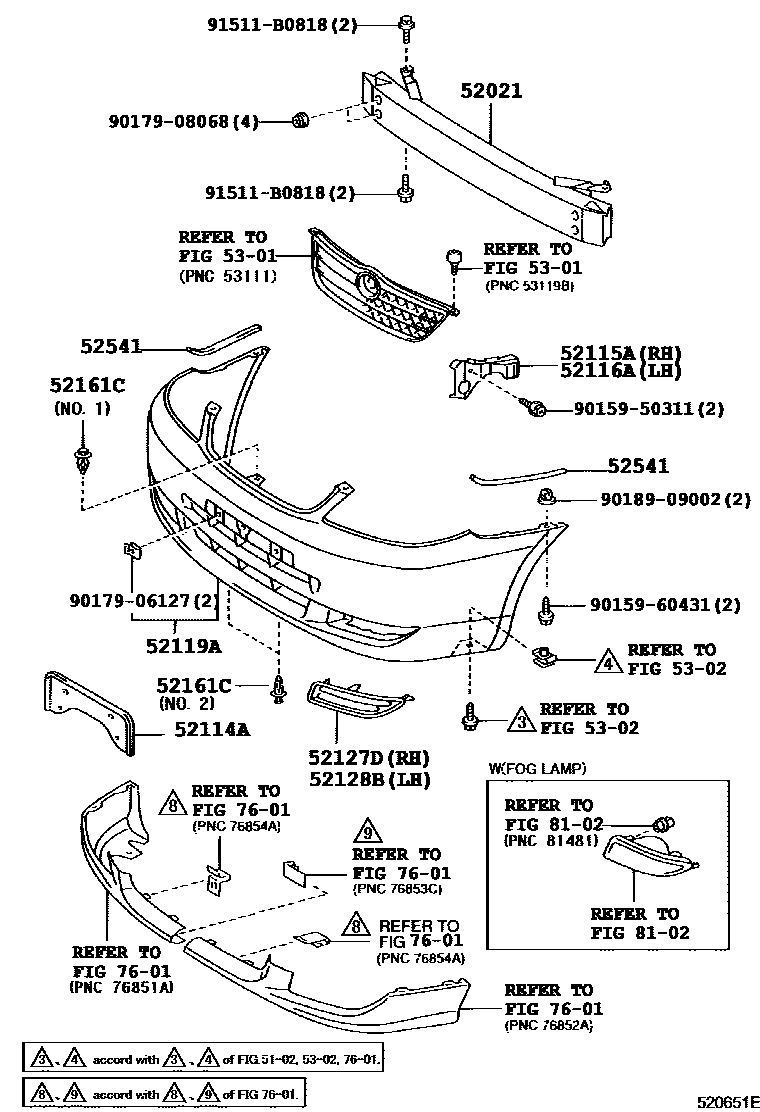

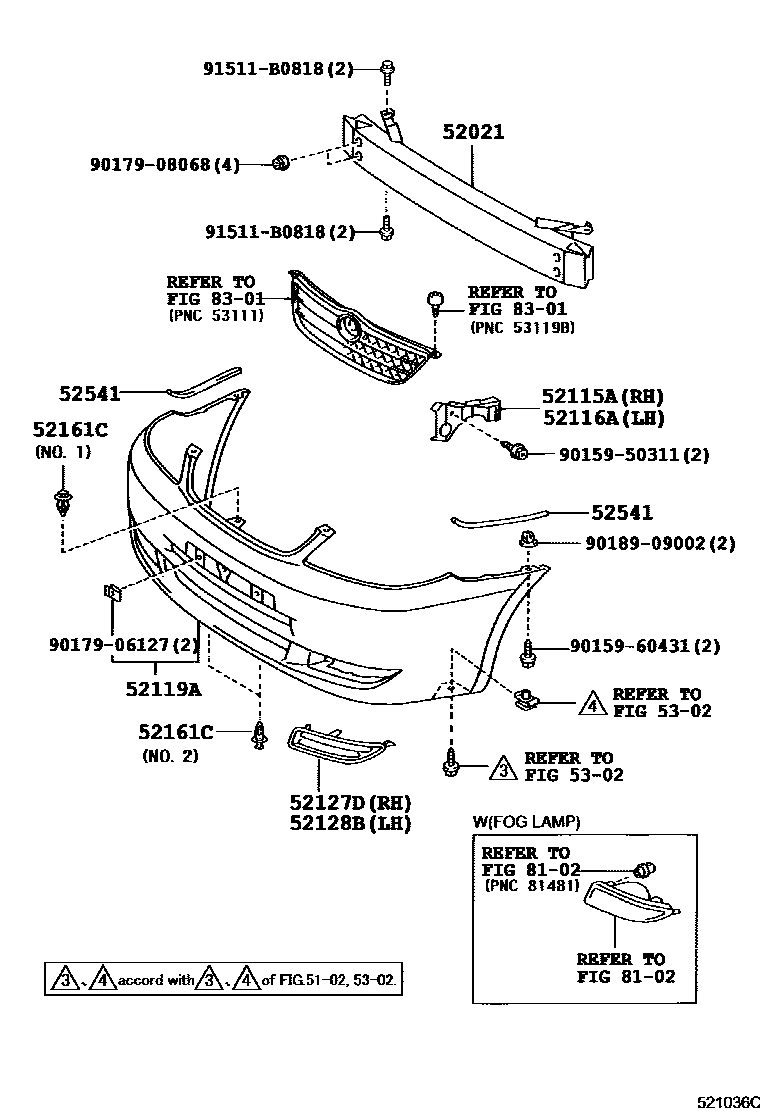

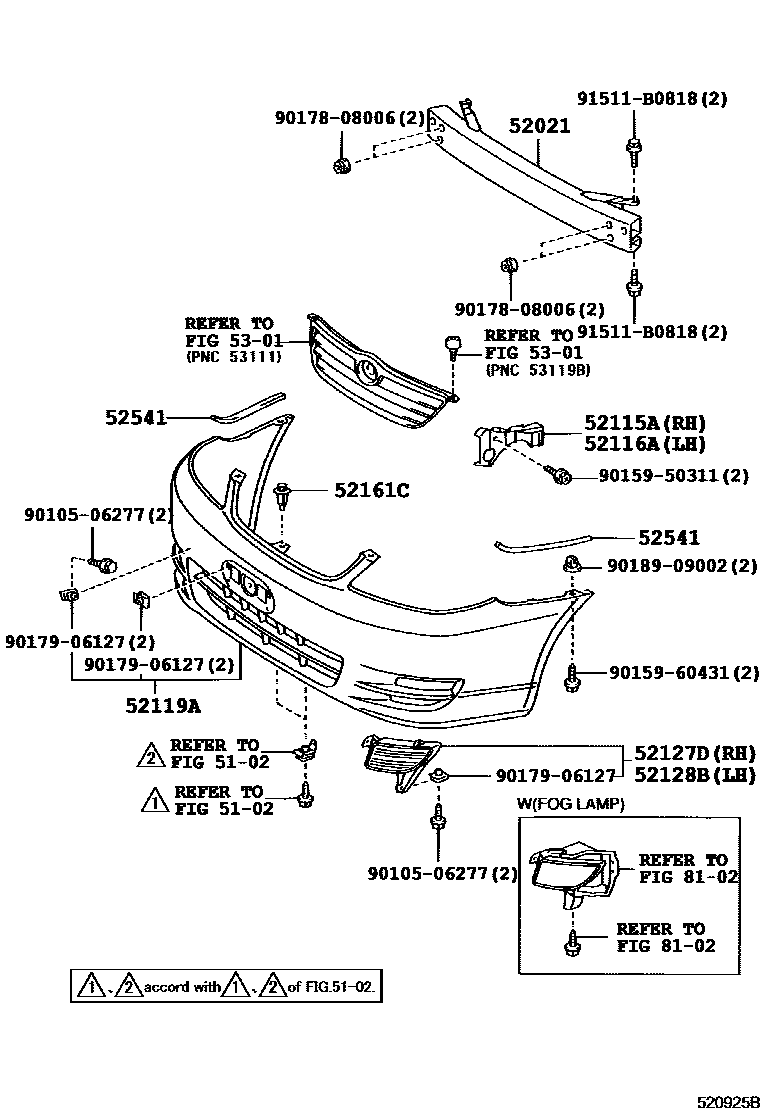

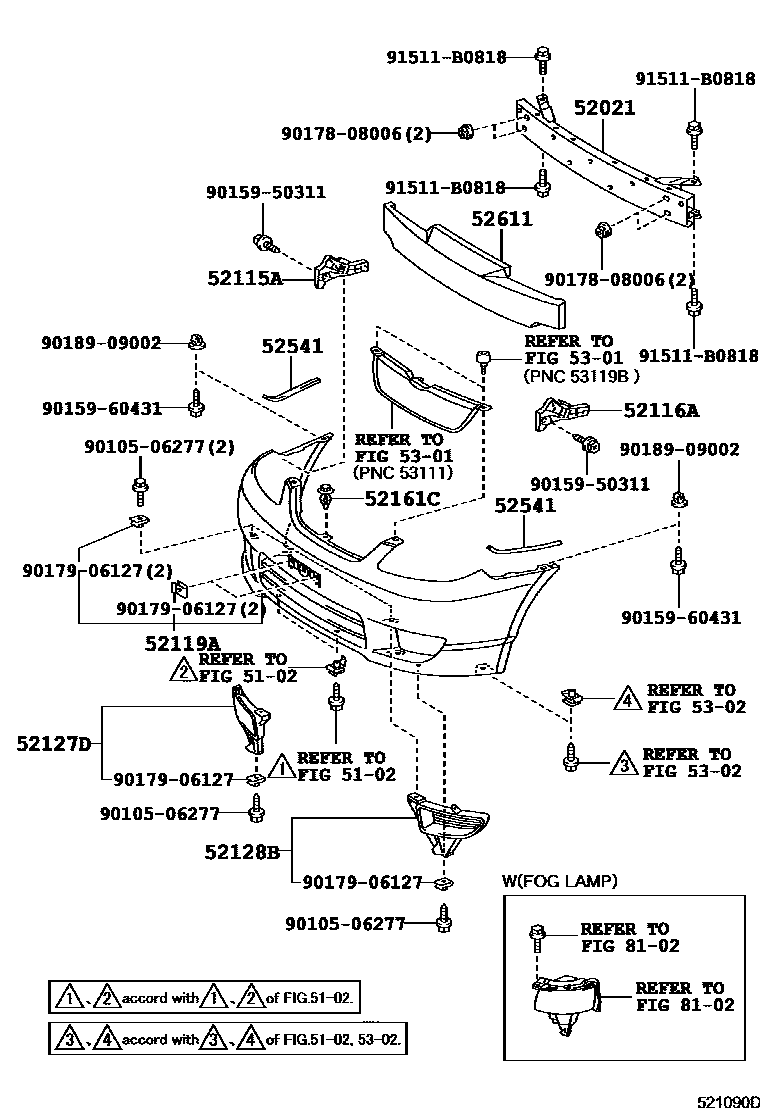

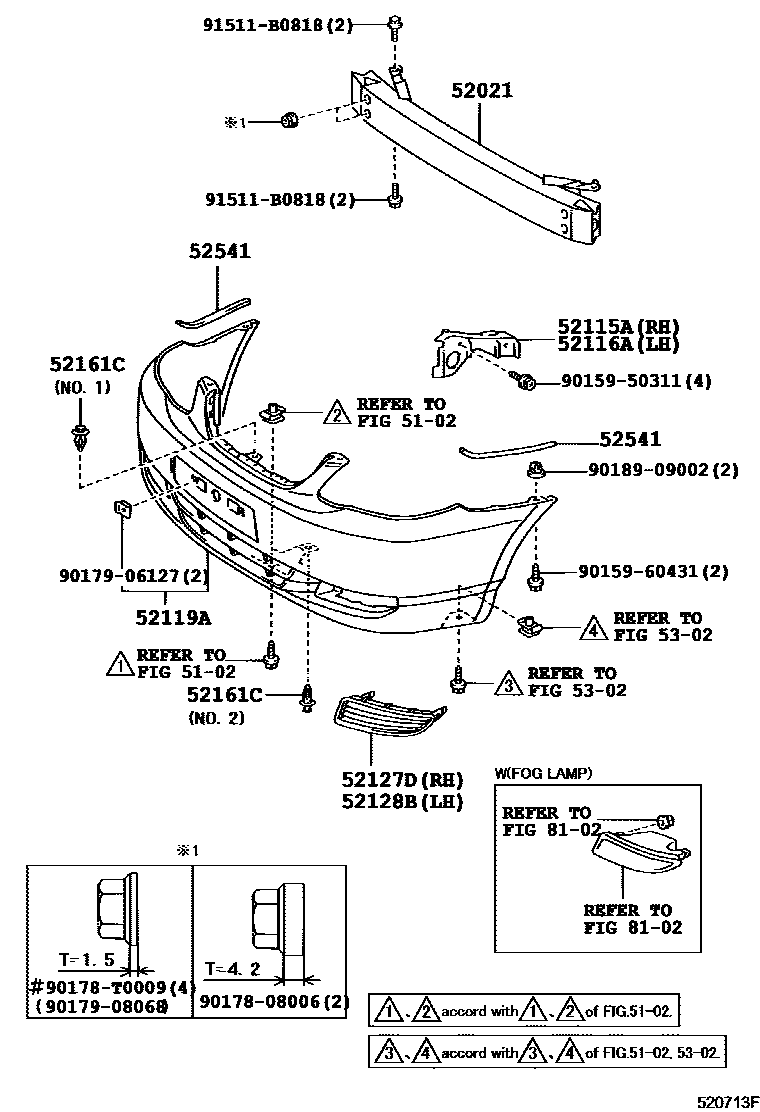

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 6 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-12200 · 52021-12220 |
| 52114A | Front bumper extension mounting bracket | 52114-12110 |
| 52115A | Front bumper right side bracket | 52115-12380 · 52115-12400 · 52115-12420 |
| 52116A | Front bumper left bracket | 52116-12340 · 52116-12360 · 52116-12380 |
| 52119A | front bumper cover | 52119-02909 · 52119-12935 · 52119-12943 · 52119-13928 · 52119-1E917 · 52119-1E920 · 52119-1E921 · 52119-1E925 |
| 52127D | Front bumper right hole cover | 52127-12150 · 52127-12170 · 52127-12190 · 52127-12200 · 52127-12210 · 52127-20120 |
| 52128B | Front bumper left hole cover | 52128-12070 · 52128-12080 · 52128-12090 · 52128-12100 · 52128-12130 · 52128-20080 |
| 52161C | front bumper insert | 52161-16010 · 90467-09093 |
| 52541 | front bumper protector | 52541-02010 · 52541-12020 |
| 52611 | front bumper energy absorber | 52611-12170 |
