Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

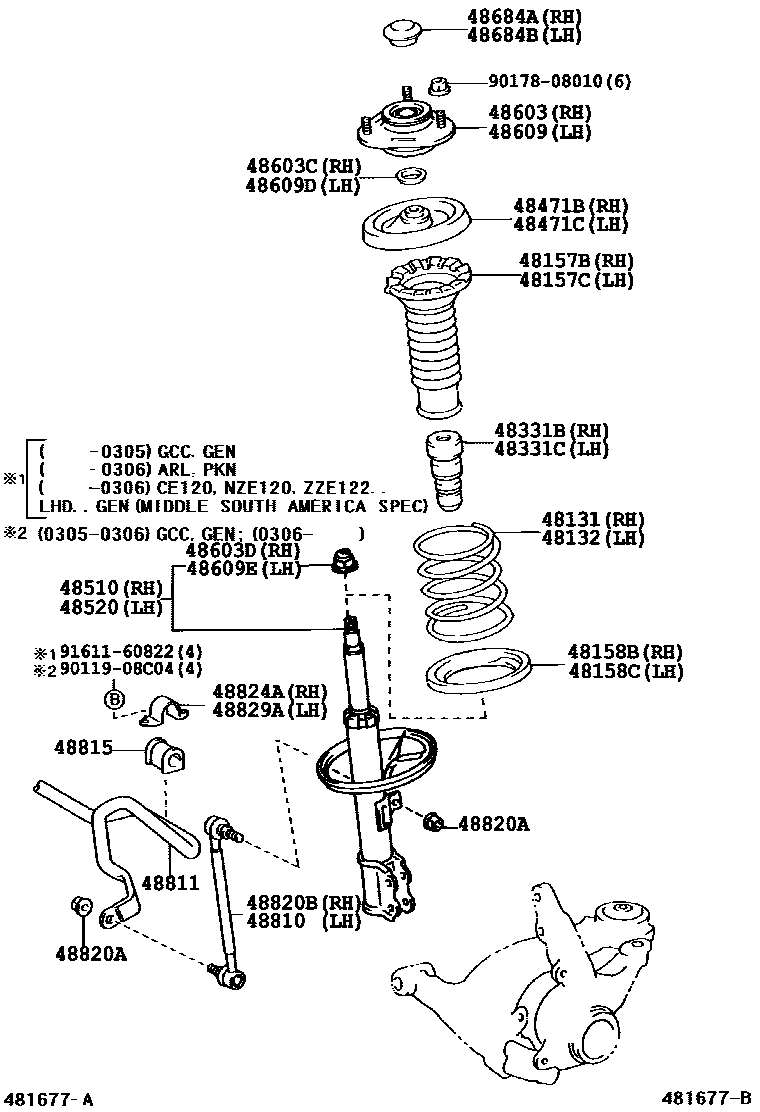

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-13120 · 48131-1N470 · 48131-1N480 · 48131-1N490 · 48131-1N530 · 48131-1N550 · 48131-1N560 · 48131-1N570 · 48131-1N580 · 48131-1N620 · 48131-1N630 |
| 48132 | Left front coil spring | 48131-13120 · 48131-1N470 · 48131-1N480 · 48131-1N490 · 48131-1N530 · 48131-1N550 · 48131-1N560 · 48131-1N570 · 48131-1N580 · 48131-1N620 · 48131-1N630 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-02020 · 48157-12080 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-02020 · 48157-12080 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-02030 · 48158-47010 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-02030 · 48158-47010 |
| 48331B | Right front spring buffer block | 48331-12200 · 48331-12210 |
| 48331C | Left front spring buffer block | 48331-12200 · 48331-12210 |
| 48471B | Front coil spring upper right seat | 48044-12100 |
| 48471C | Front coil spring upper left seat | 48044-12100 |
| 48510 | Right front shock absorber assembly | 48510-80015 · 48510-80016 · 48510-80017 · 48510-80019 · 48510-80052 · 48510-80090 · 48510-80091 · 48510-80092 · 48510-80154 · 48510-80174 · 48510-80176 · 48510-80179 |
| 48520 | Left front shock absorber assembly | 48520-19665 · 48520-19676 · 48520-19686 · 48520-19706 · 48520-19815 · 48520-19865 · 48520-19875 · 48520-19885 · 48520-80012 · 48520-80021 · 48520-80023 · 48520-80026 |
| 48603 | Right front suspension bearing sub-assembly | 48609-12420 · 48609-12440 · 48609-12490 · 48609-13010 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22002 · 90303-22049 |
| 48603D | Nut (for front mount to right front shock absorber) | 90179-14015 |
| 48609 | Left front suspension bearing sub-assembly | 48609-12420 · 48609-12440 · 48609-12490 · 48609-13010 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22002 · 90303-22049 |
| 48609E | Nut (for front mount to left front shock absorber) | 90179-14015 |
| 48684A | Right front suspension support dust cover | 48684-12070 · 48684-52010 |
| 48684B | Left front suspension support dust cover | 48684-12070 · 48684-52010 |
| 48810 | Left front stabilizer bar link assembly | 48820-47010 |
| 48811 | front stabilizer bar | 48811-13050 · 48811-1A140 · 48811-1A170 · 48811-1A210 · 48811-1A240 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-12310 · 48815-12320 · 48815-12340 · 48815-12350 · 48815-13040 |
| 48820A | Nut (for front stabilizer bar link) | 90179-12151 |
| 48820B | Right front stabilizer bar link assembly | 48820-47010 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-26210 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-26210 |
