Toyota COROLLA 前盘式制动器卡钳和防尘罩 — Figure 4705

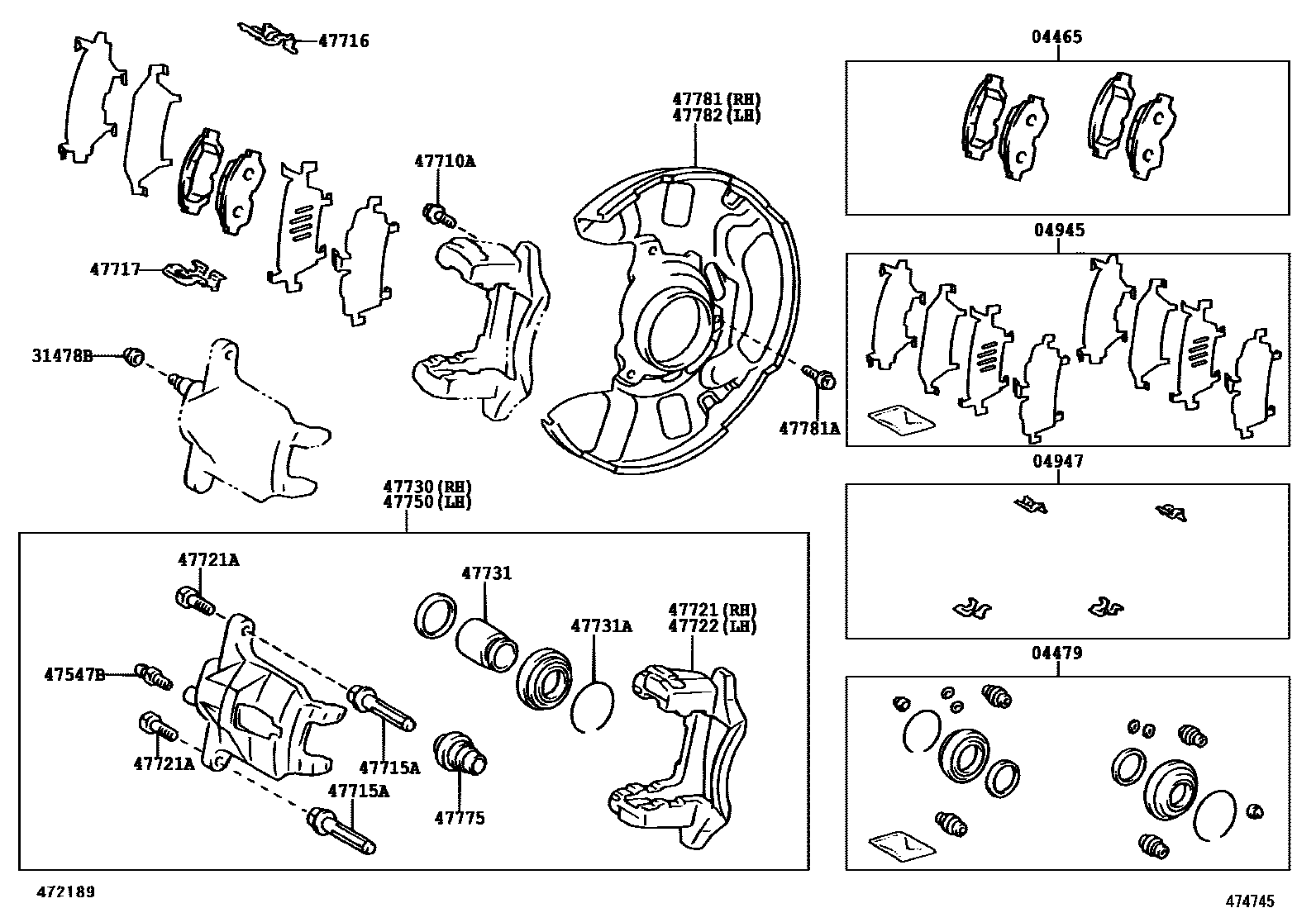

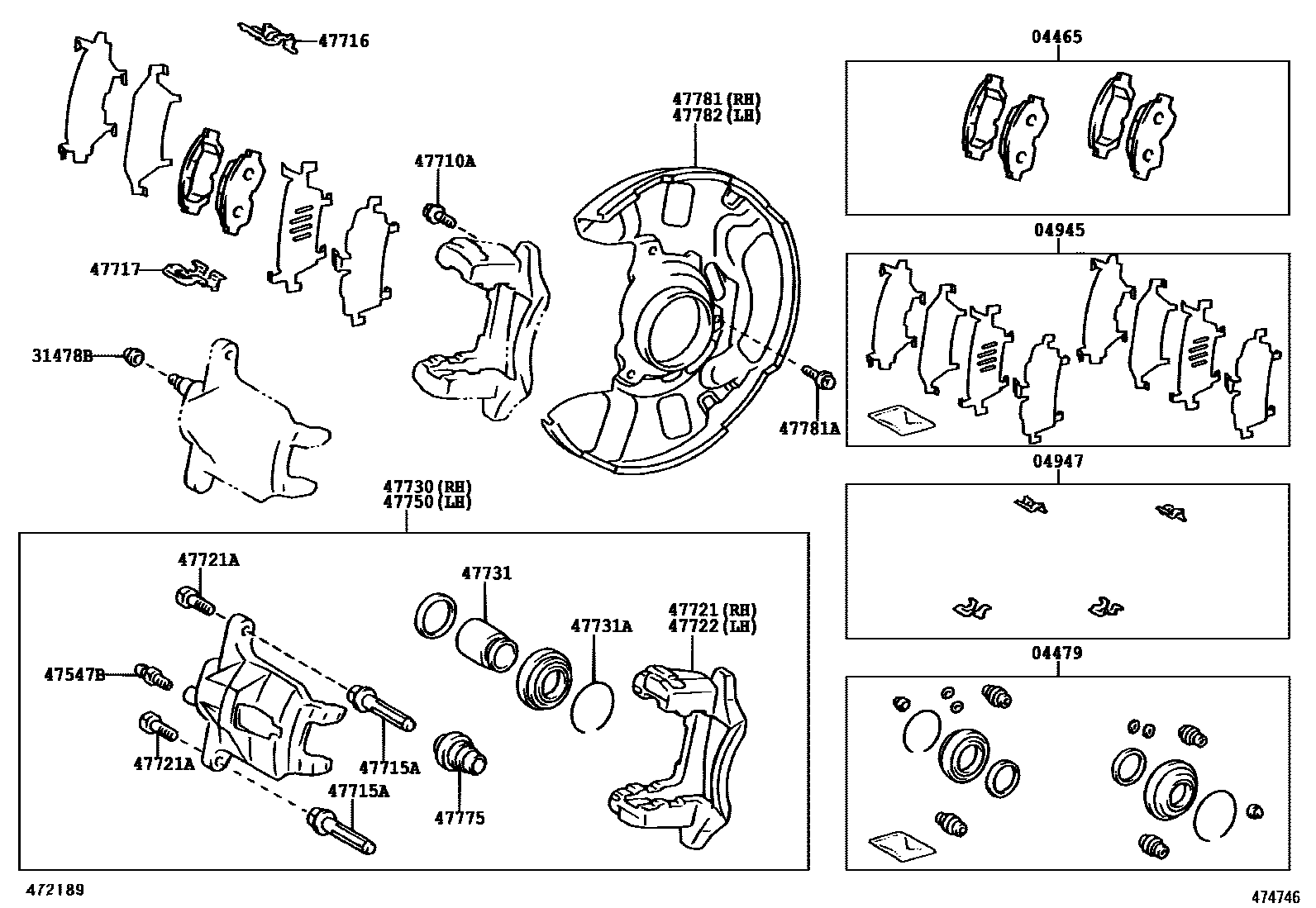

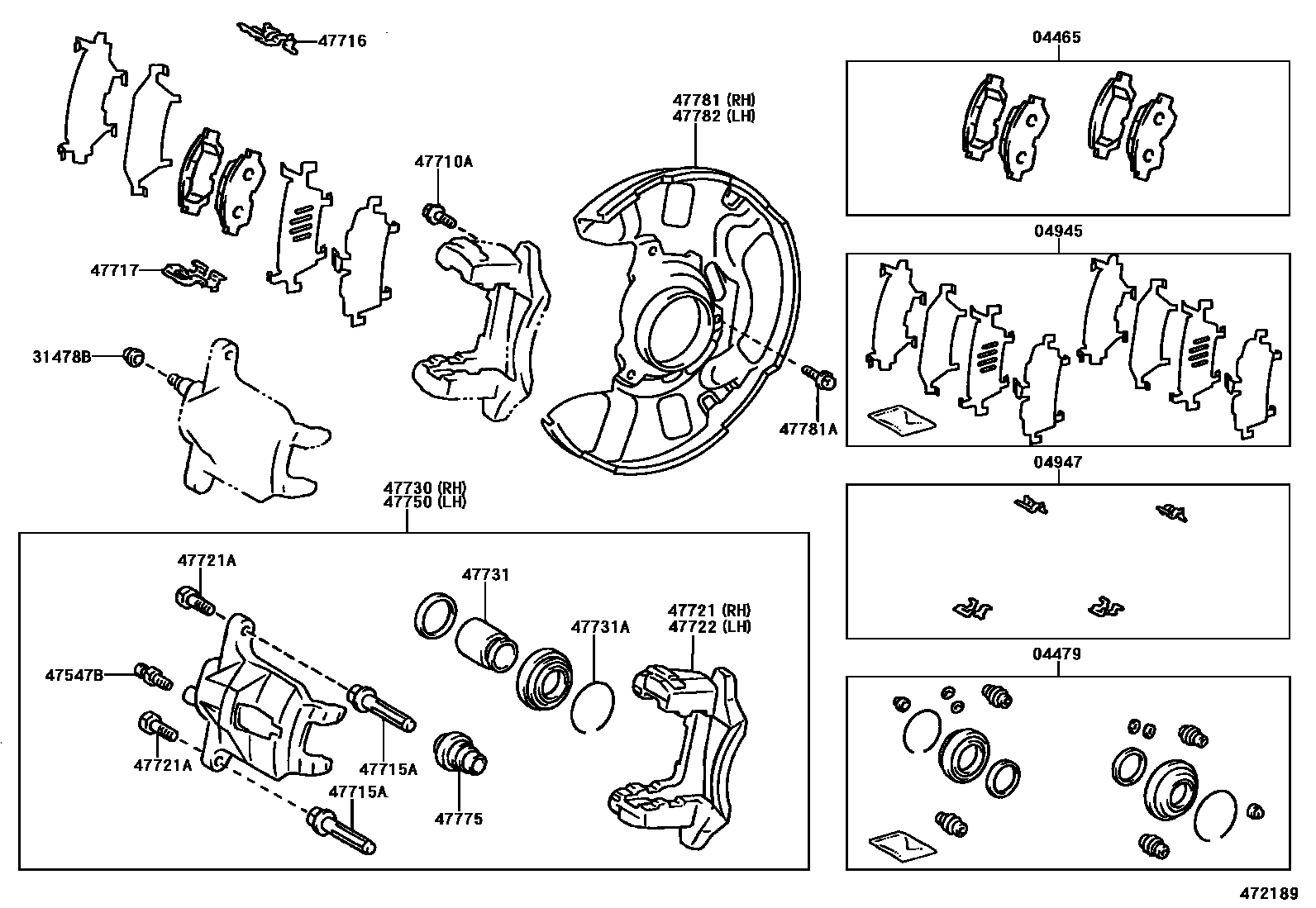

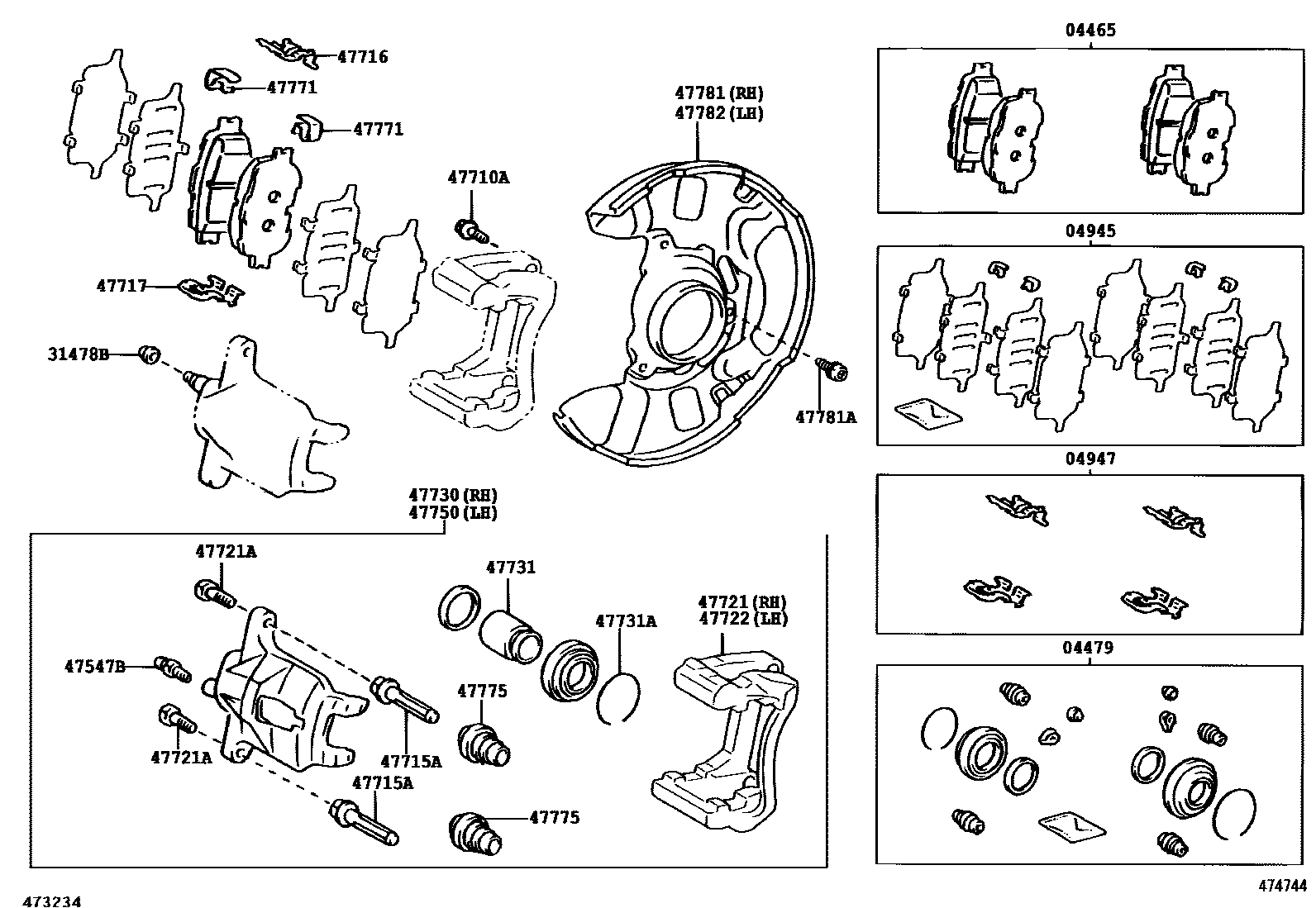

Toyota COROLLA EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-12580 · 04465-12581 · 04465-12590 · 04465-12591 · 04465-12592 · 04465-21030 |
| 04479 | Front disc brake cylinder assembly | 04478-13020 · 04479-20320 · 04479-20330 · 04479-47020 |
| 04945 | Front silencer gasket assembly | 04945-13030 · 04945-20210 |
| 04947 | Front disc brake mounting kit | 04947-20110 · 04947-20120 · 04947-47010 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-20010 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12208 |
| 47715A | Front disc brake cylinder sliding pin | 47715-22080 · 47715-52010 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-12070 · 47716-20200 · 47716-20210 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47717-12030 · 47717-20100 · 47717-20110 |
| 47721 | Right front disc brake cylinder retainer | 47721-12220 · 47721-20440 · 47721-20460 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 90105-08164 |
| 47722 | Left front disc brake cylinder retainer | 47722-12040 · 47722-20130 · 47722-20150 |
| 47730 | Right front disc brake cylinder assembly | 47730-12490 · 47730-20600 · 47730-20640 |
| 47731 | Front disc brake piston | 47731-12170 · 47731-20260 · 47731-44010 |
| 47731A | retaining ring (for front disc brake piston) | 90520-86005 · 90522-66001 |
| 47750 | Left disc brake cylinder assembly | 47750-12490 · 47750-20510 · 47750-20640 |
| 47771 | No. 1 pad wear indicator plate | 47771-32040 |
| 47775 | Bushing boot (for front disc brake) | 47775-30070 · 47775-50010 · 47775-52010 |
| 47781 | Right front disc brake dust cover | 47781-02090 · 47781-12240 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90119-06227 |
| 47782 | Left front disc brake dust cover | 47782-02090 · 47782-12240 |
