Toyota COROLLA 制动助力器和真空管 — Figure 4703

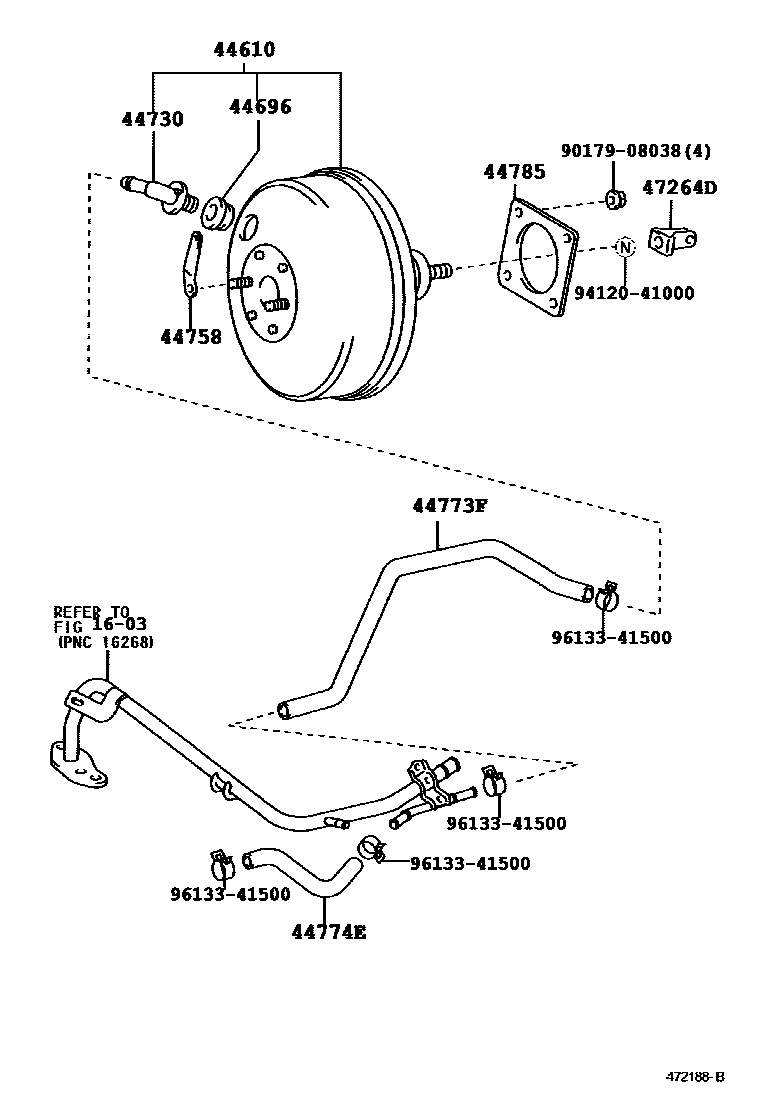

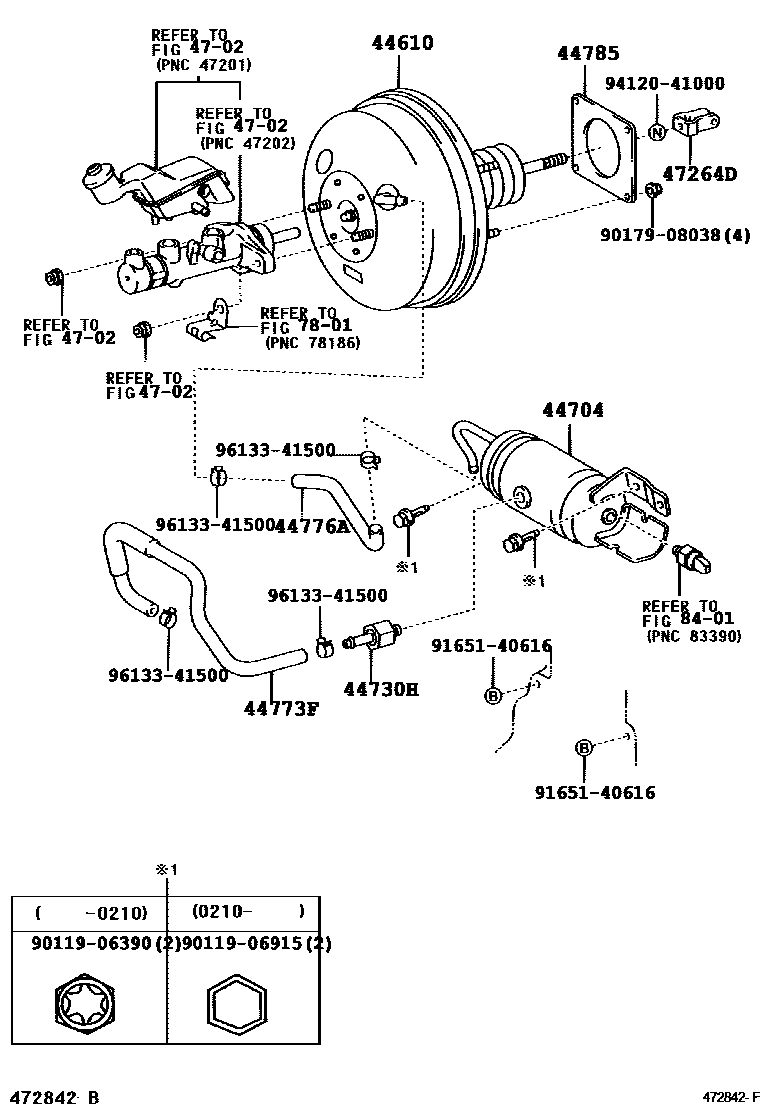

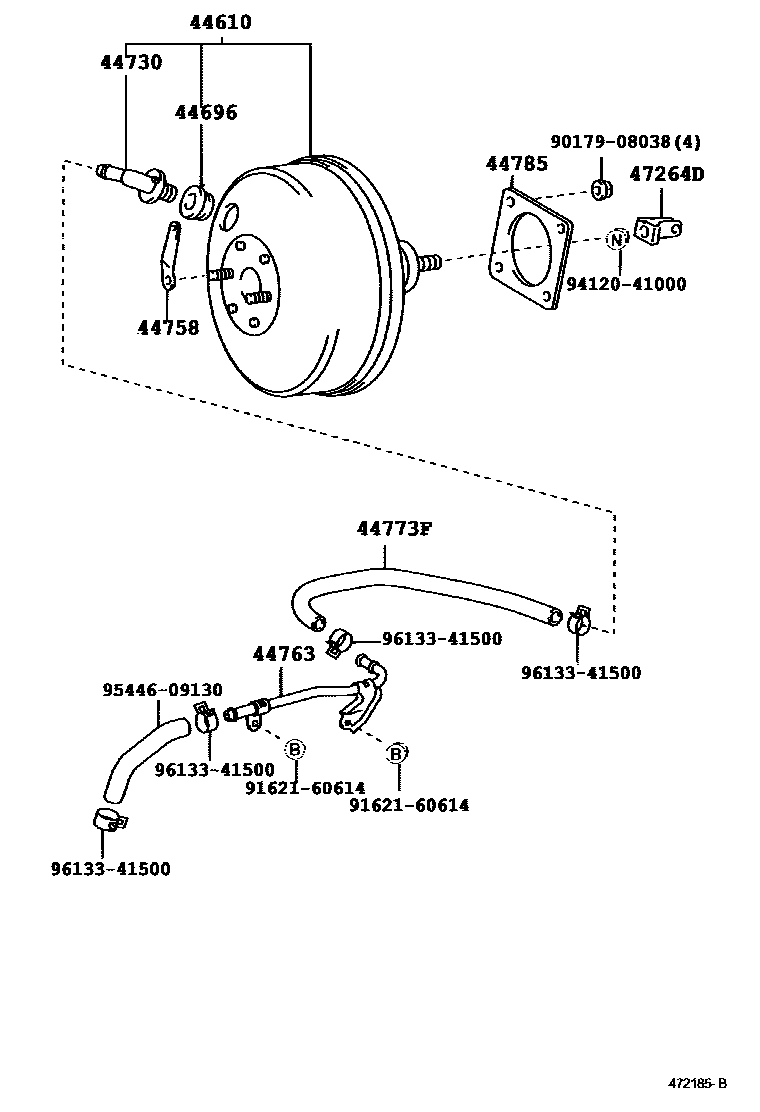

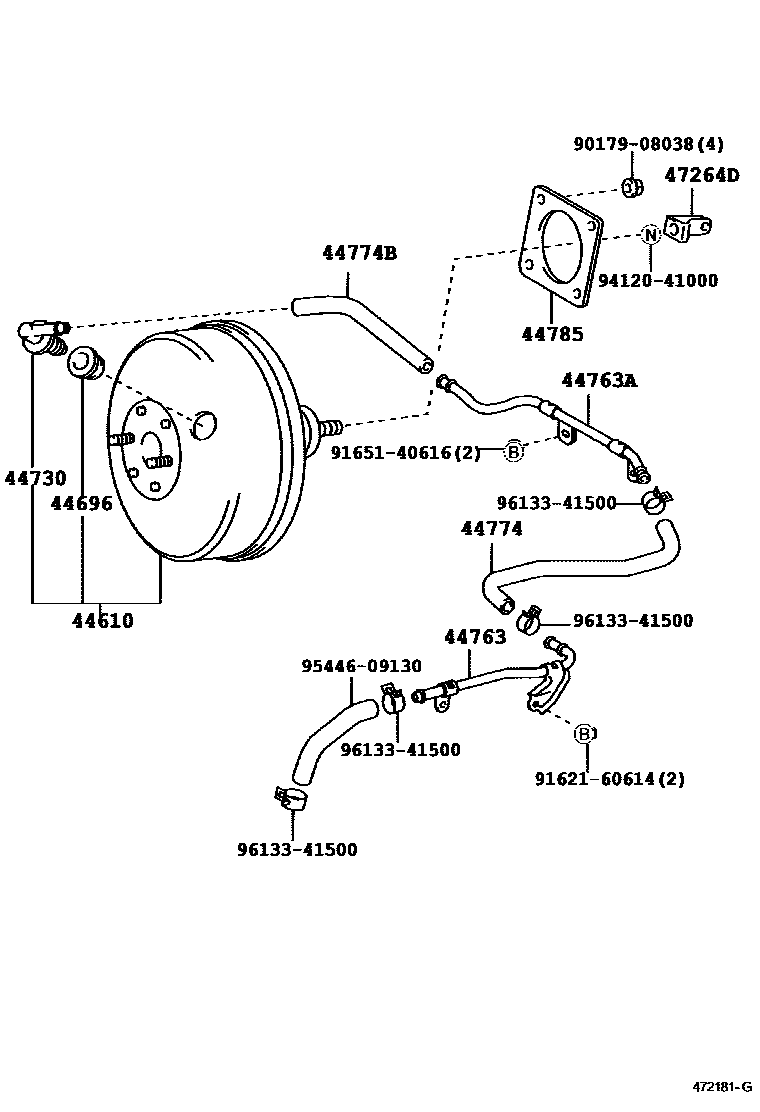

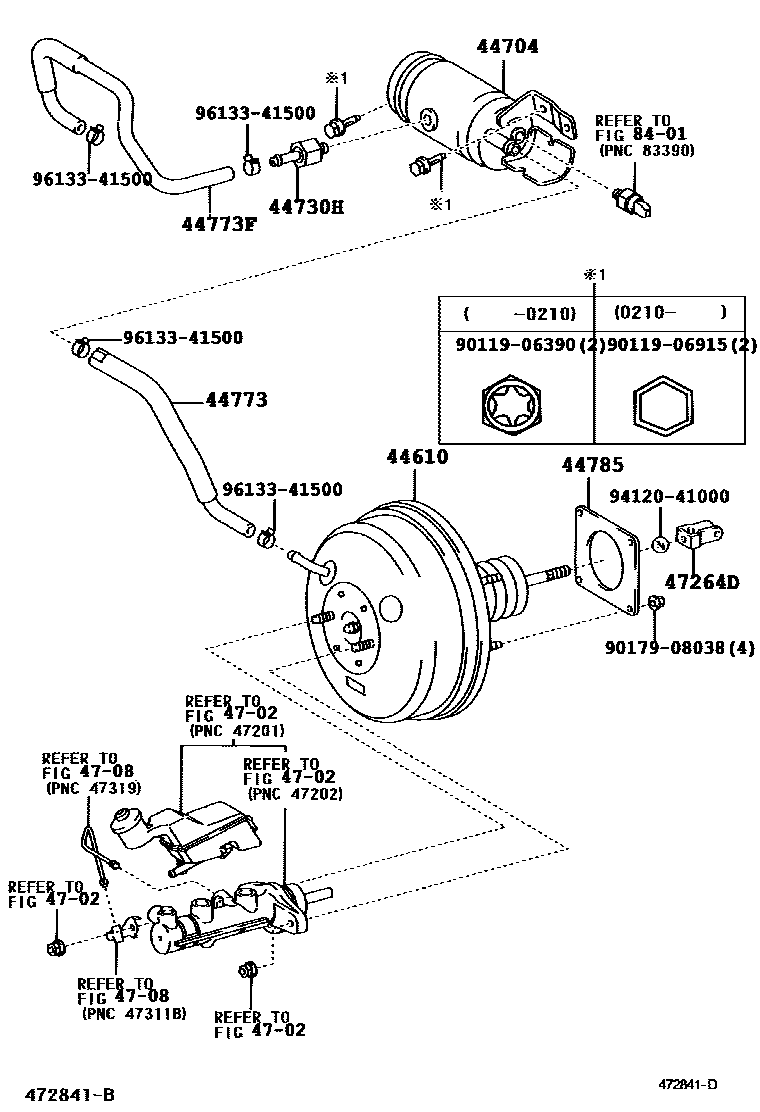

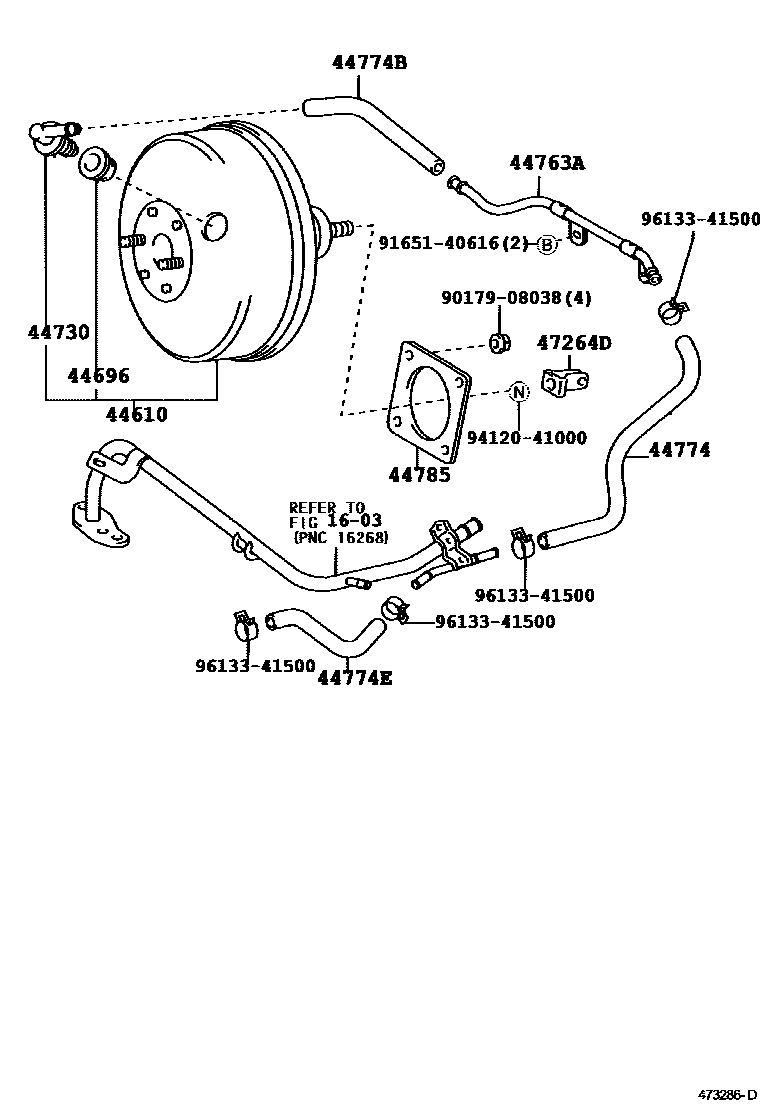

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 6 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-12A10 · 44610-12A20 · 44610-12F00 · 44610-1E470 · 44610-1E480 · 44610-1E490 · 44610-1E500 · 44610-1E520 · 44610-1E630 · 44610-1E640 · 44610-1E650 · 44610-1E660 · 44610-1E670 |
| 44696 | One-way valve seal | 90080-48050 · 90480-24439 |
| 44704 | Vacuum liquid tank sub-assembly | 44704-12110 · 44704-13020 · 44704-13030 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-12070 · 44730-14050 |
| 44730H | Vacuum check valve assembly (for vacuum reservoir) | 44730-60050 |
| 44758 | Vacuum check valve bracket | 44758-42010 |
| 44763 | booster vacuum tube | 44763-52010 · 44763-52080 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-12340 |
| 44773 | No. 2 vacuum hose | 44773-13050 |
| 44773F | Hoses (connector to check valve) | 44773-12700 · 44773-12710 · 44773-12720 · 44773-12721 |
| 44774 | Hoses (joints to connector tubes) | 44774-12410 · 44774-12420 |
| 44774B | Hoses (joints to connector tubes) | 95446-09180 |
| 44774E | Hoses (joints to connector tubes) | 44774-12470 · 44774-20310 |
| 44776A | Hoses (vacuum reservoir to brake booster) | 44776-12150 · 44776-13010 |
| 44785 | brake booster pad | 44785-20020 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-12060 · 47264-63010 |
