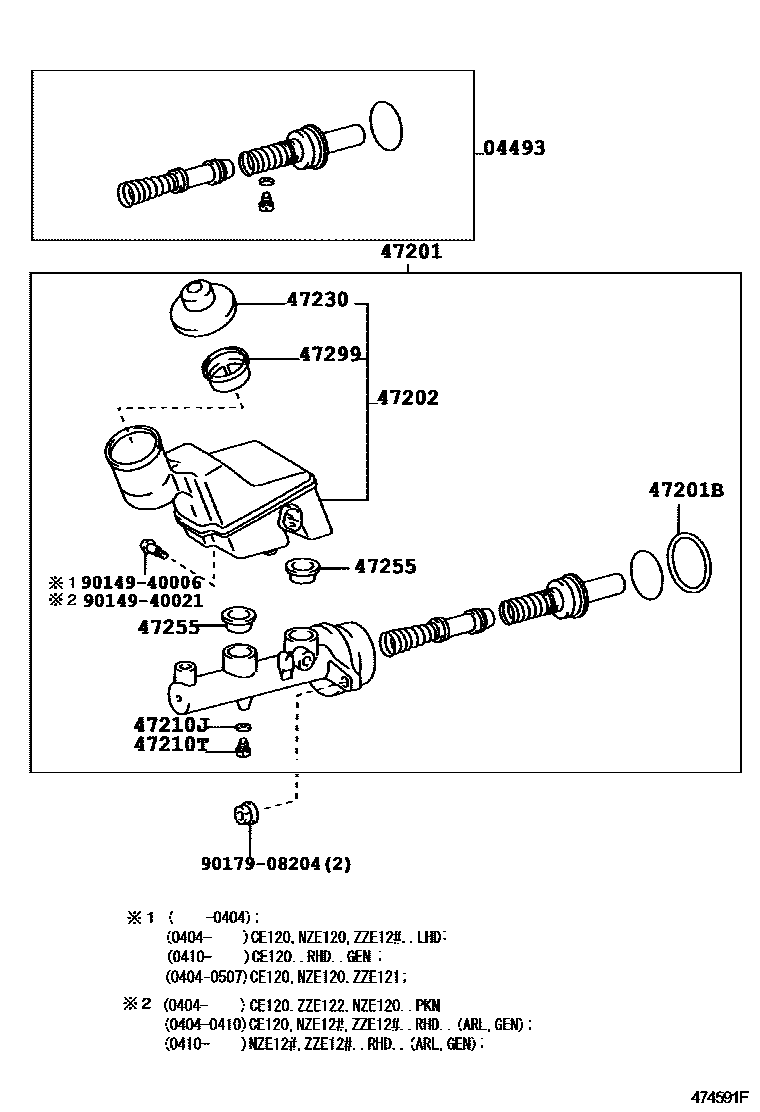

Toyota COROLLA 制动总泵 — Figure 4702
Toyota COROLLA EPC diagram 4702, 制动总泵, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-1A010 · 04493-1A030 |
| 47201 | Brake master cylinder sub-assembly | 47201-12B50 · 47201-1A330 · 47201-1A340 · 47201-1A360 · 47201-1A370 · 47201-1A390 · 47201-1A400 |
| 47201B | O-ring (for brake master cylinder) | 90029-20059 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-12120 · 47220-12121 · 47220-12130 · 47220-12131 · 47220-12140 · 47220-12150 · 47220-12160 · 47220-12161 · 47220-12170 · 47220-12171 |
| 47210J | Gasket (for master cylinder) | 90029-43001 · 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-12040 · 47230-24010 |
| 47255 | Master pump reservoir seal | 47255-16010 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 · 47299-25010 |
