Toyota COROLLA 动力转向配管 — Figure 4503

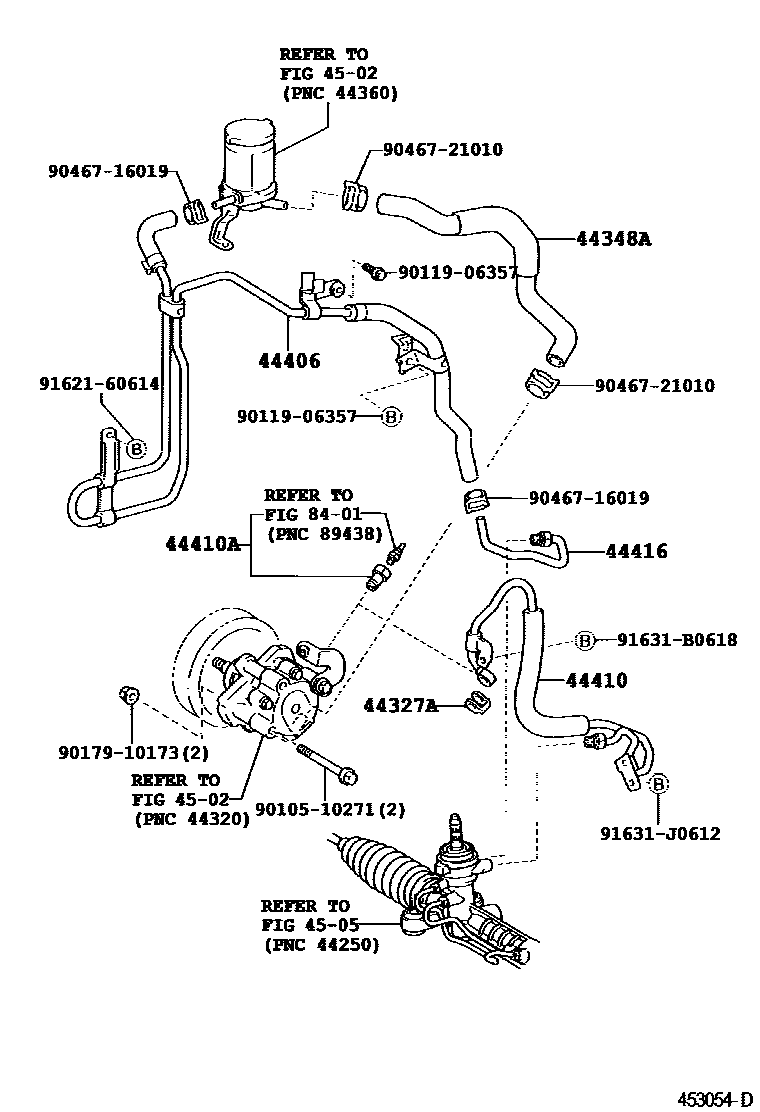

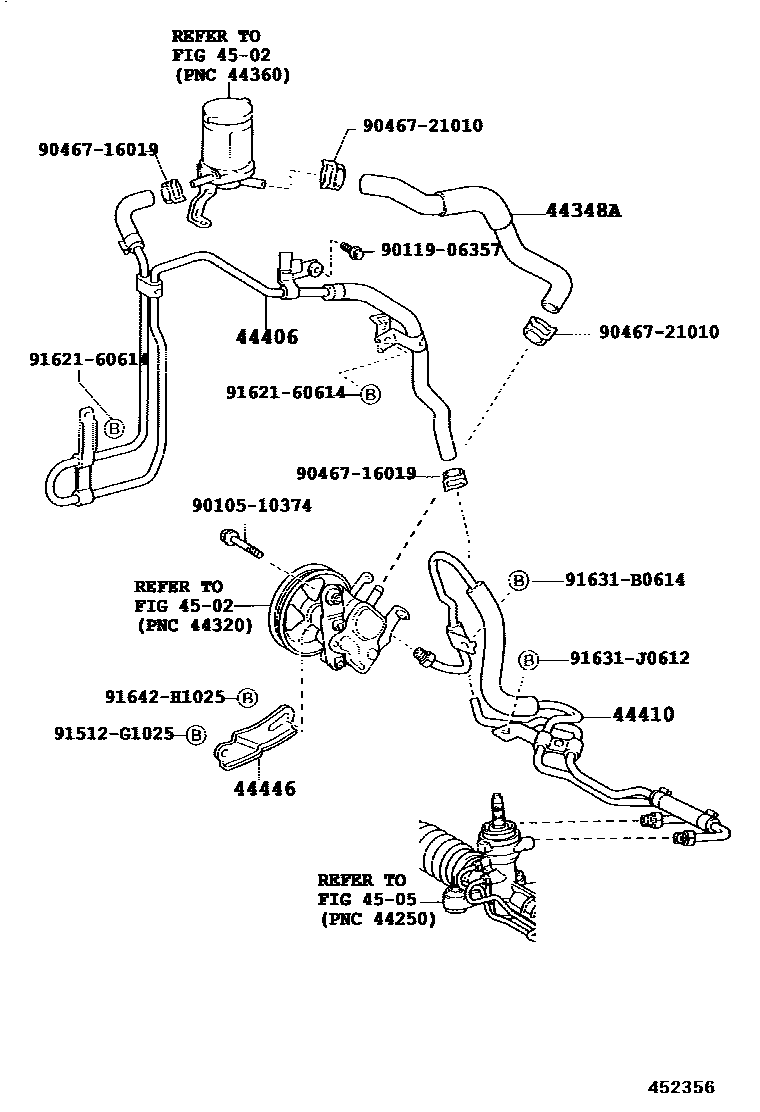

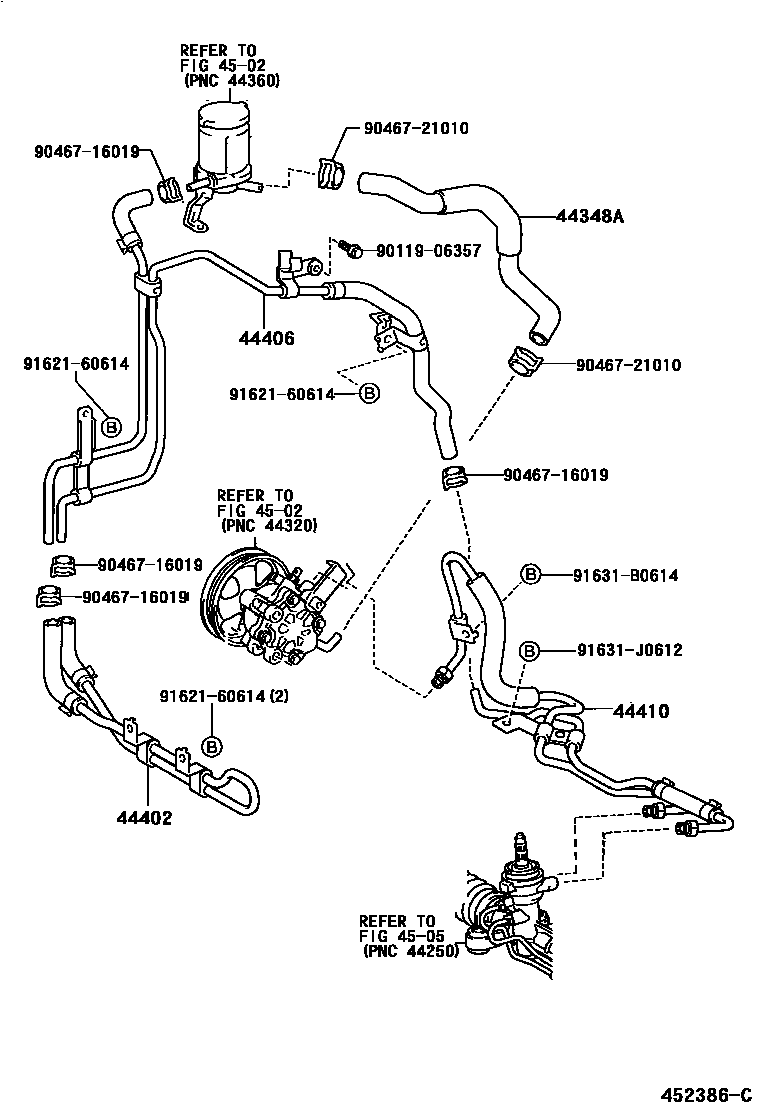

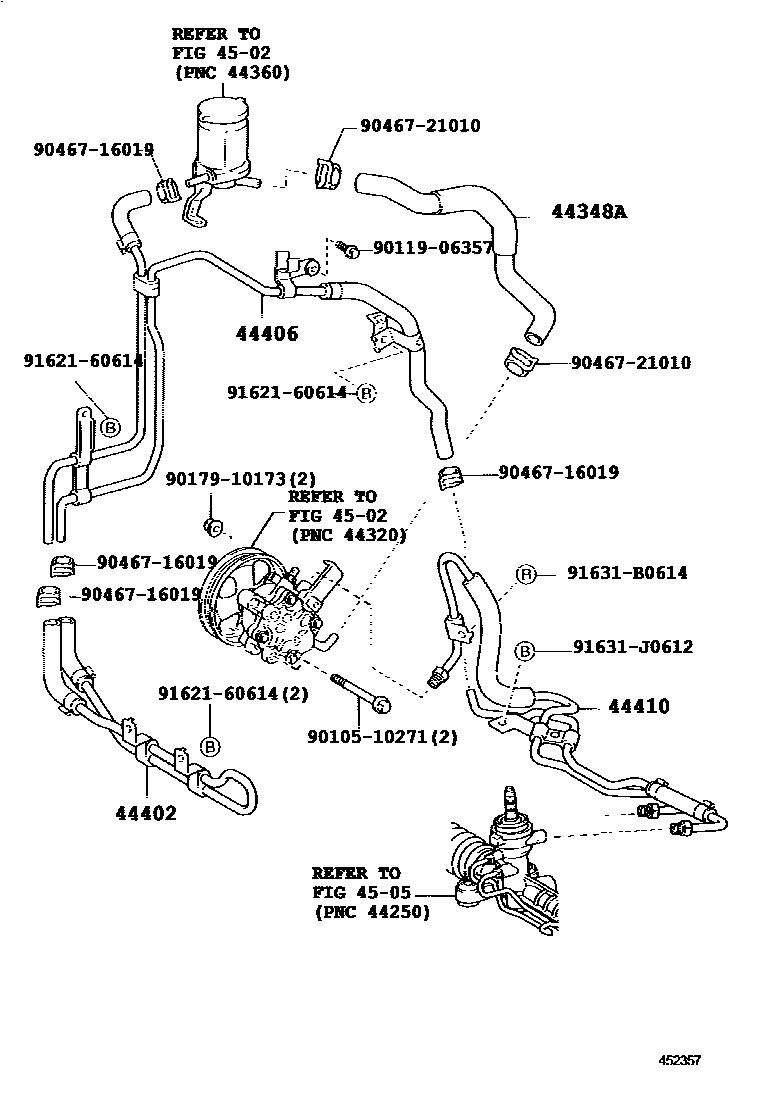

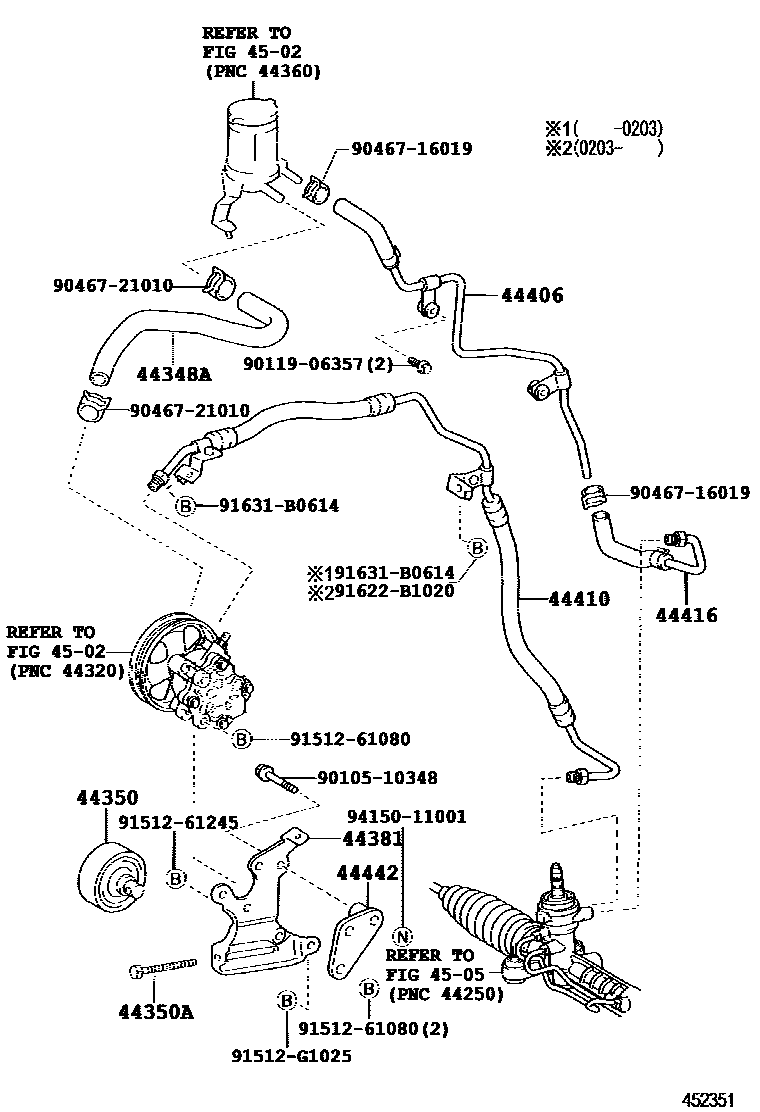

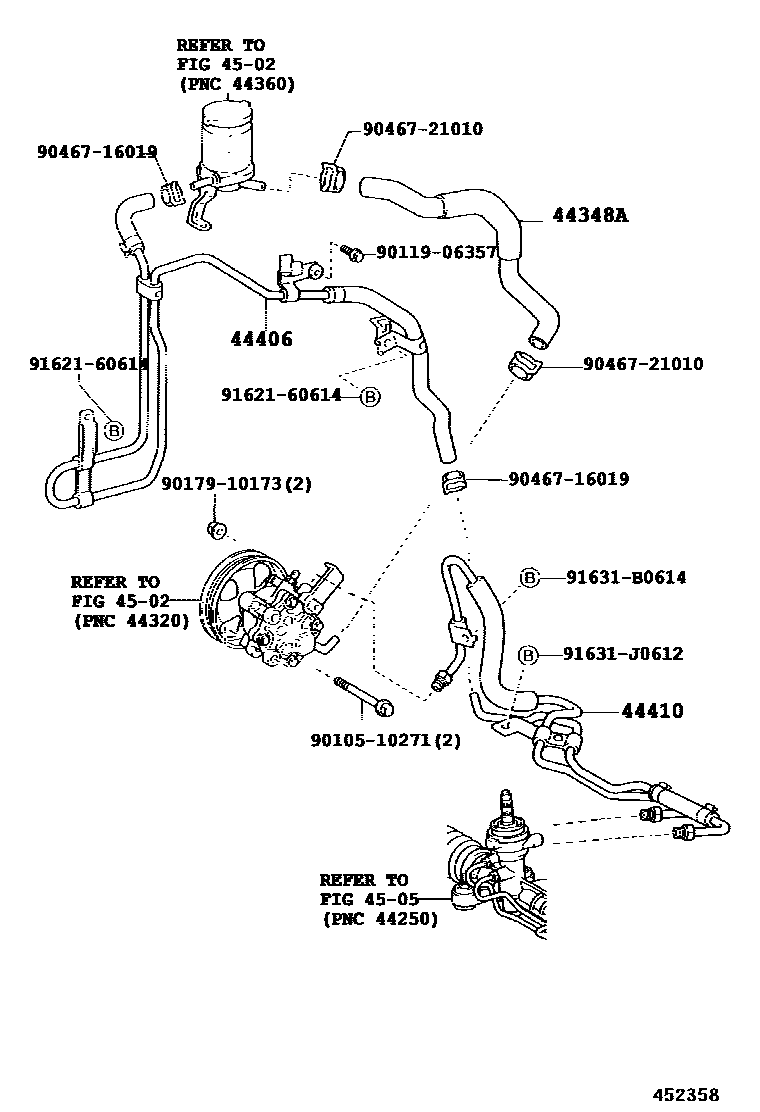

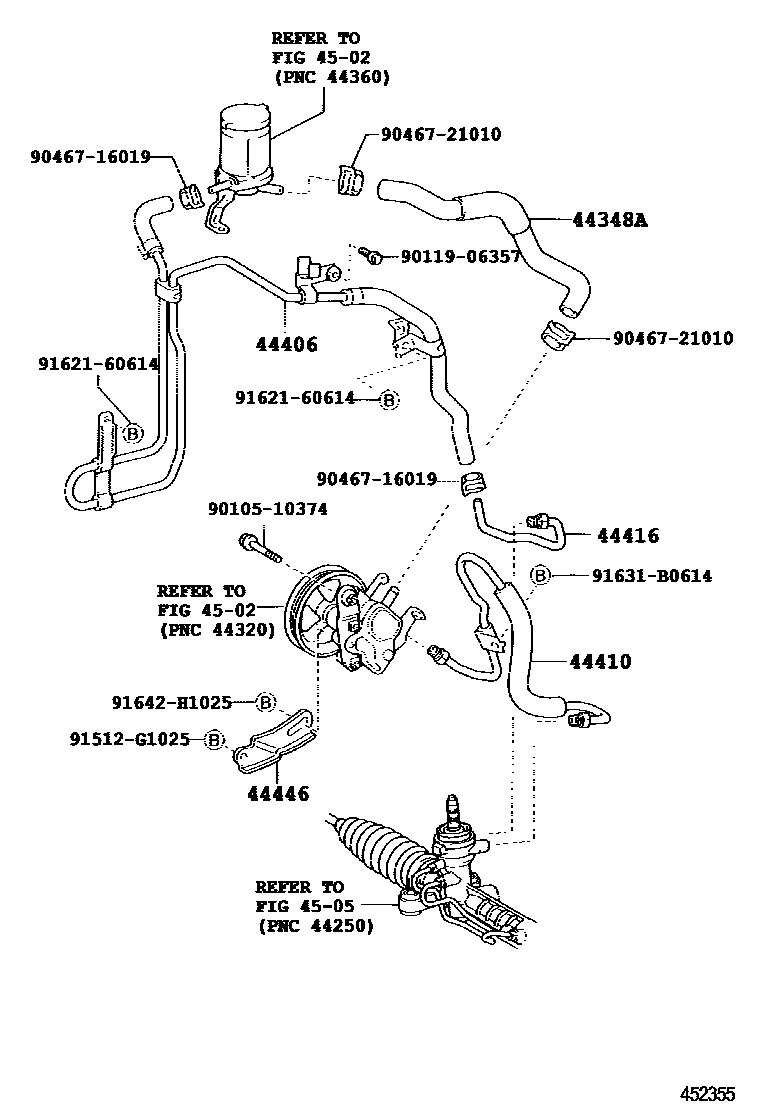

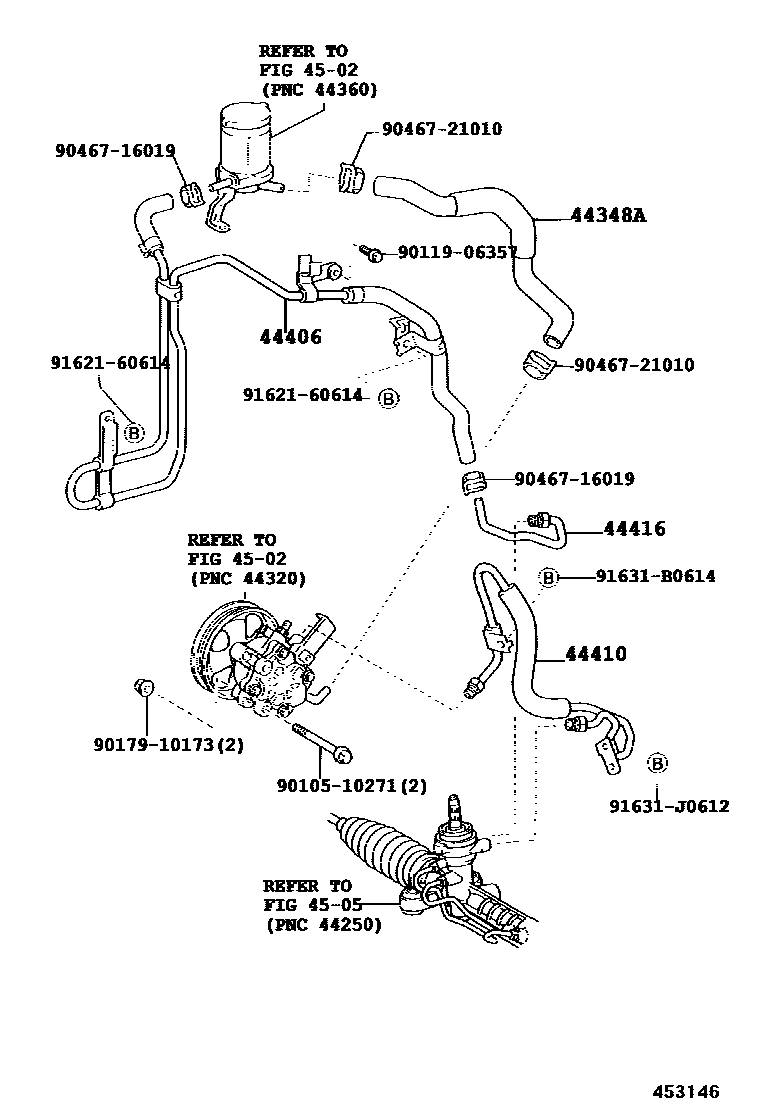

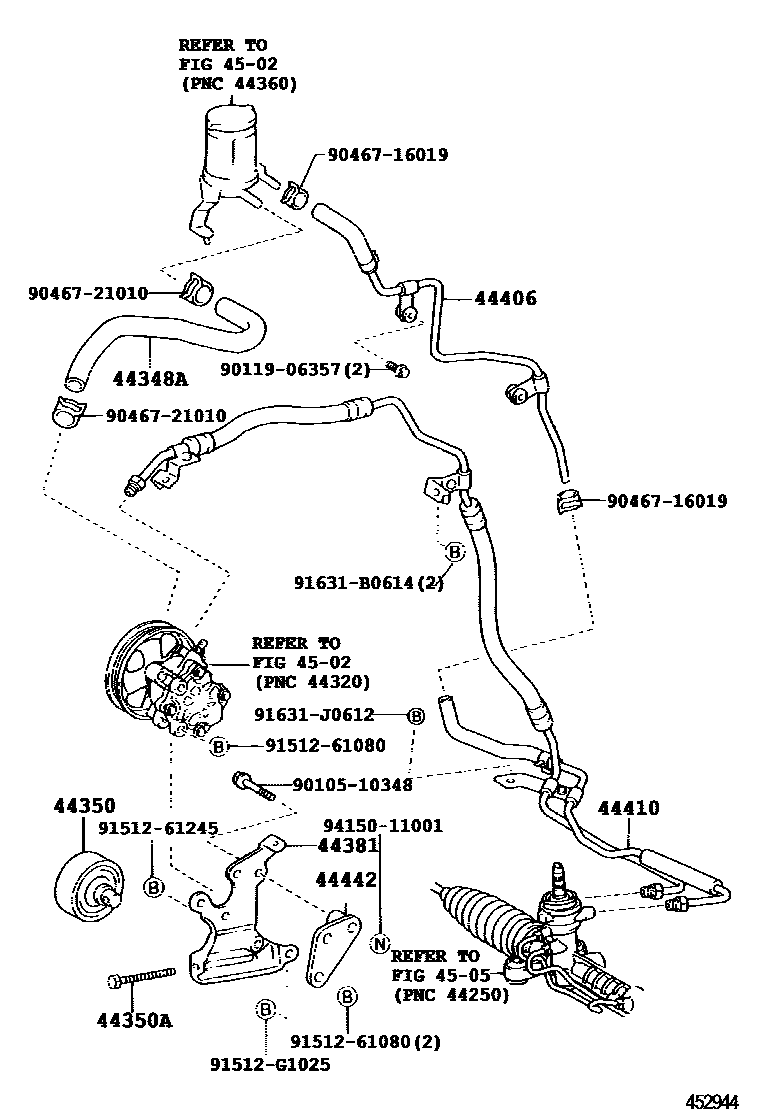

Toyota COROLLA EPC diagram 4503, 动力转向配管, with 9 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-12010 · 44327-30030 |
| 44348A | No. 1 hose (tank to pump) | 44348-02041 · 44348-12080 · 44348-12081 · 44348-12090 · 44348-12091 · 44348-12100 |
| 44350 | Power steering idler assembly | 44350-12070 |
| 44350A | Bolt (for power steering idler pulley) | 90109-08106 |
| 44381 | Power steering idler bracket | 44381-12040 |
| 44402 | No. 1 power steering oil cooler sub-assembly | 44402-12250 |
| 44406 | Oil return pipe sub-assembly | 44406-02071 · 44406-12230 · 44406-12231 · 44406-12240 · 44406-12260 · 44406-12261 |
| 44410 | Pressure supply pipe assembly | 44410-02090 · 44410-12550 · 44410-12600 · 44410-12610 · 44410-12611 · 44410-12640 · 44410-12650 · 44410-12690 · 44410-12691 · 44410-12720 |
| 44410A | Connector bolt (for pressure supply pipe) | 44338-33090 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-02040 · 44416-12250 · 44416-12270 · 44416-13011 |
| 44442 | Pump rear bracket | 44442-12050 |
| 44446 | Adjust the stand | 44446-52010 |
