Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

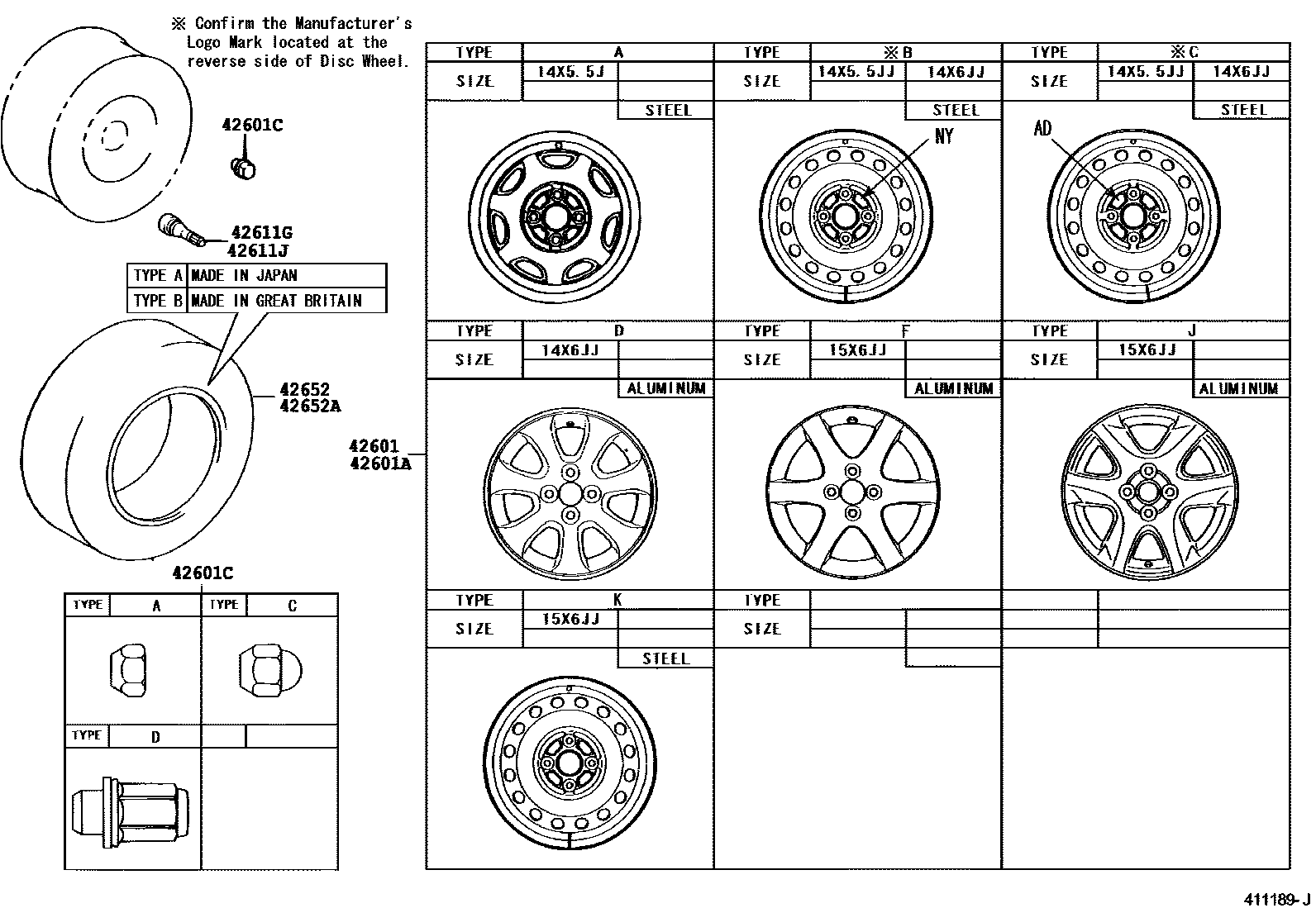

| 42601 | spoke wheel | 42611-12A70 · 42611-13130 · 42611-1A390 · 42611-1A450 · 42611-1A460 · 42611-1A470 · 42611-1A480 · 42611-1A490 · 42611-1A510 · 42611-1A530 |
| 42601A | Spoke wheel (for spare tire) | 42611-12A70 · 42611-13130 · 42611-1A390 · 42611-1A450 · 42611-1A460 · 42611-1A470 · 42611-1A480 · 42611-1A490 · 42611-1A510 · 42611-1A530 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01058 · 90942-01082 |

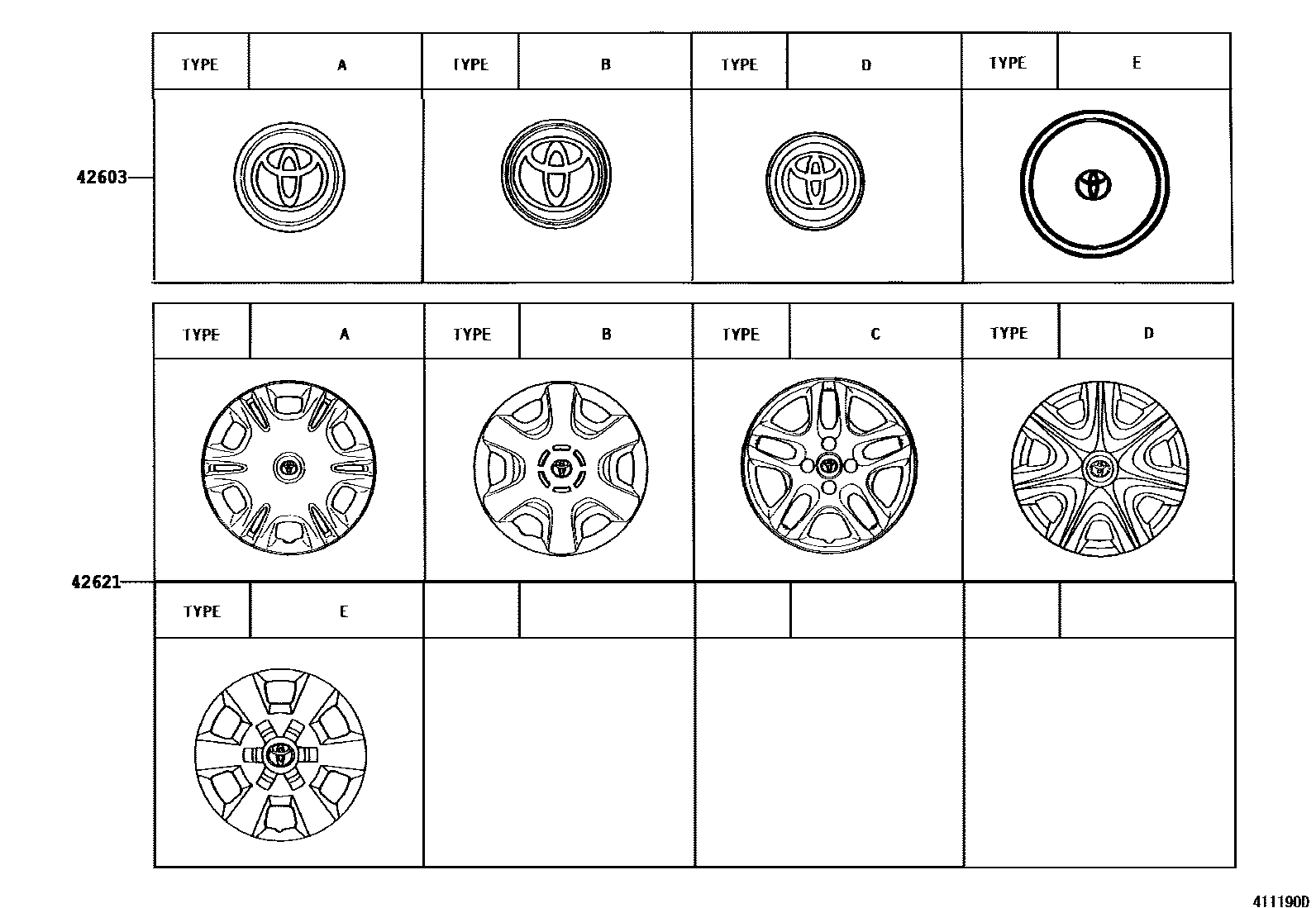

| 42603 | Wheel hub decorative parts sub-assembly | 42603-12560 · 42603-12700 · 42603-12710 · 42603-32210 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-12590 · 42602-12620 · 42602-12630 · 42602-12670 · 42602-12680 · 42602-12690 |
| 42652 | tires | 42652-02501 · 42652-02521 · 42652-12A31 · 42652-12A90 · 42652-12B20 · 42652-12D60 · 42652-12D80 · 42652-12E00 · 42652-12E30 · 42652-1A460 · 42652-1A480 · 42652-1A500 · 42652-1A520 · 42652-1A530 · 42652-20A10 · 42652-28A40 · 42652-2B800 · 42652-2B801 · 42652-2B810 · 42652-52490 |
| 42652A | Tire (for Spare Wheel) | 42652-02501 · 42652-02521 · 42652-12A31 · 42652-12A90 · 42652-12B20 · 42652-12D60 · 42652-12D80 · 42652-12E00 · 42652-12E30 · 42652-1A460 · 42652-1A480 · 42652-1A500 · 42652-1A520 · 42652-1A530 · 42652-20A10 · 42652-28A40 · 42652-2B800 · 42652-2B801 · 42652-2B810 · 42652-52490 |
