Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102

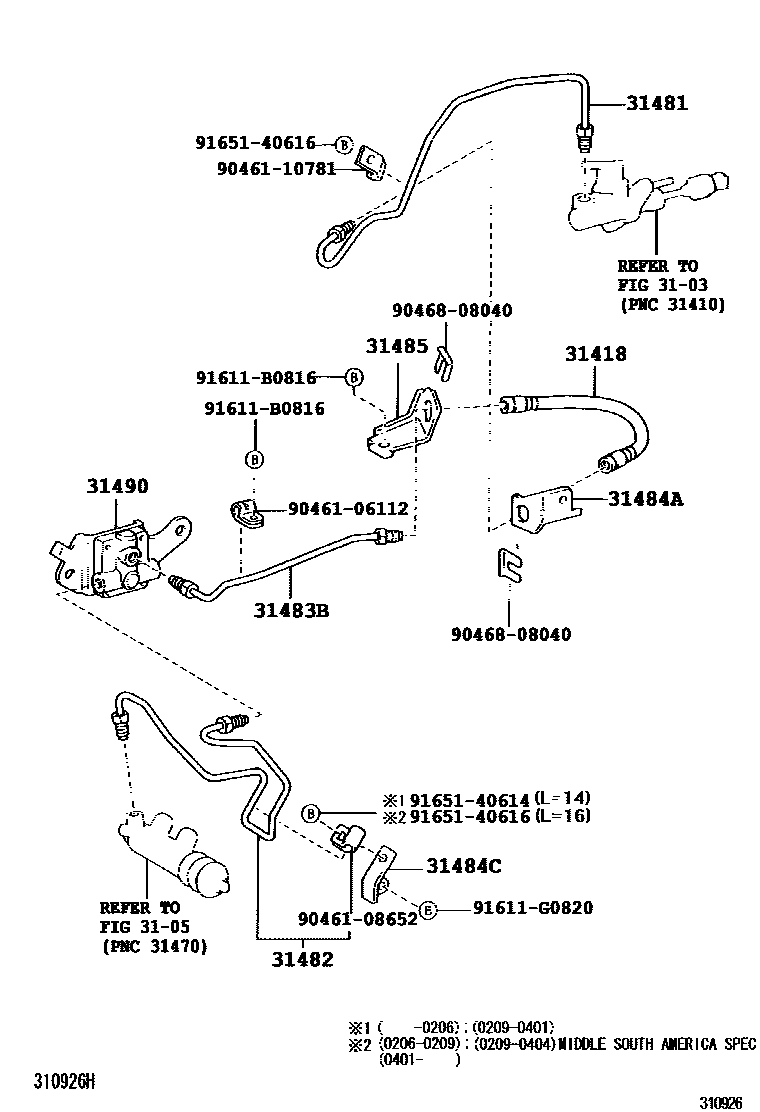

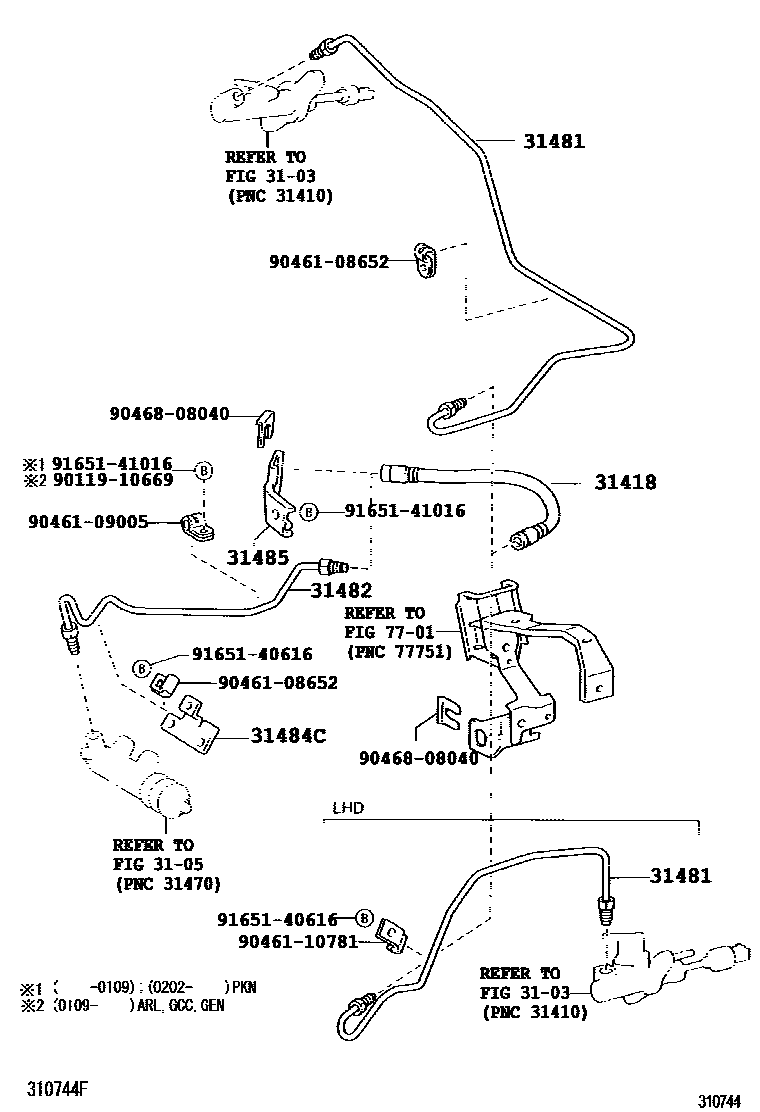

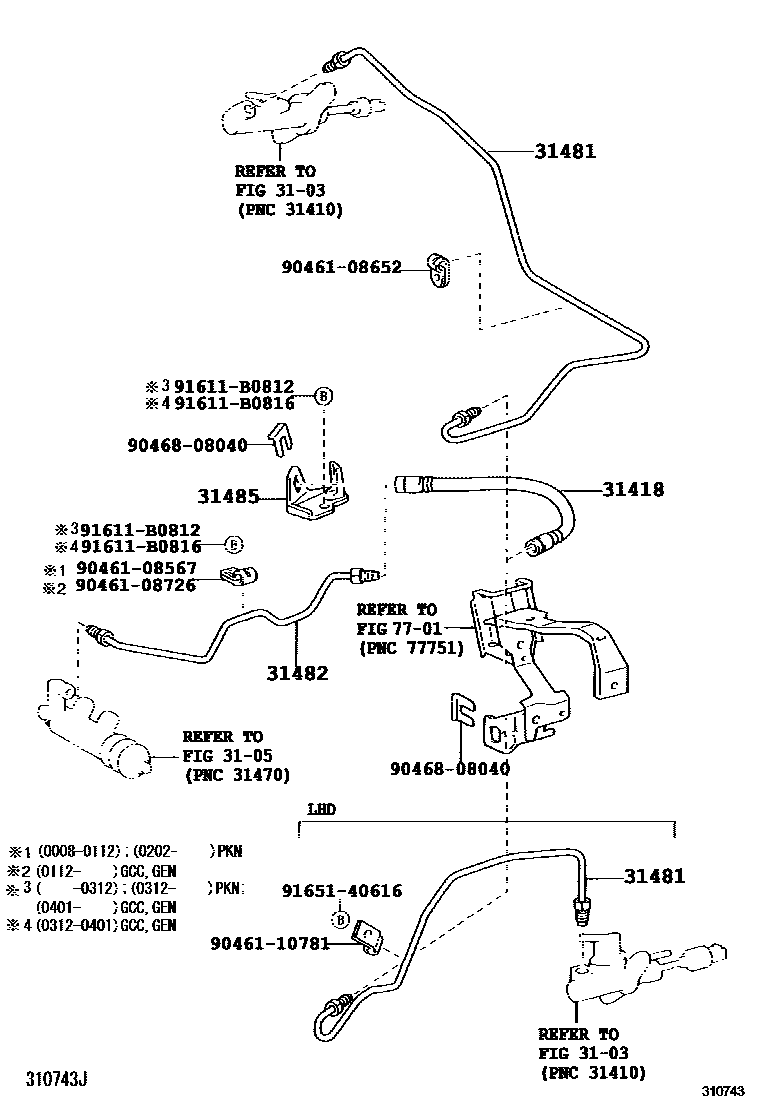

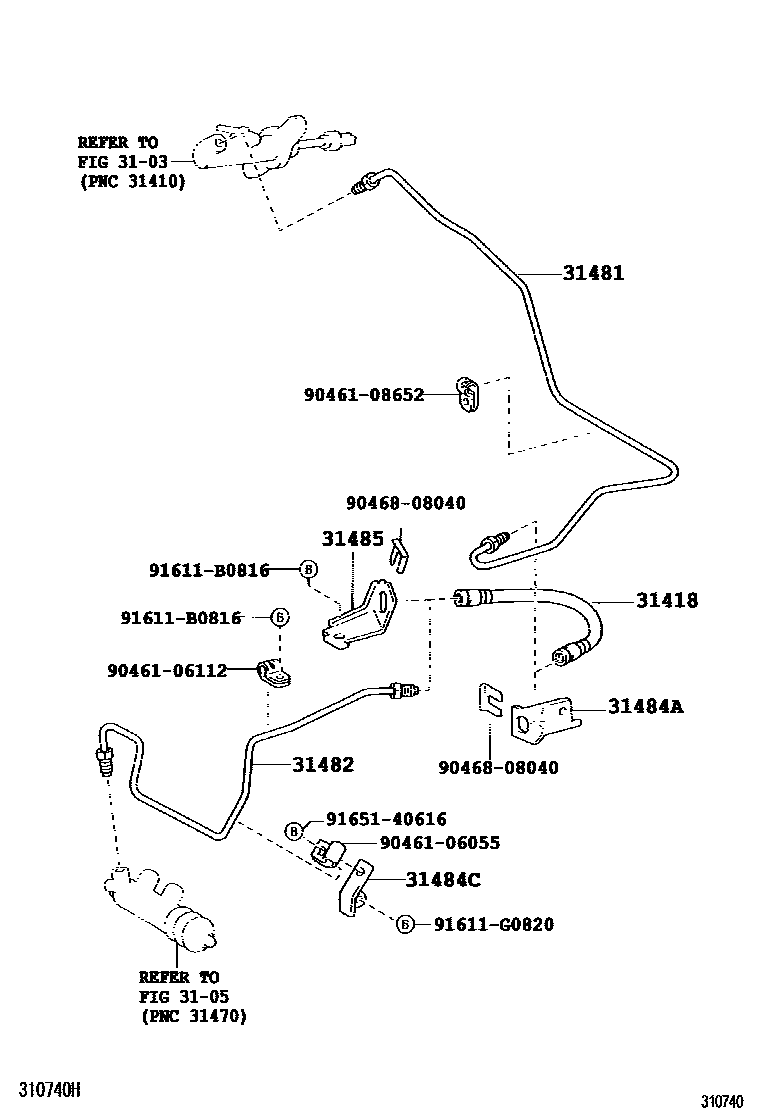

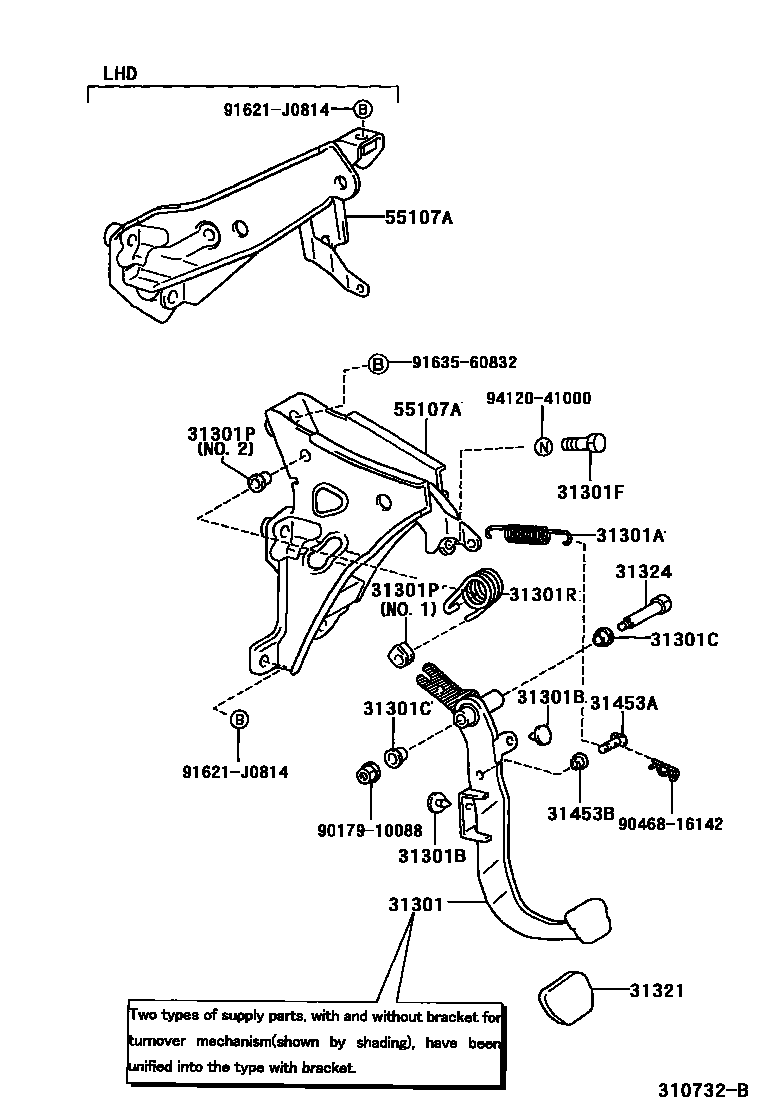

Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 5 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-12450 · 31301-12470 |
| 31301A | Spring (for clutch pedal) | 90507-14050 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90386-05017 · 90389-05019 |
| 31301R | Compression spring (for flip spring seat) | 90949-03100 |
| 31321 | clutch pedal pad | 31321-52010 |
| 31324 | clutch pedal shaft | 90109-10167 · 90109-10174 |
| 31418 | clutch hose | 90080-94119 · 90947-02B47 · 90947-02C79 · 90947-02D12 · 90947-02D20 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08243 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-12250 · 31481-12310 · 31481-12320 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-12180 · 31482-12190 · 31482-12250 · 31482-12290 · 31482-12300 · 31482-13020 |
| 31483B | Accumulator to flexible hose pipe | 31483-12050 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-12360 |
| 31484C | No. 1 clutch tube bracket | 31484-20320 · 31484-20460 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-12320 · 31484-12330 · 31484-12350 · 31484-12430 |
| 31490 | Clutch pressure accumulator assembly | 31490-12020 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-12200 · 55107-12220 |
