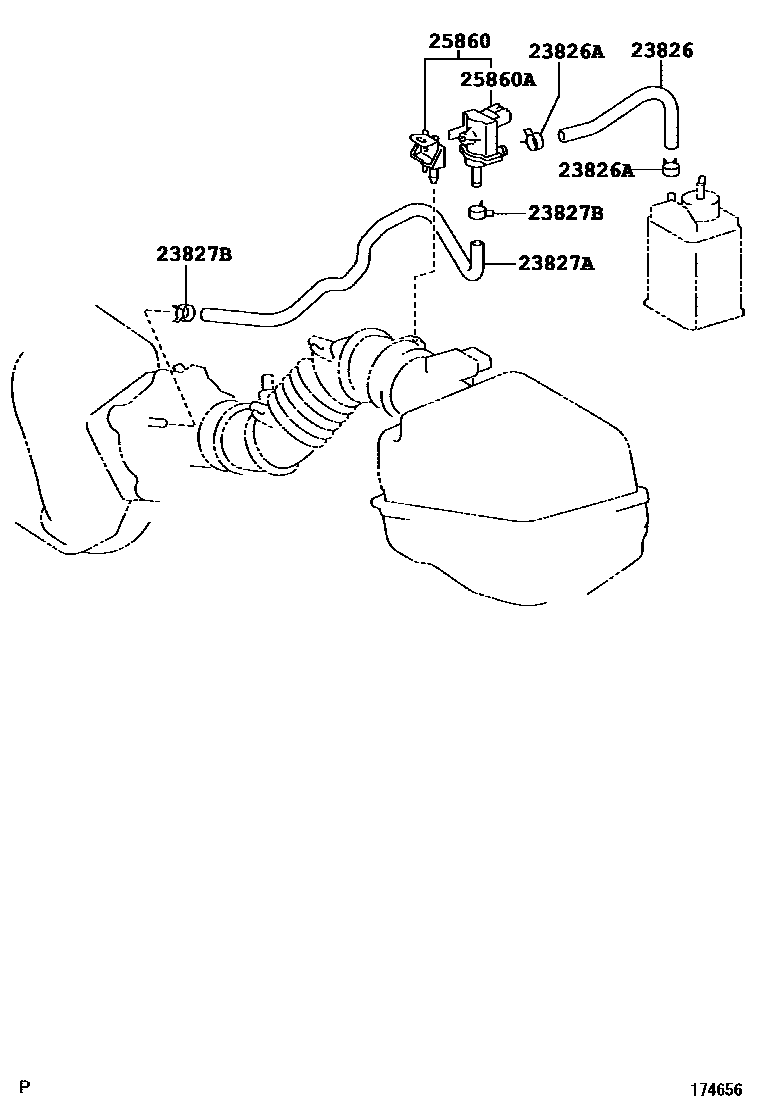

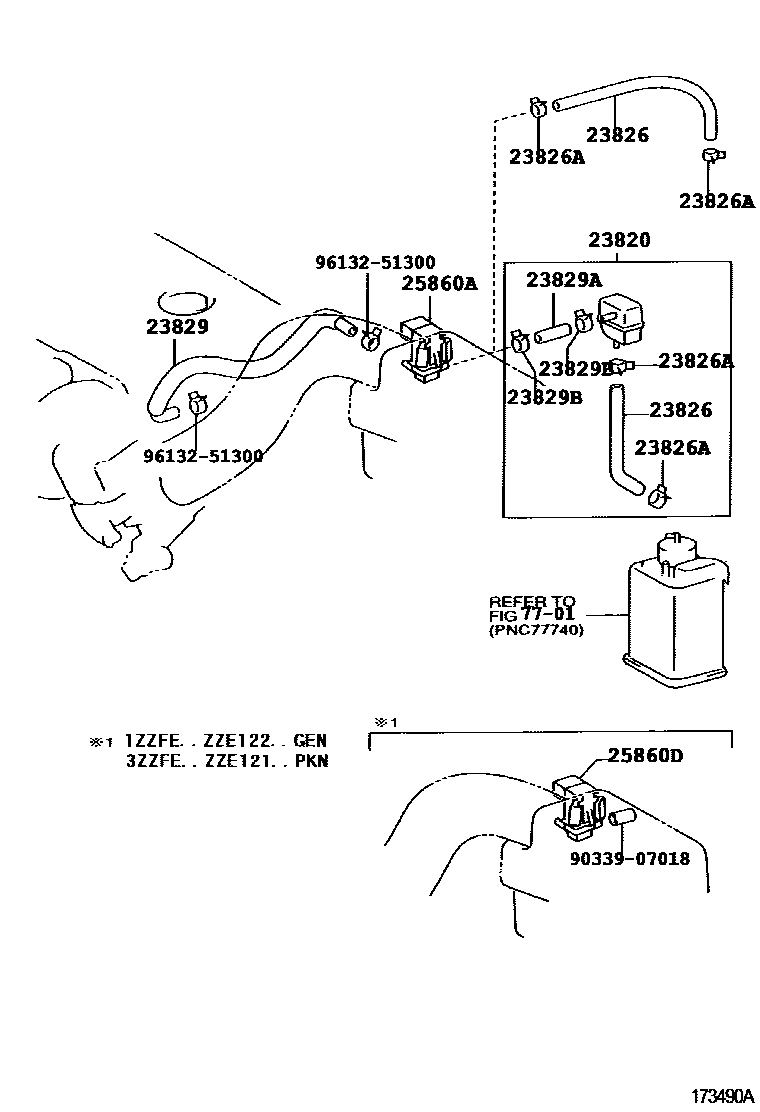

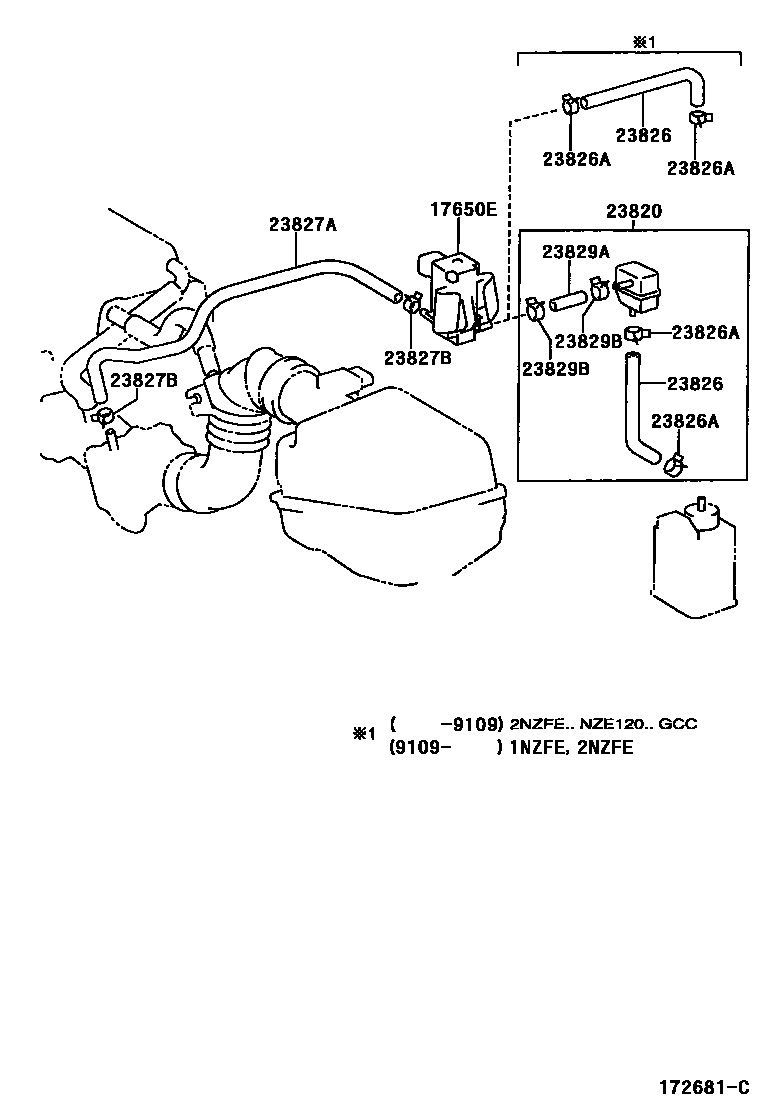

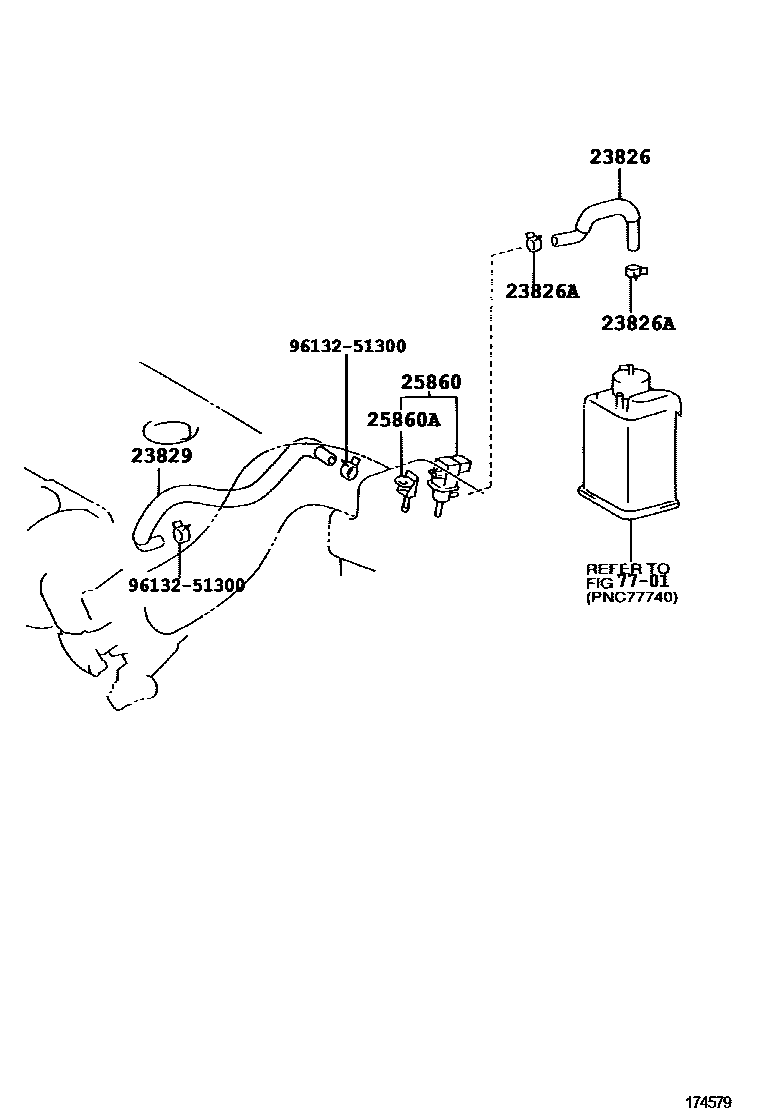

Toyota COROLLA vacuum tube — Figure 1708
Toyota COROLLA EPC diagram 1708, vacuum tube, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17650E | Vacuum switch valve | 90910-12236 · 90910-12257 |
| 23820 | Fuel vapor supply hose assembly | 23820-21040 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0D030 · 23826-21030 · 23826-21050 · 23826-22140 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96132-51100 |
| 23827A | No. 2 fuel vapor supply hose | 23827-21030 · 23827-21140 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96132-51300 |
| 23829 | No. 3 fuel vapor supply hose | 23829-22080 · 23829-22110 · 23829-22150 |
| 23829A | Fuel vapor supply hose | 95326-07005 |
| 23829B | Clamp (for fuel vapor supply hose) | 96132-51100 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-28130 |
| 25860A | No. 1 vacuum switch valve | 90910-12236 · 90910-12257 · 90910-12273 |
| 25860D | No. 2 vacuum switch valve assembly | 90910-12236 · 90910-12257 |
