Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 5 images and 12 PNC and OE references.

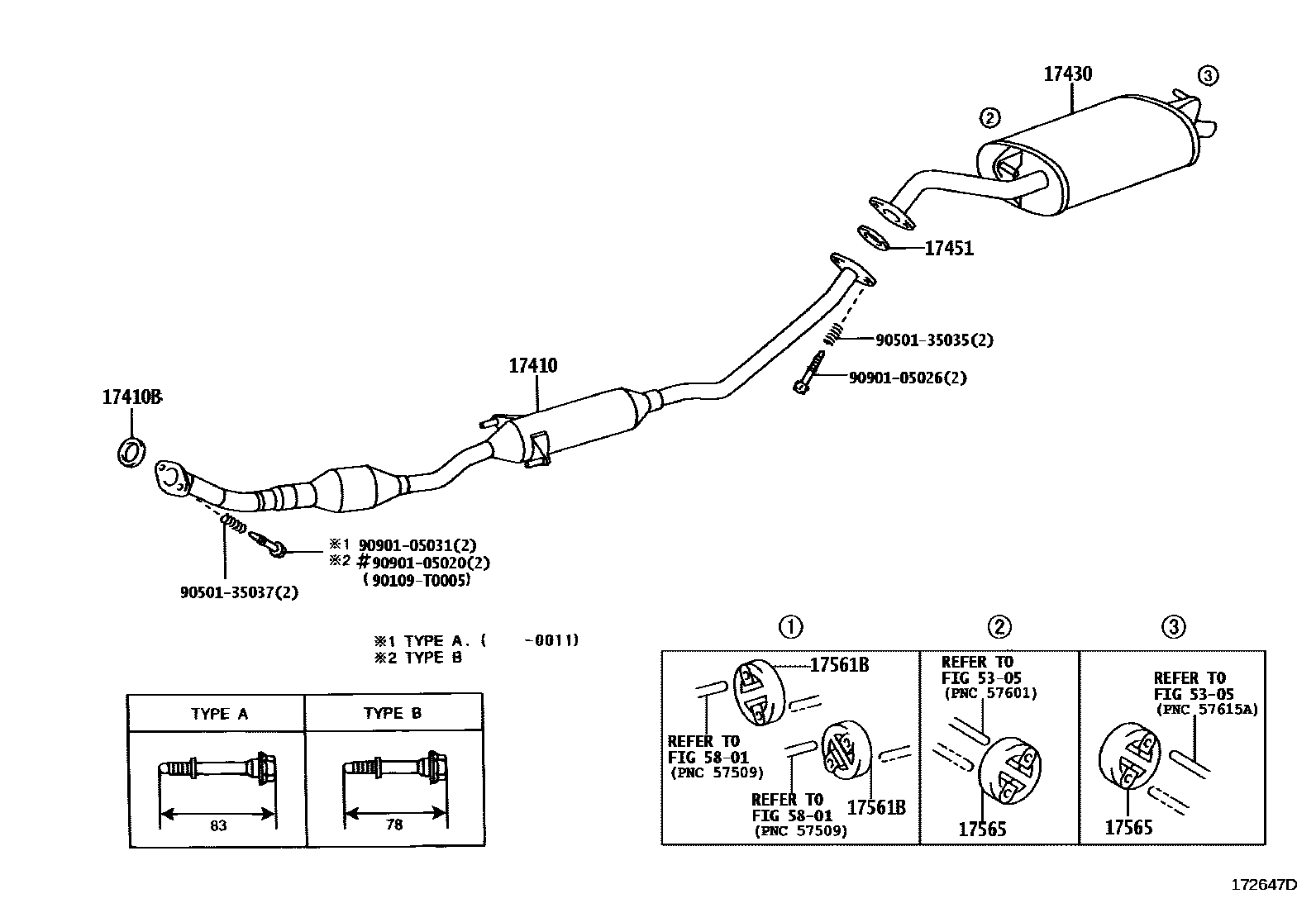

Toyota COROLLA Exhaust Pipe EPC diagram — 172647D
Exhaust Pipe — 172647D (200008 – 999999)

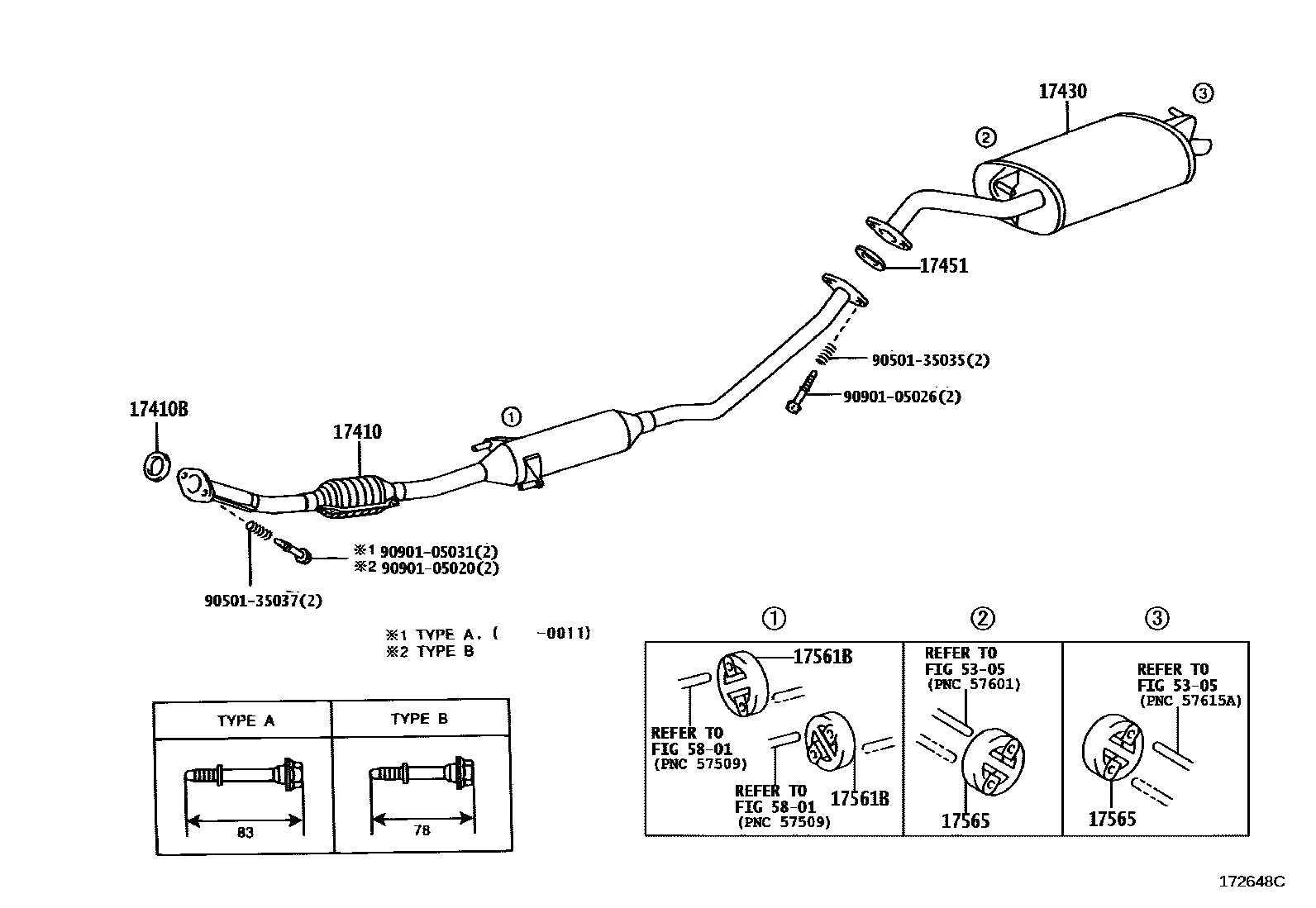

Toyota COROLLA Exhaust Pipe EPC diagram — 172648C
Exhaust Pipe — 172648C (200008 – 999999)

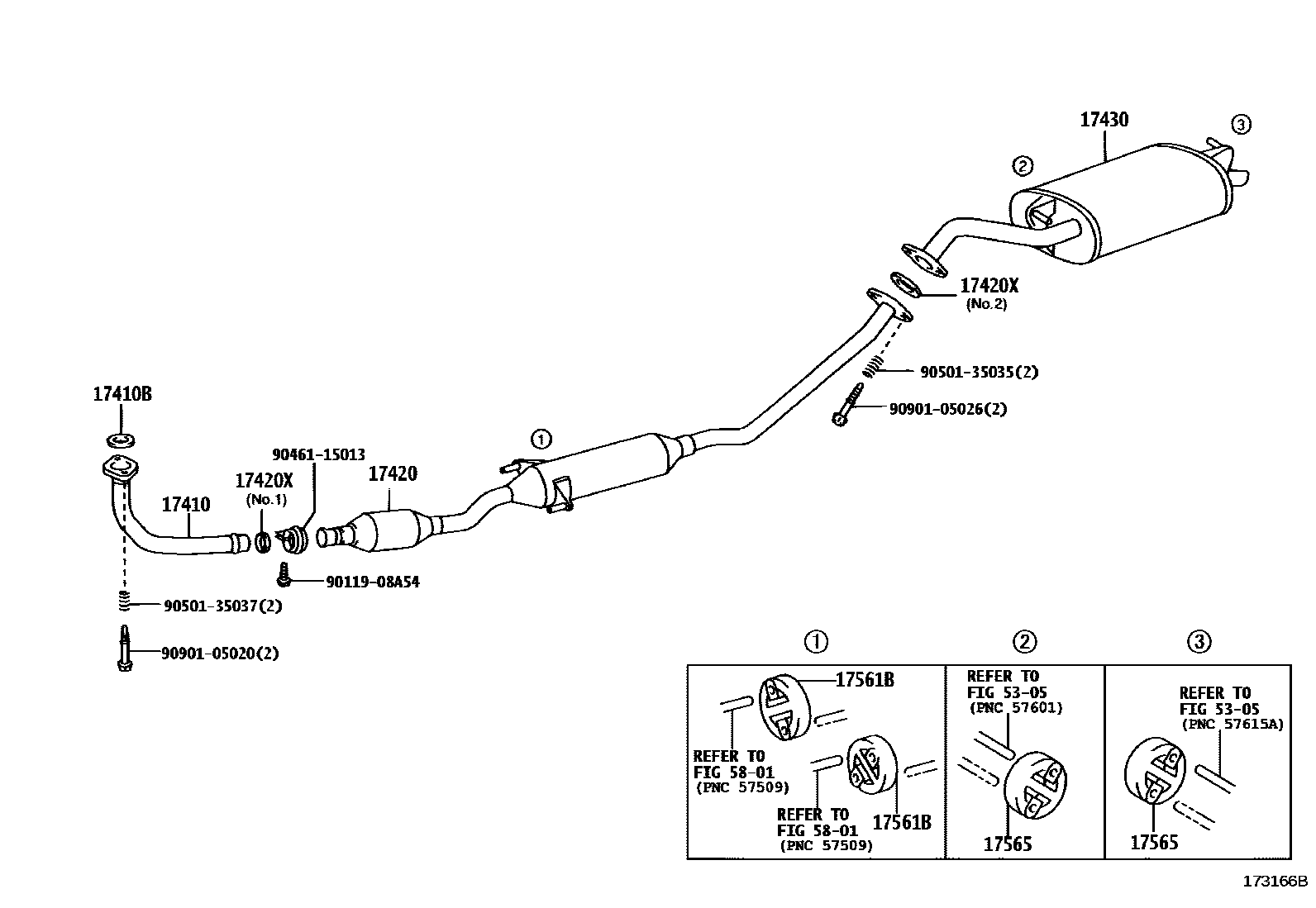

Toyota COROLLA Exhaust Pipe EPC diagram — 173166B
Exhaust Pipe — 173166B (200110 – 999999)

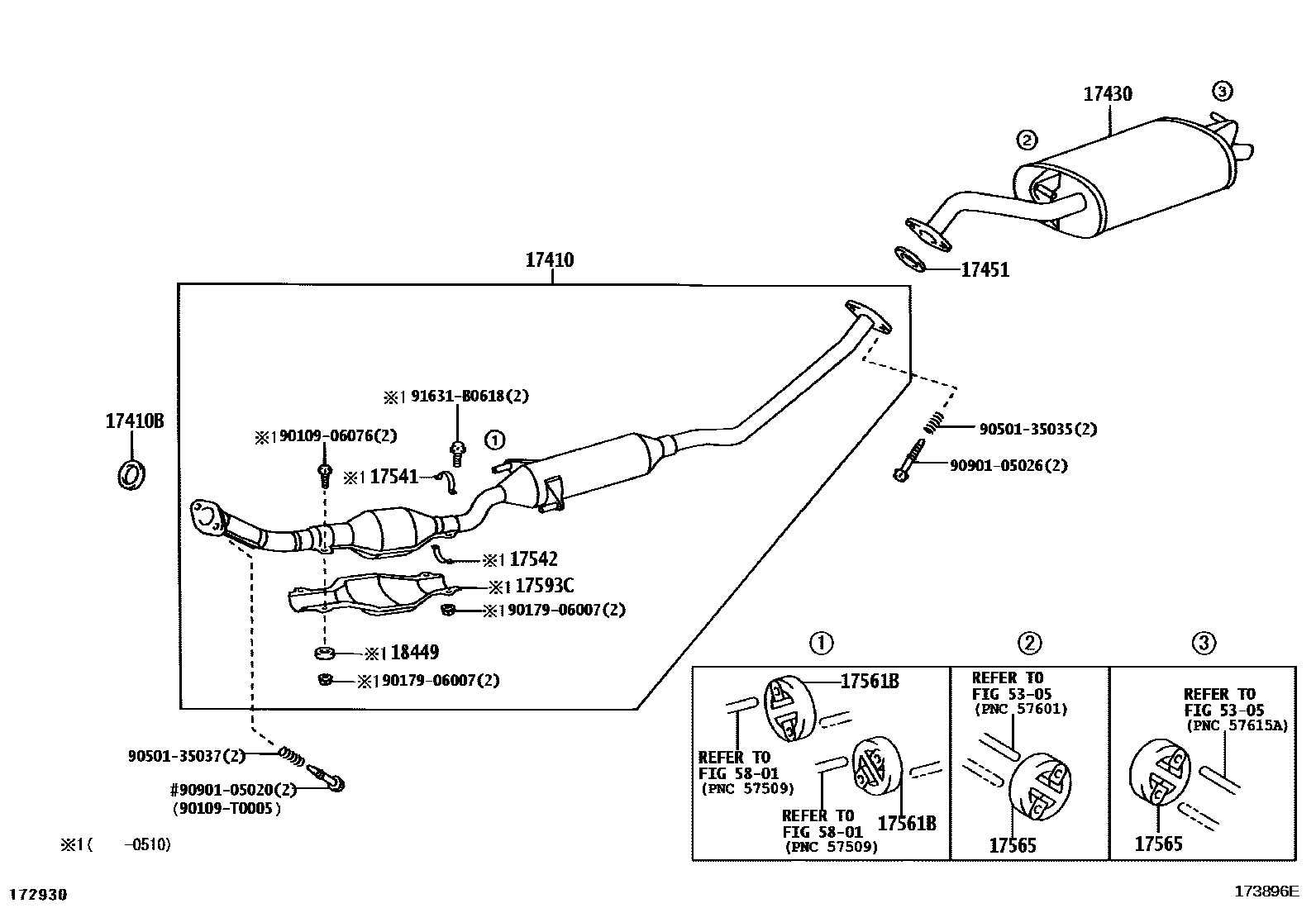

Toyota COROLLA Exhaust Pipe EPC diagram — 173896E
Exhaust Pipe — 173896E (200110 – 999999)

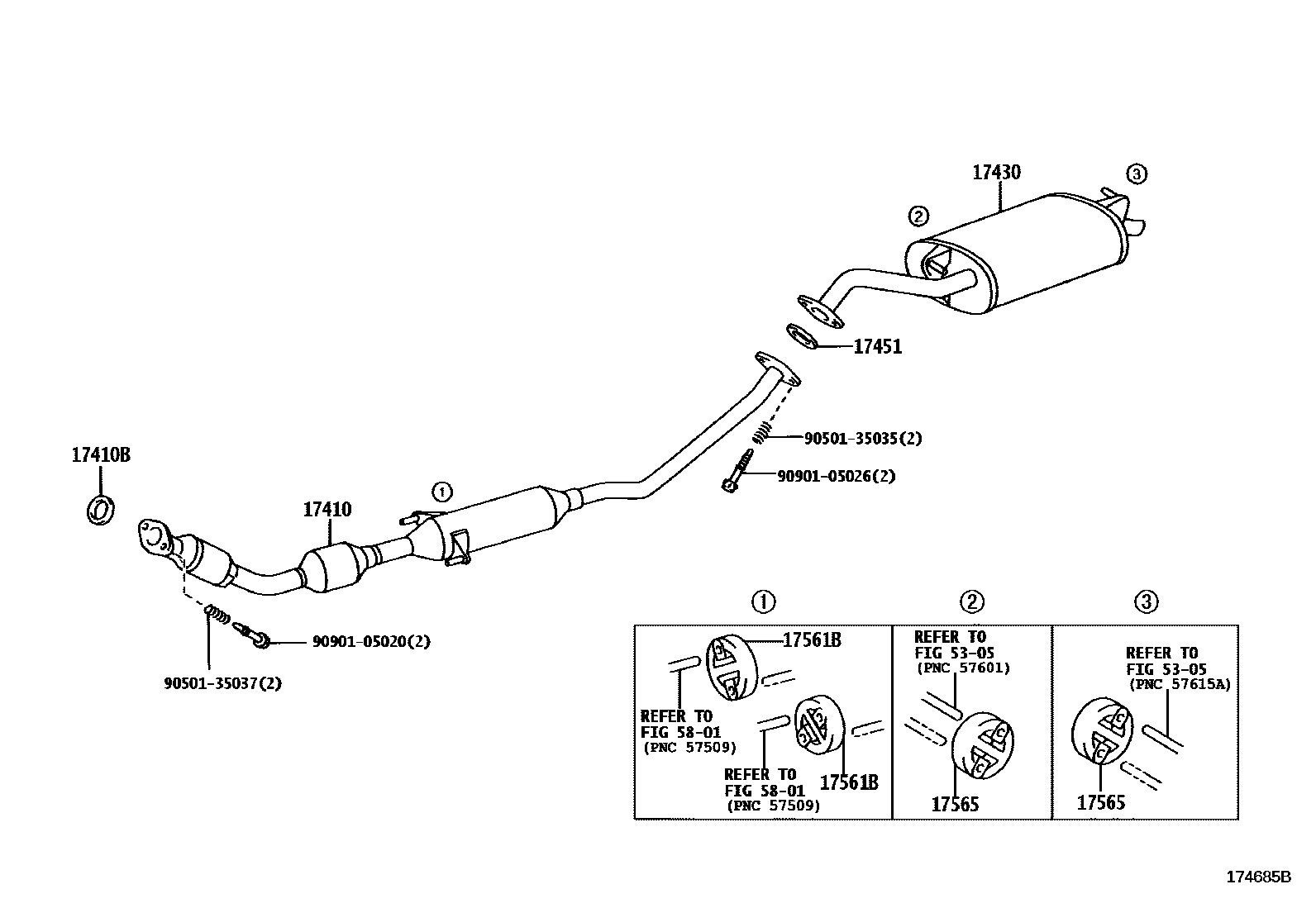

Toyota COROLLA Exhaust Pipe EPC diagram — 174685B
Exhaust Pipe — 174685B (200512 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-0D090 · 17410-21230 · 17410-21250 · 17410-21251 · 17410-21410 · 17410-21411 · 17410-21760 · 17410-22160 · 17410-22161 · 17410-22190 · 17410-22320 · 17410-22321 · 17410-22330 · 17410-22331 · 17410-22360 · 17410-22361 · 17410-22620 · 17410-6A040
17410BExhaust pipe gasket17451-21030 · 17451-21070 · 17451-21090 · 17451-22070 · 90917-06080
17420Central exhaust pipe assembly17420-0D090 · 17420-64390
17420XCenter exhaust pipe liner17451-64030 · 17451-64031 · 90917-06082
17430Exhaust tailpipe assembly17430-0D100 · 17430-0D160 · 17430-0D161 · 17430-21150 · 17430-21152 · 17430-21190 · 17430-21191 · 17430-21431 · 17430-22170 · 17430-22172 · 17430-22401 · 17430-6A310 · 17430-6A311
17451Exhaust pipe gasket17451-16030 · 17451-23010 · 17451-64030
17541No. 1 exhaust pipe protection device stay17541-42010
17542No. 2 exhaust pipe protection device stay17542-42010
17561BNo. 1 exhaust pipe lifting lug17565-21030 · 17565-22030
17565No. 5 exhaust pipe lifting lug17565-21040
17593CNo. 1 lower exhaust pipe protection device17593-22020
18449Three-way catalytic converter protection device gasket18449-74010
