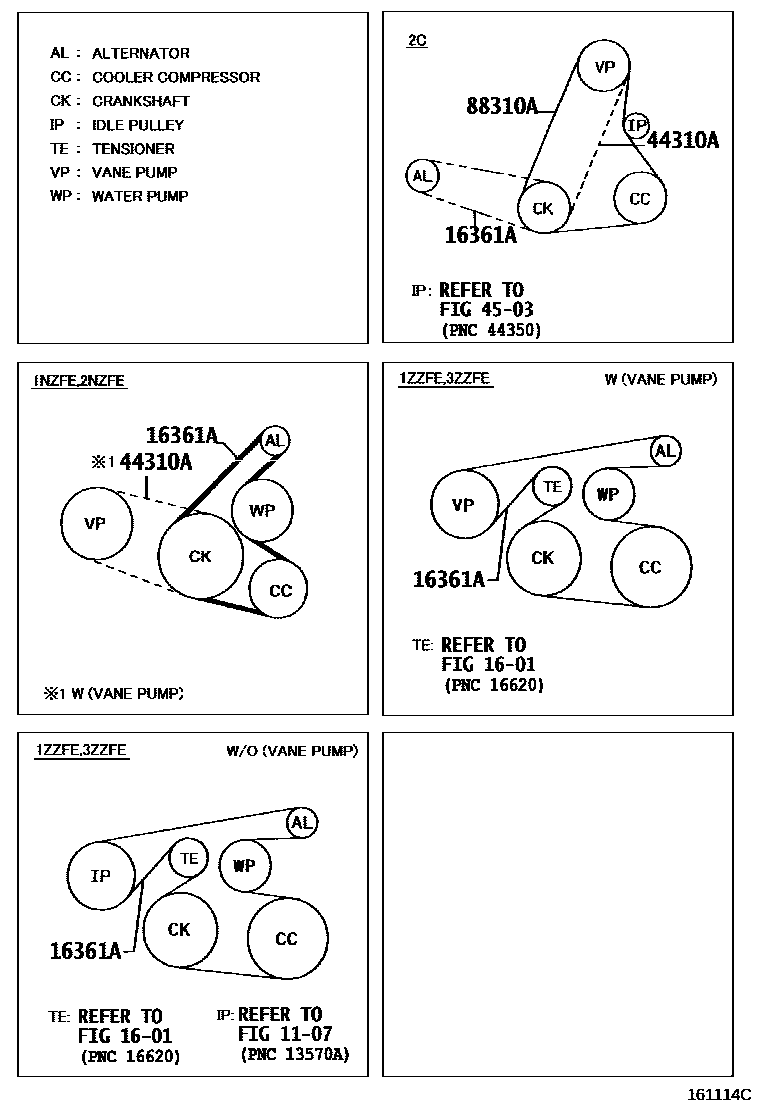

Toyota COROLLA V-Belt — Figure 1605
Toyota COROLLA EPC diagram 1605, V-Belt, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16361A | V-belts (for fans and generators) | 90916-02372 · 90916-02468 · 90916-02487 · 90916-02499 · 90916-02500 · 90916-02506 · 90916-02516 · 90916-02539 · 90916-02551 · 90916-02569 |
| 44310A | V-belt (for vane pump) | 90916-02575 · 90916-02577 · 90916-02578 · 99365-31130 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 99365-31210 · 99365-C1210 · 99365-D1210 |
