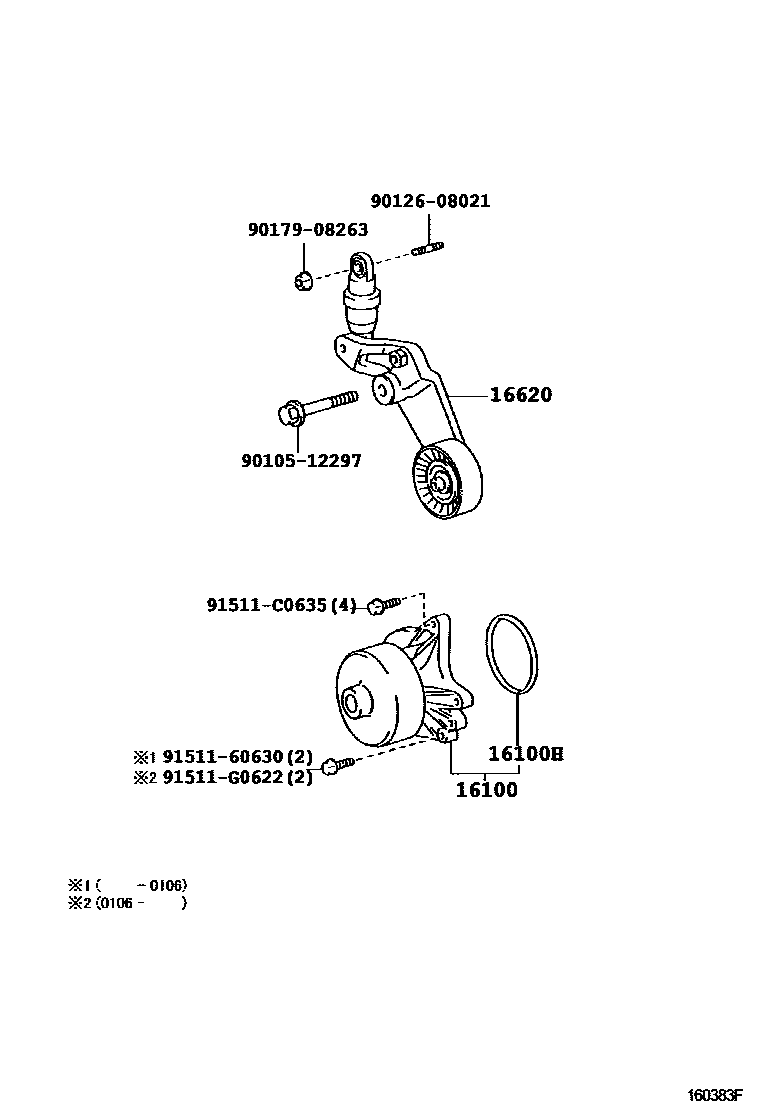

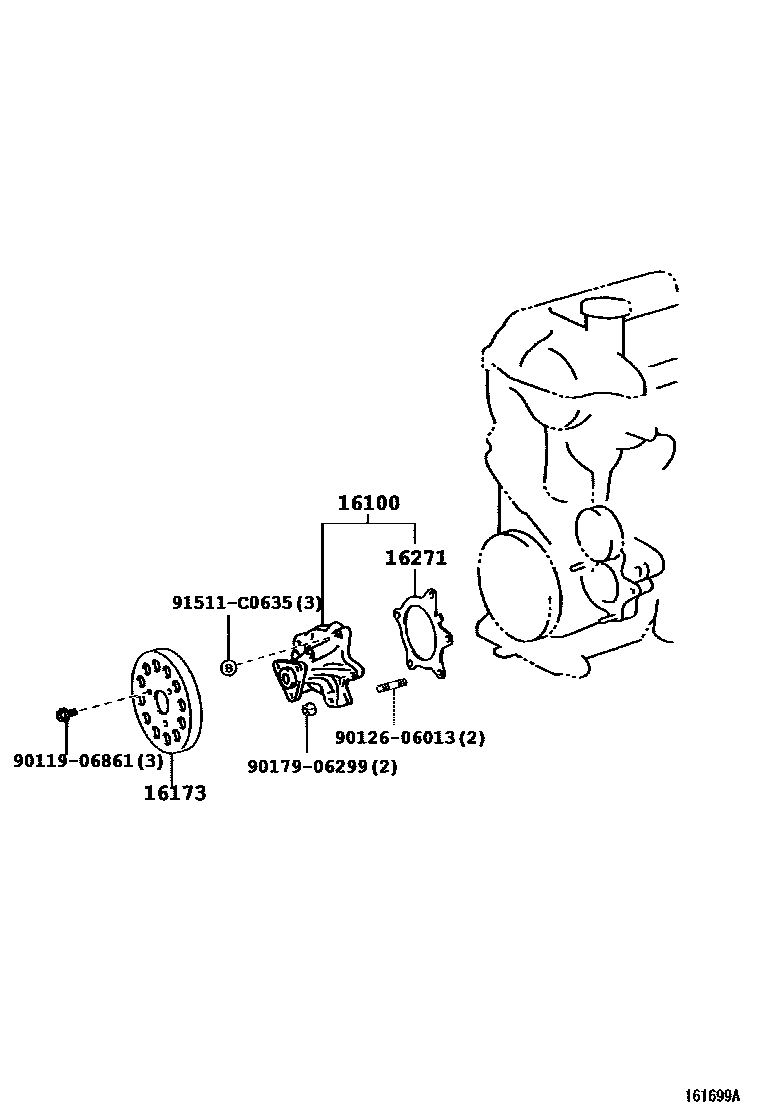

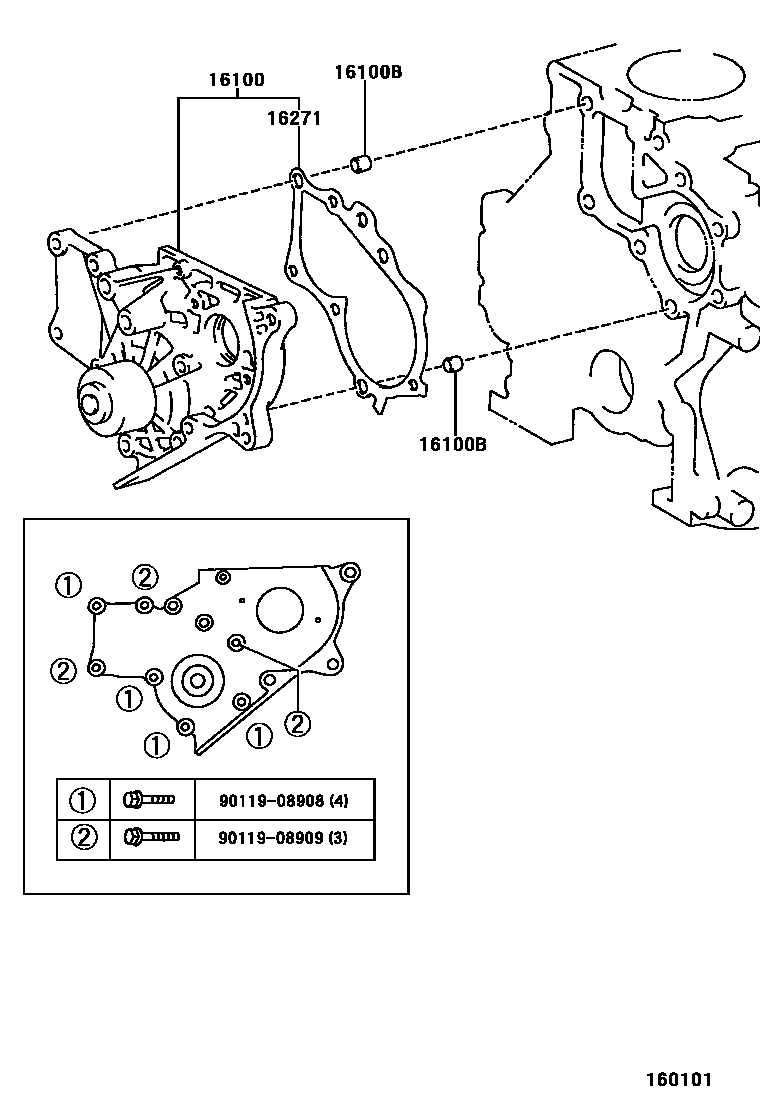

Toyota COROLLA Water Pump — Figure 1601
Toyota COROLLA EPC diagram 1601, Water Pump, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-29095 · 16100-29155 · 16100-29156 · 16100-29175 · 16100-29415 · 16100-29505 · 16100-69435 |
| 16100B | Ring pin (for water pump assembly) | 90253-11021 |
| 16100H | O-ring (for water pump) | 90301-69006 |
| 16173 | water pump pulley | 16173-21020 |
| 16271 | water pump gasket | 16271-21020 · 16271-64031 |
| 16620 | Poly V-belt tensioner assembly | 16620-0W093 · 16620-22010 · 16620-22011 · 16620-22012 · 16620-22013 |
