Toyota COROLLA Engine Oil Cooler — Figure 1503

Toyota COROLLA EPC diagram 1503, Engine Oil Cooler, with 2 images and 11 PNC and OE references.

Toyota COROLLA Engine Oil Cooler EPC diagram — 150441
Engine Oil Cooler — 150441 (200008 – 999999)

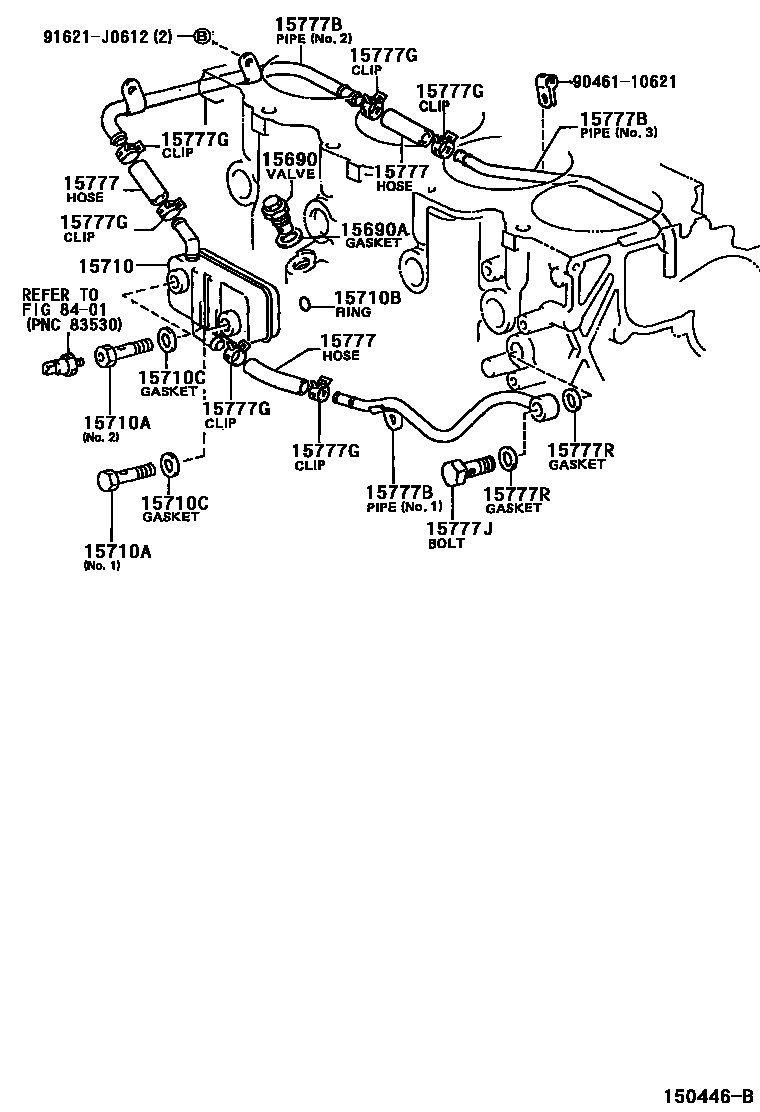

Toyota COROLLA Engine Oil Cooler EPC diagram — 150446B
Engine Oil Cooler — 150446B (200110 – 999999)

PNC and OE references

PNCPart nameOE numbers
15690Oil cooler pressure reducing valve assembly15690-64010 · 15695-22010
15690AGasket (for oil cooler pressure reducing valve)90430-22003
15710Oil cooler assembly15710-22010 · 15710-64010
15710AConnector bolt (for oil cooler)90401-18009 · 90401-18011
15710BO-ring (for transmission oil cooler)90301-22004
15710CGasket (for transmission oil cooler)90430-18021
15777oil cooler hose90445-21006
15777Boil cooler pipe15767-64011 · 15768-64071 · 15769-64011
15777GHose clips or clips96134-41900
15777JConnector bolt (for oil cooler pipe)90401-20004
15777RGasket (for oil cooler pipe joint bolts)90430-20014
