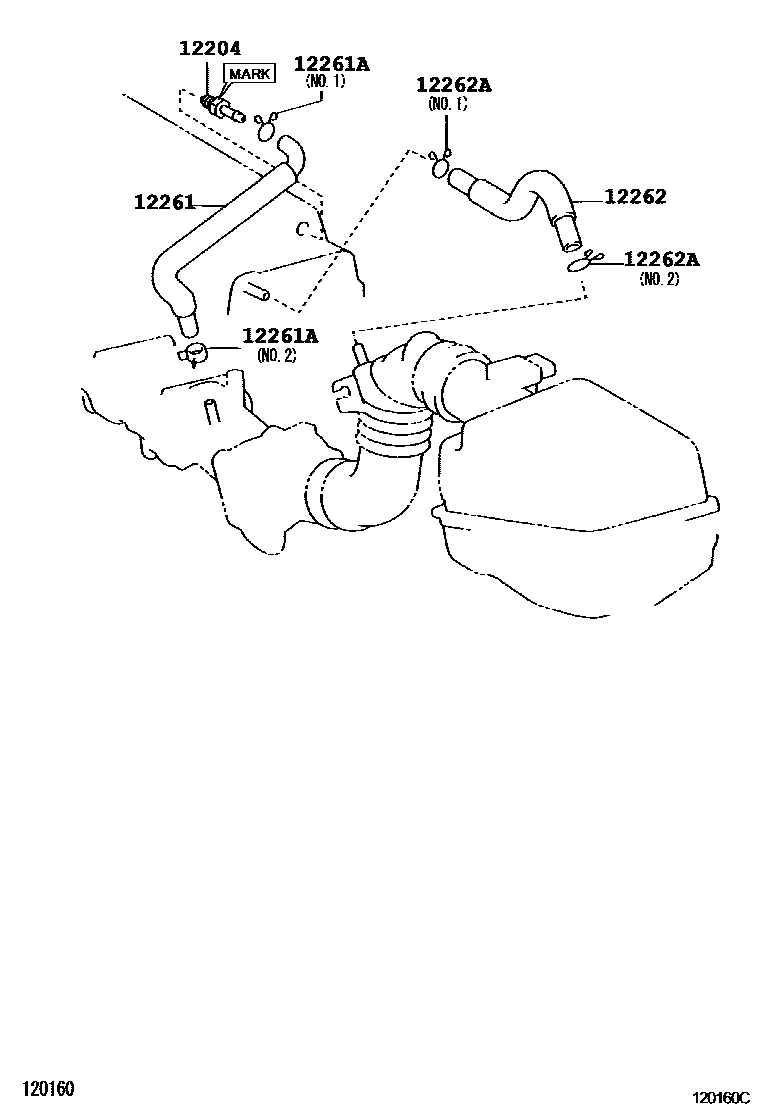

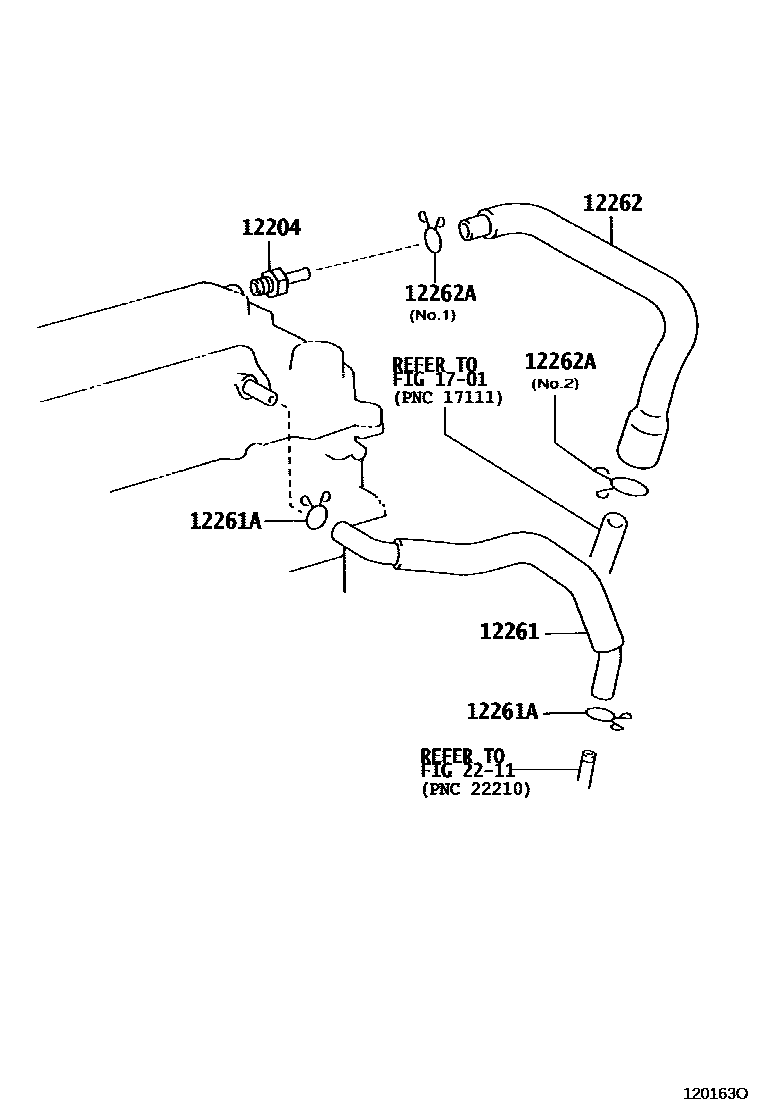

Toyota COROLLA Ventilation Hose — Figure 1201
Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12204 | Ventilation valve sub-assembly | 12204-21010 · 12204-21011 · 12204-21012 · 12204-22050 · 12204-22051 |
| 12261 | Ventilation Hose | 12261-0D040 · 12261-21030 · 12261-21050 · 12261-22050 · 12261-22070 · 12261-64310 |
| 12261A | Clip or clip (for vent hose) | 90467-13057 · 90467-15120 · 90467-17011 · 90467-18003 · 90467-21152 · 90467-24038 · 96134-51700 |
| 12262 | Ventilation hose No. 2 | 12262-0D050 · 12262-0D060 · 12262-21060 · 12262-21080 · 12262-21100 · 12262-22040 · 12262-22060 |
| 12262A | Clamp (for vent hose No. 2) | 16581-21050 · 90466-18002 · 90467-13103 · 90467-19003 · 90467-21004 |
