Toyota COROLLA Engine Mounting — Figure 1107

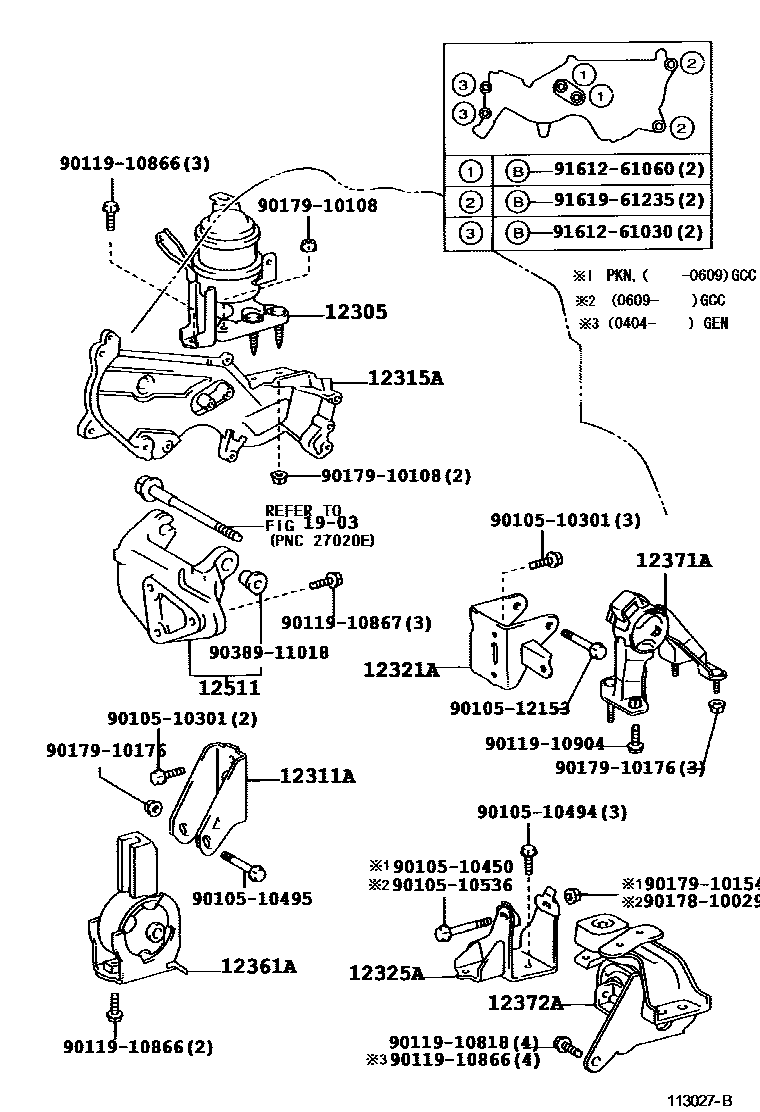

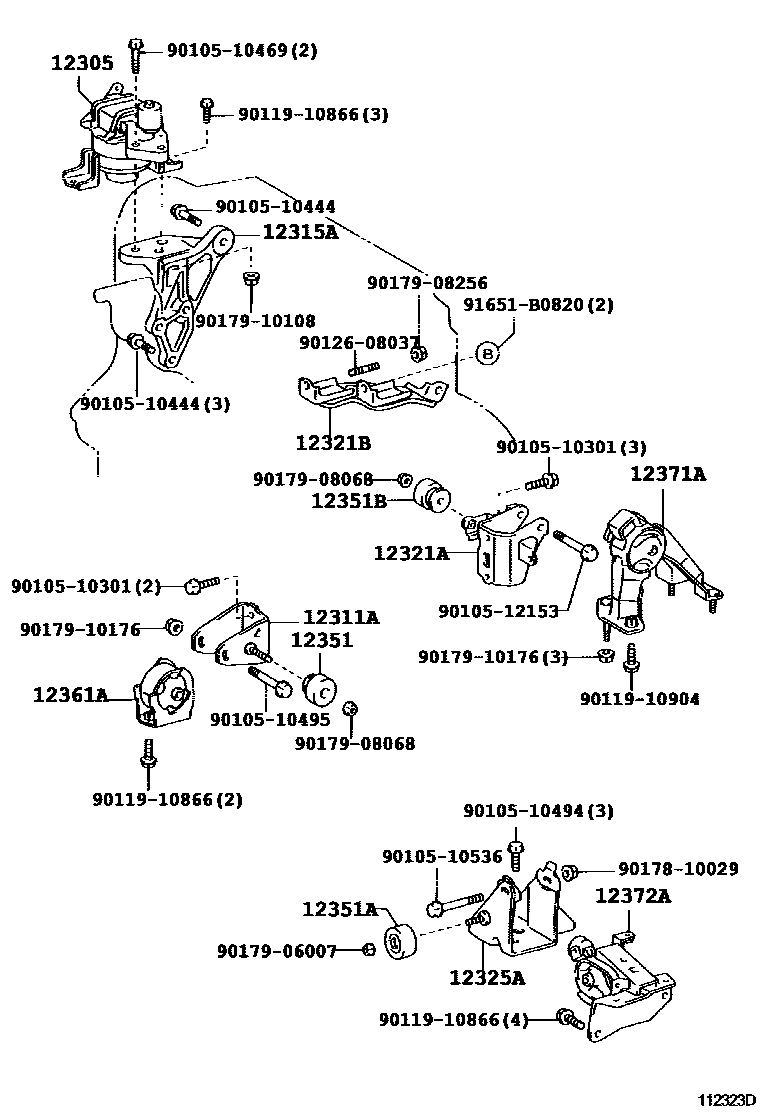

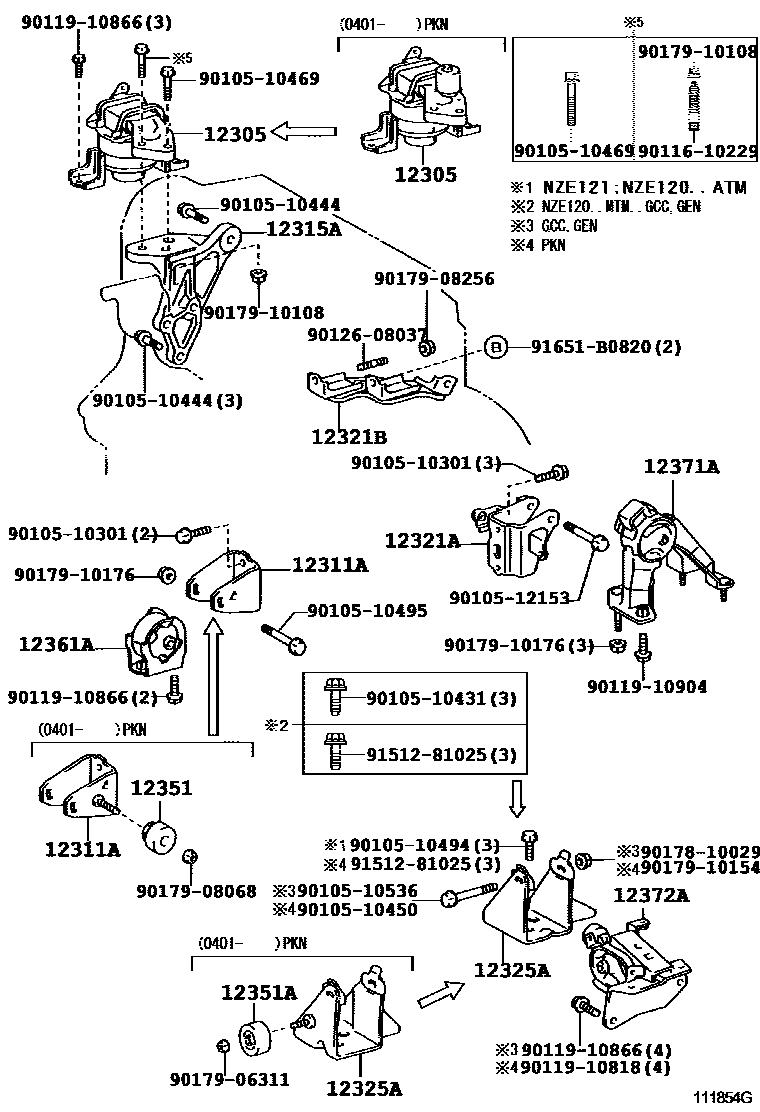

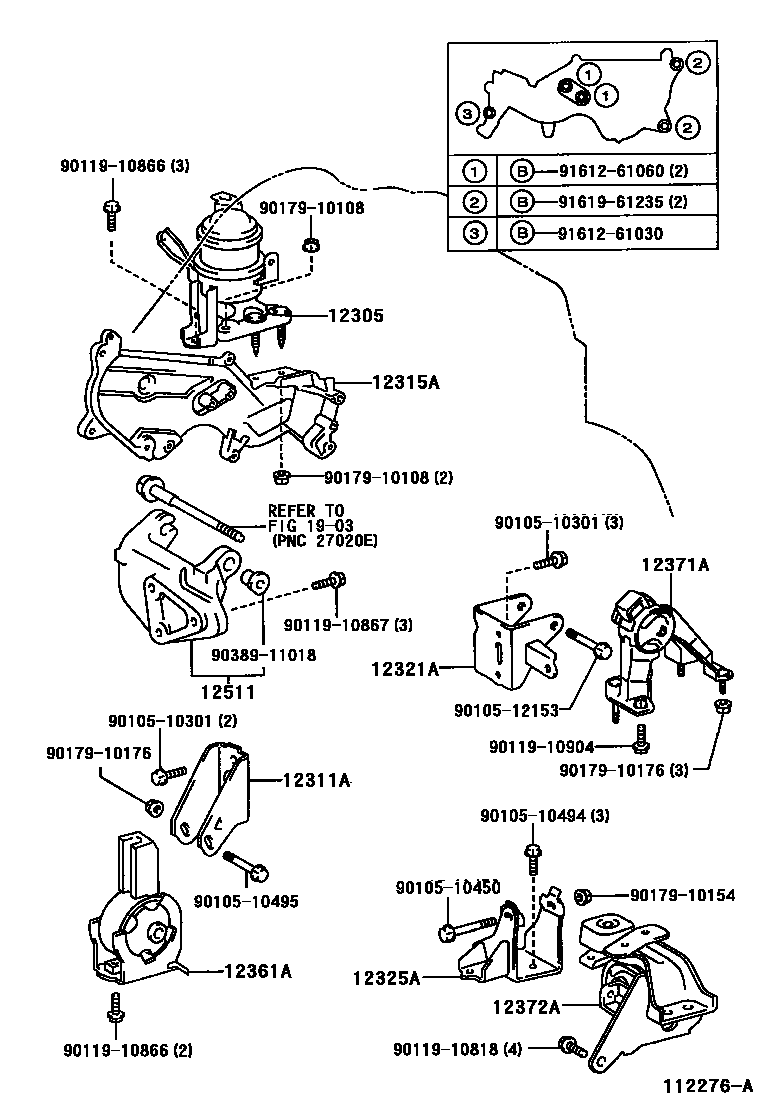

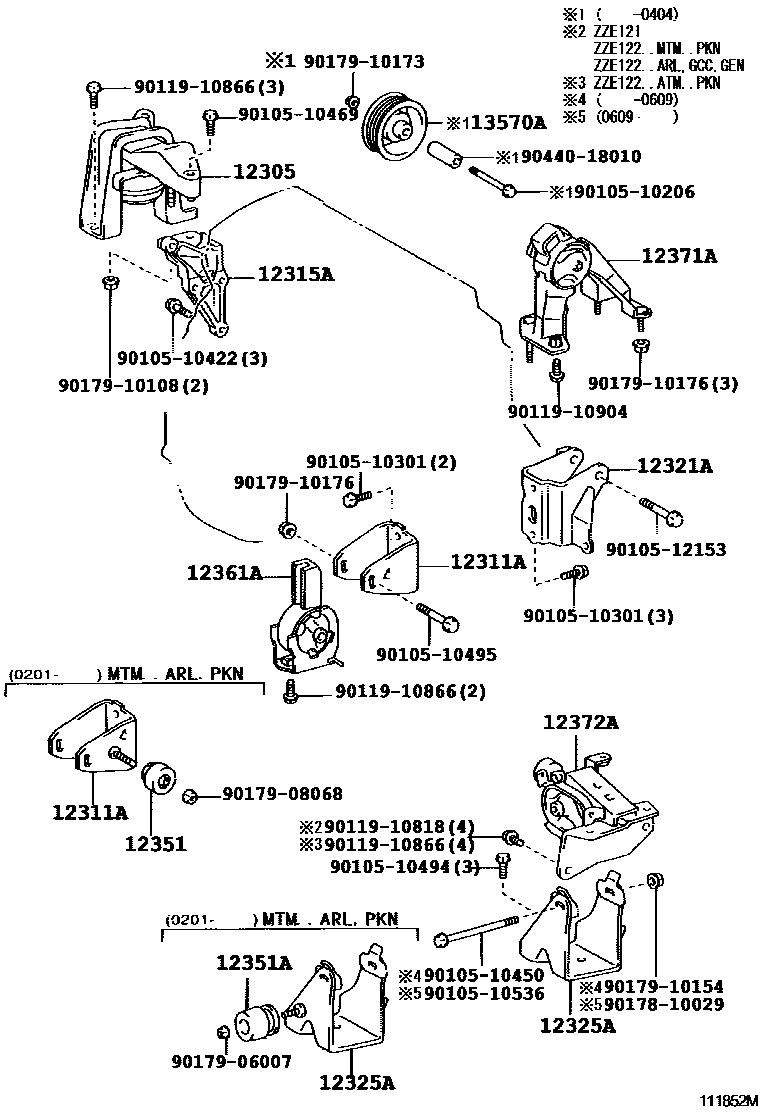

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 5 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-21130 · 12305-21170 · 12305-22110 · 12305-22150 · 12305-22170 · 12305-22200 · 12305-22240 · 12305-22270 · 12305-22420 · 12305-22430 · 12305-64200 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0D040 · 12311-0D130 · 12311-21010 · 12311-21020 · 12311-21050 · 12311-22110 · 12311-22170 · 12311-64230 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0D090 · 12315-0M020 · 12315-21030 · 12315-21031 · 12315-21040 · 12315-21041 · 12315-22050 · 12315-64141 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-0D070 · 12321-0D080 · 12321-0D081 · 12321-0D170 · 12321-21060 · 12321-21070 · 12321-21120 · 12321-22110 · 12321-22120 · 12321-22121 · 12321-22130 · 12321-64330 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-52010 · 43409-52020 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-21080 · 12325-21081 · 12325-21090 · 12325-21100 · 12325-21110 · 12325-21130 · 12325-22090 · 12325-22100 · 12325-22110 · 12325-22200 · 12325-64190 |
| 12351 | engine mount shock absorber | 12351-11072 · 12351-22080 |
| 12351A | Engine mount shock absorber (for vibration isolation pad) | 12351-11023 · 12351-15080 · 12351-74110 |
| 12351B | engine mount shock absorber | 12351-11130 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-0D030 · 12361-0D040 · 12361-21020 · 12361-21030 · 12361-21040 · 12361-22080 · 12361-22090 · 12361-64400 |
| 12371A | Engine rear mount vibration isolation pad | 12371-0D040 · 12371-0D050 · 12371-0D060 · 12371-21100 · 12371-21110 · 12371-21260 · 12371-22130 · 12371-22140 · 12371-22170 · 12371-64350 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0D050 · 12372-0D051 · 12372-21070 · 12372-22060 · 12372-22100 · 12372-27020 |
| 12511 | No. 1 generator bracket | 12511-64060 |
| 13570A | No. 1 poly-ribbed belt idler assembly | 13570-22010 |
