Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

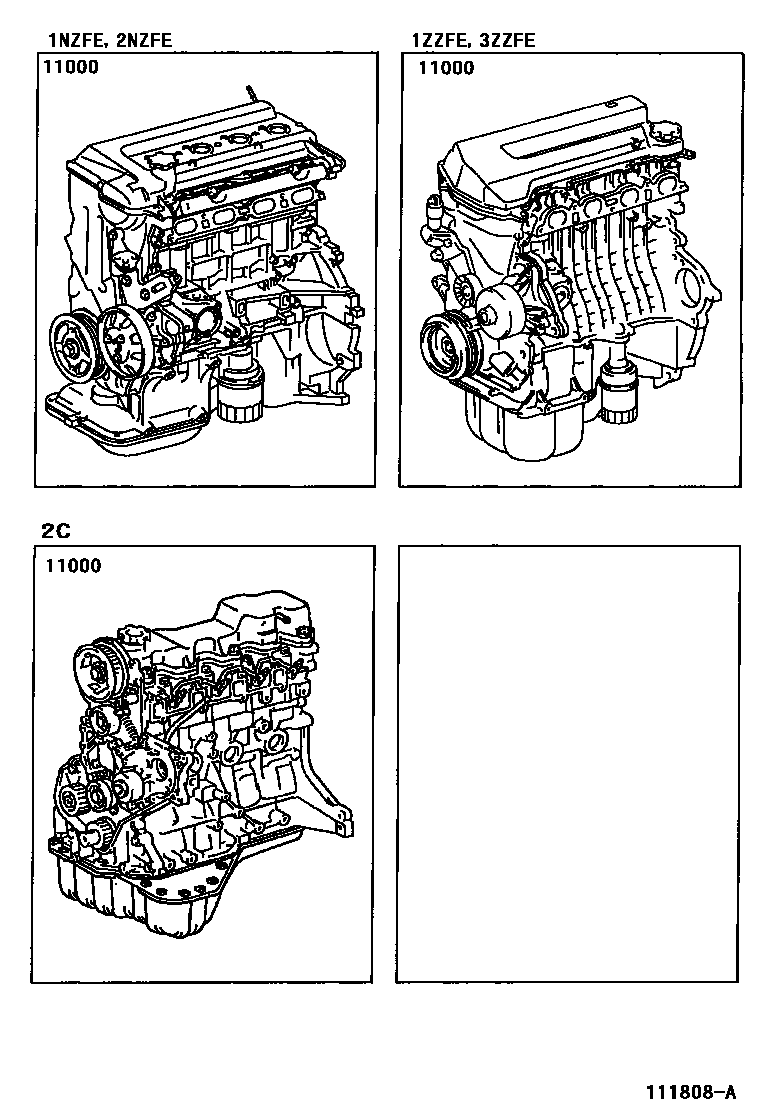

Toyota COROLLA Partial Engine Assembly EPC diagram — 111808A
Partial Engine Assembly — 111808A (200008 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-21100 · 19000-21110 · 19000-21121 · 19000-21122 · 19000-21C21 · 19000-21C30 · 19000-22200 · 19000-22201 · 19000-22210 · 19000-22220 · 19000-22230 · 19000-22260 · 19000-22261 · 19000-22280 · 19000-22330 · 19000-22331 · 19000-22A40 · 19000-64151 · 19000-6A151 · 19000-6A300
