Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717
Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 10 images and 8 PNC and OE references.

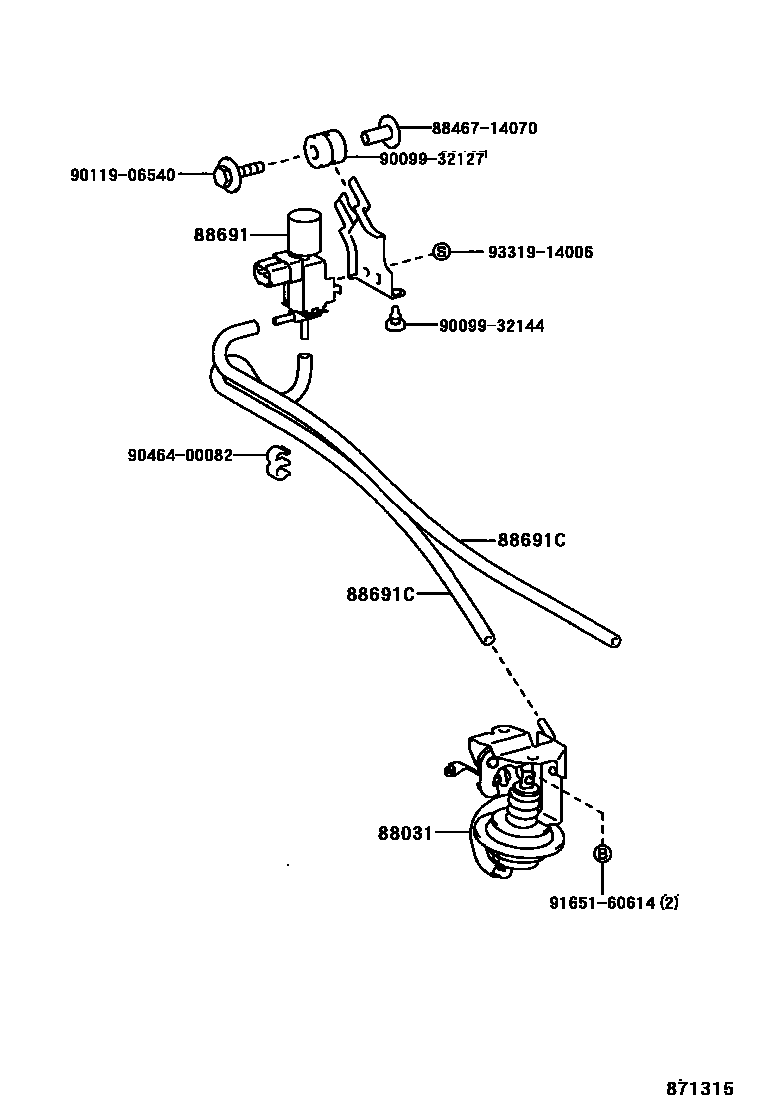

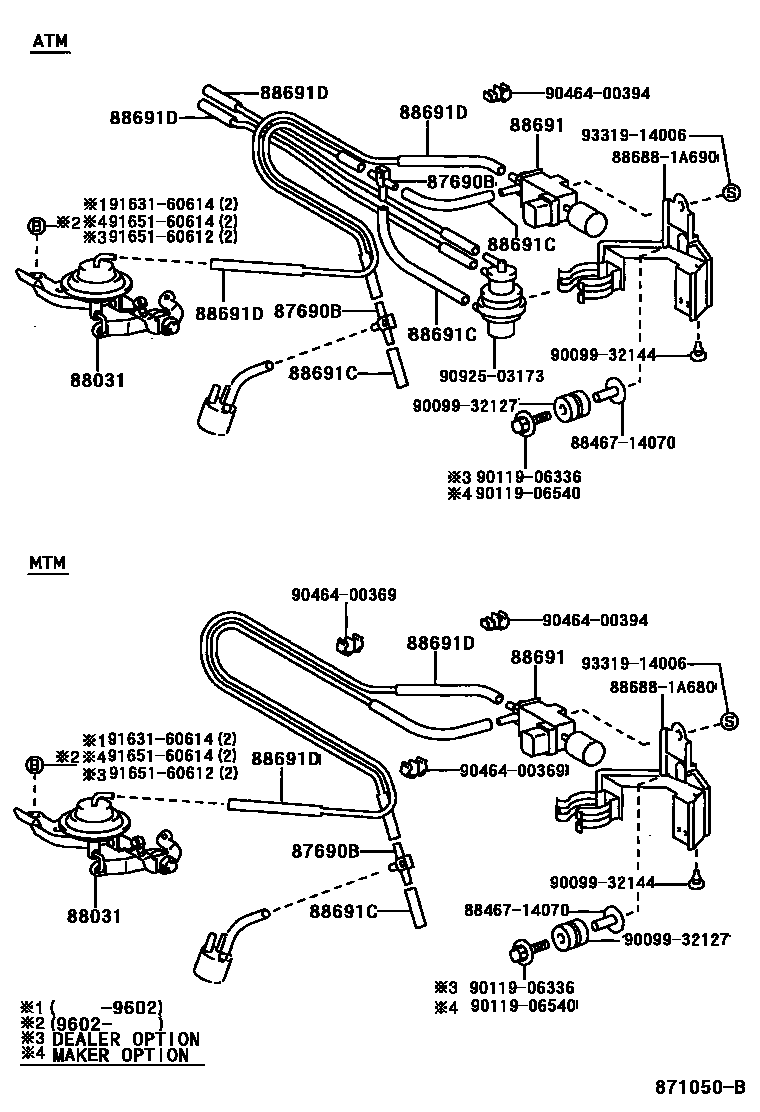

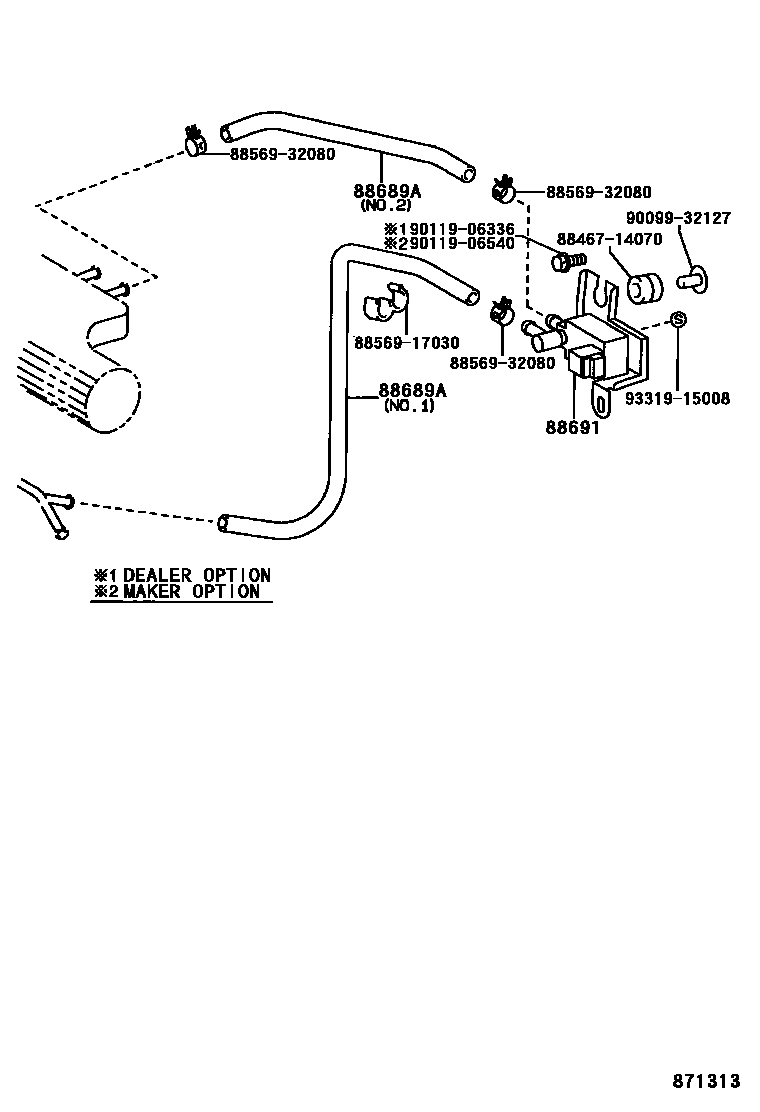

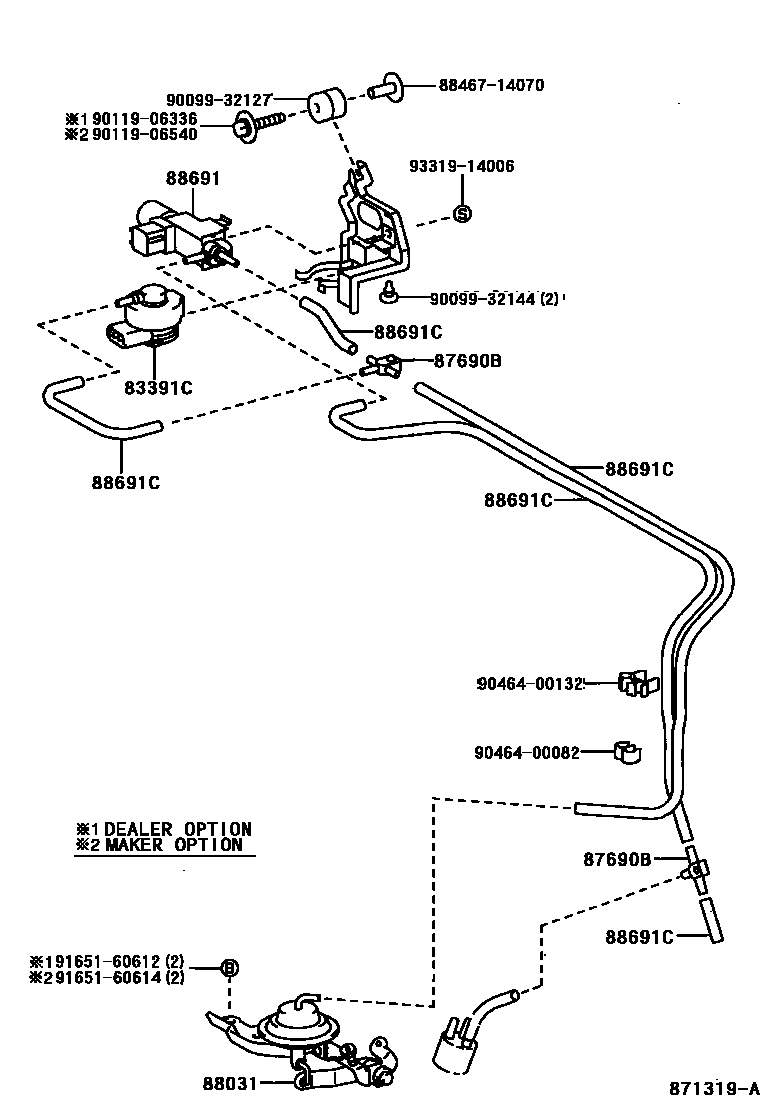

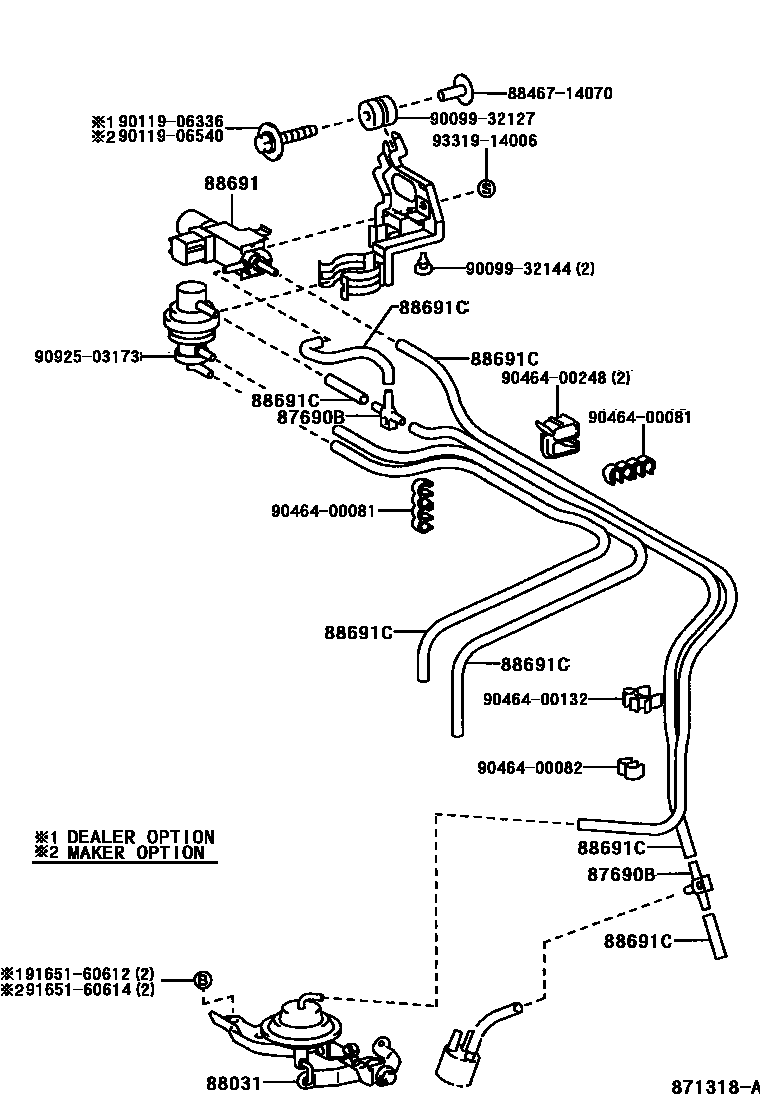

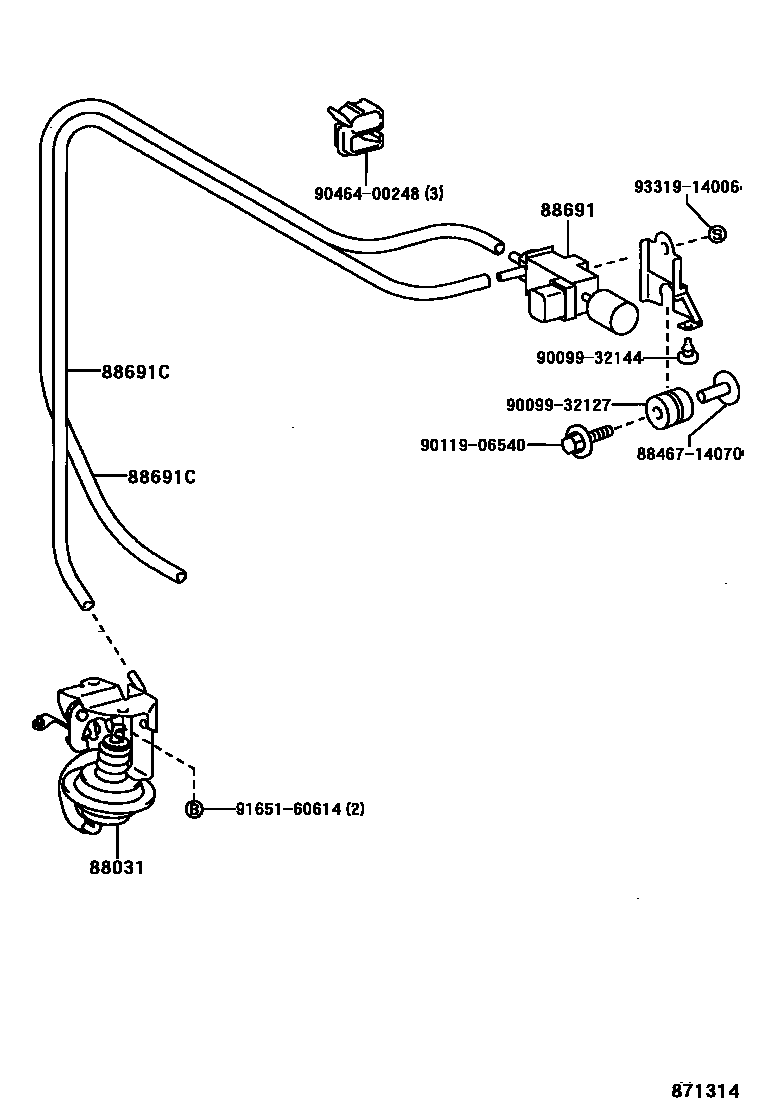

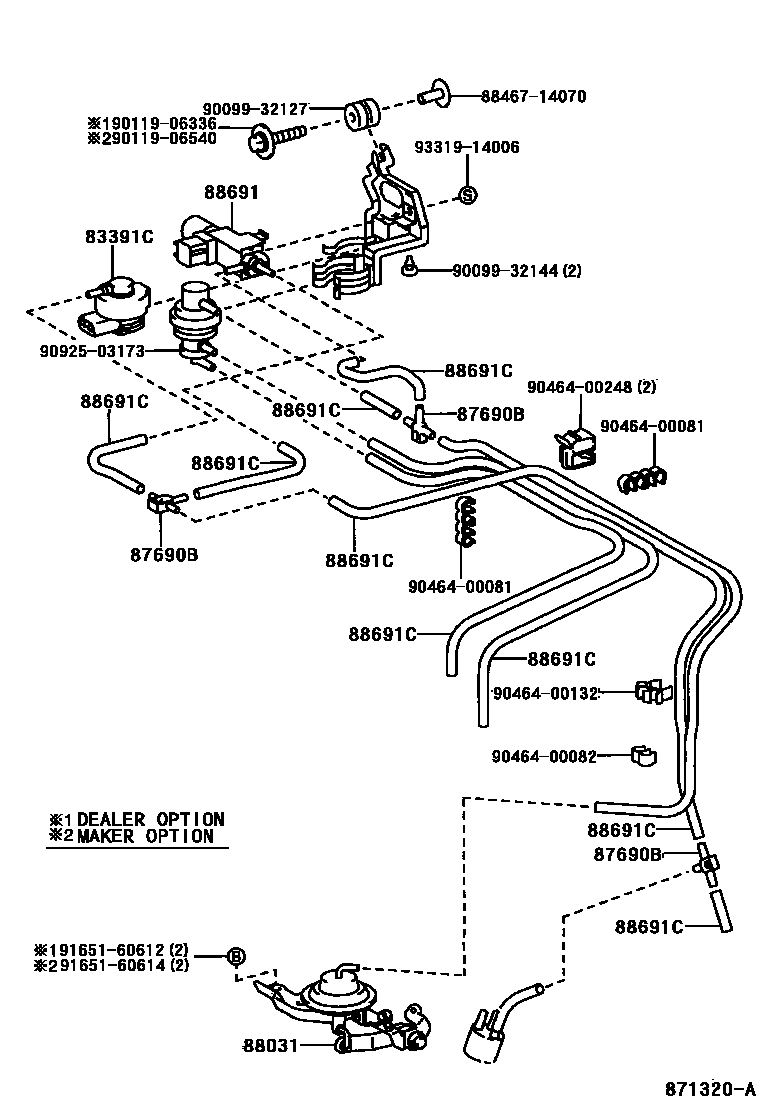

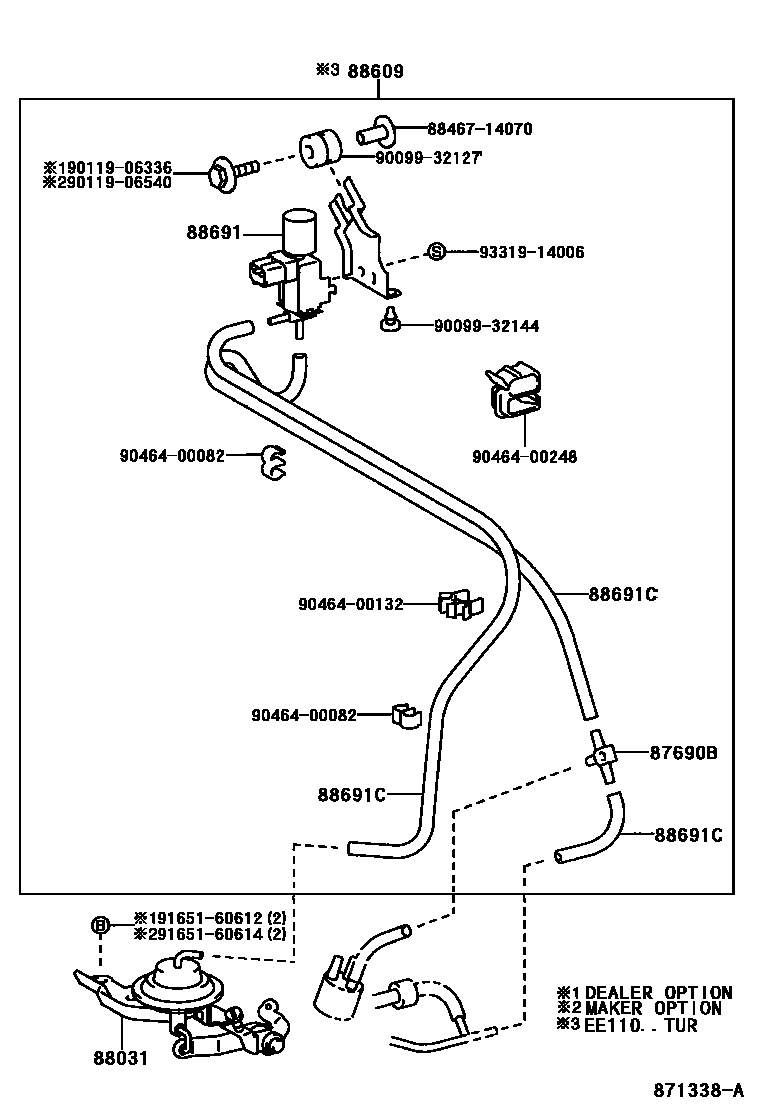

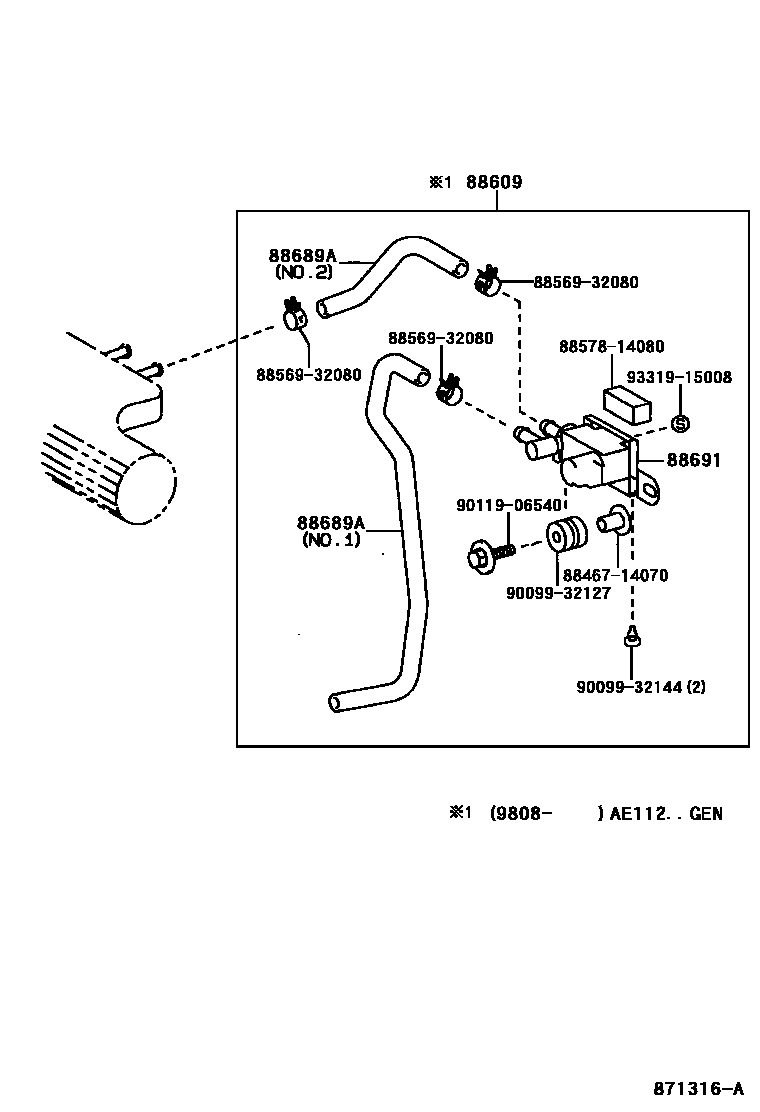

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83391C | Cooler vacuum switch | 83391-20060 · 88680-16010 |
| 87690B | tee pipe | 90413-04005 |
| 88031 | Idle speed lift actuator assembly | 88031-12140 · 88031-12200 |
| 88609 | Idle speed lifting device sub-assembly | 88609-12850 · 88690-1A070 |
| 88689A | Cooler Vacuum Hose No. 1 | 88689-12430 · 88689-12440 · 88689-12540 · 88689-12550 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88691-12180 · 88691-12210 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 90999-92002 |
| 88691D | Vacuum hose No. 2 (for idle lift) | 17303-11680 · 17303-11770 · 90099-45003 · 90099-45004 · 90099-45005 |
