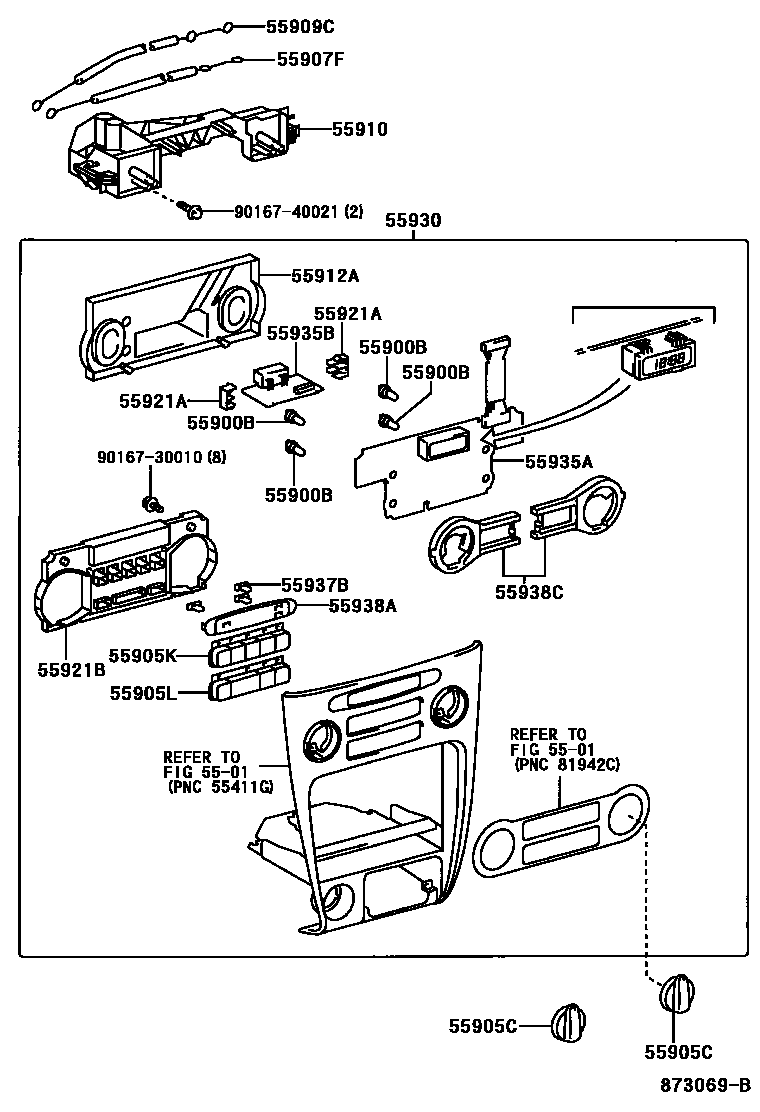

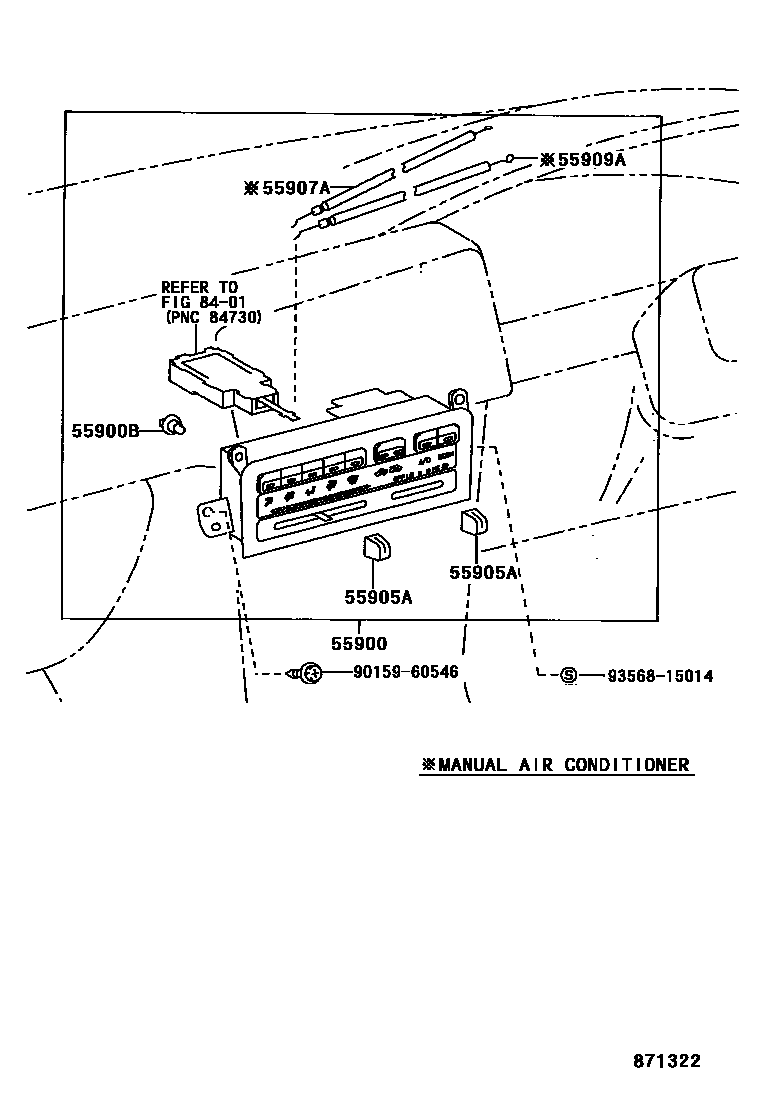

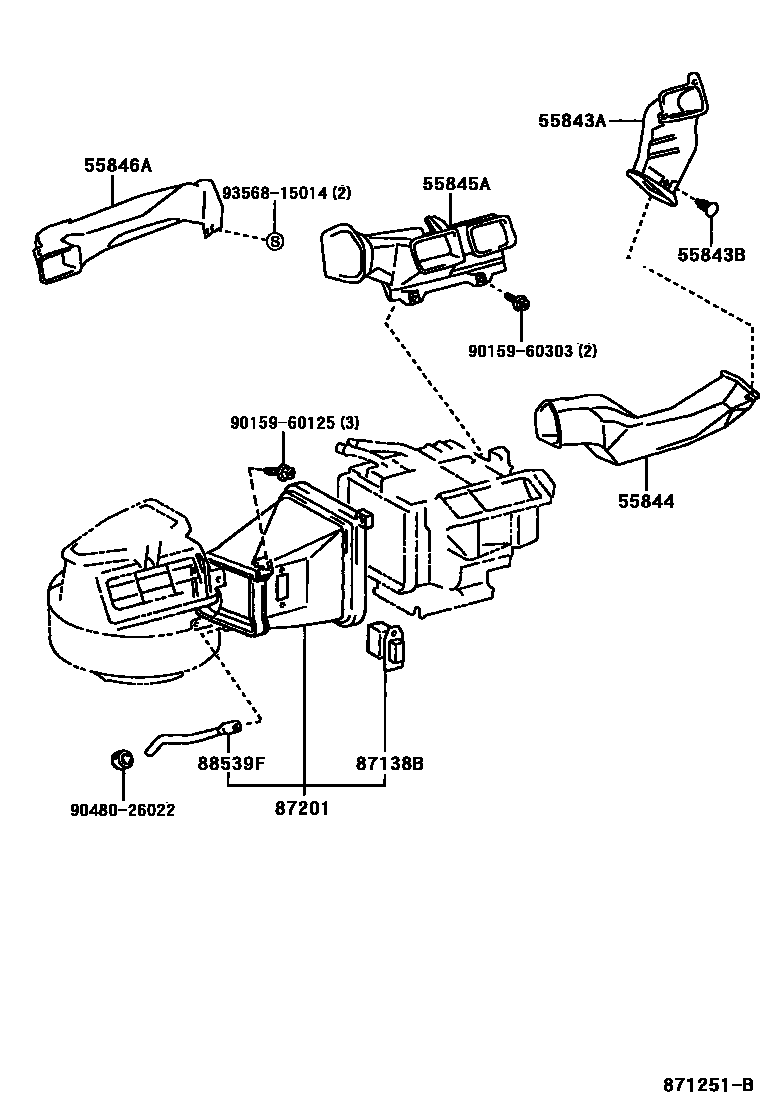

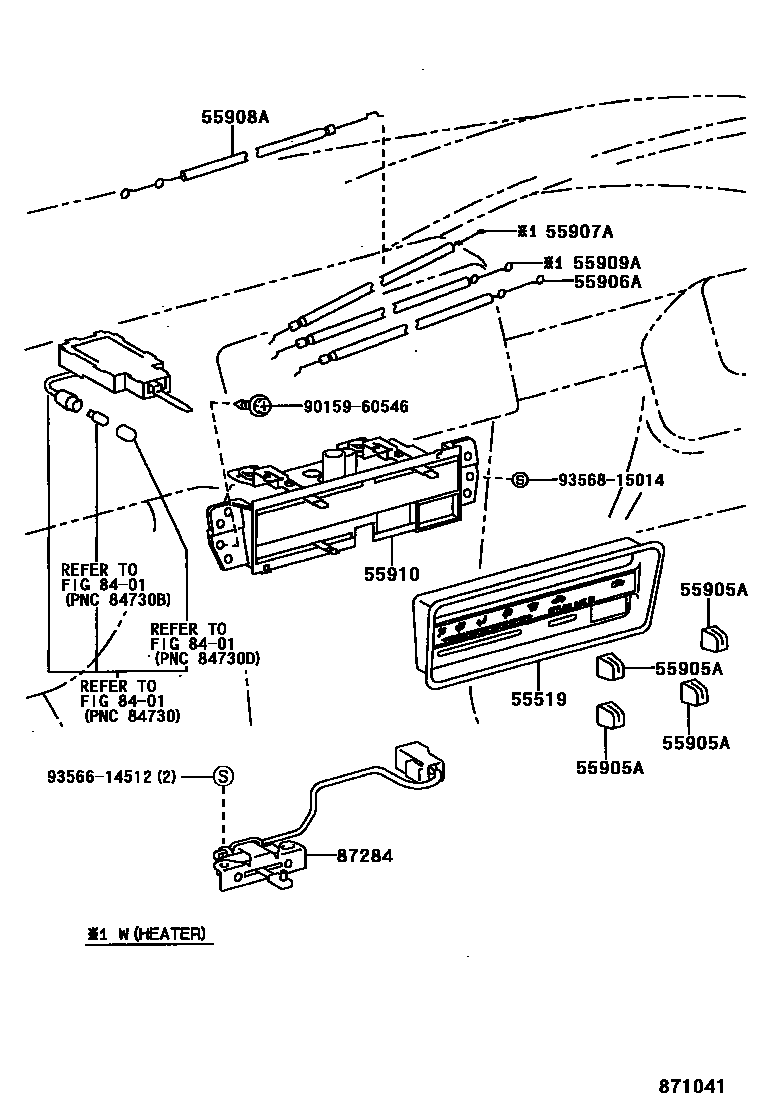

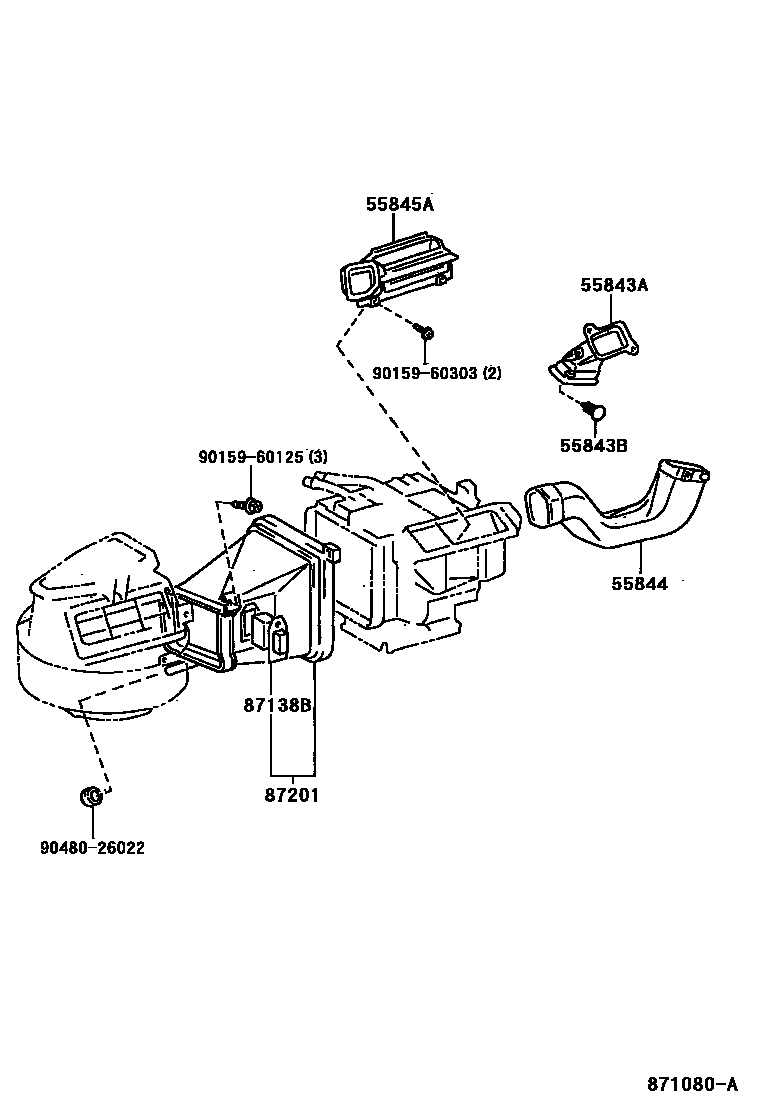

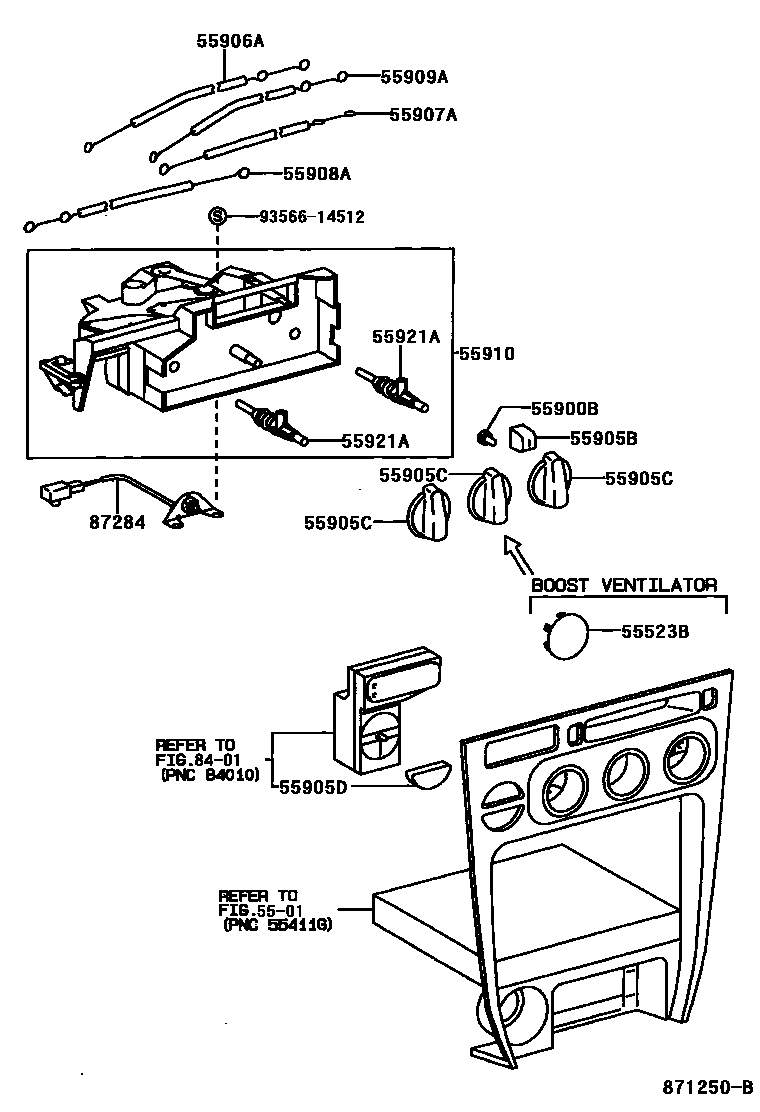

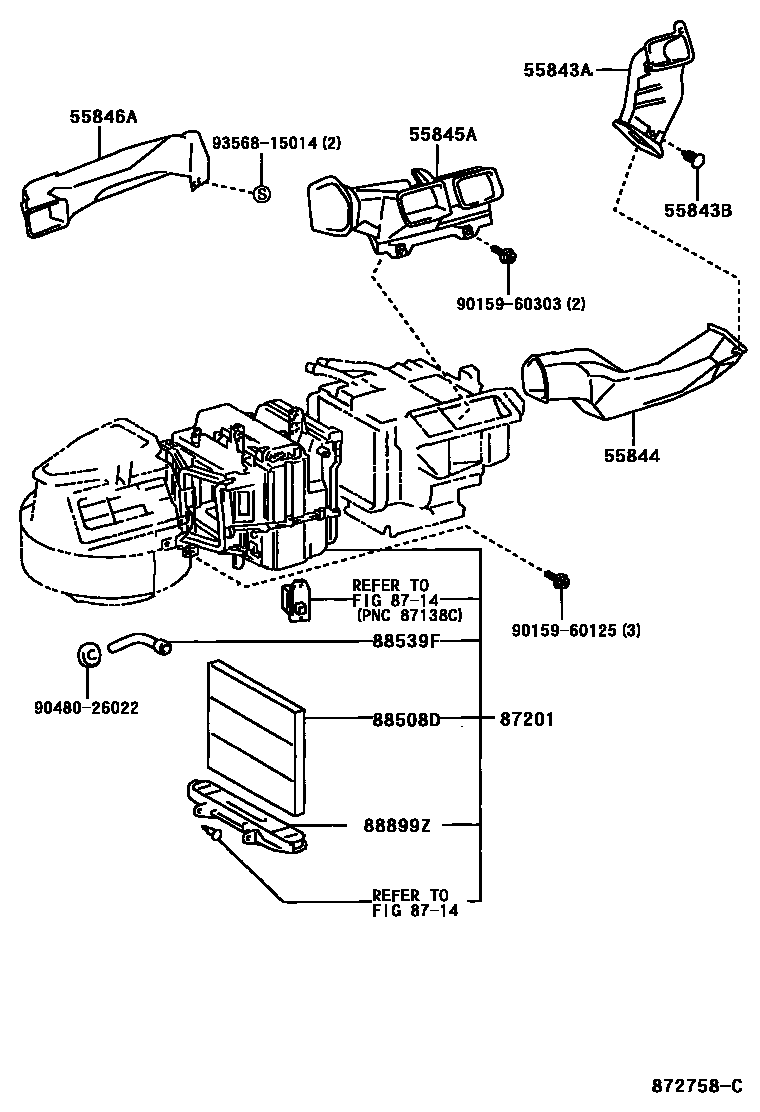

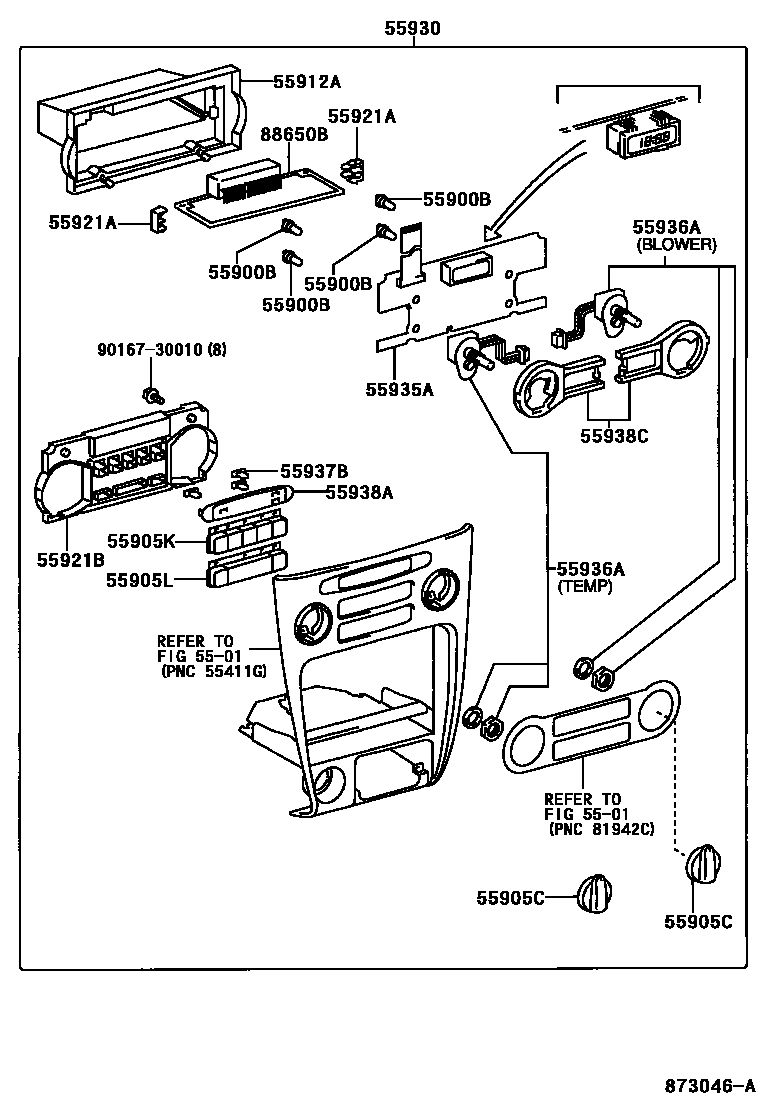

Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 11 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55519 | Heater controller nameplate | 55519-12090 · 55519-12110 |
| 55843A | Air duct No. 1 from heater to air register | 55843-12240 · 55843-12260 · 55843-12270 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-12400 · 55844-12420 · 55844-12430 |
| 55845A | Air duct No. 3 from heater to air regulator | 55870-12010 · 55870-12020 · 55870-12030 |
| 55846A | Air duct No. 4 from heater to air register | 55846-12260 · 55846-12270 |
| 55900 | Air conditioning control assembly | 55900-12700 · 55900-12701 · 55900-12710 · 55900-12711 · 55900-12790 · 55900-12791 |
| 55900B | air conditioning control light bulb | 84999-70012 · 84999-70018 · 90010-05102 · 90981-11014 |
| 55905A | Heater control button | 55905-20380 · 55905-89115 |
| 55905C | Heater control button No. 3 | 55905-20380 · 55905-89115 |
| 55906A | Defroster damper control cable sub-assembly | 55906-12360 · 55906-12380 · 55906-12390 |
| 55907A | Water valve control cable sub-assembly | 55907-12420 · 55907-12450 · 55907-12470 |
| 55907F | Water valve control cable sub-assembly | 55907-12460 |
| 55908A | Intake air valve control cable sub-assembly | 55908-12290 · 55908-12310 |
| 55909A | Air mix damper control cable sub-assembly | 55909-12280 · 55909-12290 |
| 55909C | Air mix damper control cable sub-assembly | 55909-12310 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-12620 · 55910-12630 · 55910-12650 · 55910-12660 · 55910-12670 · 55910-12680 · 55910-12690 · 55910-12700 · 55910-12710 · 55910-12720 |
| 55912A | heater control housing | 55912-12040 · 55912-12050 |
| 55921A | Heater Controller Fixing | 55921-12080 · 55921-12090 |
| 55921B | Heater Controller Fixing | 55921-12100 · 55921-12130 |
| 55935A | Central instrument cluster module circuit | 55935-12010 · 55935-12030 · 55935-12080 |
| 55935B | Central instrument cluster module circuit | 55935-12050 · 55935-12090 |
| 55936A | Heater controller adjustment switch | 55936-12010 · 55936-12011 · 55936-12020 |
| 55937B | clock adjustment button | 55937-12050 |
| 55938A | clock cover | 55938-12030 |
| 55938C | Center instrument cluster module indicator lamp cover | 55938-12040 · 55938-12050 |
| 87138B | Heater Blower Resistor | 87138-12140 |
| 87201 | No. 1 air duct sub-assembly | 87201-12430 · 87201-12470 · 87201-12570 |
| 87284 | Variable resistor sub-assembly | 88032-12160 · 88032-12170 · 88032-12180 |
| 88508D | Air filter sub-assembly | 88508-12010 |
| 88539F | discharge hose | 88539-12110 · 88539-12160 |

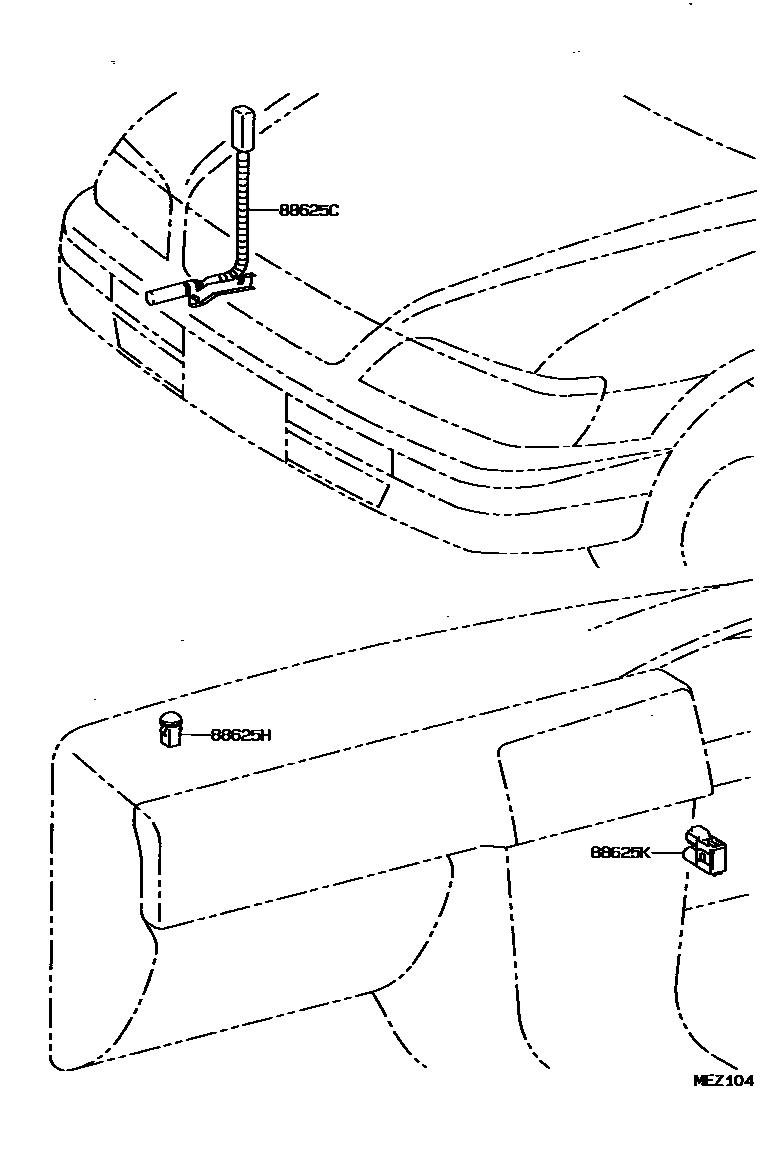

| 88625C | Cooler thermistor | 88625-12320 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-32160 |
| 88625K | Cooler thermistor | 88625-33010 |
| 88650B | Air conditioning amplifier assembly | 88650-1E200 |
| 88899Z | cover (for air cleaner) | 88899-12350 |
