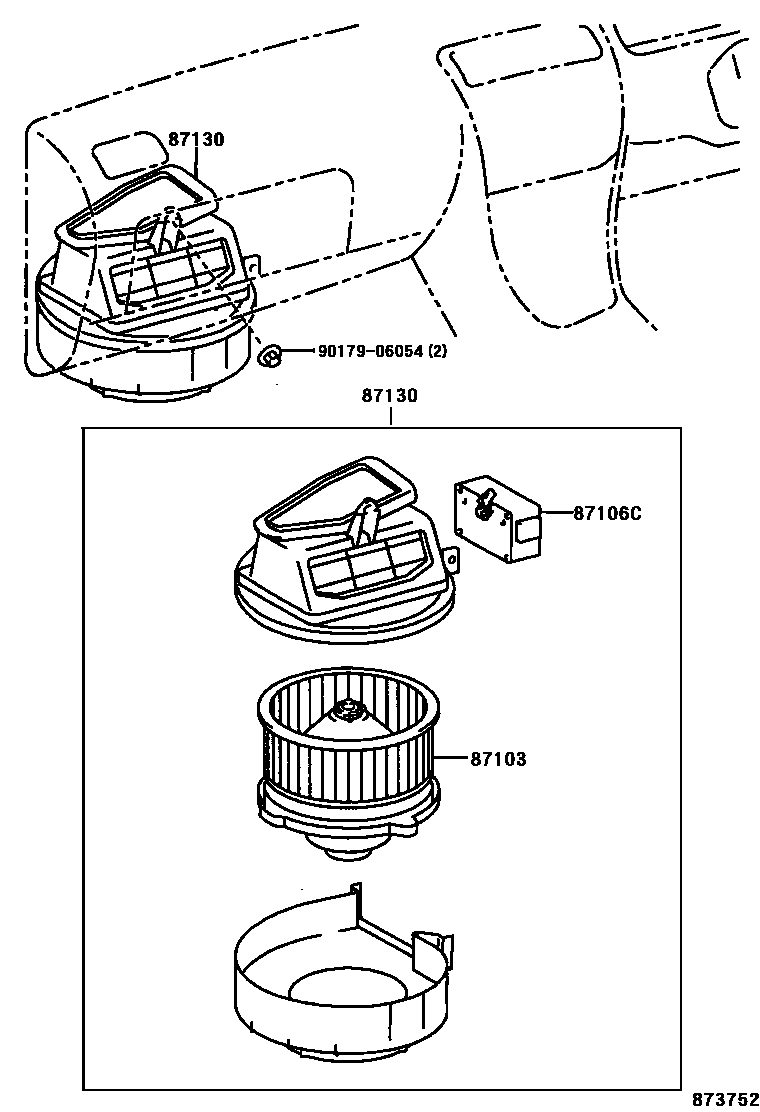

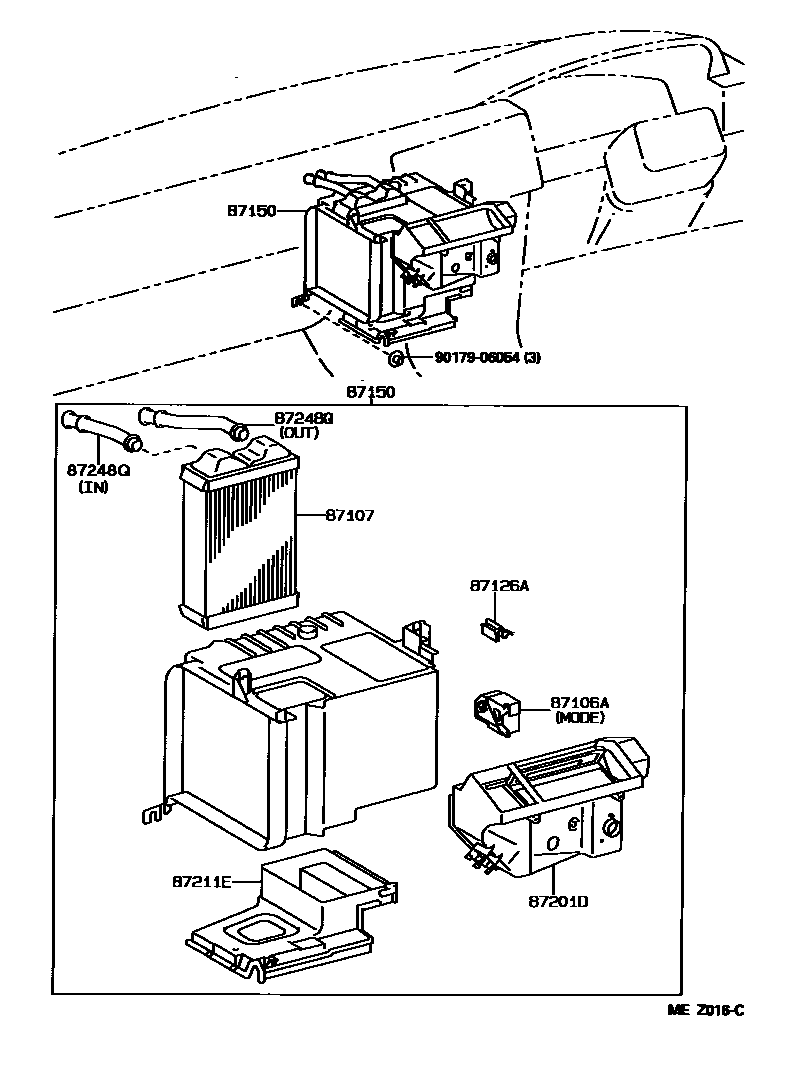

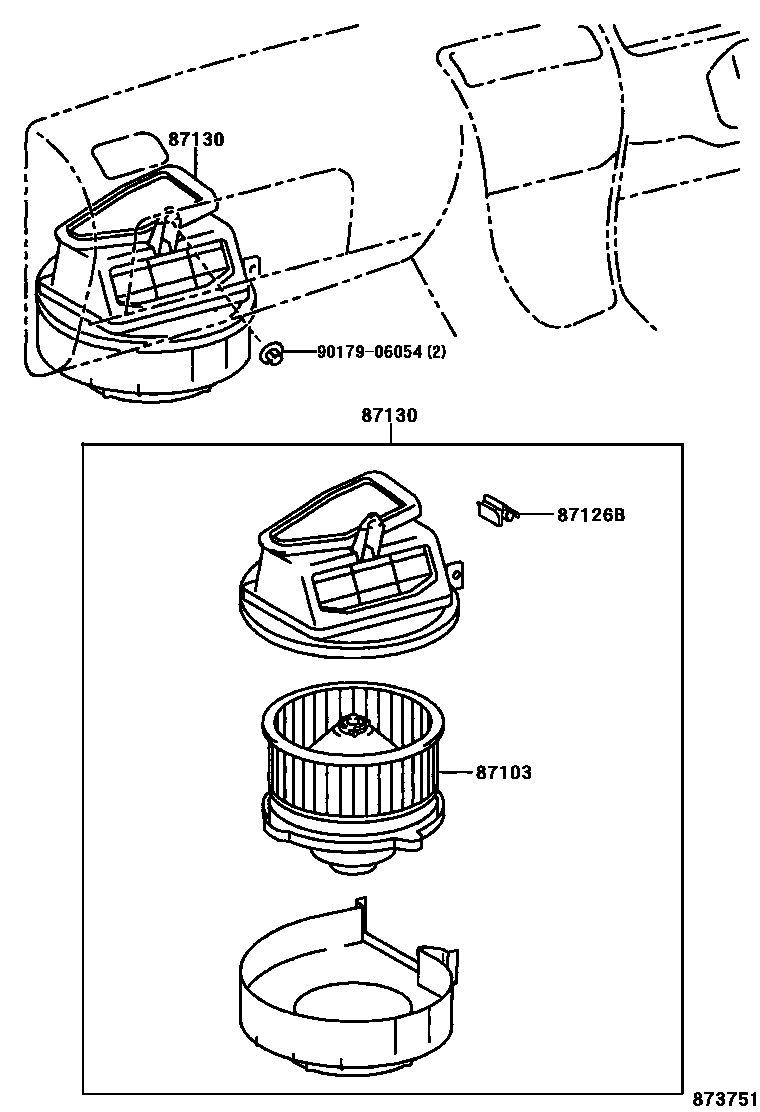

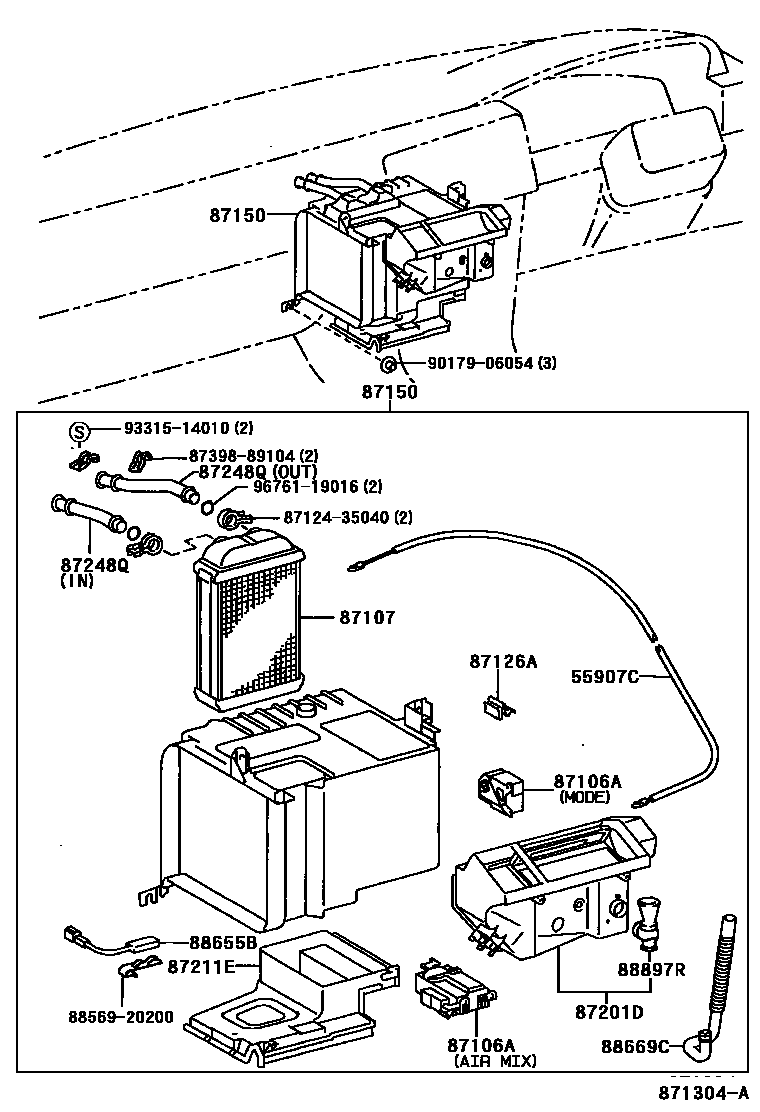

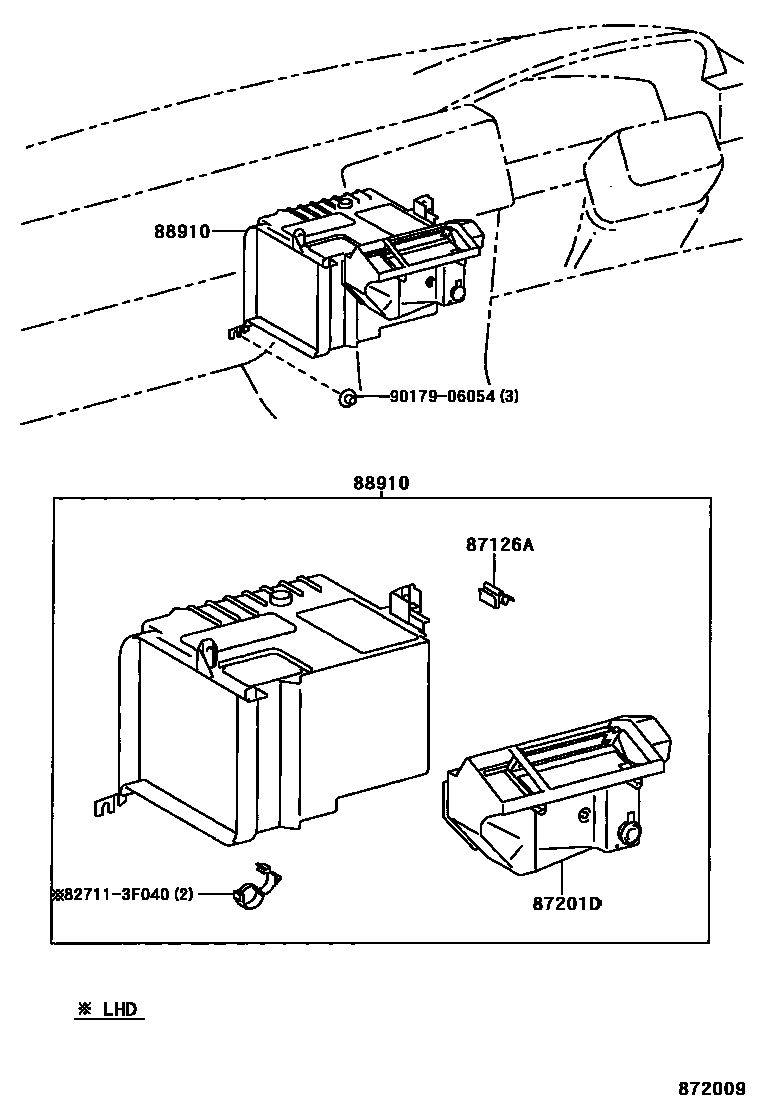

Toyota COROLLA 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712
Toyota COROLLA EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 5 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55907C | Water valve control cable sub-assembly | 55907-12440 |
| 87103 | Heater blower motor sub-assembly with fan | 87103-12030 · 87103-12040 |
| 87106A | Damper servo mechanism sub-assembly | 87106-12080 · 87106-12090 |
| 87106C | Damper servo mechanism sub-assembly (for blower) | 87106-12100 |
| 87107 | Heater radiator device sub-assembly | 87107-12380 · 87107-12500 · 87107-12520 |
| 87126A | heater control clip | 87126-12050 · 87126-13010 |
| 87126B | heater control clip | 87126-12040 |
| 87130 | Front heater blower assembly | 87130-12320 · 87130-12321 · 87130-12322 · 87130-12330 · 87130-12331 · 87130-12370 |
| 87150 | Heater radiator assembly | 87150-12730 · 87150-12731 · 87150-12760 · 87150-12761 · 87150-12790 · 87150-12791 · 87150-12820 · 87150-12840 · 87150-1A070 · 87150-1A071 · 87150-1A120 · 87150-1A121 |
| 87201D | Air duct sub-assembly | 87201-12370 · 87201-12390 · 87201-12440 · 87201-12480 · 87201-12510 |
| 87211E | air duct | 87211-12160 · 87211-12200 · 87211-12240 · 87211-13010 · 87211-13020 |
| 87248Q | Front heater radiator water pipe | 87156-12020 · 87156-12030 · 87156-12060 · 87156-12061 · 87156-12070 |
| 88655B | Water temperature switch | 88790-12030 · 88790-12031 |
| 88669C | air hose | 88669-12040 |
| 88897R | aspirator | 88897-12210 |
| 88910 | Auxiliary ventilation device assembly | 88910-12081 · 88910-12120 · 88910-12140 |
