Toyota COROLLA antenna — Figure 8604

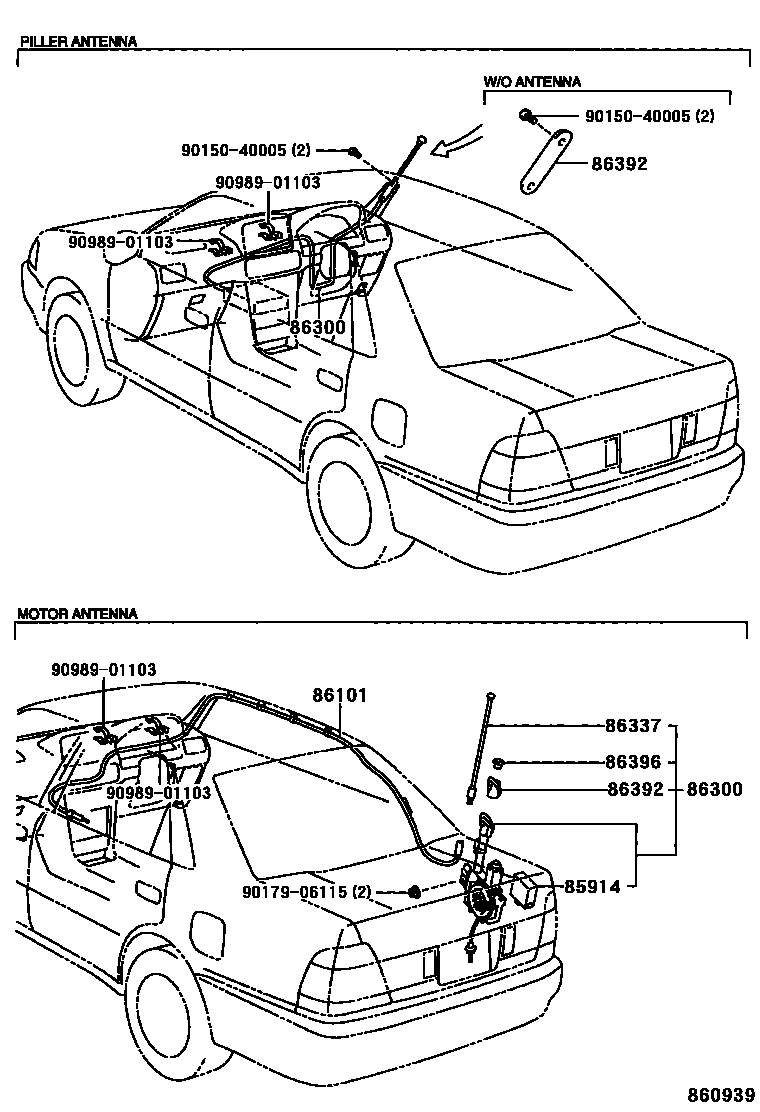

Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85914 | Electric antenna control relay | 85914-33020 |
| 86101 | Antenna wire sub-assembly | 86101-12260 · 86101-12270 |
| 86300 | Antenna assembly with fixing parts | 86300-12410 · 86300-12710 |
| 86337 | Sealing rods and sealing tubes with cables | 86337-12710 |
| 86392 | Antenna decorative parts | 86392-10010 · 86392-12150 |
| 86396 | Antenna nut | 86396-20030 |
