Toyota COROLLA 后刮水器 — Figure 8502
Toyota COROLLA EPC diagram 8502, 后刮水器, with 2 images and 8 PNC and OE references.

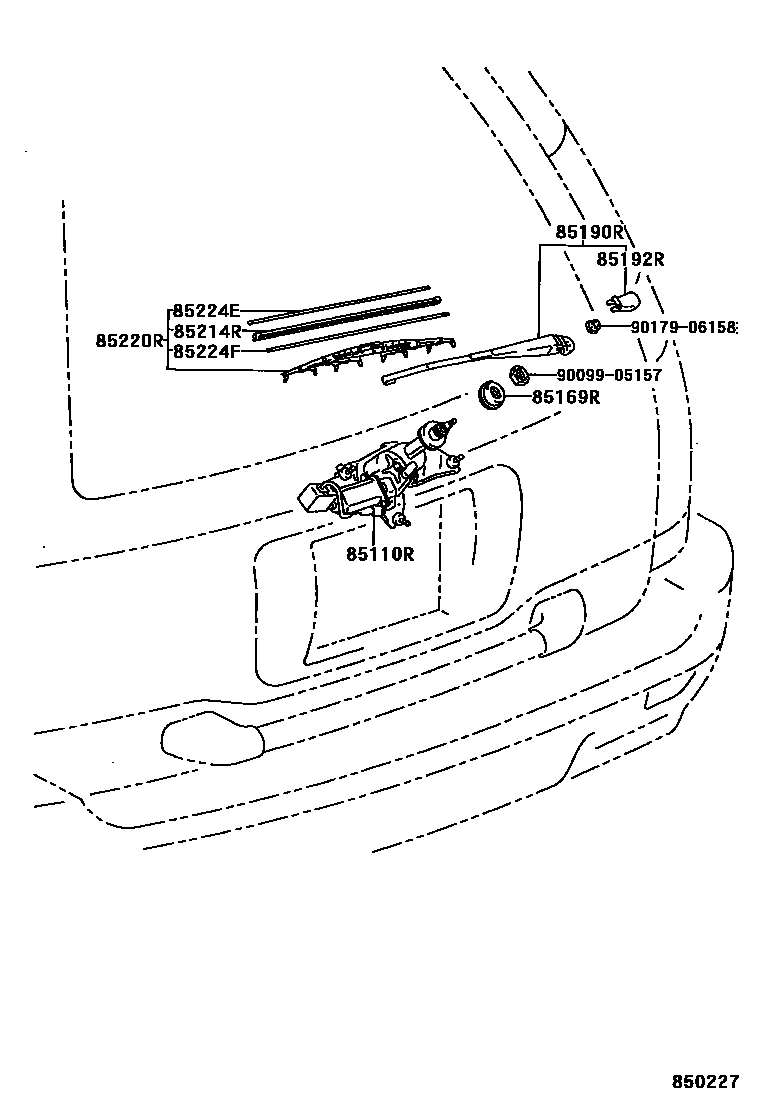

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

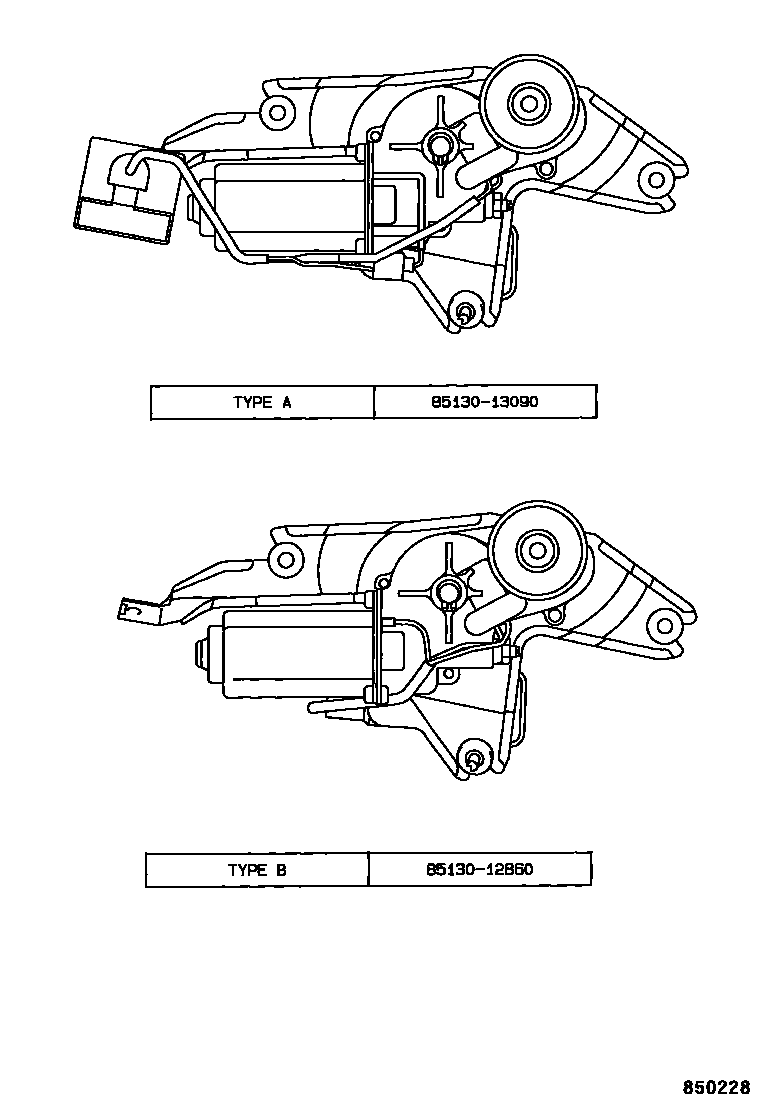

| 85110R | Rear wiper motor assembly | 85130-12860 · 85130-13090 |
| 85169R | No. 1 rear wiper link pivot washer | 85134-13070 |
| 85190R | Rear wiper arm assembly | 85241-13040 |
| 85192R | Rear wiper arm cover | 85192-13060 |
| 85214R | Rear wiper rubber strip | 85214-60050 |
| 85220R | Rear wiper blade assembly | 85242-60021 |
| 85224E | No. 1 rear wiper rubber strip back plate | 85224-60080 |
| 85224F | No. 2 rear wiper rubber strip back plate | 85224-60080 |
