Toyota COROLLA 防盗装置 — Figure 8424

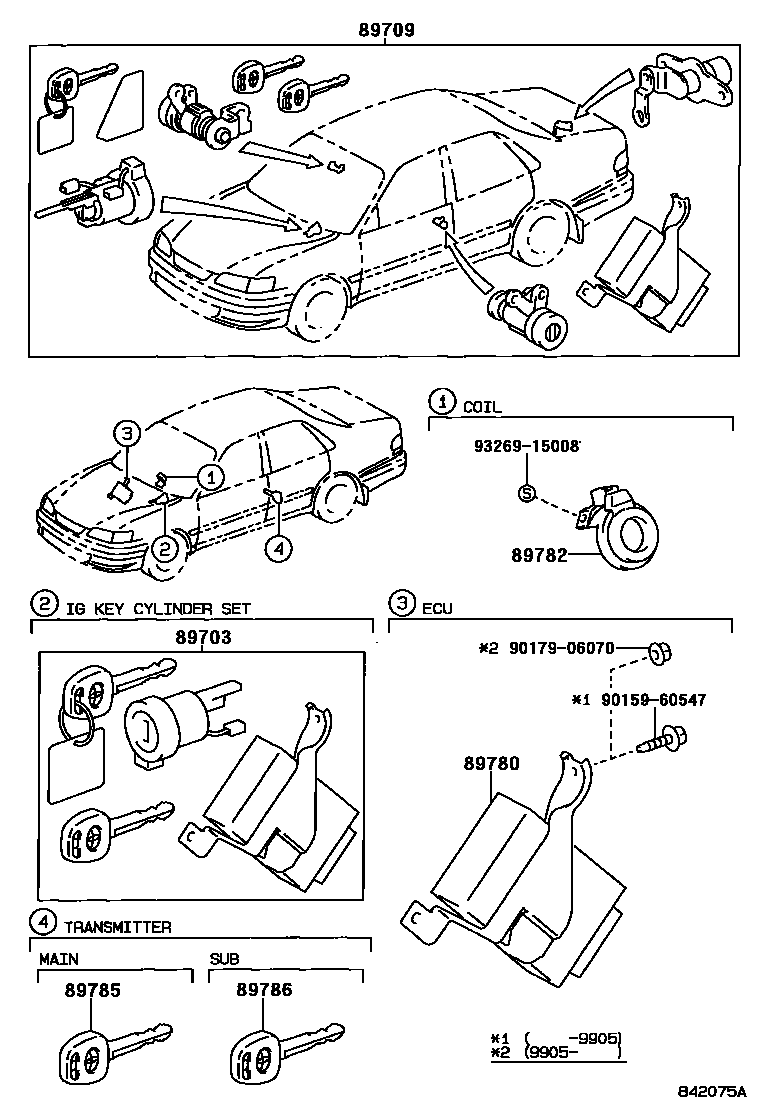

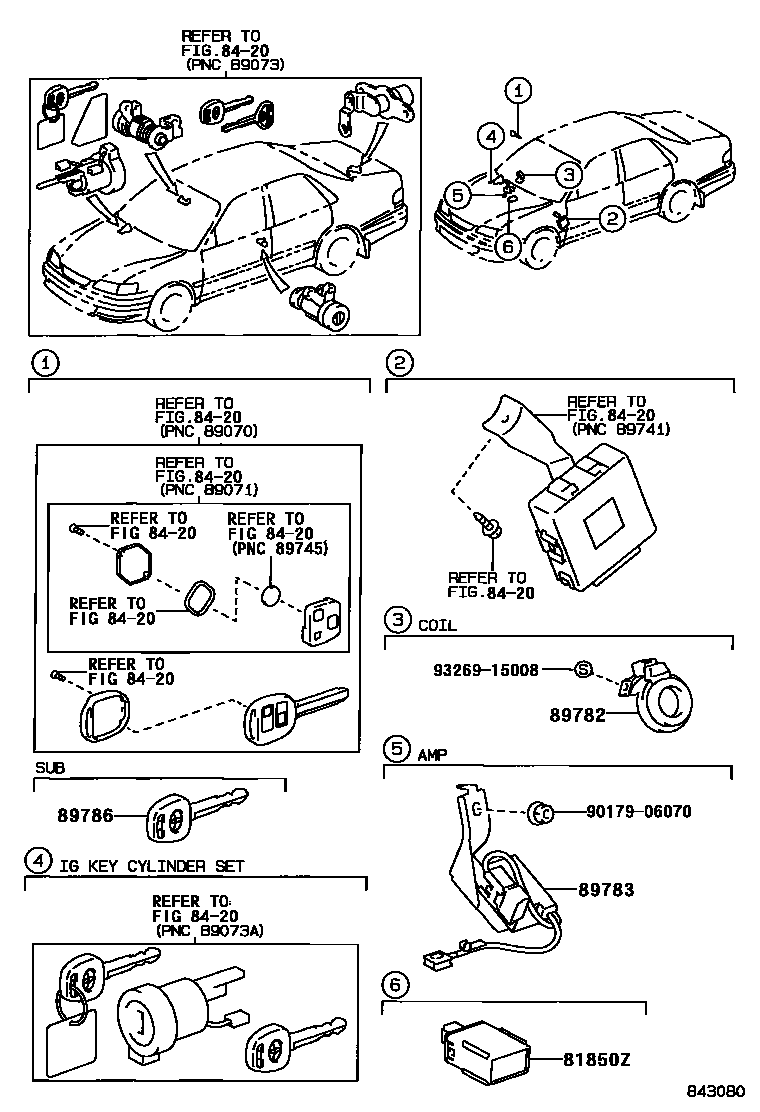

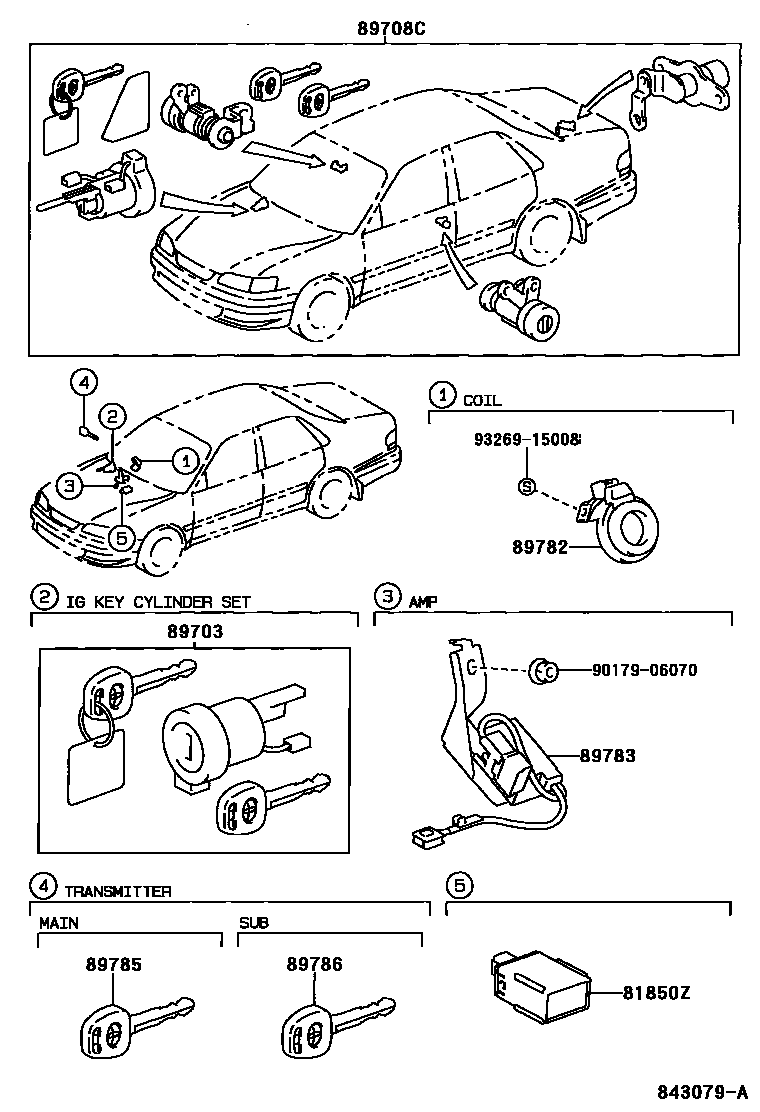

Toyota COROLLA EPC diagram 8424, 防盗装置, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81850Z | Anti-theft warning indicator light assembly | 81850-12250 |
| 89703 | Ignition lock cylinder and key assembly with transceiver | 89703-12050 · 89703-12051 · 89703-12060 · 89703-12061 · 89703-12140 |
| 89708C | Key lock cylinder assembly with transceiver transmitter | 89708-12080 |
| 89709 | Transceiver key ECU assembly | 89709-12260 · 89709-12261 · 89709-12270 · 89709-12271 |
| 89780 | Transceiver key ECU assembly | 89780-12060 · 89780-12061 · 89780-12070 · 89780-12071 |
| 89782 | transceiver key coil | 89782-44010 |
| 89783 | transceiver key amplifier | 89783-12020 |
| 89785 | transceiver key master transmitter | 89785-26020 |
| 89786 | transceiver key secondary transmitter | 89786-60050 |
