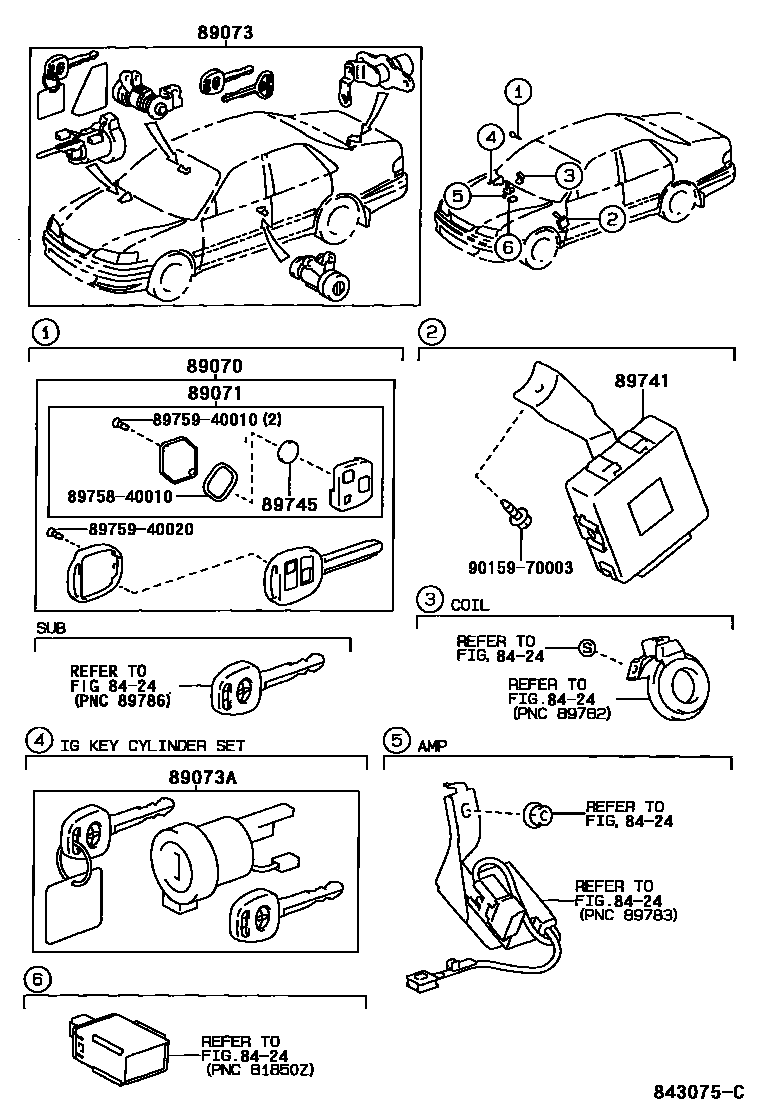

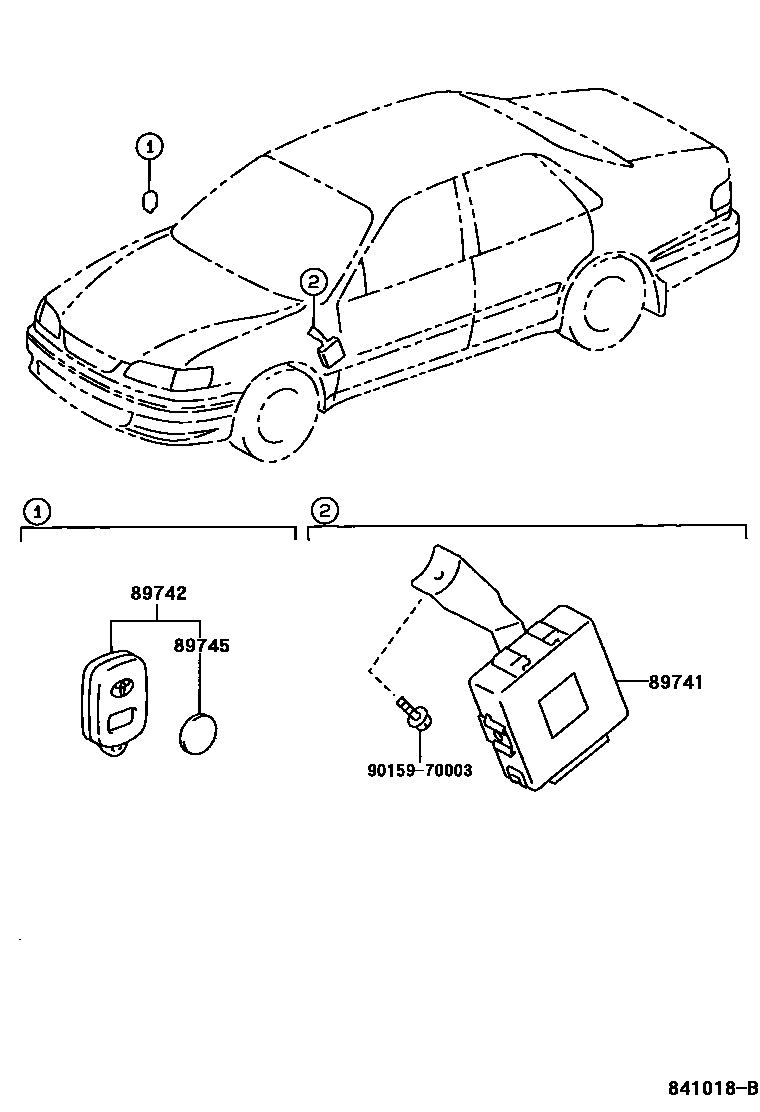

Toyota COROLLA 遥控门锁 — Figure 8420
Toyota COROLLA EPC diagram 8420, 遥控门锁, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89070 | Remote key assembly | 89070-60361 · 89070-60410 |
| 89071 | Remote key sub-assembly module assembly | 89071-60080 · 89071-60081 |
| 89073 | Lock cylinder assembly with transmitter housing (without module) | 89073-12061 · 89073-12090 |
| 89073A | Ignition lock cylinder assembly with transmitter housing (internal toothed key) | 89073-12011 · 89073-12020 |
| 89741 | door control receiver | 89741-12140 · 89741-12160 · 89741-12170 · 89741-12180 · 89741-12190 · 89741-12210 · 89741-12211 |
| 89742 | remote key | 89742-12180 · 89742-12210 |
| 89745 | Transmitter battery | 89745-40010 · 89745-50010 |
