Toyota COROLLA 车内灯 — Figure 8121

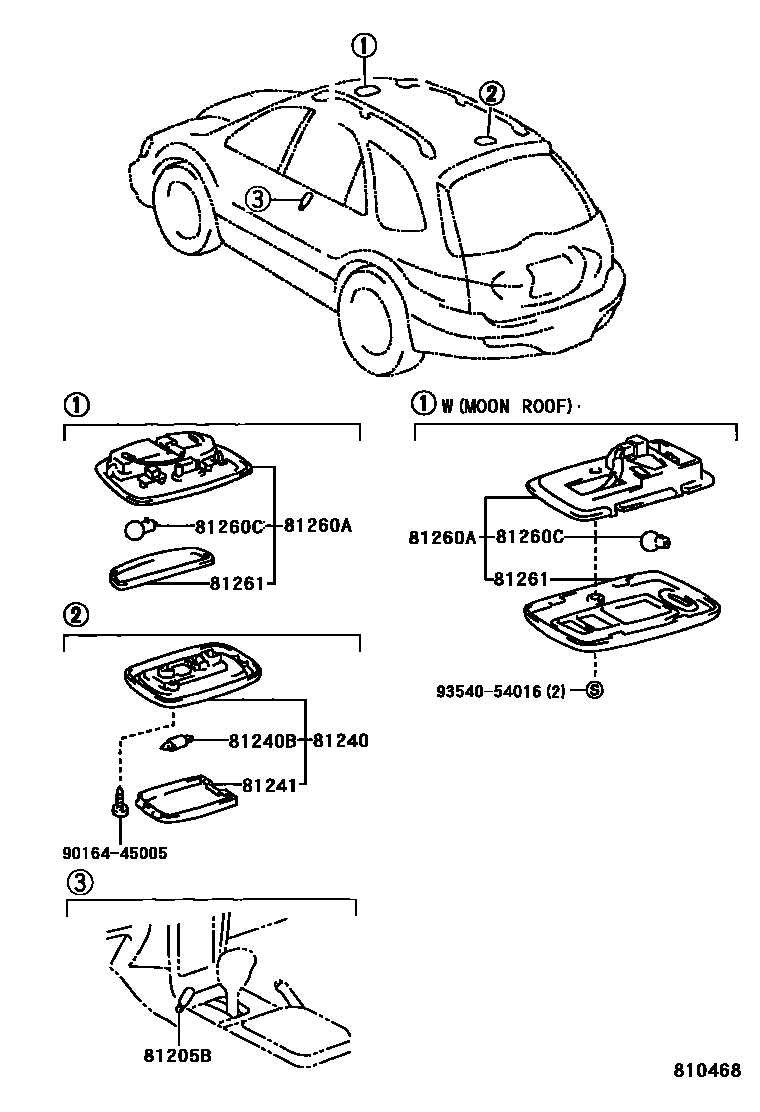

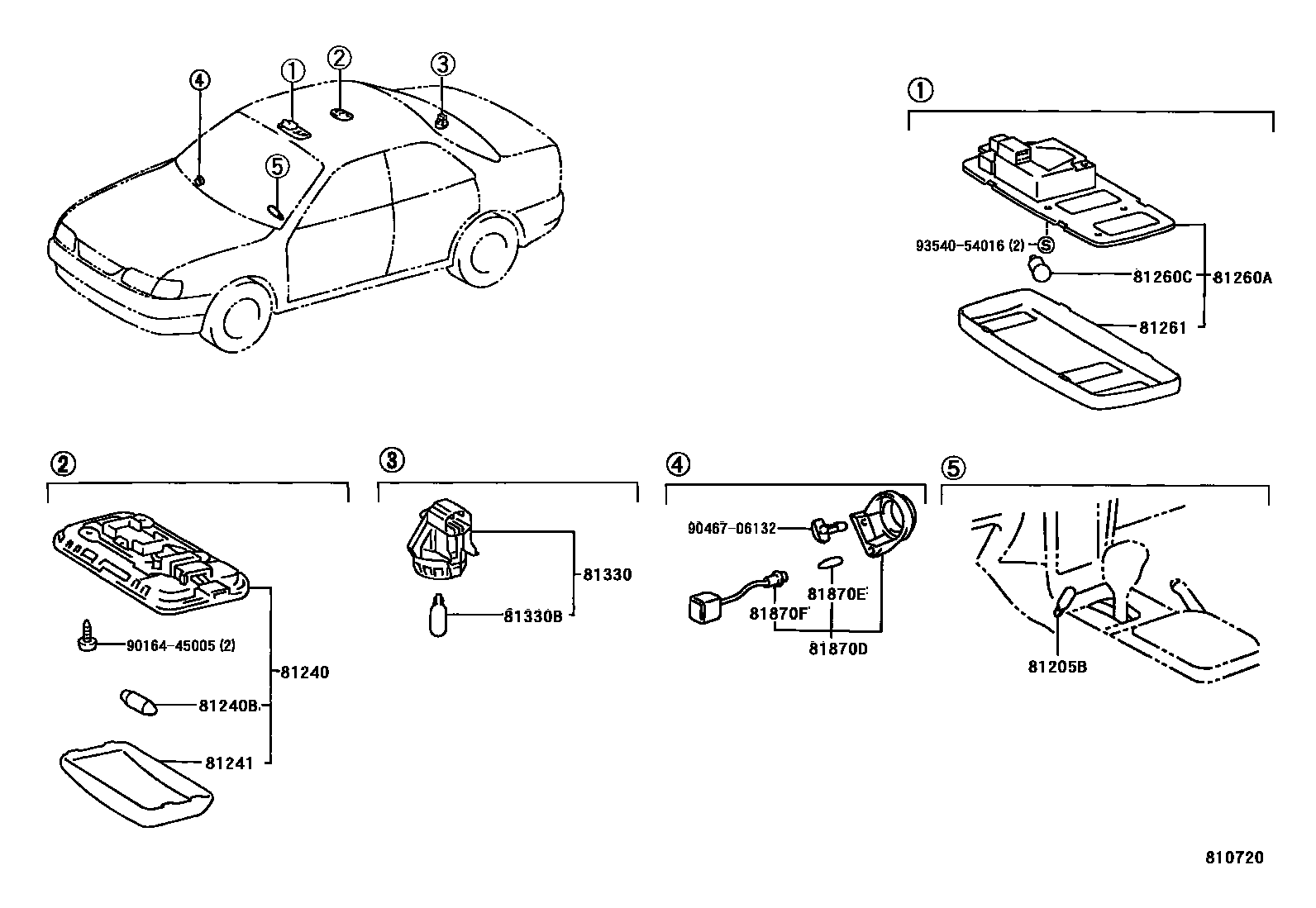

Toyota COROLLA EPC diagram 8121, 车内灯, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81205B | ashtray light bulb | 90981-11018 |
| 81240 | No. 1 interior light assembly | 81240-12060 |
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81241 | Interior light cover No. 1 | 81241-12020 |
| 81260C | Light bulb (for reading lamp) | 90981-12005 · 90981-12014 |
| 81261 | Reading lamp shades and covers | 81261-16060 |
| 81330 | No. 1 trunk light assembly | 81330-12020 |
| 81330B | trunk light bulb | 90981-11020 |
| 81870D | Lock core lighting assembly | 81870-32051 |
| 81870E | Lock cylinder lighting bulb | 90981-11018 |
| 81870F | Lock cylinder lighting bulb cover | 84998-10070 |
