Toyota COROLLA 后雾灯 — Figure 8116

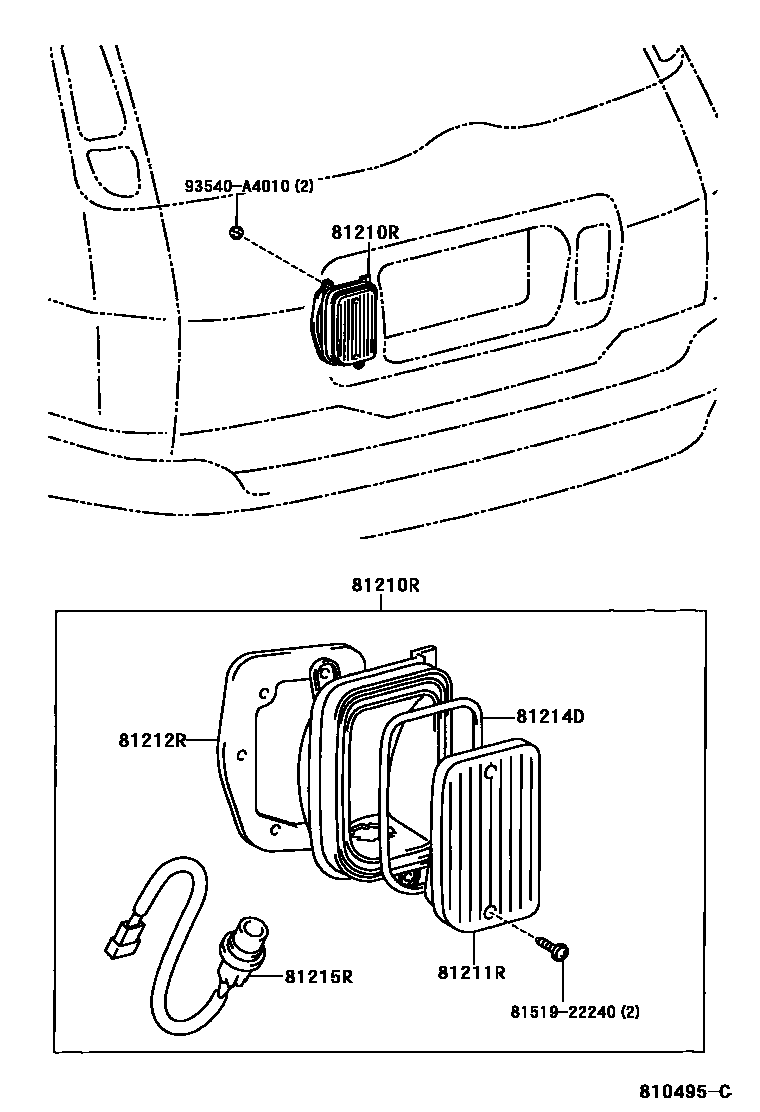

Toyota COROLLA EPC diagram 8116, 后雾灯, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210R | Rear fog light assembly | 81210-13070 · 81220-13070 |
| 81211R | Rear fog light cover | 81211-13060 · 81221-13060 |
| 81212R | No. 1 rear fog light gasket | 81212-13060 |
| 81214D | Rear fog light body gasket | 81214-13060 |
| 81215R | Rear fog light lamp holder and wiring harness | 81225-13060 |
