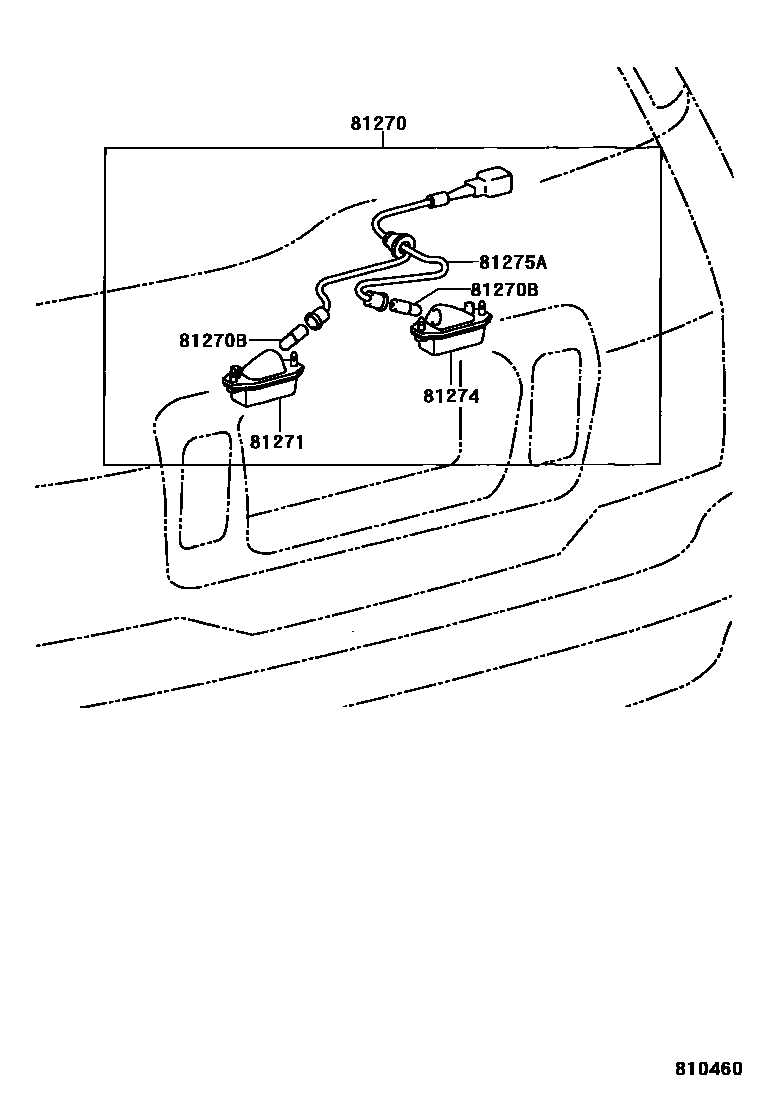

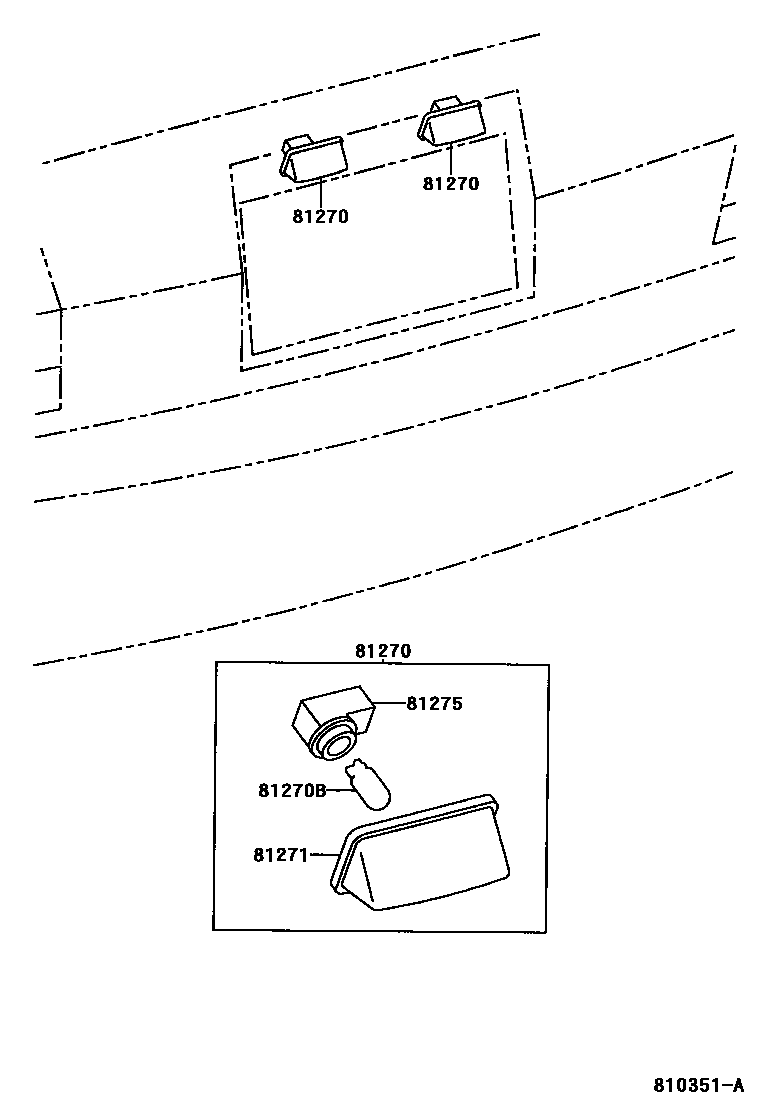

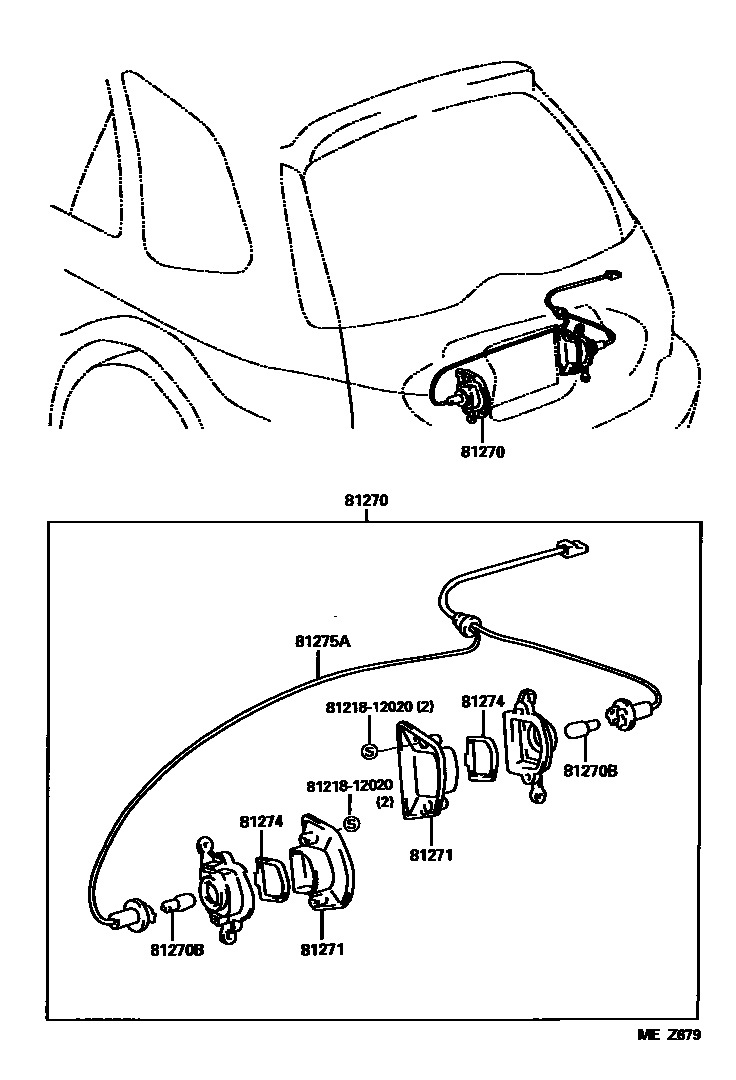

Toyota COROLLA 后牌照灯 — Figure 8113
Toyota COROLLA EPC diagram 8113, 后牌照灯, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-12500 · 81270-12501 · 81270-13270 · 81270-13310 · 81690-12130 · 81690-12131 |
| 81270B | Bulb (for license plate light) | 99132-12050 |
| 81271 | license plate lamp shade | 81271-12500 · 81271-12501 · 81271-13230 · 81273-13240 · 81691-12130 · 81691-12131 · 81691-13010 |
| 81274 | License plate light body gasket | 81274-13230 · 81274-13240 |
| 81275 | License plate lamp holder and wiring harness | 81275-12500 · 81275-12501 |
| 81275A | License plate light wire | 81275-13270 · 81275-13310 |
