Toyota COROLLA 后组合灯 — Figure 8111

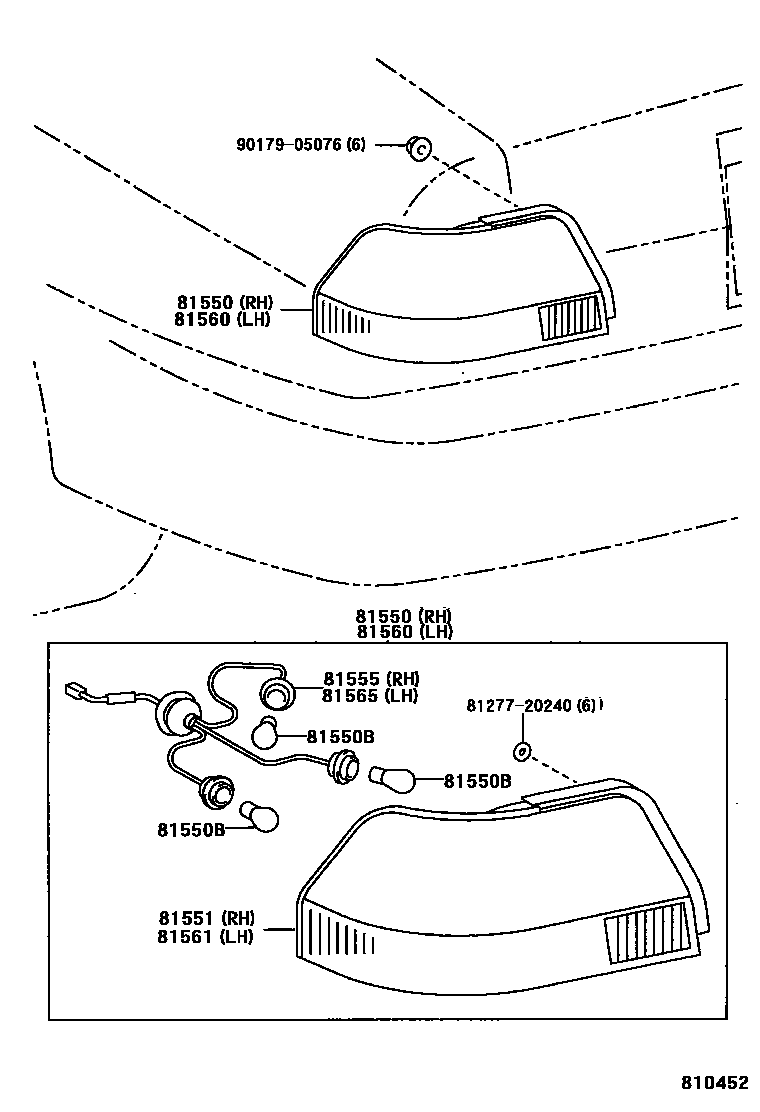

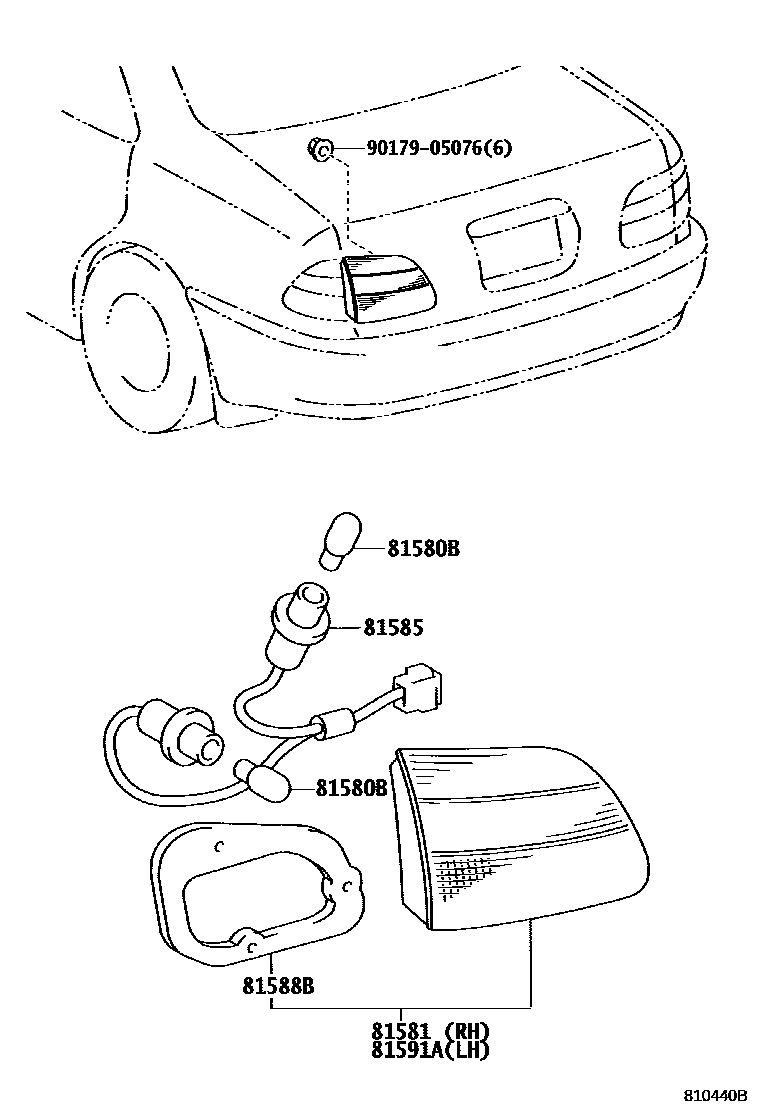

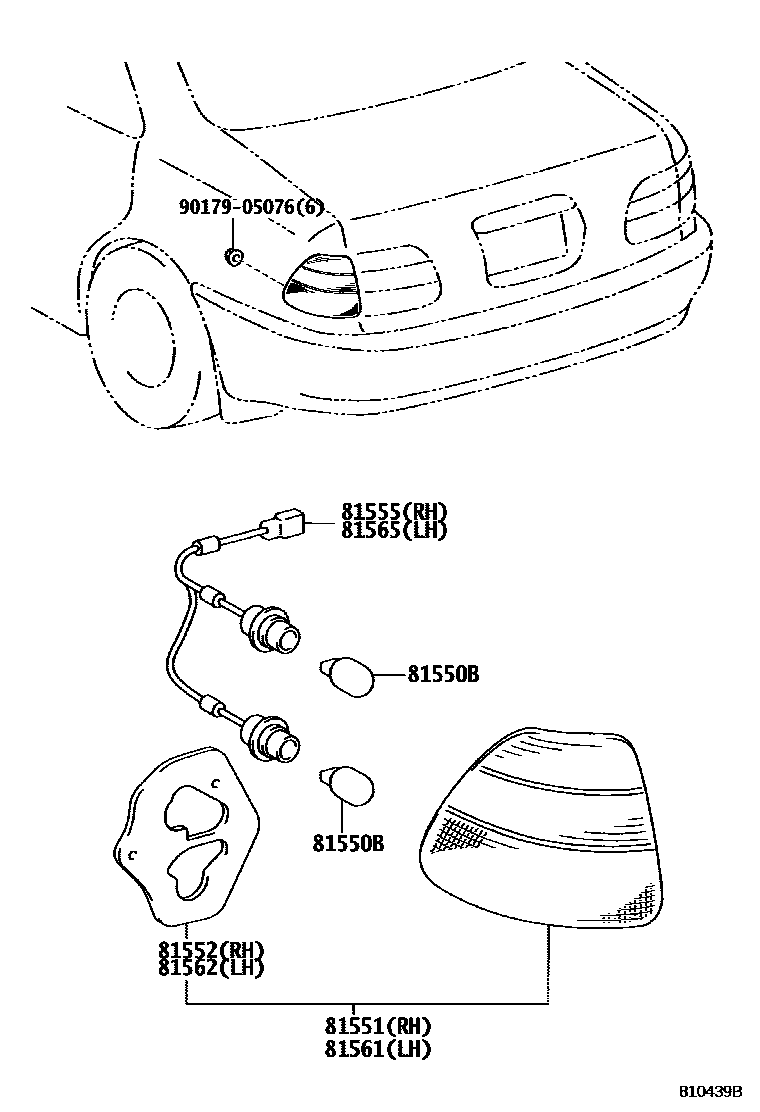

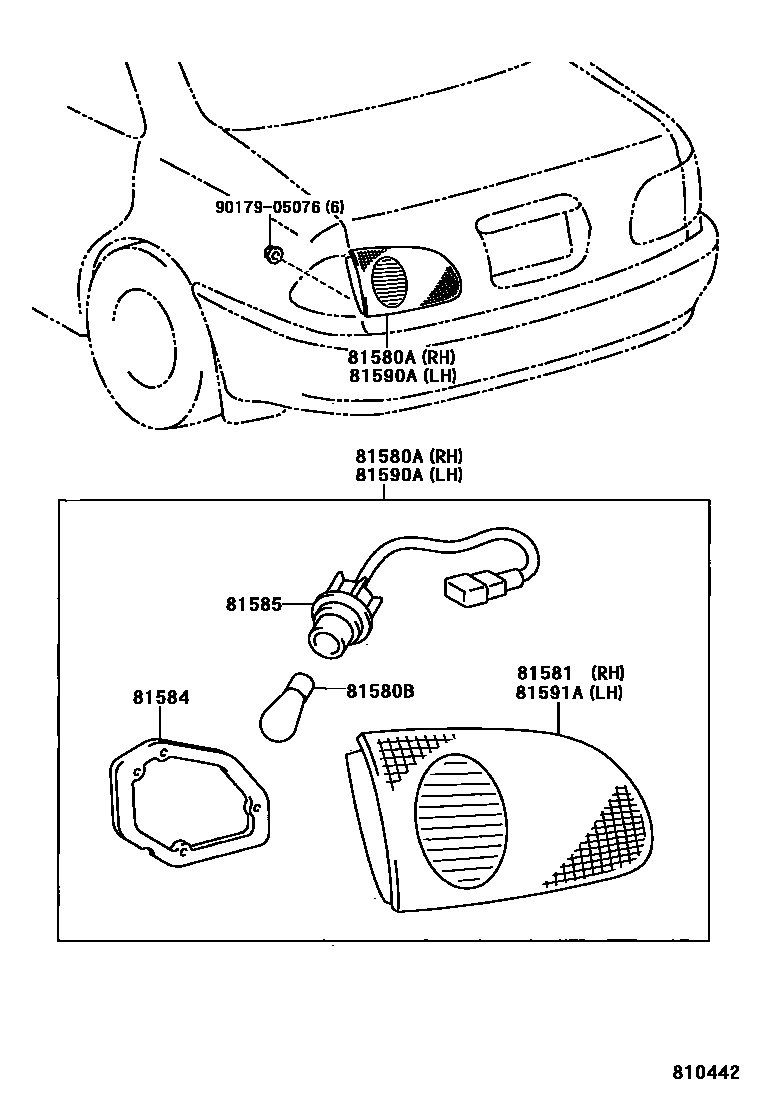

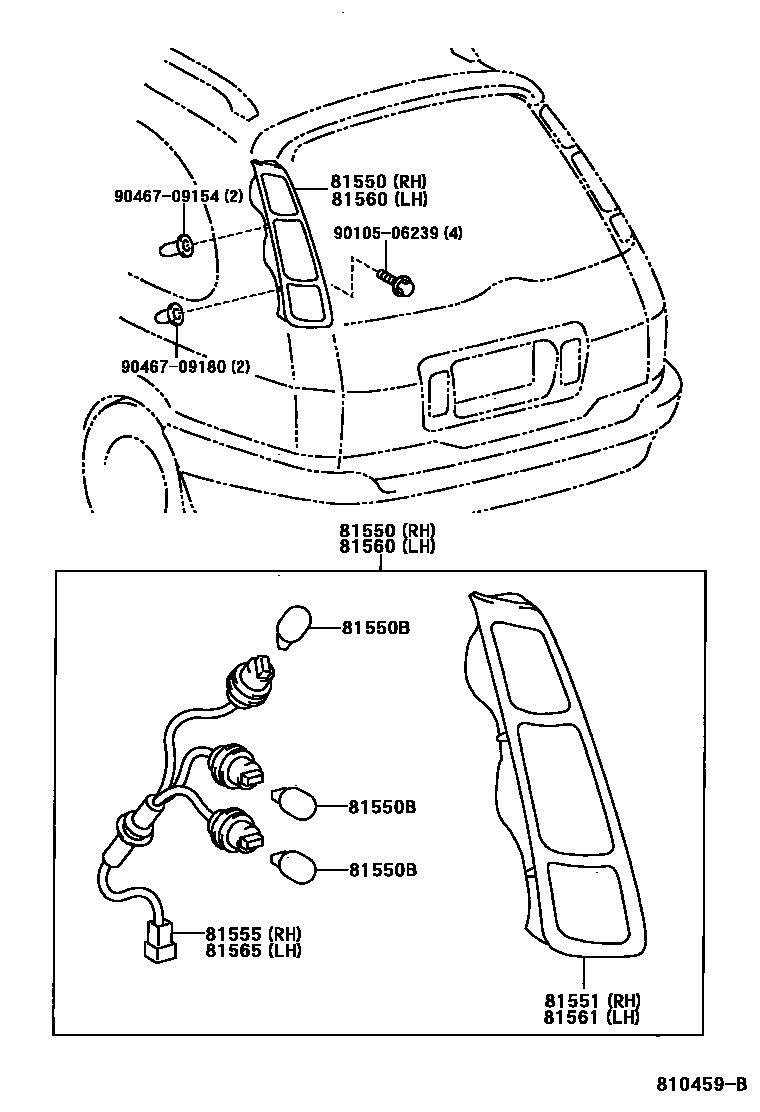

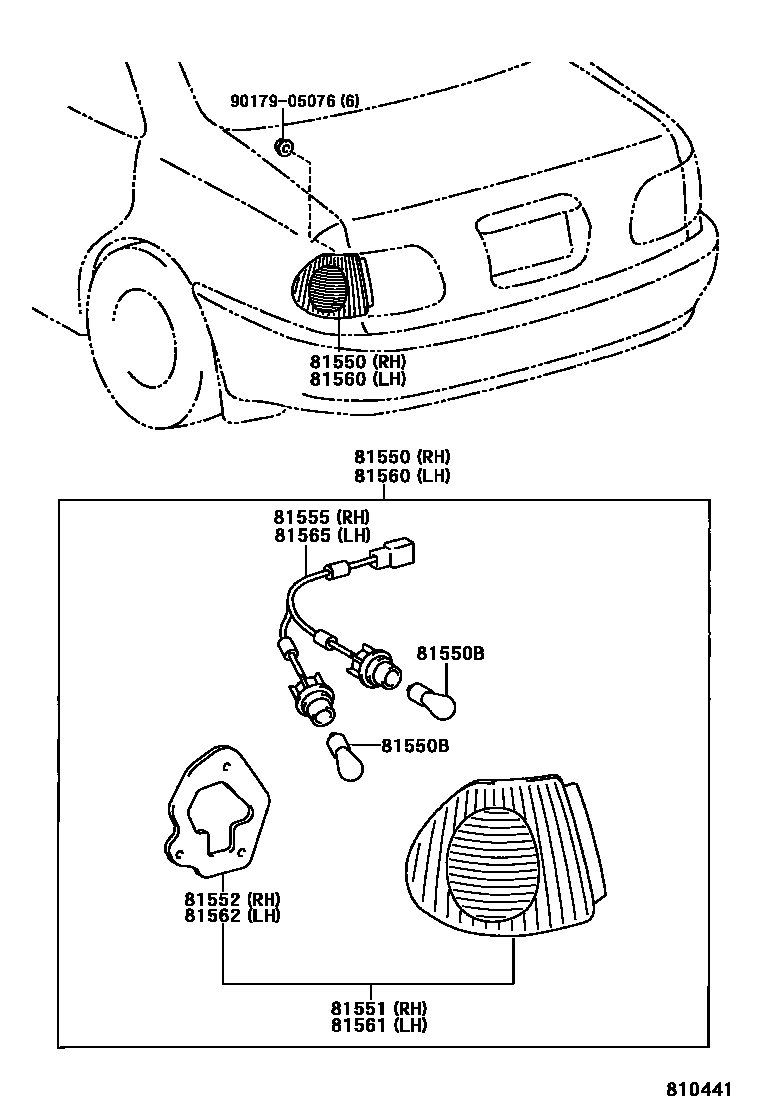

Toyota COROLLA EPC diagram 8111, 后组合灯, with 7 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-13400 · 81550-13401 · 81550-1A660 · 81550-1A661 · 81550-1E080 · 81550-1E120 · 81550-1E180 |
| 81550B | Bulb (for rear combination lights) | 90981-11042 · 90981-11043 · 90981-13043 · 90981-13044 · 99132-11210 · 99132-21210 |
| 81551 | Right rear combination lamp shade | 81551-13400 · 81551-13401 · 81551-1A660 · 81551-1A661 · 81551-1E080 · 81551-1E120 · 81551-1E180 |
| 81552 | Right rear combination lamp shade gasket | 81552-1E080 · 81552-1E120 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-13380 · 81555-1A660 · 81555-1E080 · 81555-1E120 |
| 81560 | Left rear combination light assembly | 81560-13400 · 81560-13401 · 81560-1A660 · 81560-1A661 · 81560-1E040 · 81560-1E080 · 81560-1E140 |
| 81561 | Left rear combination lamp shade | 81561-13400 · 81561-13401 · 81561-1A660 · 81561-1A661 · 81561-1E040 · 81561-1E080 · 81561-1E140 |
| 81562 | Left rear combination lamp shade gasket | 81552-1E080 · 81552-1E120 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-13380 · 81555-1A660 · 81555-1E080 · 81555-1E120 |
| 81580A | Rear light assembly | 81580-12030 · 81580-12060 · 81580-12070 |
| 81580B | Bulb (for rear light) | 90981-11039 · 99132-11050 · 99132-11210 |
| 81581 | rear light shade | 81581-12030 · 81581-12060 · 81581-12070 |
| 81584 | Right rear light seal | 81584-12060 |
| 81585 | Rear lamp holder and wiring harness | 81585-12030 · 81585-12050 · 81585-12060 · 81585-12070 |
| 81588B | rear light gasket | 81588-12030 |
| 81590A | Left rear light assembly | 81590-12020 · 81590-12040 · 81590-12050 · 81590-12060 |
| 81591A | rear light shade | 81591-12020 · 81591-12040 · 81591-12050 · 81591-12060 |
