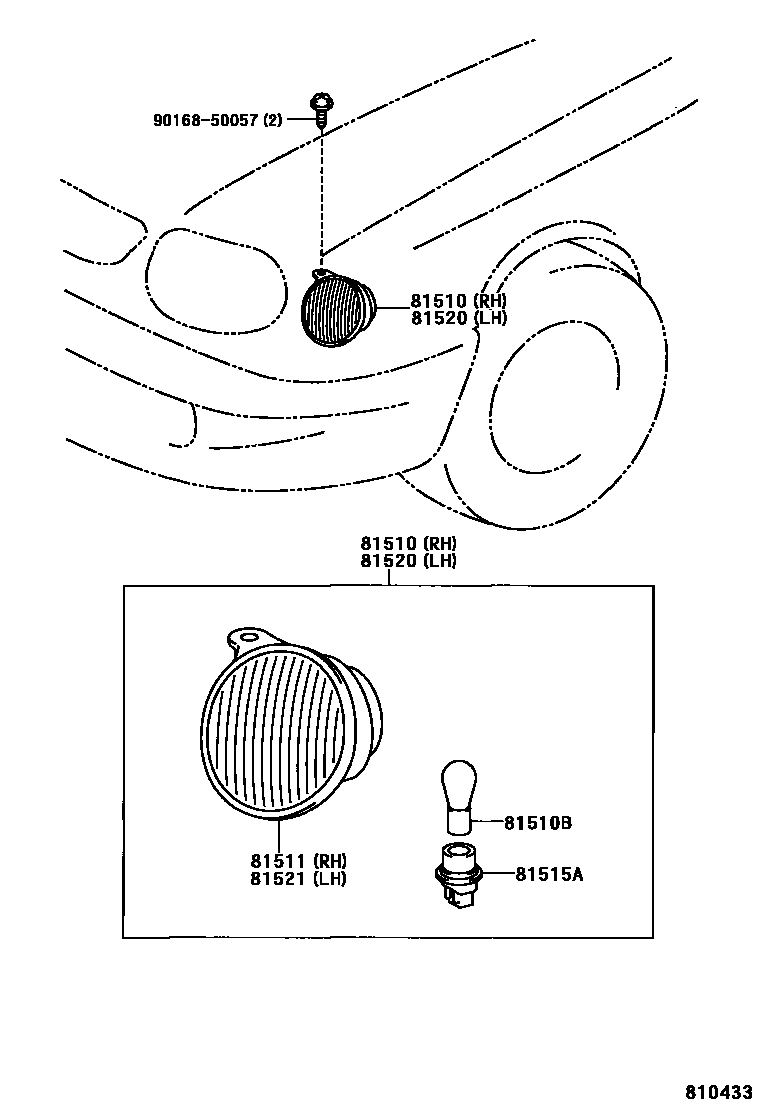

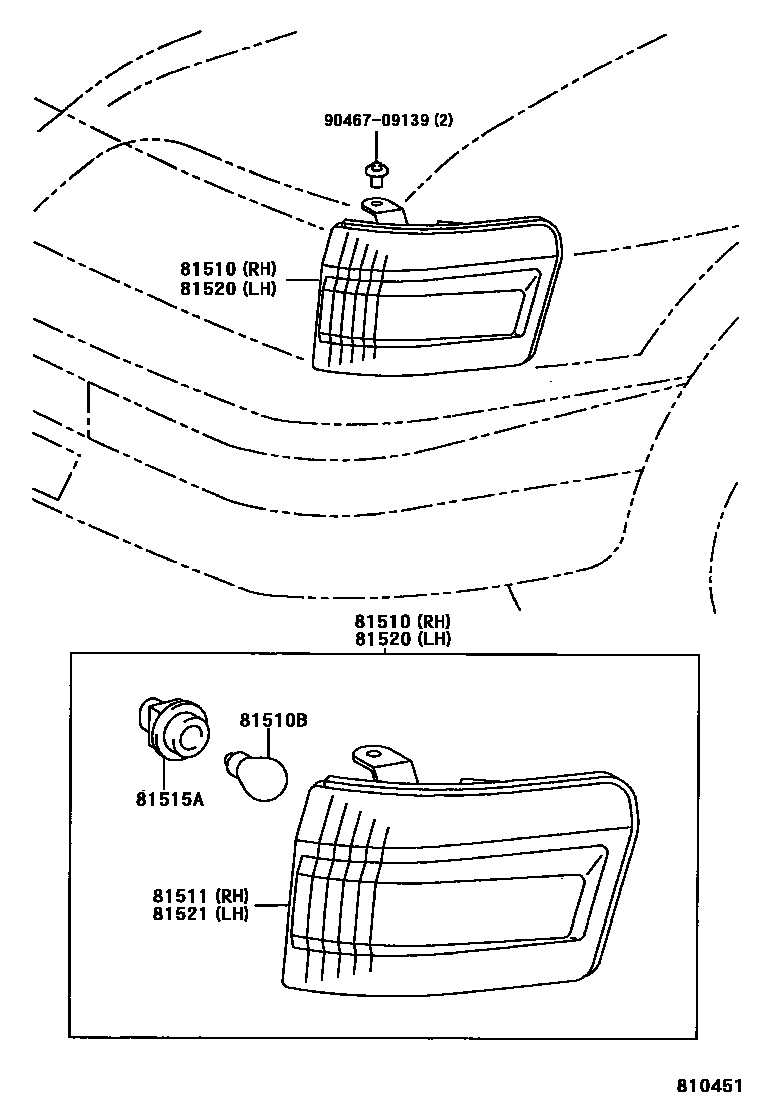

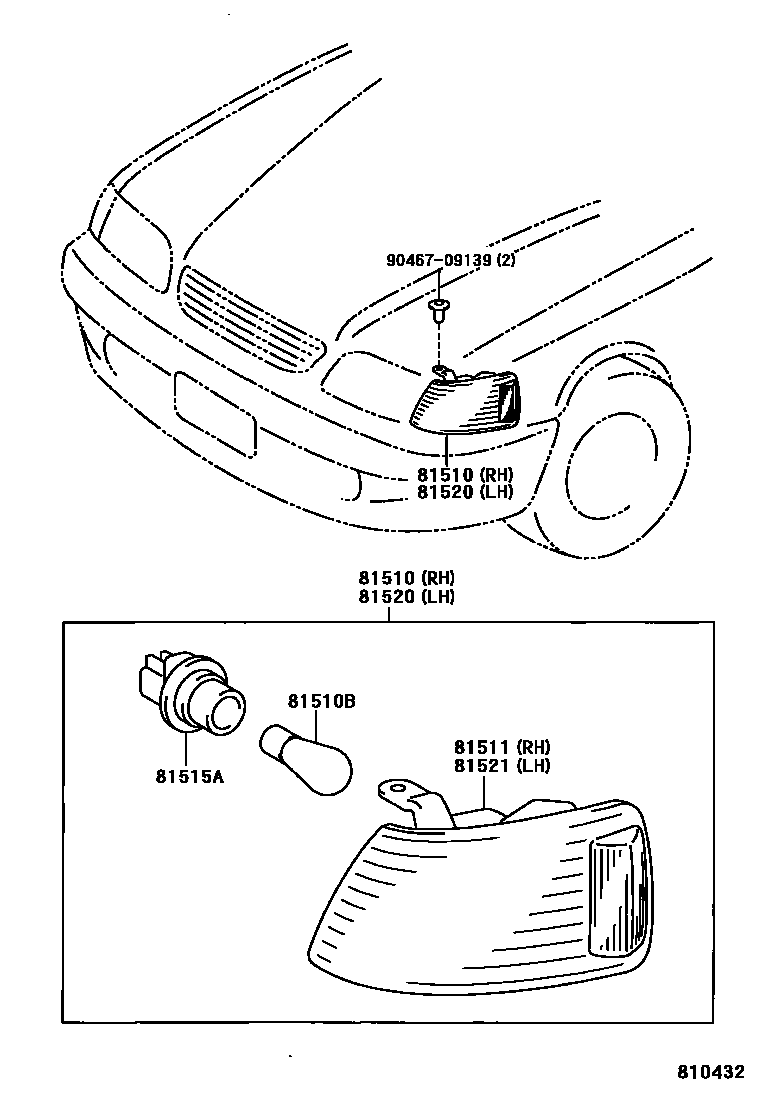

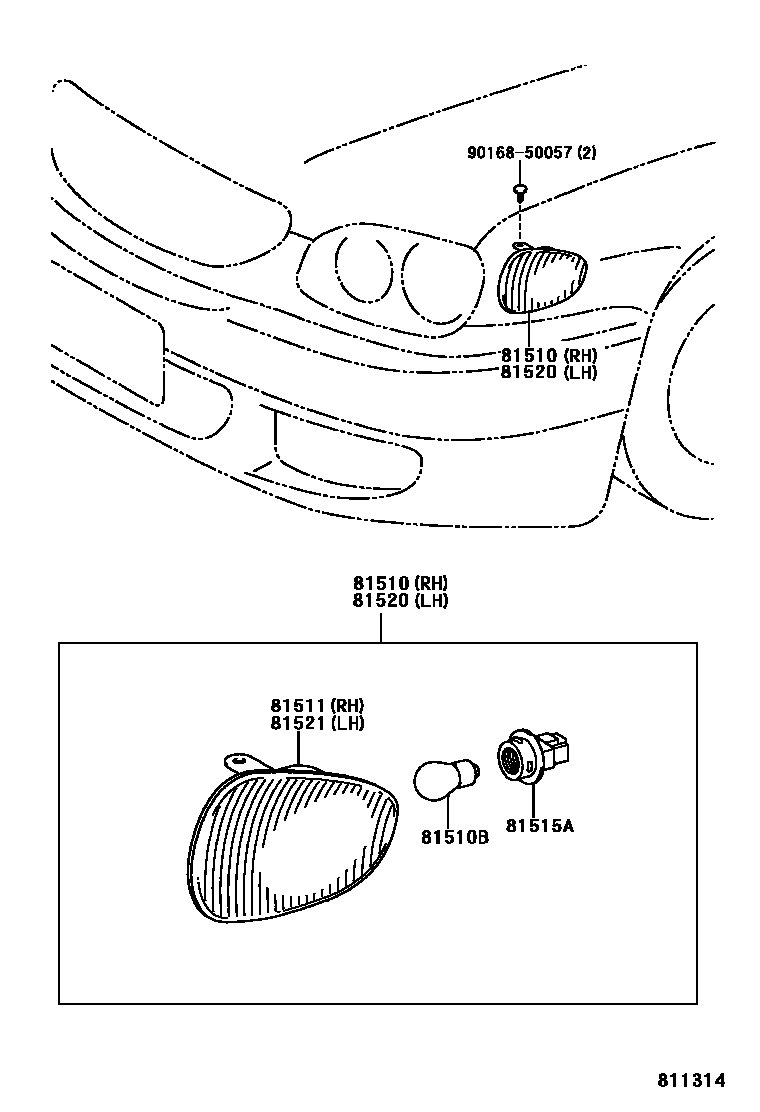

Toyota COROLLA 前转向灯 — Figure 8103
Toyota COROLLA EPC diagram 8103, 前转向灯, with 4 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-12810 · 81510-12811 · 81510-12830 · 81510-12870 · 81510-12890 · 81510-1A010 |
| 81510B | Bulb (for front turn signal lamp) | 90981-15009 · 99132-11210 |
| 81511 | Right front turn signal lamp cover | 81511-12810 · 81511-12811 · 81511-12830 · 81511-12870 · 81511-12890 · 81511-1A010 |
| 81515A | Front turn signal light plug assembly | 90075-60006 · 90075-99078 |
| 81520 | Left front turn signal lamp assembly | 81520-12790 · 81520-12791 · 81520-12820 · 81520-12850 · 81520-12870 · 81520-12880 |
| 81521 | Left front turn signal lamp cover | 81521-12790 · 81521-12791 · 81521-12820 · 81521-12850 · 81521-12870 · 81521-12880 |
