Toyota COROLLA Fog Lamp — Figure 8102

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 2 images and 7 PNC and OE references.

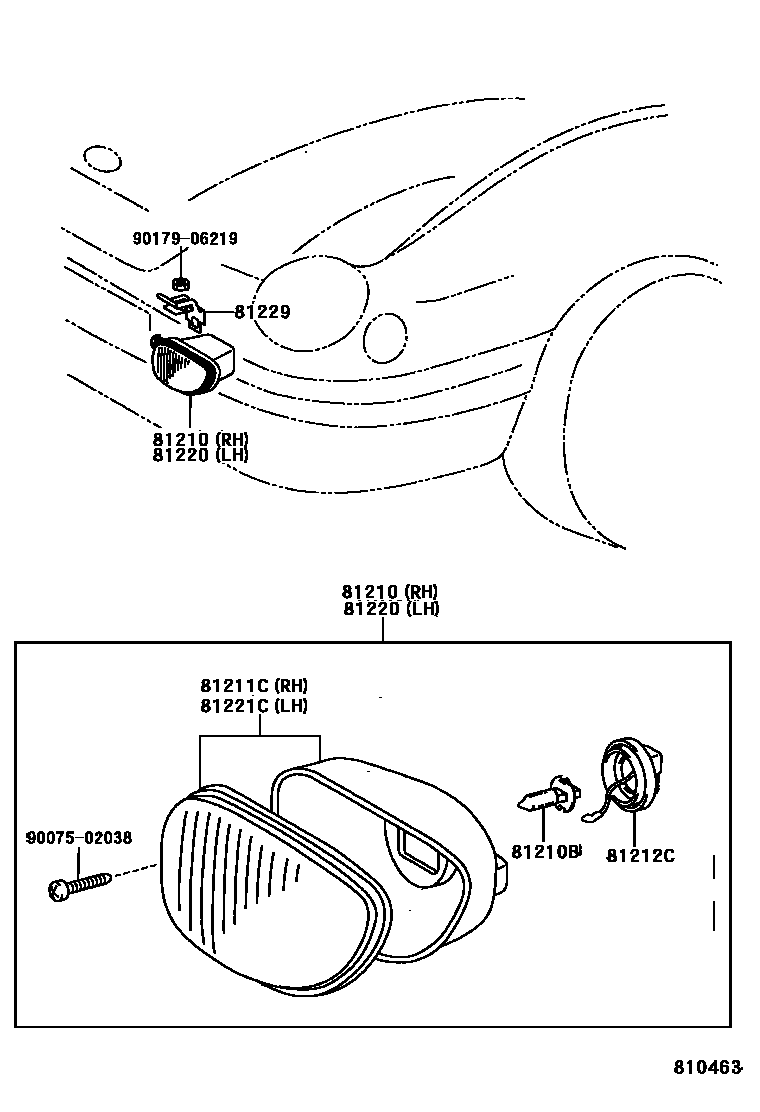

Toyota COROLLA Fog Lamp EPC diagram — 810463
Fog Lamp — 810463 (199808 – 199910)

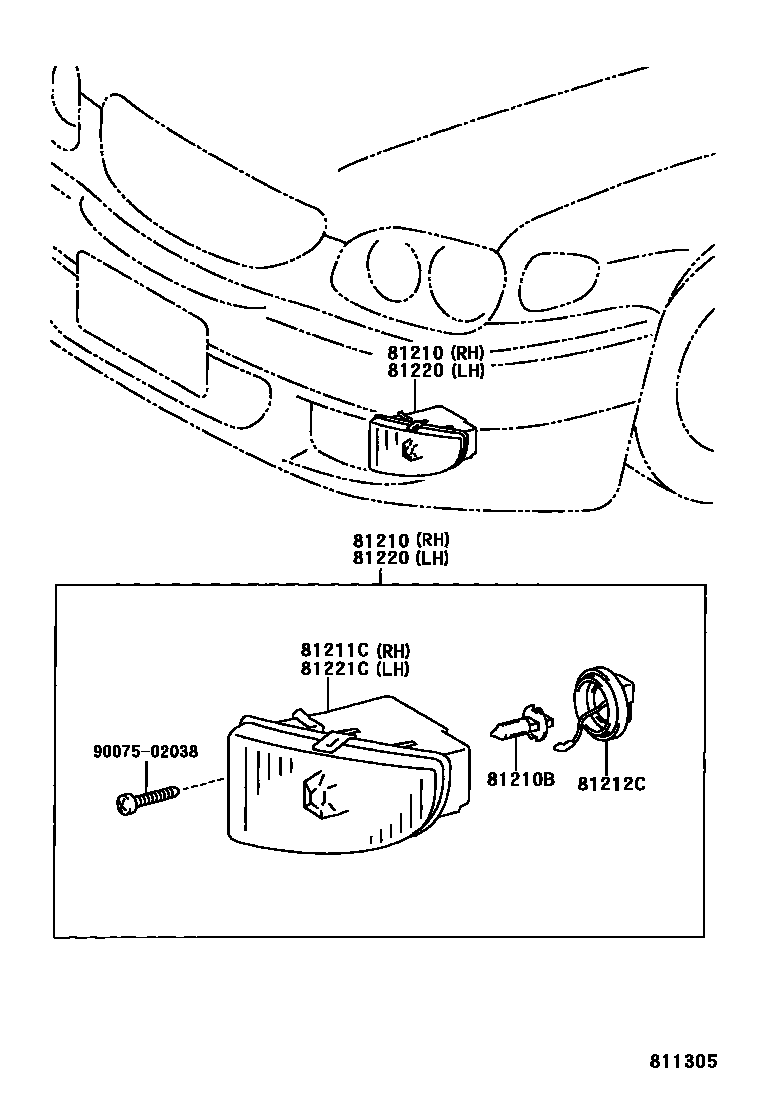

Toyota COROLLA Fog Lamp EPC diagram — 811305
Fog Lamp — 811305 (199910 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210Fog light assembly81210-12120 · 81210-12160
81210Bfog light bulb90981-13018
81211CRight fog light assembly81211-12120 · 81211-12160
81212Cfog light cover90075-66001
81220Left fog light assembly81220-12110 · 81220-12150
81221CLeft fog light assembly81221-12110 · 81221-12150
81229Fog light bracket81481-12030
