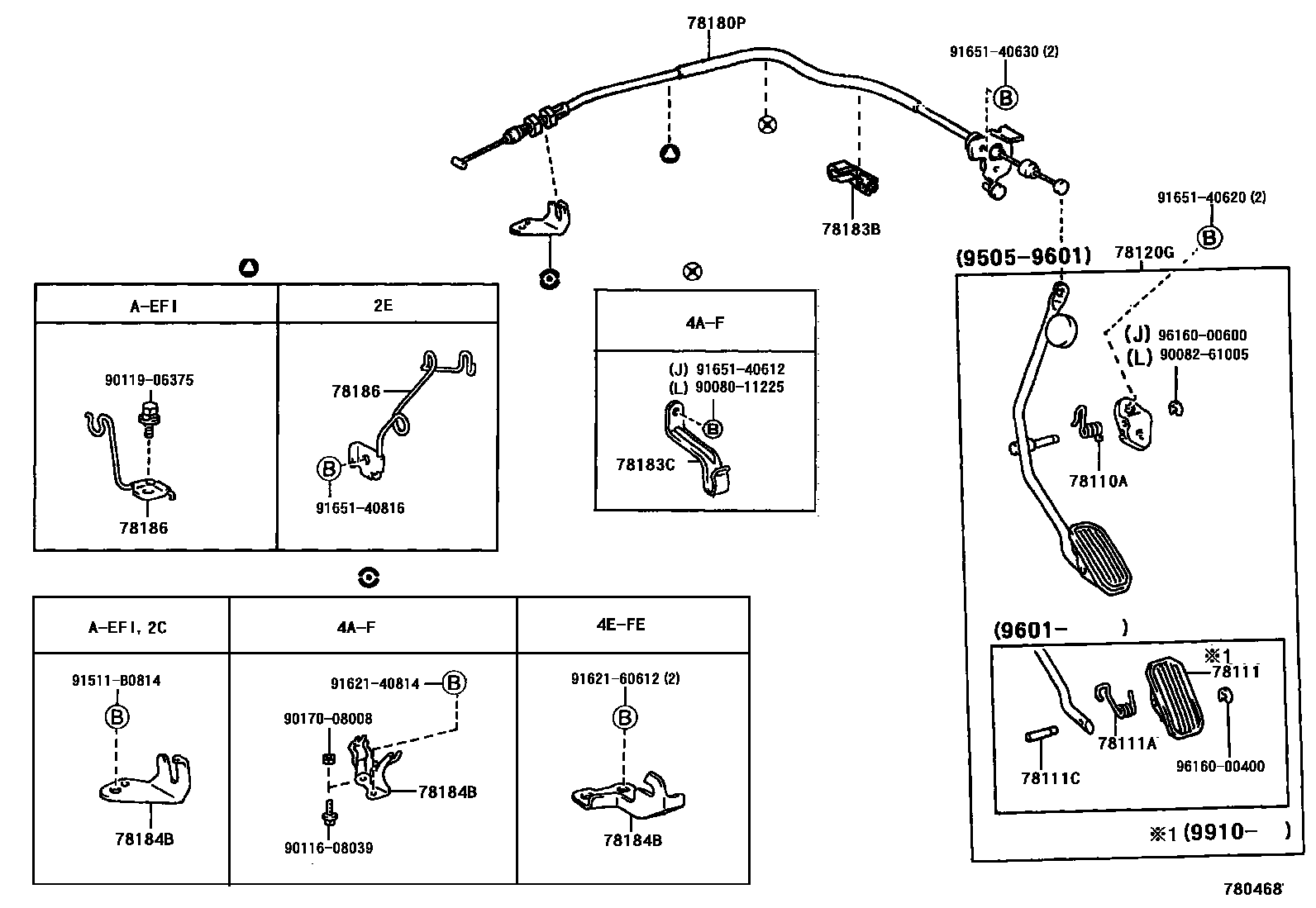

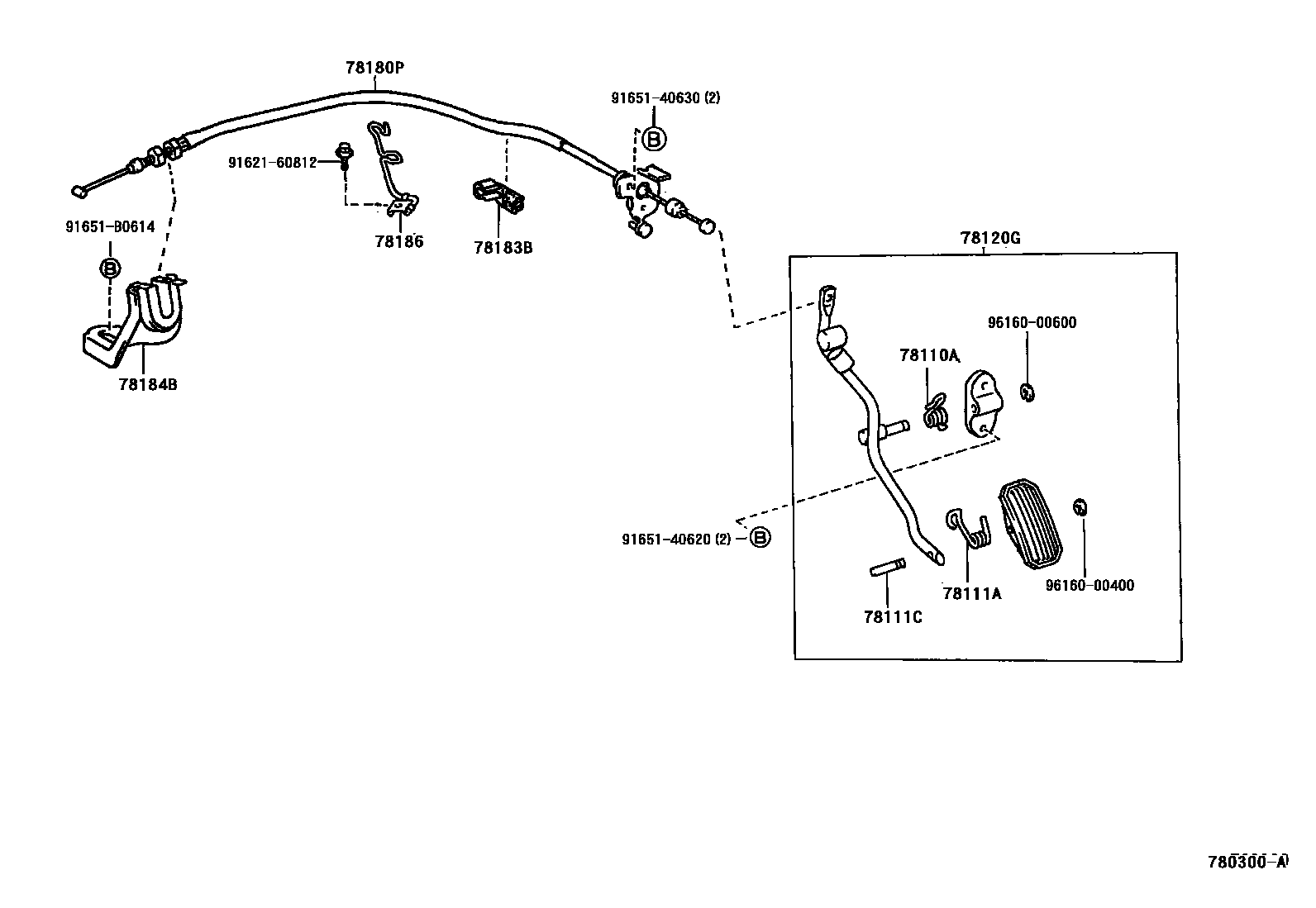

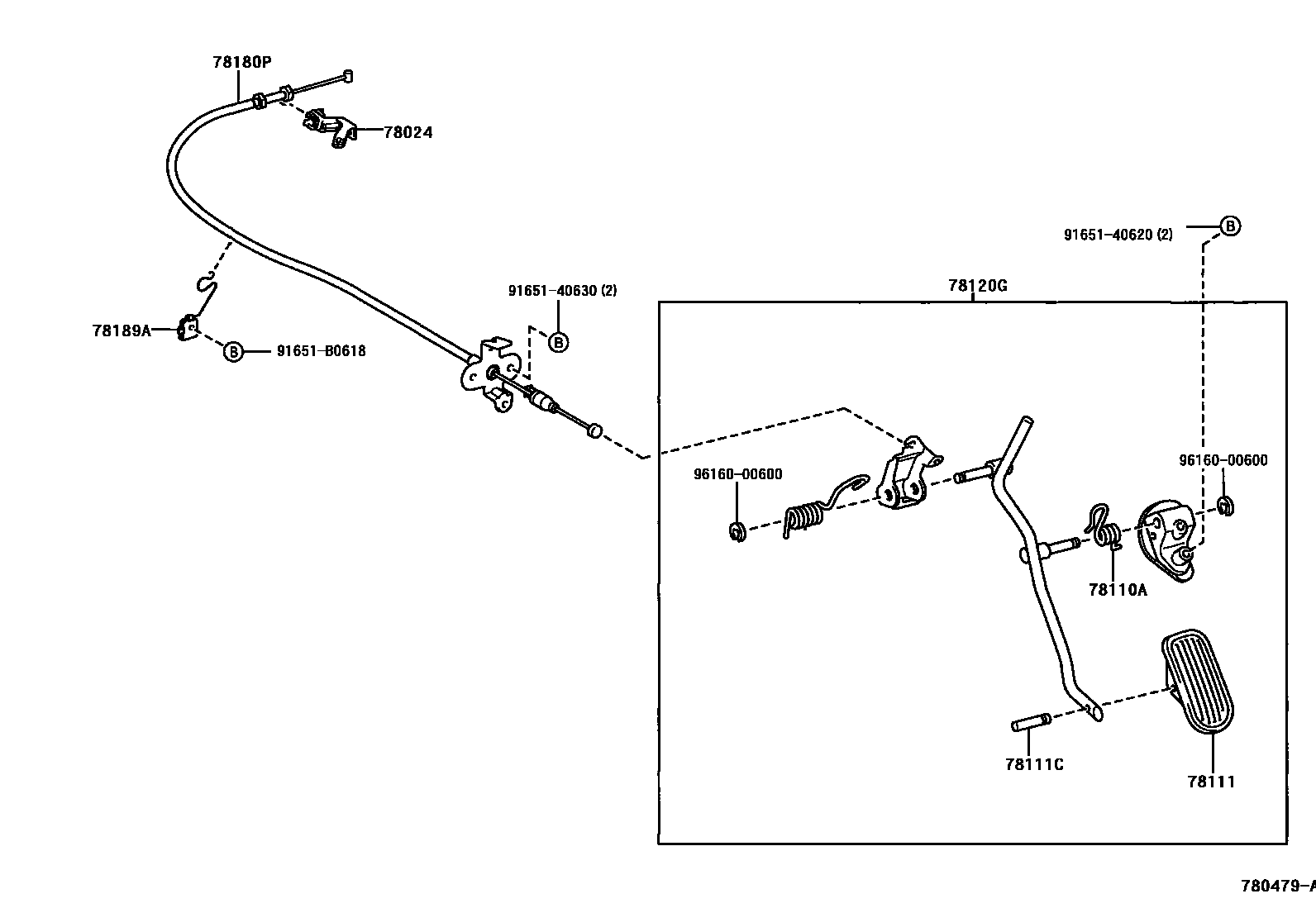

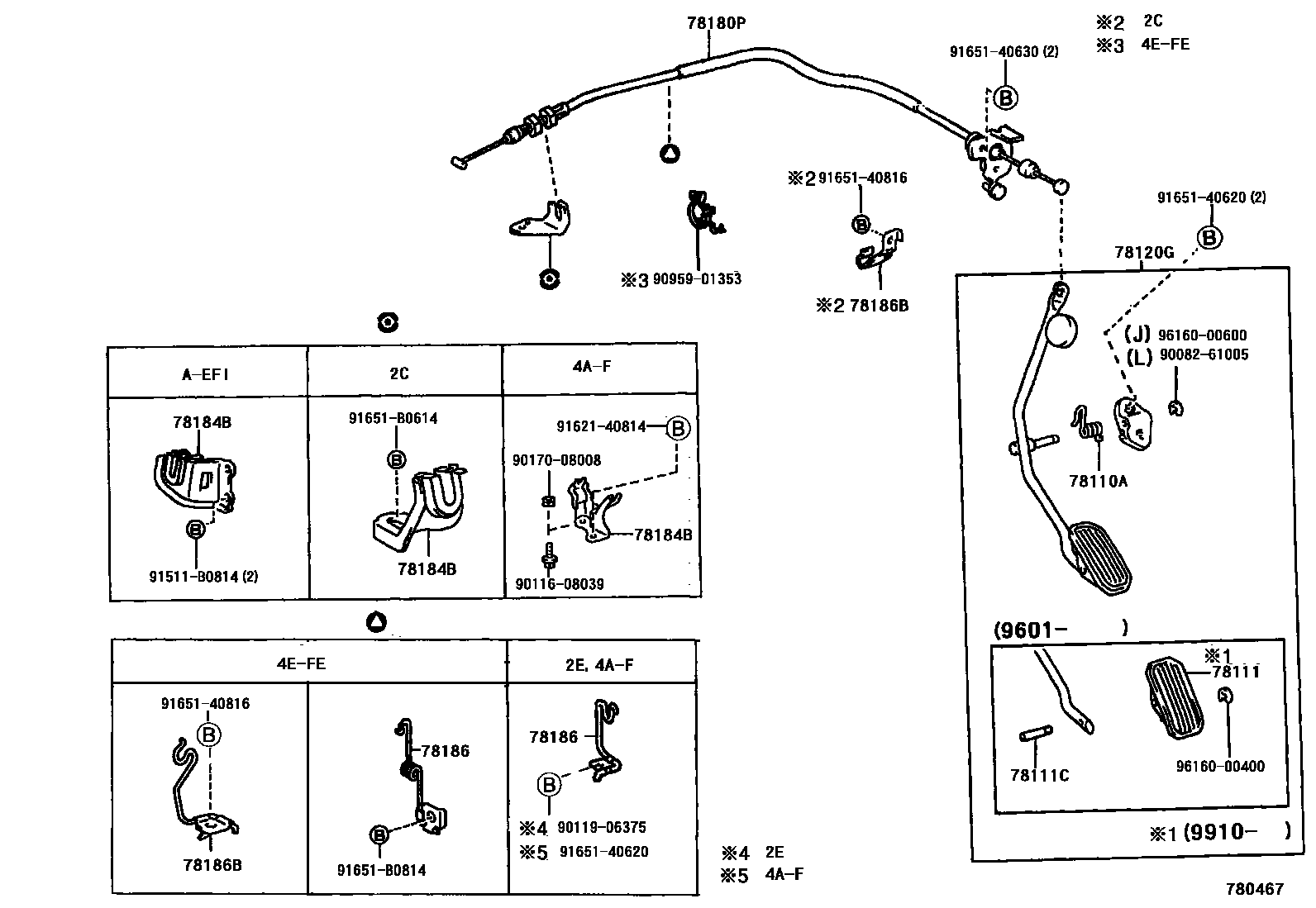

Toyota COROLLA accelerator pedal connecting rod — Figure 7801
Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-12060 |
| 78110A | Spring (for accelerator pedal lever) | 90508-18025 · 90508-18398 · 90508-26036 |
| 78111 | accelerator pedal | 78111-20060 · 78111-32010 |
| 78111A | Spring (for gas pedal) | 90508-18050 |
| 78111C | pin (for gas pedal) | 90249-05001 · 90254-04019 |
| 78120G | Accelerator pedal lever assembly | 78120-12150 · 78120-12151 · 78120-12160 · 78120-12161 · 78120-12170 · 78120-12171 · 78120-12201 · 78120-12230 |
| 78180P | Accelerator pedal control cable assembly | 78180-1A420 · 78180-1A470 · 78180-1A490 · 78180-1A520 · 78180-1A550 · 78180-1A560 · 78180-1A590 · 78180-1A600 · 78180-1A610 · 78180-1A630 · 78180-1A640 · 78180-1A660 · 78180-1A690 |
| 78183B | Accelerator pedal control cable clip | 78183-12160 |
| 78183C | Accelerator pedal control cable clip | 78183-12170 |
| 78184B | Throttle pedal control cable bracket | 78024-12030 · 78024-12041 · 78024-12050 · 78024-32140 · 78184-12230 · 78184-12280 · 78184-16070 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78183-12180 · 78186-12170 · 78186-12230 · 78186-12290 · 78186-12300 · 78186-16150 |
| 78186B | No. 2 accelerator pedal control cable bracket | 78186-12320 · 78186-12330 |
| 78189A | No. 2 accelerator pedal control cable bracket | 78189-12050 |
