Toyota COROLLA 后防护条 — Figure 7504

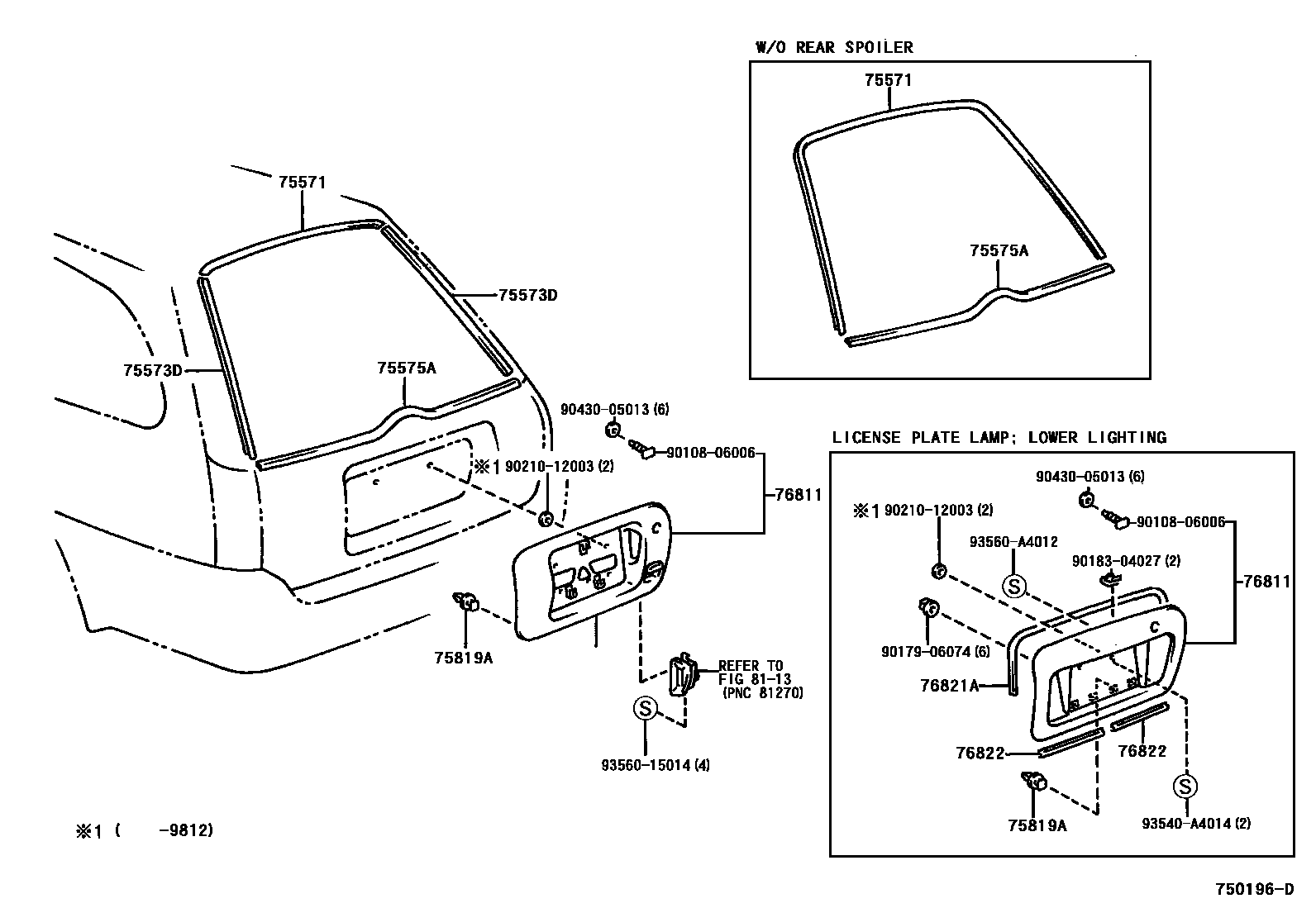

Toyota COROLLA EPC diagram 7504, 后防护条, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75571 | Protective strips on the outside of the rear window | 75571-12670 · 75571-12680 · 75571-13060 · 75571-13110 |
| 75573D | Protective strip for rear window | 75573-13040 |
| 75575A | Lower protective strip on the outside of the rear window | 75575-13020 |
| 75819A | Back door protective strip clip | 75819-12040 |
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-12480 · 76801-12570 · 76801-12590 · 76801-12610 · 76801-12620 · 76801-43020 · 76811-12470 · 76811-12560 · 76811-12590 |
| 76817 | Rear door exterior decorative strip clip | 76817-12050 · 76817-23010 |
| 76821A | Luggage door outer decorative strip protective cover | 76821-12090 · 76821-12140 · 76821-12150 · 76821-13020 |
| 76822 | Protective cover under rear door trim strip | 76822-13010 |
