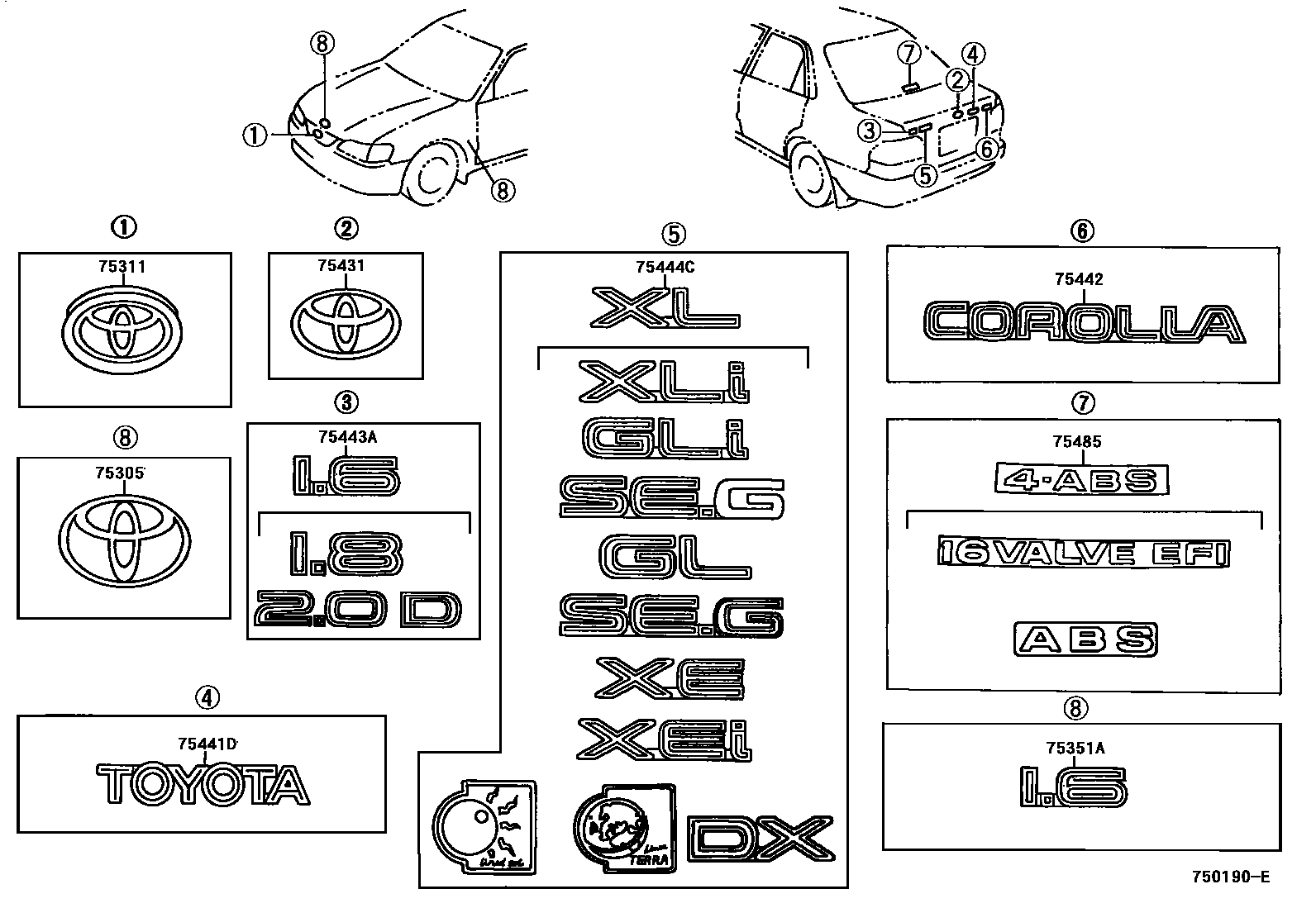

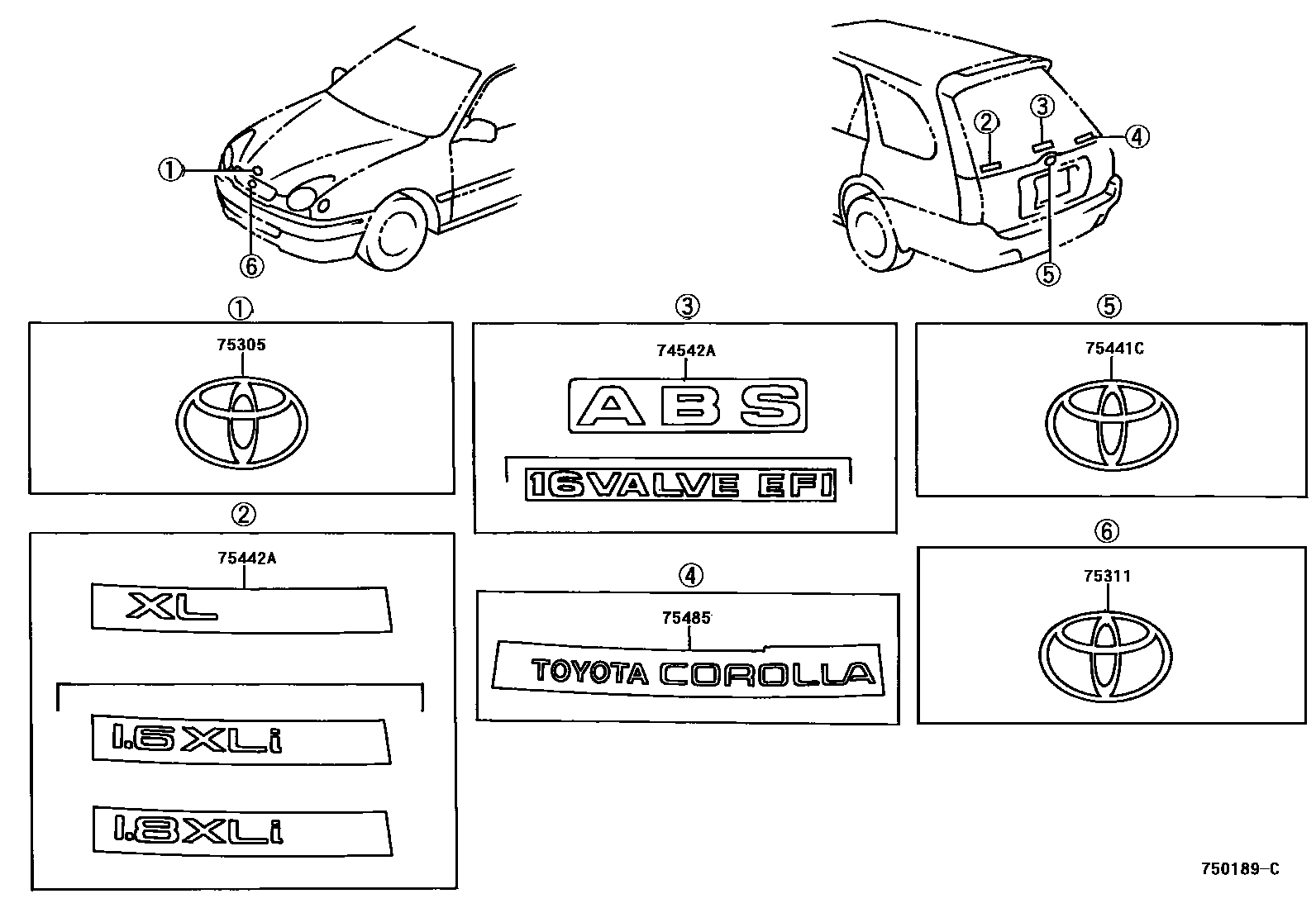

Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501
Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74542A | Rear window marking plate | 75485-12320 · 75485-13050 |
| 75305 | engine cover plate | 75331-12100 · 75331-12110 |
| 75311 | Radiator grille (or front panel) plate | 75311-1A850 · 75311-1E010 · 75311-1E030 |
| 75351A | Front fender label | 75351-12040 · 75351-12130 · 75351-12150 |
| 75431 | luggage compartment door sign | 75431-12010 · 75431-12110 |
| 75441C | Back door nameplate | 75441-44010 |
| 75441D | Trunk door No. 1 name plate | 75441-12780 · 75441-12830 · 75441-20320 |
| 75442 | Trunk door number plate No. 2 | 75442-1A280 · 75442-1A370 · 75442-1A440 |
| 75442A | No. 2 nameplate on back door | 75442-13180 · 75442-13190 · 75442-13220 |
| 75443A | Trunk door No. 3 nameplate | 75443-1A610 · 75443-1A790 · 75443-1A800 · 75443-1A810 |
| 75444C | Trunk door No. 4 nameplate | 75444-1A120 · 75444-1A190 · 75444-1A200 · 75444-1A210 · 75444-1A290 · 75444-1A330 · 75444-1A350 · 75444-1A360 · 75444-1A390 · 75444-1A400 · 75444-1A410 · 75444-1A420 · 75444-1A430 · 75444-1A450 · 75444-1A650 |
| 75485 | Back window nameplate | 75441-13190 · 75485-12300 · 75485-12310 · 75485-12320 |
