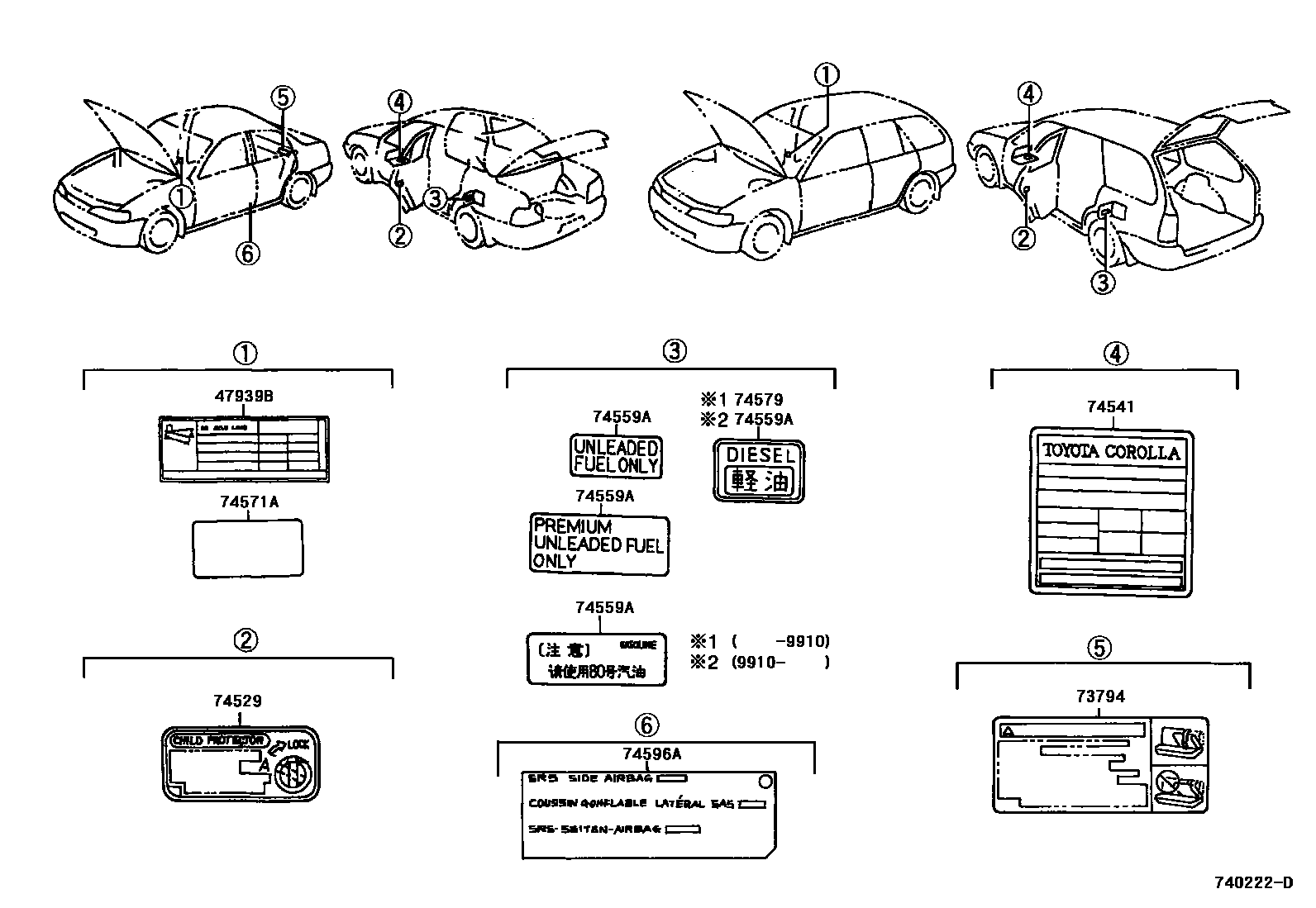

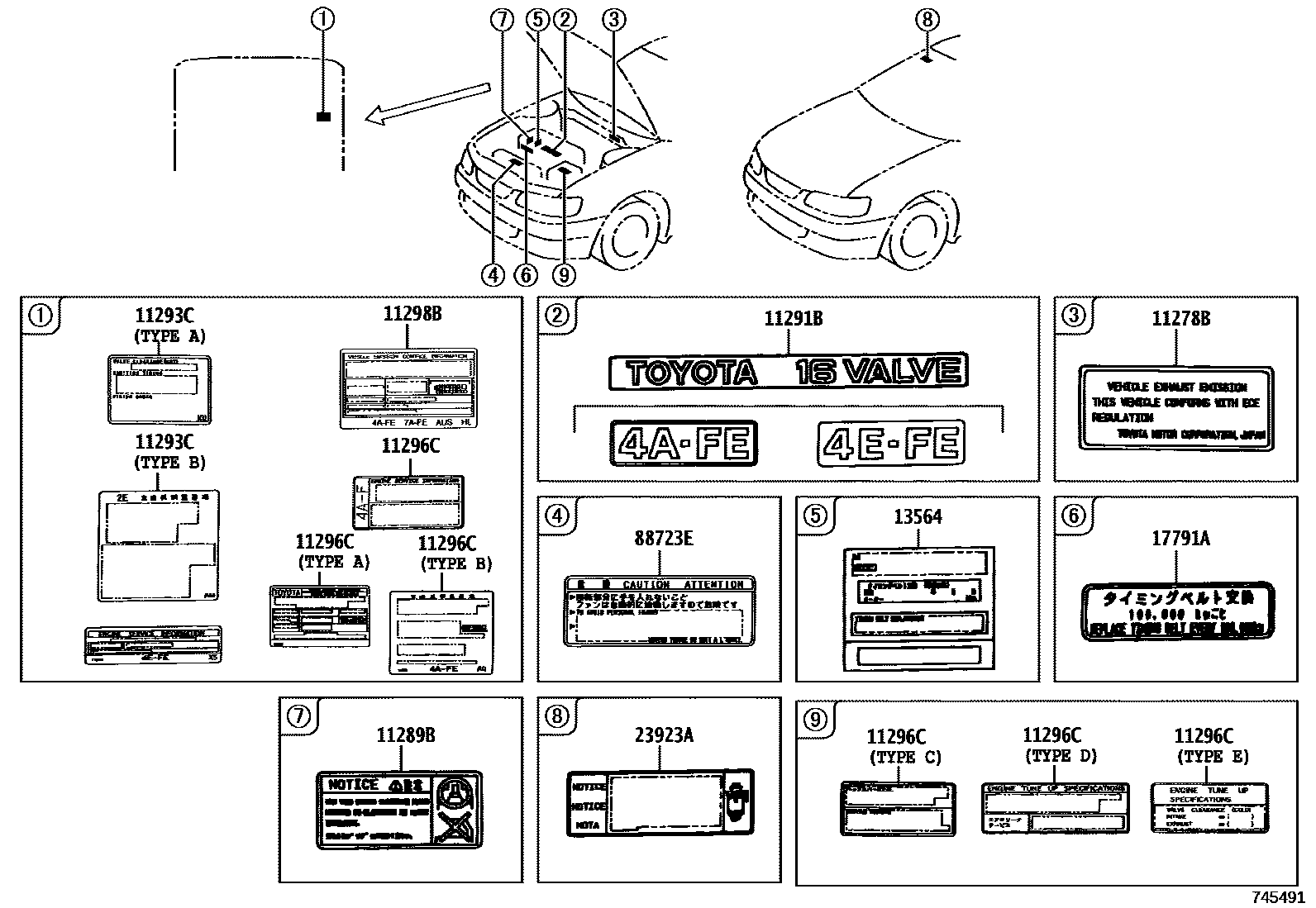

Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403
Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11278B | Engine emission standard information label | 11278-16040 · 11278-16050 |
| 11289B | spark plug caution label | 11289-62020 |
| 11291B | Engine name plate | 11291-11050 · 11291-15120 · 11291-16080 · 11291-64080 · 11292-16020 |
| 11293C | Adjust specification information label | 11293-11230 · 11293-11231 · 11293-11250 · 11293-11260 |
| 11296C | Engine maintenance information label | 11296-11290 · 11296-16030 · 11296-16170 · 11296-16370 · 11296-64010 · 11296-64020 · 11296-64040 |
| 11298B | Emission Control Information Label | 11298-1D100 · 11298-1D110 |
| 13564 | Timing belt replacement information label | 13564-10010 |
| 17791A | Maintenance information label | 17791-55010 |
| 23923A | Fuel Precipitator Caution Label | 23923-64011 |
| 47939B | Load sensing valve marking information label | 47939-12050 |
| 73794 | Rear seat belt caution label | 73794-33010 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-12010 |
| 74541 | tire pressure warning plate | 42661-1A540 · 42661-1E040 · 42661-1E060 |
| 74559A | Fuel warning plate | 74559-14030 · 74559-14050 · 74559-28010 · 74559-50010 · 74579-33010 |
| 74571A | Label cover protective film | 74571-32010 |
| 74579 | Unleaded fuel warning nameplate | 74559-14030 |
| 74596A | Side air bag warning label | 74596-12011 |
| 88723E | Cooler maintenance warning label | 16793-75010 · 88723-20081 |
