Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 4 PNC and OE references.

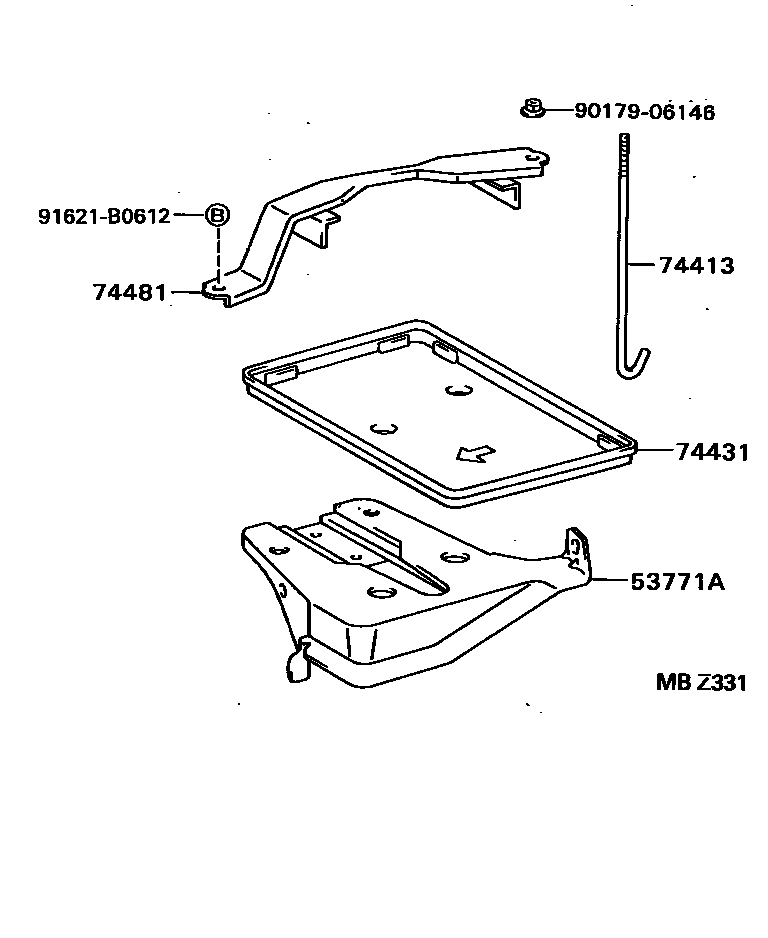

Toyota COROLLA battery holder EPC diagram — MBZ331
battery holder — MBZ331 (199505 – 999999)

PNC and OE references

PNCPart nameOE numbers
53771Abattery holder bracket53706-12030 · 53771-12120 · 53771-12140 · 53771-13010
74413Battery clamp bolt74451-12061 · 74451-12090 · 74451-12130
74431battery tray74431-12020 · 74431-12030 · 74431-12040 · 74431-12050 · 74431-12060
74481Battery fixing clip74404-12290 · 74404-12320 · 74404-12330 · 74404-12360 · 74404-12361 · 74404-12380
