Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104

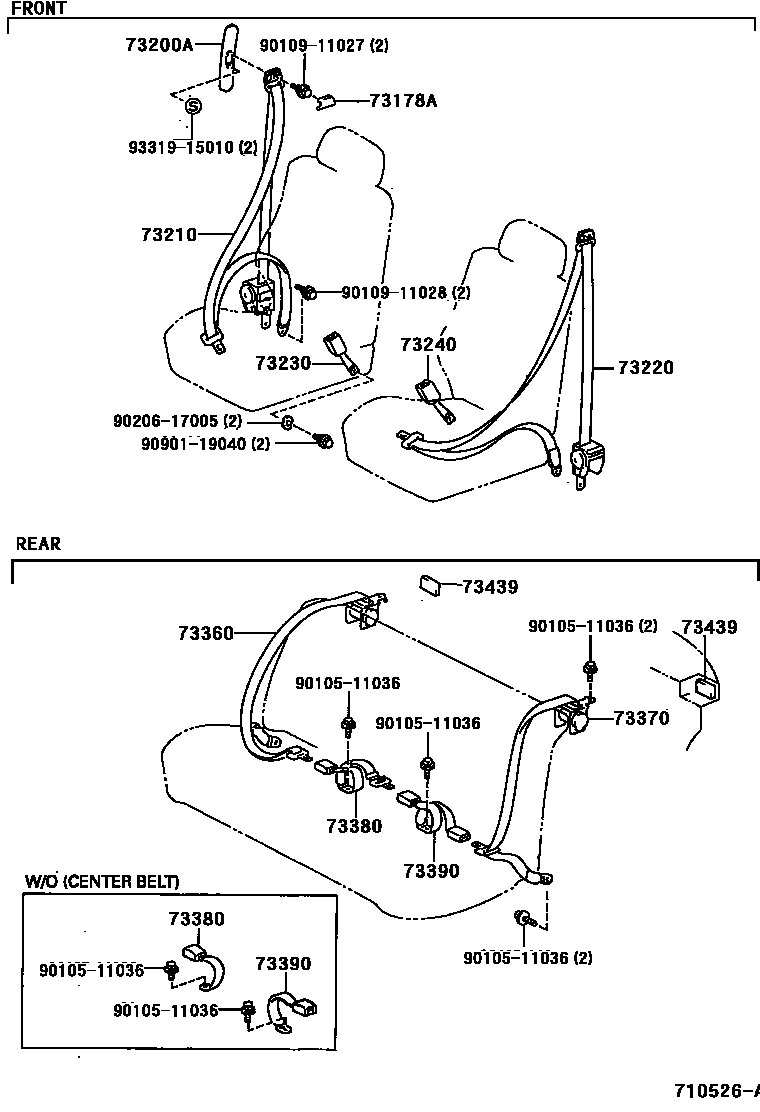

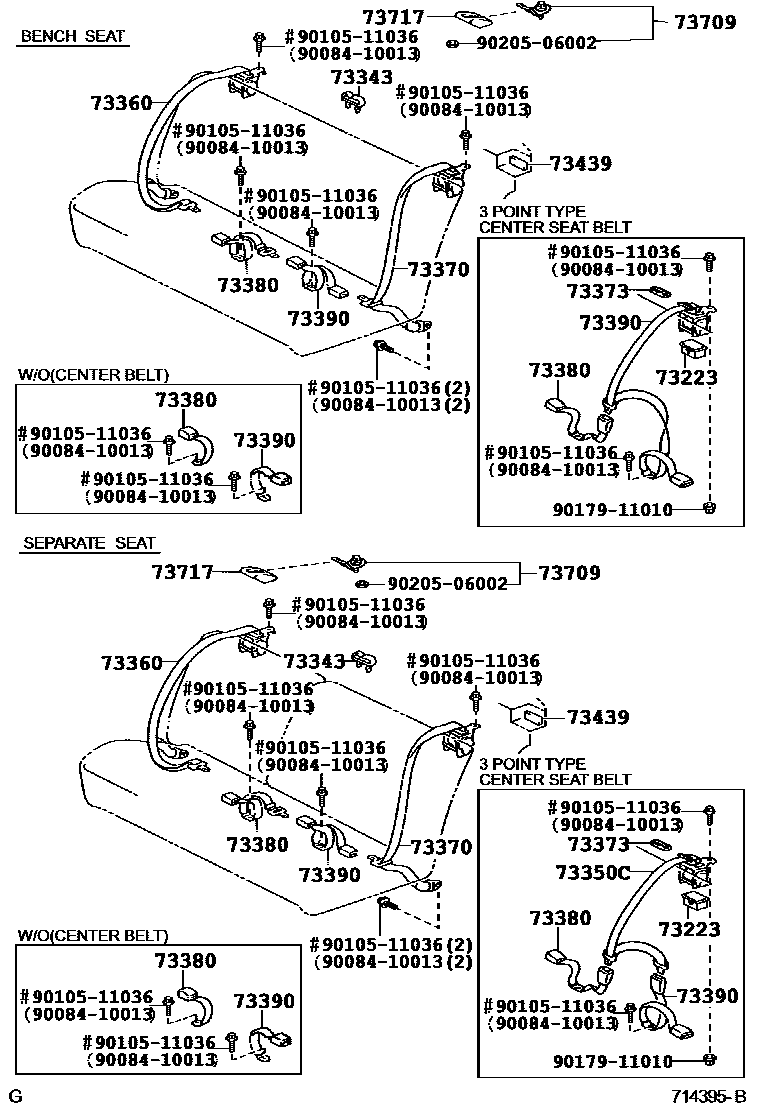

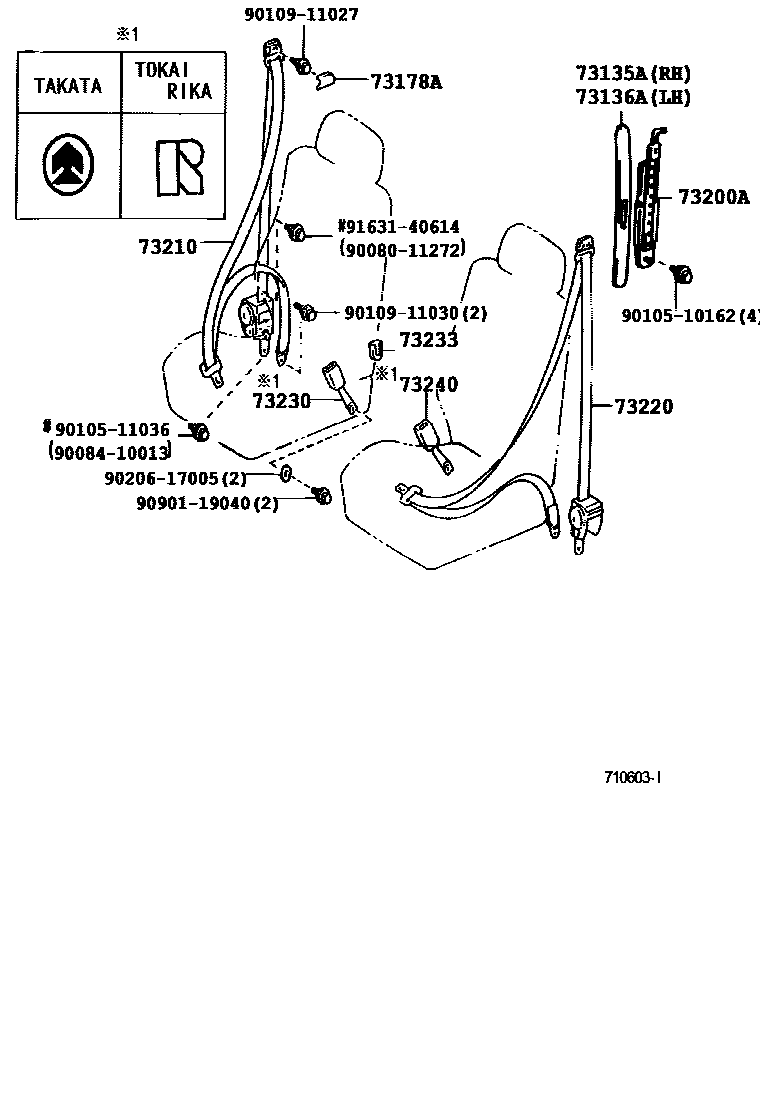

Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73210 | Front right seat outer seat belt assembly | 73210-1A160 |
| 73220 | Front left seat outer seat belt assembly | 73220-12850 |
| 73223 | seat belt retractor cover | 73223-12060 |
| 73439 | Rear seat belt retractor cushion | 73439-12010 · 73439-12040 |
| 73709 | Tie anchor bracket sub-assembly | 73708-12030 · 73708-12070 |
