Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

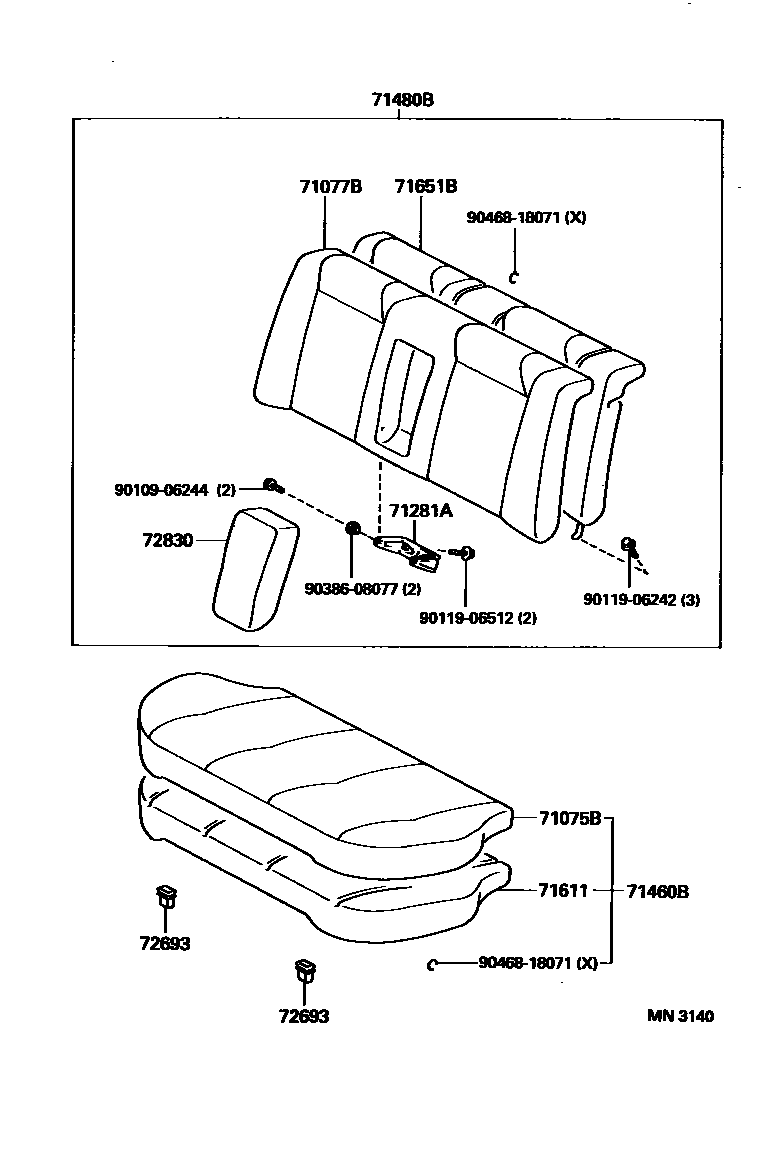

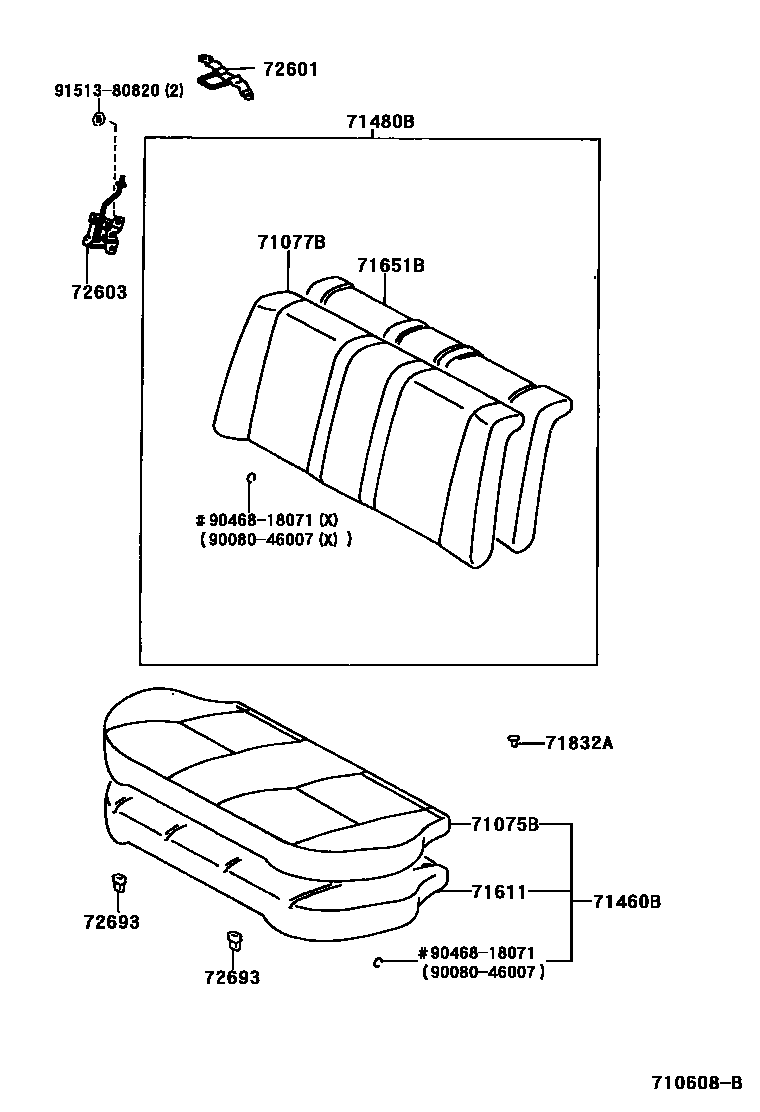

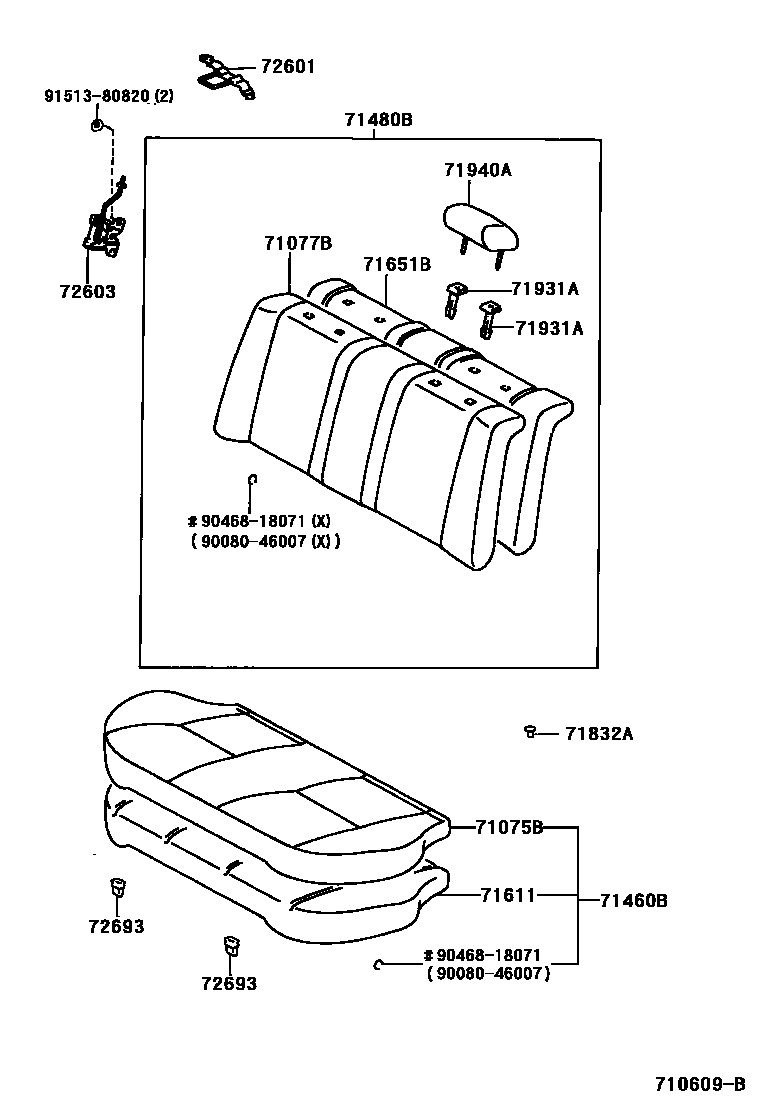

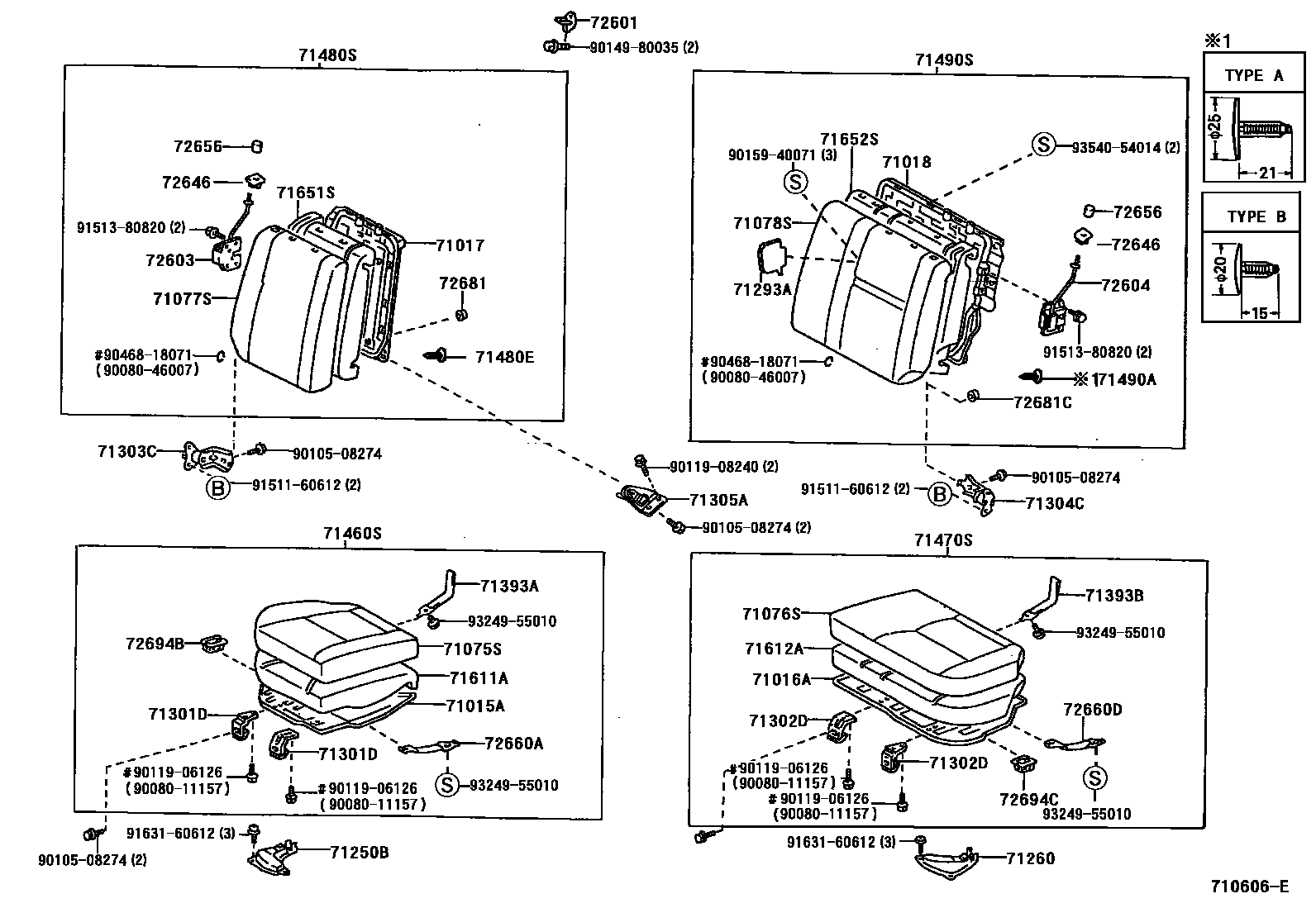

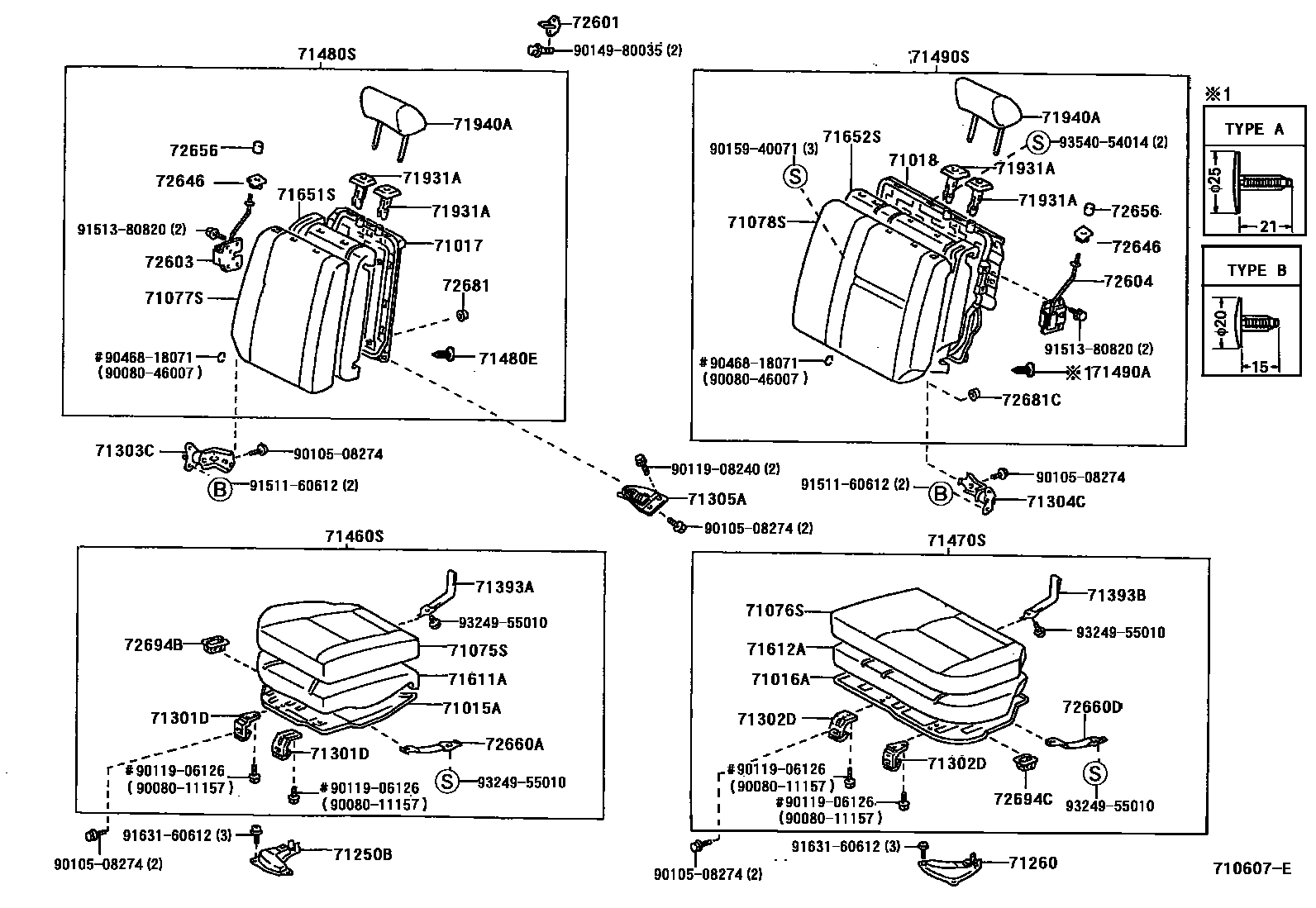

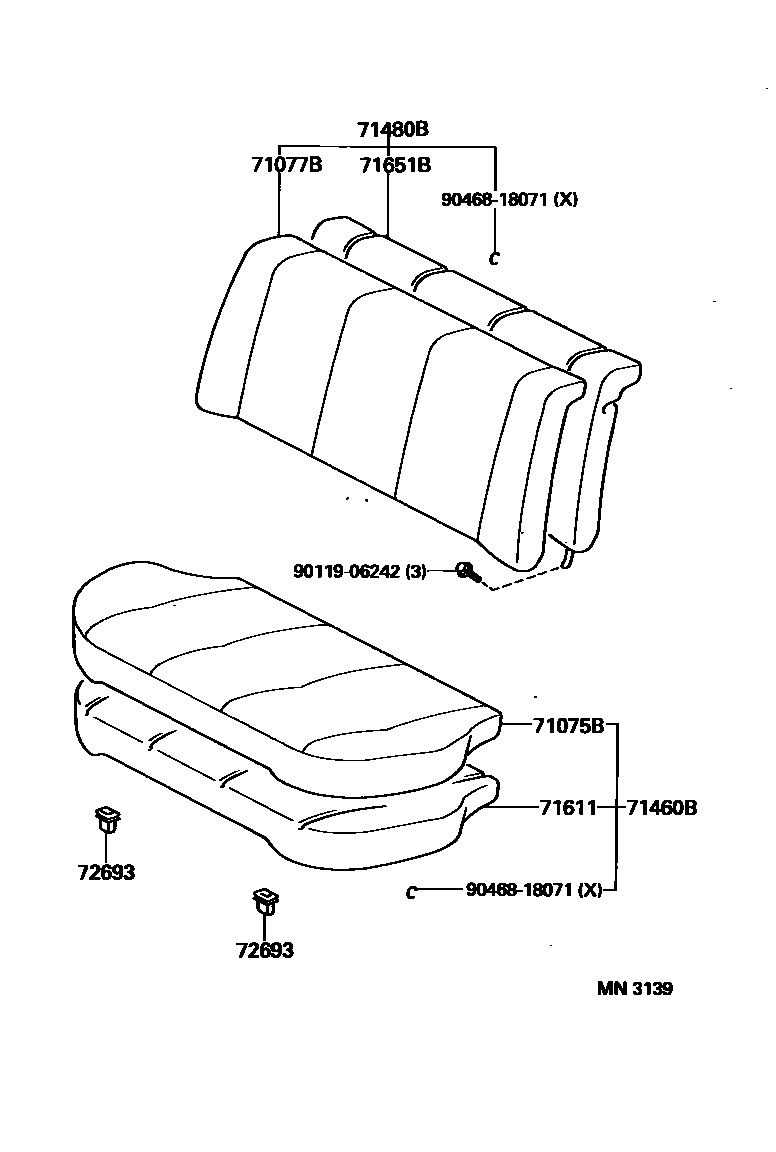

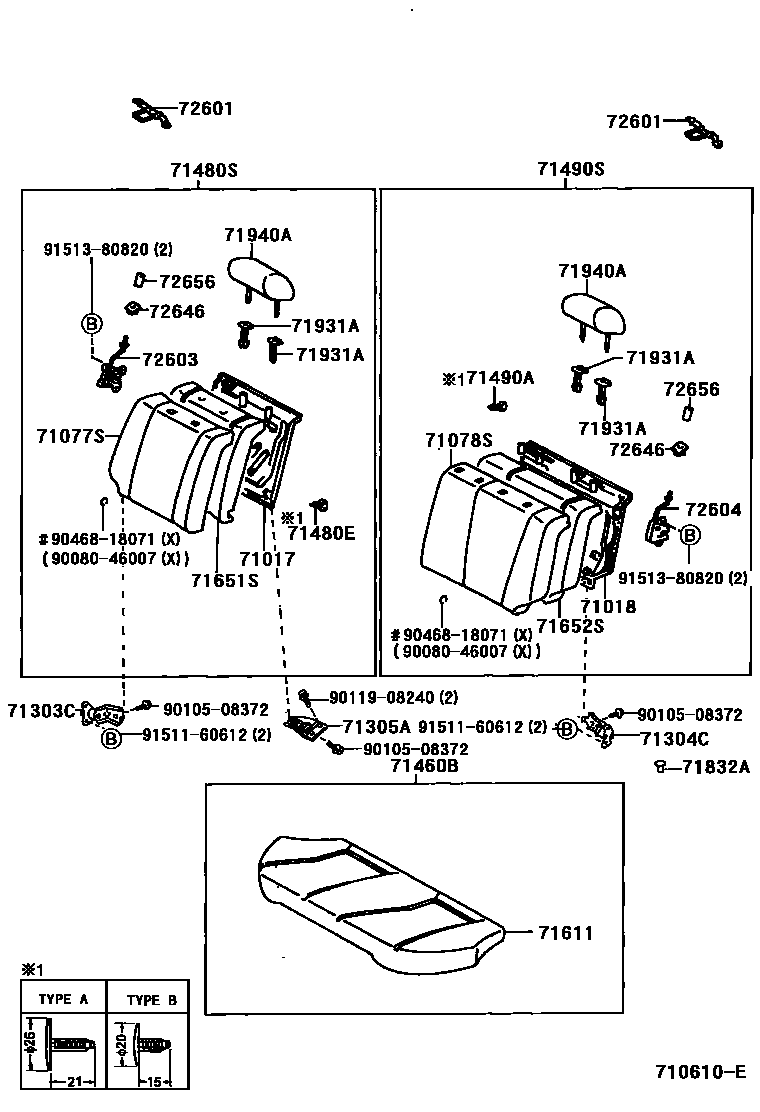

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 7 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-13050 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-13030 |
| 71017 | Right rear seat back frame sub-assembly | 71017-12500 · 71017-12510 · 71017-12540 · 71017-12570 |
| 71018 | Rear left seat back frame sub-assembly | 71018-12210 · 71018-12220 · 71018-12230 · 71018-12240 · 71018-12260 · 71018-12270 |
| 71250B | Right seat outer bracket assembly | 71250-13020 |
| 71260 | Left side seat outer bracket assembly | 71260-13020 |
| 71281A | Rear seat center armrest hinge | 71281-12030 |
| 71293A | Rear seat back panel | 71293-12030 |
| 71301D | Rear right seat hinge sub-assembly | 71301-13070 · 71302-13050 |
| 71302D | Rear left seat hinge sub-assembly | 71301-13070 · 71302-13060 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-12130 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-12130 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12150 · 71305-12160 |
| 71611 | Rear seat cushion cushion | 71503-12100 · 71503-12110 · 71503-12120 |
| 71611A | Rear right seat cushion | 71611-13230 |
| 71612A | Rear left seat cushion | 71612-13100 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-12130 · 71507-12140 · 71507-12160 · 71507-12180 · 71507-12190 · 71507-12210 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12750 · 71651-12770 · 71651-13240 · 71651-13250 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12590 · 71652-12610 · 71652-12620 · 71652-13110 · 71652-13120 · 71652-13140 |
| 72601 | Rear seat lock sub-assembly | 72601-12150 · 72601-12160 |
| 72603 | Rear right seat back lock sub-assembly | 72630-12280 · 72630-12290 |
| 72604 | Rear left seat back lock sub-assembly | 72640-12250 · 72640-12260 |
| 72660A | Rear seat cushion bracket assembly | 72660-12030 |
| 72660D | Rear seat cushion bracket assembly | 72660-12030 |
| 72693 | Rear seat cushion hook | 72693-12060 · 72693-12080 |
| 72694B | Rear right seat cushion lock cover | 72694-13010 · 72694-13020 |
| 72694C | Rear left seat cushion lock cover | 72694-13010 · 72694-13020 |
