Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

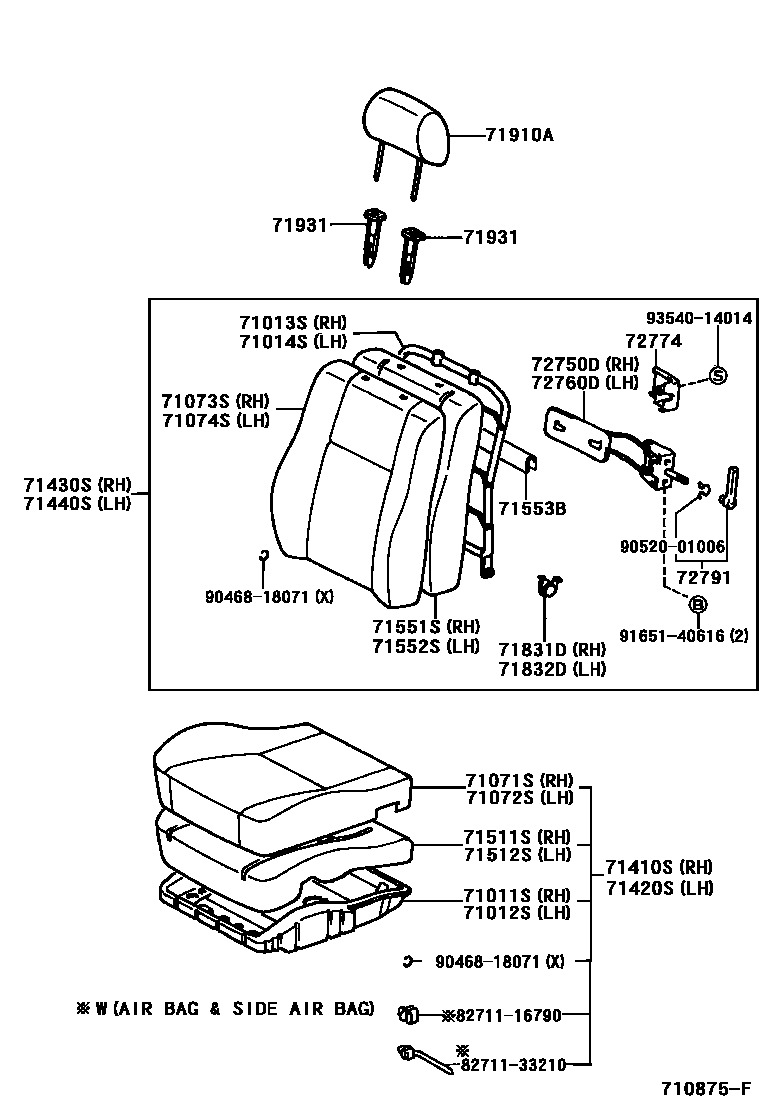

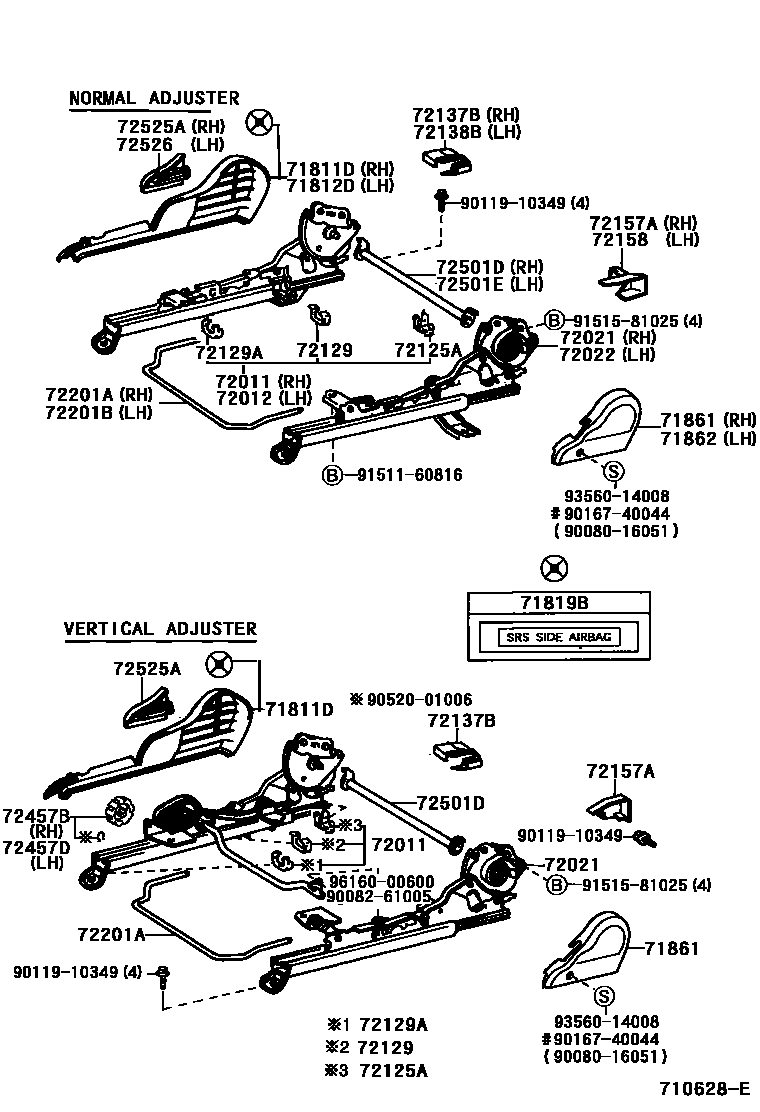

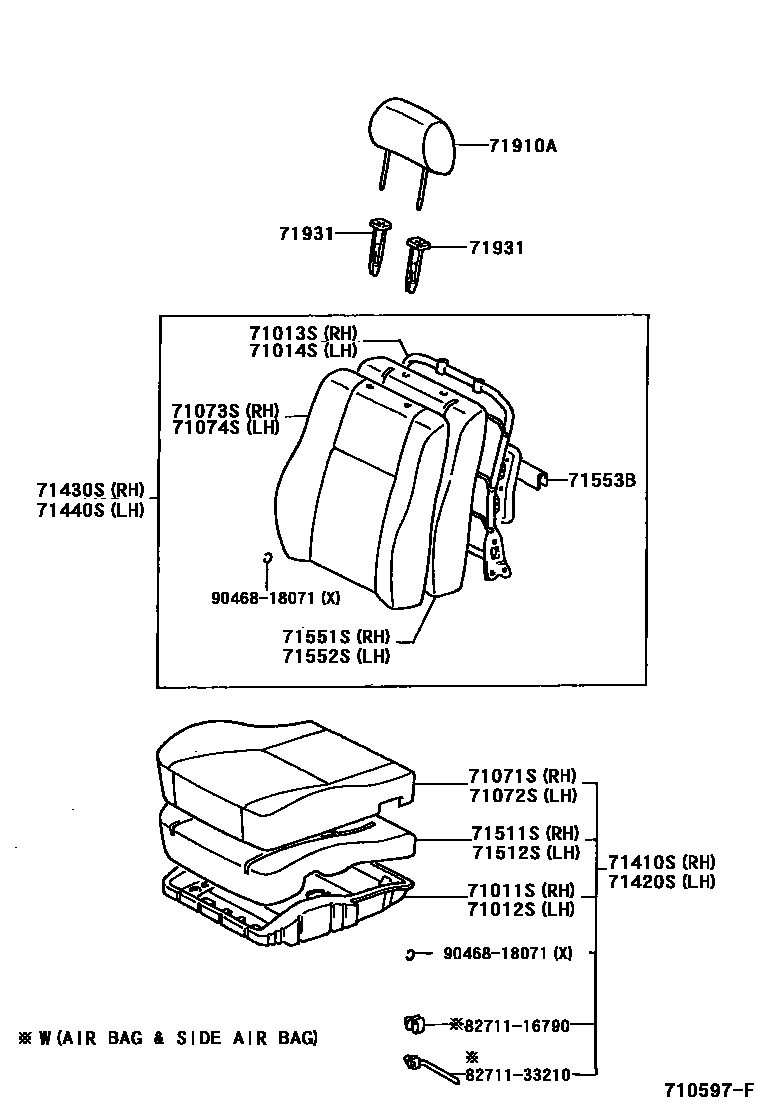

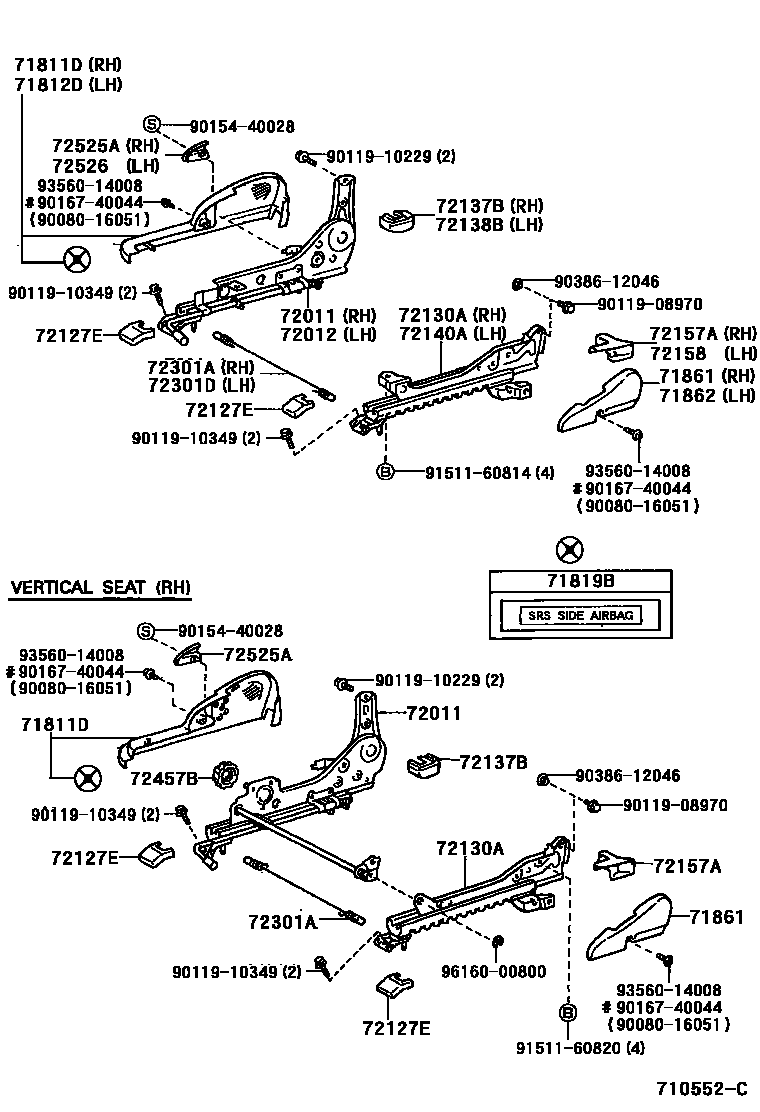

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-12440 · 71011-12450 · 71011-20430 · 71011-20440 |
| 71012S | Front left seat cushion frame sub-assembly | 71011-12440 · 71011-20430 · 71011-20440 |
| 71013S | Front right seat back frame sub-assembly | 71013-12500 · 71013-12630 · 71013-12631 |
| 71014S | Front left seat back frame sub-assembly | 71013-12630 · 71013-12631 · 71014-12410 |
| 71071S | Front right seat cushion cover (for split seats) | 71071-1L270 · 71071-1L280 · 71071-1L300 · 71071-1L410 · 71071-1L490 · 71071-1L620 · 71071-1L660 |
| 71072S | Front left seat cushion cover (for split seats) | 71072-1H170 · 71072-1H310 · 71072-1H320 · 71072-1H450 · 71072-1H500 |
| 71073S | Front right seat back cover (for split seats) | 71073-1K880 · 71073-1K881 · 71073-1L010 · 71073-1L011 · 71073-1L340 · 71073-1L341 · 71073-1L350 · 71073-1L351 · 71073-1L690 · 71073-1L710 · 71073-1L730 |
| 71074S | Front left seat back cover (for split seats) | 71073-1K880 · 71073-1L010 · 71073-1L011 · 71073-1L340 · 71073-1L350 · 71073-1L351 · 71073-1L690 · 71073-1L710 · 71073-1L730 |
| 71410S | Front right seat cushion assembly (for split seats) | 71410-1L590 · 71410-1L600 · 71410-1L610 · 71410-1L630 · 71410-1L670 · 71410-1L730 |
| 71420S | Front left seat cushion assembly (for split seats) | 71420-1H430 · 71420-1H510 · 71420-1H520 · 71420-1H570 · 71420-1H620 |
| 71430S | Front right seat back assembly (for split seats) | 71040-12350 · 71040-12370 · 71040-12550 · 71430-1L300 · 71430-1L301 · 71430-1L310 · 71430-1L311 · 71430-1L331 · 71430-1L431 |
| 71440S | Front left seat back assembly (for split seats) | 71040-12350 · 71040-12370 · 71040-12550 · 71070-12120 · 71070-12320 · 71430-1L300 · 71430-1L301 · 71430-1L310 · 71430-1L311 · 71430-1L331 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12860 · 71511-12880 · 71511-12890 · 71511-1A010 · 71511-1A030 · 71511-1A060 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-12860 · 71511-12880 · 71511-12890 · 71511-1A010 · 71511-1A020 · 71511-1A050 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12580 · 71551-12610 · 71551-12630 · 71551-12710 · 71551-12730 |
| 71552S | Front left seat back cushion (for split seats) | 71551-12610 · 71551-12630 · 71551-12710 · 71551-12730 · 71552-12150 |
| 71553B | Front B seat back cushion | 71553-12360 |
| 71831D | Front right seat hinge cover | 71831-16010 |
| 71832D | Front left seat hinge cover | 71831-16010 |
| 71910A | Front seat headrest assembly | 71910-1A790 · 71910-1A810 · 71910-1A830 · 71910-1A860 · 71910-1E120 |
| 71931 | Front seat headrest bracket | 71931-32020 |
| 72011 | Front right seat outer adjuster sub-assembly | 72010-12600 · 72010-12620 · 72011-12250 · 72011-12260 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-12210 · 72012-12280 · 72020-12570 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-12220 · 72021-12230 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-12270 · 72022-12280 |
| 72125A | Rear seat upper slide rail cover | 72125-10010 |
| 72129 | No. 1 seat slide rail lower rail protective cover | 72129-12010 |
| 72129A | No. 2 seat slide rail lower rail ring protective cover | 72129-20020 |
| 72130A | Front right seat inner slide rail assembly | 72130-12650 · 72130-12670 |
| 72140A | Front left seat inner slide rail assembly | 72140-12490 |
| 72201A | Right seat slide rail handle sub-assembly | 72201-12030 |
| 72201B | Left seat slide rail handle sub-assembly | 72201-12030 |
| 72301A | Right seat slide rail balance harness sub-assembly | 72301-12090 · 72301-12160 |
| 72301D | Left seat slide rail balance harness sub-assembly | 72301-12160 |
| 72501D | Right seat back recline adjuster connecting pipe sub-assembly | 72345-12040 |
| 72501E | Left seat back recline adjuster connecting pipe sub-assembly | 72345-12040 |
| 72750D | Right lumbar support adjuster assembly | 72750-12090 |
| 72760D | Left lumbar support adjuster assembly | 72760-12100 |
| 72774 | Lumbar support spring guard | 72774-12040 |
