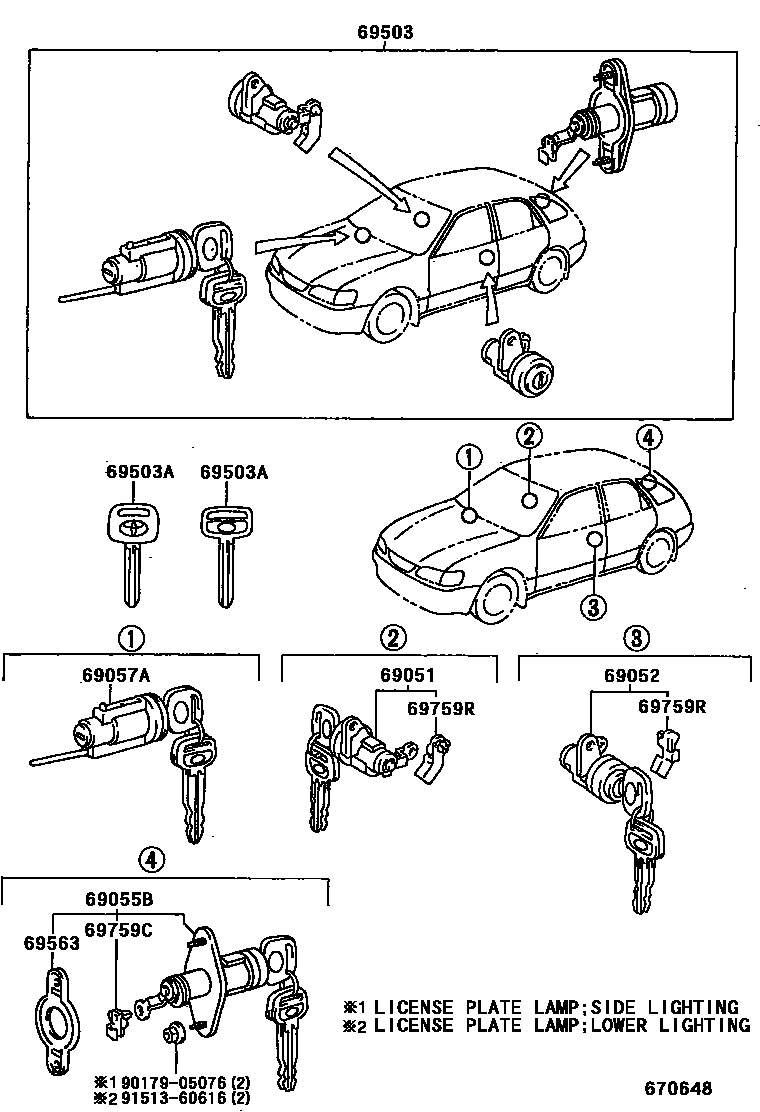

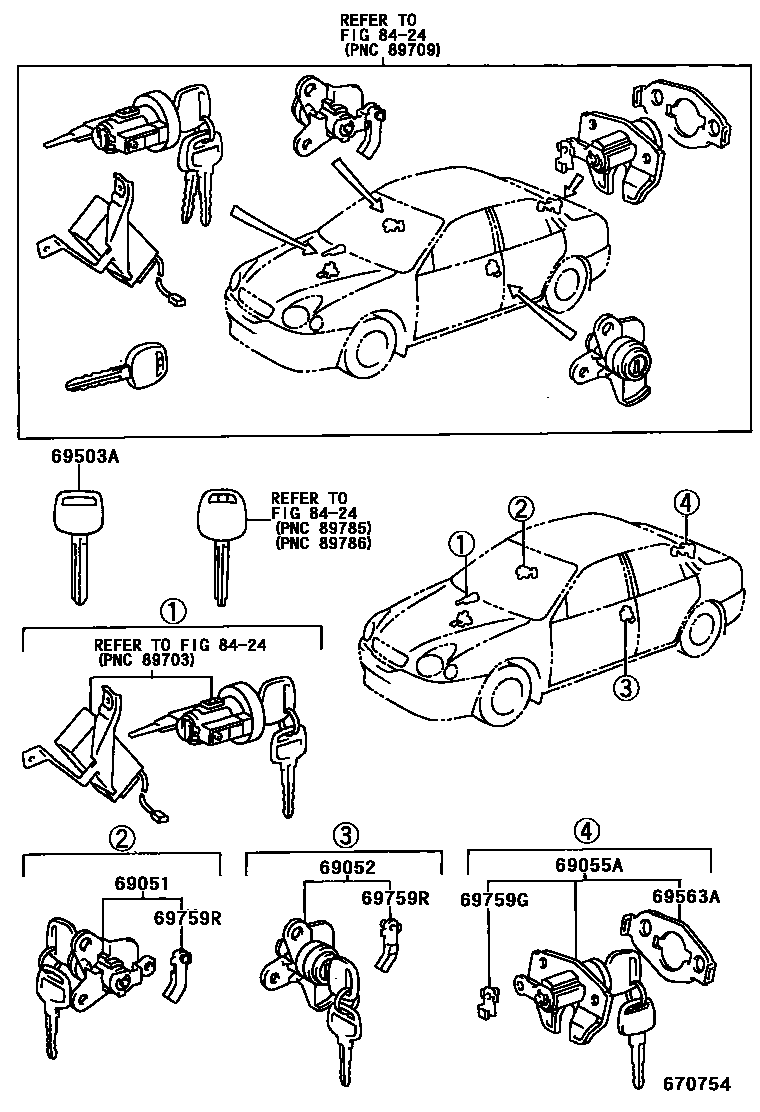

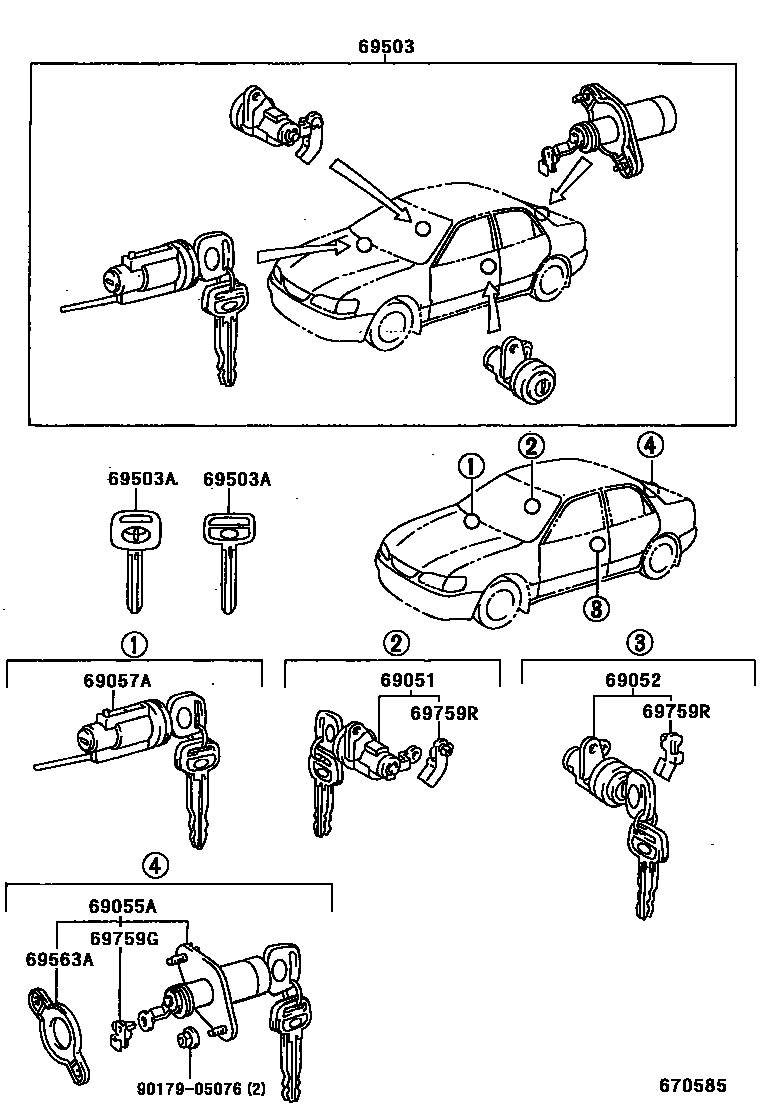

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-12430 · 69051-12490 · 69051-12520 · 69051-12530 · 69051-12570 · 69051-12590 |
| 69052 | Left door lock cylinder and key assembly | 69052-12430 · 69052-12490 · 69052-12520 · 69052-12530 · 69052-12570 |
| 69055A | Luggage lock cylinder and key assembly | 69055-1A120 · 69055-1A210 · 69055-1A220 · 69055-1A240 · 69055-1A330 · 69055-1A350 |
| 69055B | Rear door lock cylinder and key assembly | 69055-13180 · 69055-13220 · 69055-13230 · 69055-13240 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12280 · 69057-12340 · 69057-12380 · 69057-12390 · 69057-12400 · 69057-12430 · 69057-12460 · 69057-12470 |
| 69503 | Door lock cylinder components | 69005-13380 · 69005-13410 · 69005-13450 · 69005-13460 · 69005-1A850 · 69005-1E180 · 69005-1E200 · 69005-1E230 · 69005-1E240 · 69005-1E280 · 69005-1E290 · 69005-1E360 · 69005-1E430 |
| 69503A | external tooth key | 90999-00185 · 90999-00186 · 90999-00187 · 90999-00188 |
| 69563 | Rear door lock cylinder gasket | 69563-12070 |
| 69563A | Trunk door lock cylinder lining | 69563-12100 · 69563-12130 |
| 69759C | Back door lock cylinder buckle | 69759-20090 · 69759-24090 |
| 69759G | Trunk door lock core buckle | 69759-24090 |
| 69759R | Front door lock cylinder buckle | 69759-12080 · 69759-12090 |
