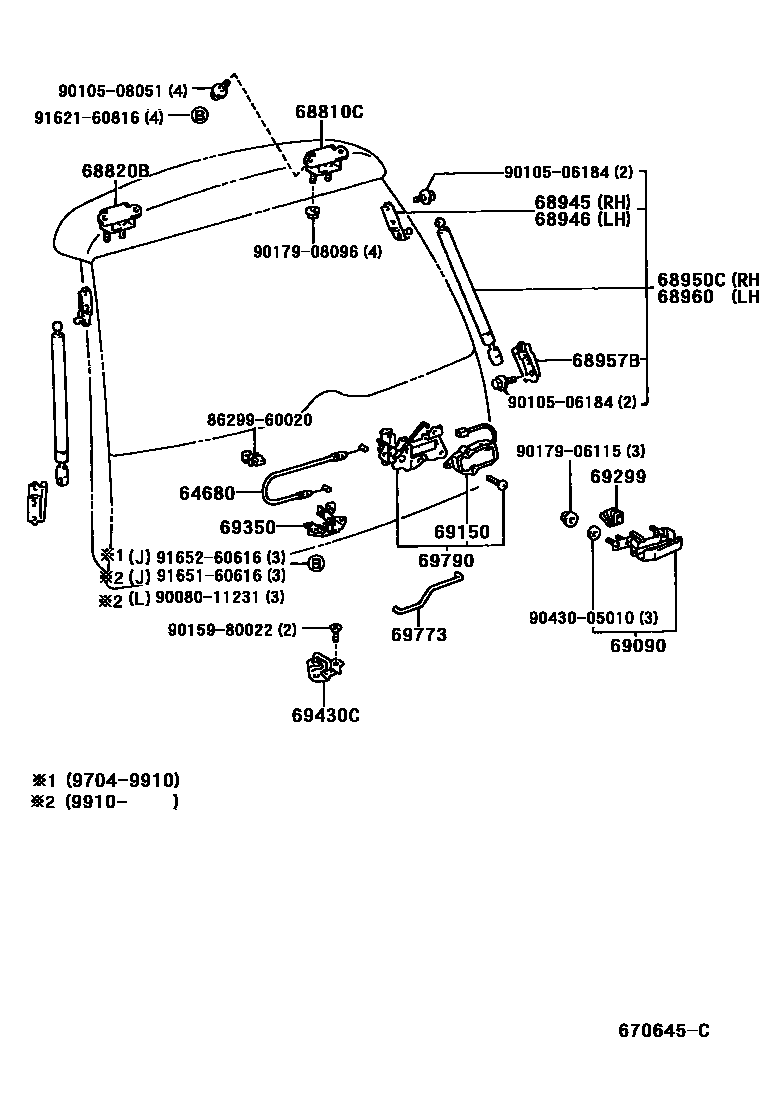

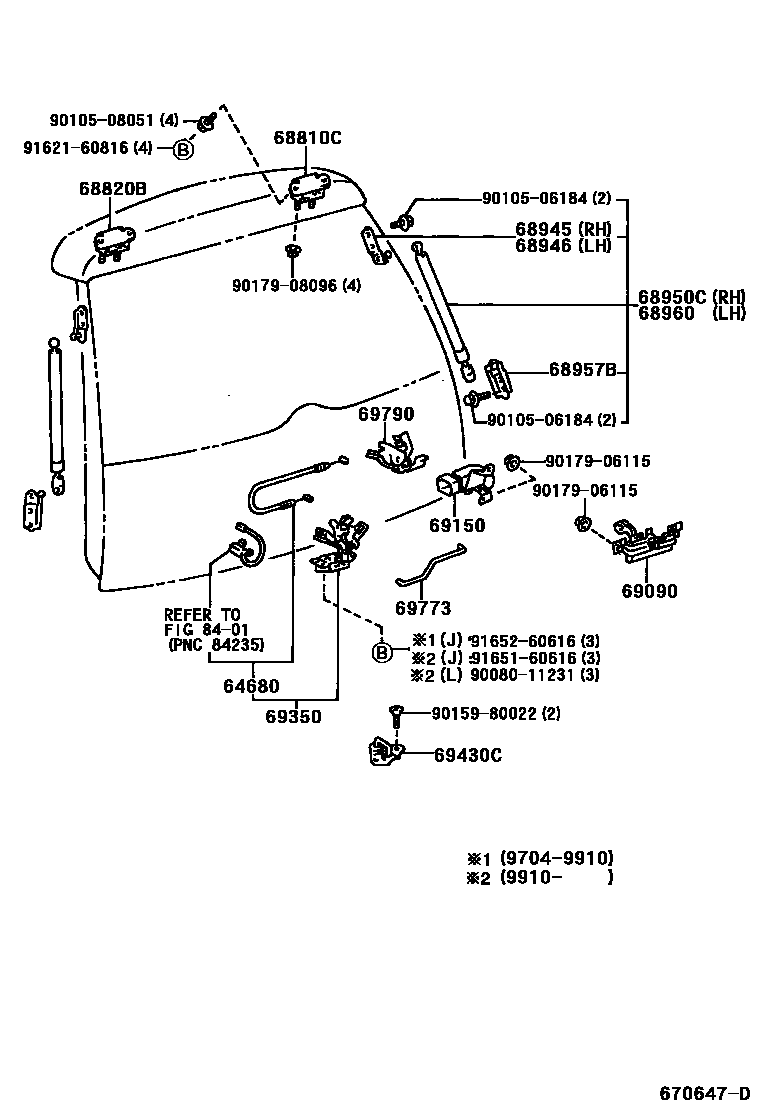

Toyota COROLLA 背门锁和背门把手 — Figure 6709
Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64680 | Rear door lock control cable assembly | 64680-13020 · 64680-13021 · 64680-13050 |
| 68810C | Back door right hinge assembly | 68810-21040 |
| 68820B | Back door left hinge assembly | 68810-21040 |
| 68945 | Back door right damping stay upper bracket | 68945-13010 |
| 68946 | Rear door left damping strut upper bracket | 68946-13010 |
| 68950C | Back door right support rod assembly | 68950-80043 |
| 68957B | Rear door support rod lower bracket | 68957-13030 |
| 68960 | Back door left support rod assembly | 68960-19595 |
| 69090 | Rear door outer handle assembly | 69090-13030 |
| 69150 | Rear door lock actuator assembly | 69150-13010 · 69150-13030 |
| 69299 | Rear door handle seal | 69299-13030 |
| 69350 | Rear door lock assembly | 69301-13010 · 69301-13030 |
| 69430C | Back door lock assembly | 69430-12250 |
| 69773 | Rear door lock No. 1 control link | 69773-13010 |
| 69790 | Rear door lock control assembly | 69790-13020 · 69790-13040 |
