Toyota COROLLA 后门锁和后门把手 — Figure 6706

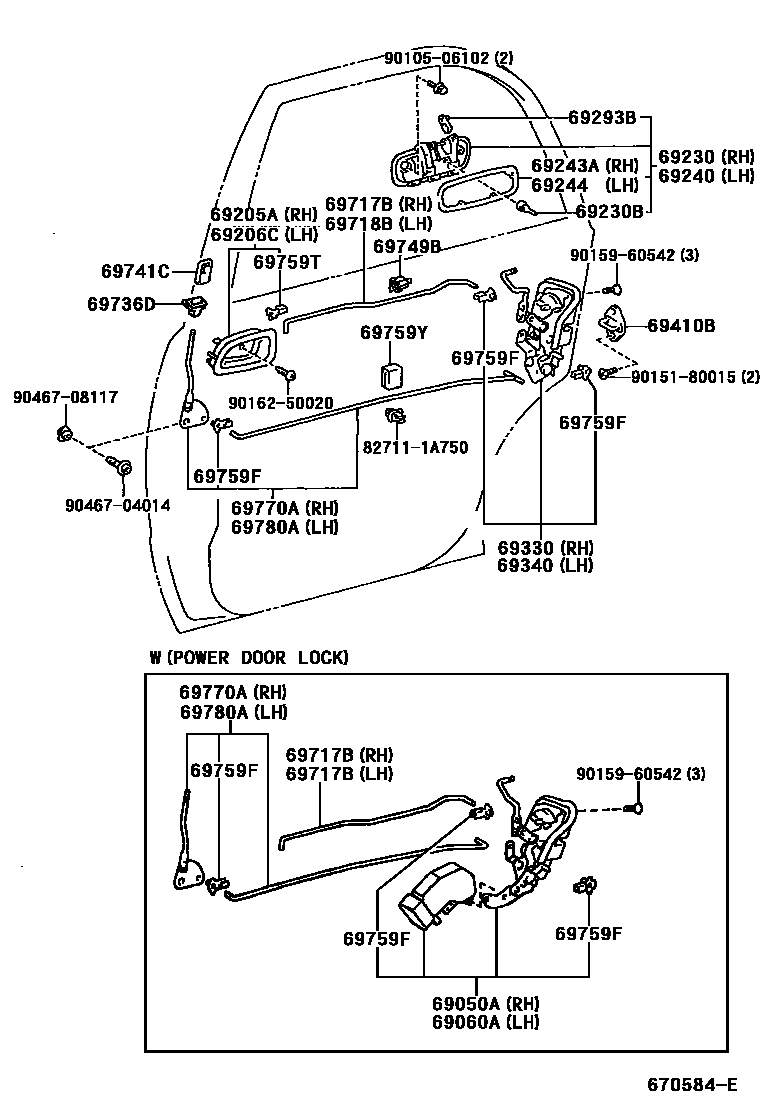

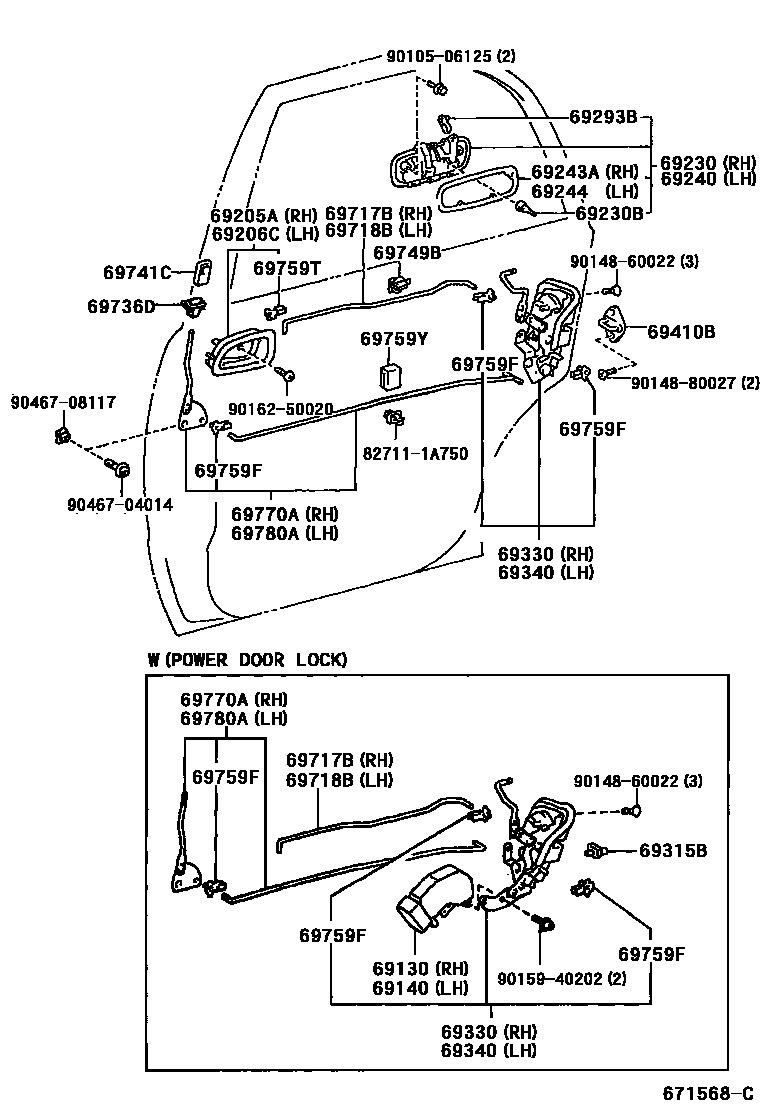

Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69050A | Right rear door lock assembly with motor | 69305-12150 |
| 69060A | Left rear door lock assembly with motor | 69306-12150 |
| 69130 | Right rear door lock actuator assembly | 69130-12010 |
| 69140 | Left rear door lock actuator assembly | 69140-12010 |
| 69230 | Right rear door outer handle assembly | 69230-12170 · 69230-12190 · 69230-12220 · 69230-12240 · 69230-44010 |
| 69230B | Cushion pad (for rear door outer handle) | 90541-04018 |
| 69240 | Left rear door outer handle assembly | 69240-12170 · 69240-12190 · 69240-12220 · 69240-12240 · 69240-44010 |
| 69243A | Right rear door outer handle pad | 69243-12020 |
| 69244 | Left rear door outer handle pad | 69244-12020 |
| 69293B | Rear door outer handle buckle | 69293-12030 · 69293-12040 |
| 69315B | Rear door lock solenoid valve retainer | 69315-33030 |
| 69330 | Right rear door door lock assembly | 69305-12130 · 69305-12150 · 69305-12170 · 69305-12180 · 69305-12230 · 69305-12240 |
| 69340 | Left rear door lock assembly | 69306-12130 · 69306-12150 · 69306-12190 · 69306-12200 · 69306-12230 · 69306-12240 |
| 69410B | Rear door lock plate assembly | 69410-87001 |
| 69717B | Right rear door lock remote control lever | 69713-12090 |
| 69718B | Left rear door lock remote control lever | 69714-12100 |
| 69736D | Rear door locking link guide block | 69736-12130 |
| 69749B | Rear door lock link clamp | 69749-12070 |
| 69759F | Rear door lock control link buckle | 69759-20020 · 69759-20030 · 69759-20040 · 69759-20050 |
| 69759T | Rear door inner handle buckle | 69759-22040 · 69759-22050 |
| 69759Y | Rear door lock link silencer | 69759-20390 |
| 69770A | Right rear door inner locking link assembly | 69770-12100 · 69770-12110 |
| 69780A | Left rear door inner locking link assembly | 69780-12100 · 69780-12110 |
