Toyota COROLLA 后门板和后门玻璃 — Figure 6705

Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 27 PNC and OE references.

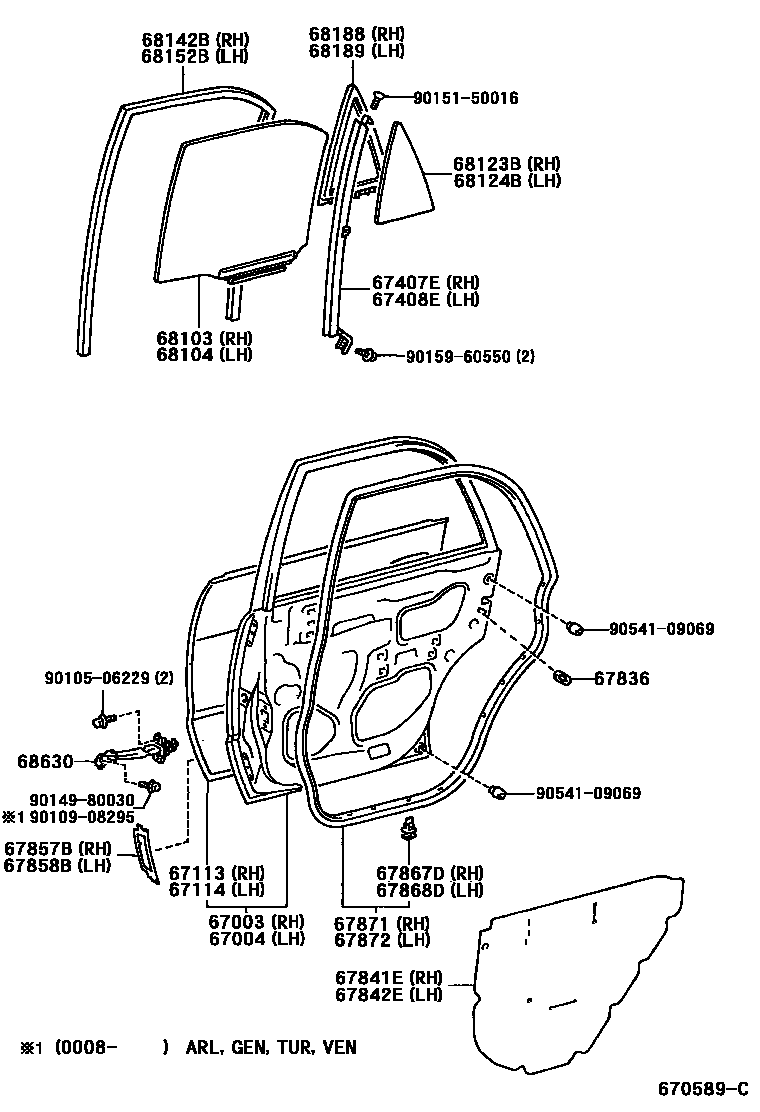

Toyota COROLLA 后门板和后门玻璃 EPC diagram — 670589C
后门板和后门玻璃 — 670589C (199505 – 999999)

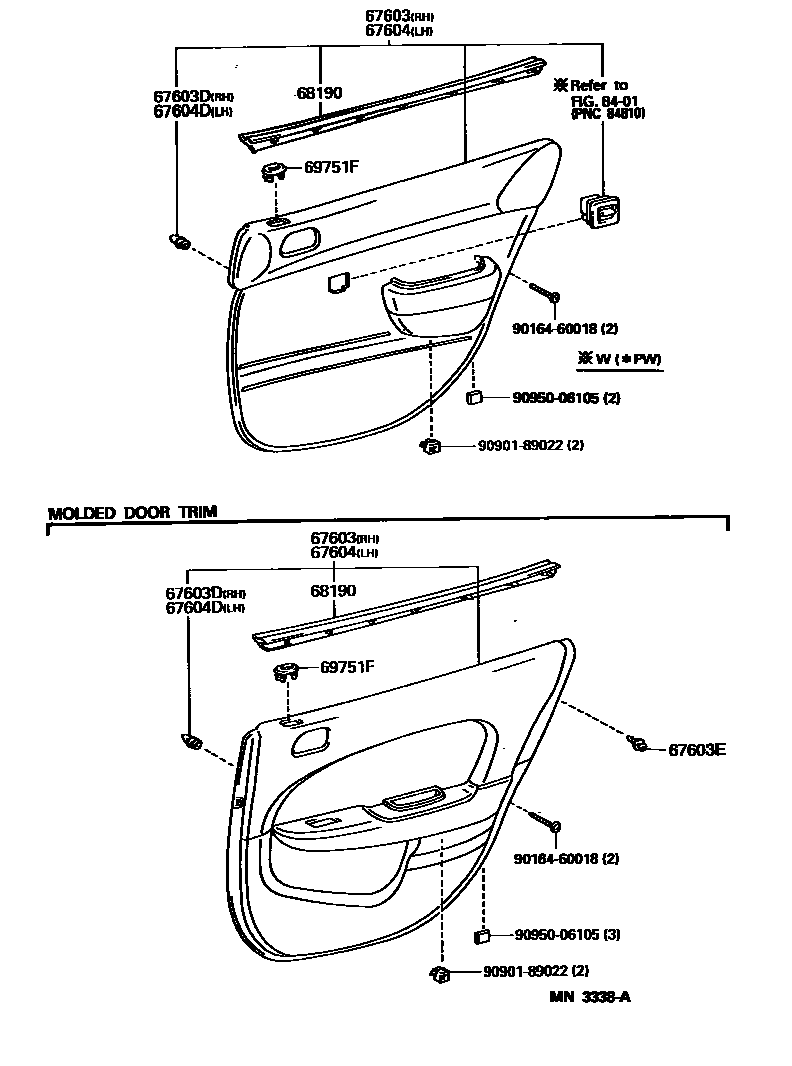

Toyota COROLLA 后门板和后门玻璃 EPC diagram — MN3338A
后门板和后门玻璃 — MN3338A (199505 – 999999)

PNC and OE references

PNCPart nameOE numbers
67003Right rear door panel sub-assembly67003-12740 · 67003-12780
67004Left rear door panel sub-assembly67004-12740 · 67004-12780
67113Right rear door outer panel67113-12260
67114Left rear door outer panel67114-12260
67407ERight rear door window divider sub-assembly67407-12230
67408ELeft rear door window divider sub-assembly67408-12230
67603DRight rear door trim panel fixing67771-12050 · 67771-16170
67604DLeft rear door trim panel fixing67771-12050 · 67771-16170
67836Right rear door lock child restraint cover67836-12040
67841ERight rear door access hole cover67841-12290 · 67841-12320
67842ELeft rear door access hole cover67842-12120 · 67842-12130
67857BRight rear door panel protector67857-12040
67858BLeft rear door panel protector67858-12030
67867DRight rear door seal strip fixing67867-12150
67868DLeft rear door seal strip fixing67867-12150
67871Right rear door sealing strip67871-12400 · 67871-12470 · 67871-12480
67872Left rear door sealing strip67872-12400 · 67872-12470 · 67872-12480
68103Right rear door glass sub-assembly68103-12530
68104Left rear door glass sub-assembly68104-12540
68123BRight rear door corner window glass68123-12510
68124BLeft rear door corner window glass68124-12510
68142BRight rear door window lift chute68142-12210
68152BLeft rear door window lift chute68152-12120
68188Right rear door corner window seal68188-12270
68189Left rear door corner window seal68189-12270
68190Rear door glass inner sealing strip assembly68173-12220 · 68173-12250 · 68174-12080 · 68174-12110
68630Rear door opening limiter assembly68630-02040 · 68630-12080 · 68640-02040 · 68640-12030
