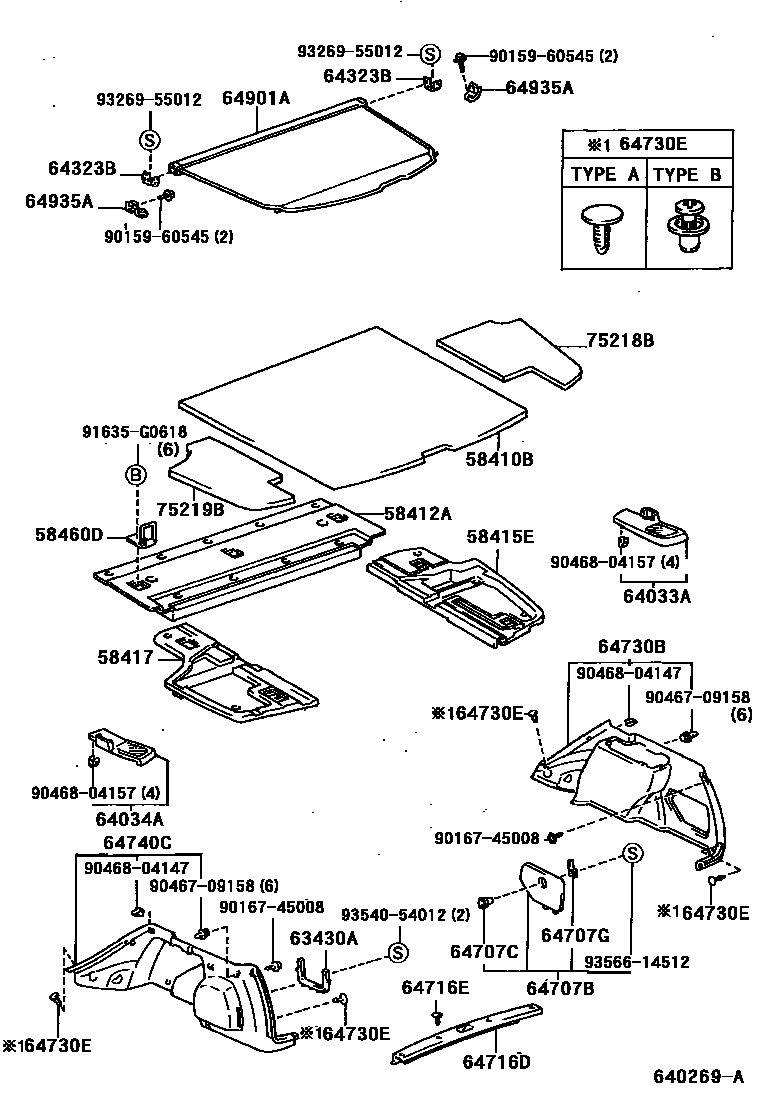

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58410B | Base plate assembly | 58410-13130 |
| 58412A | Base plate No. 2 | 58412-13060 |
| 58415E | Rear floor panel No. 1 | 58415-13040 |
| 58417 | Rear floor panel No. 3 | 58417-13050 |
| 58460D | Luggage fixing belt lock assembly | 58460-13010 |
| 64707G | Jack cover stop | 64981-13010 |
| 64935A | Trunk cover holder | 64935-13050 |
| 75218B | Right tool box cover | 75218-13010 |
| 75219B | Left tool box cover | 75219-13010 |
