Toyota COROLLA 仪表板和手套箱 — Figure 5501

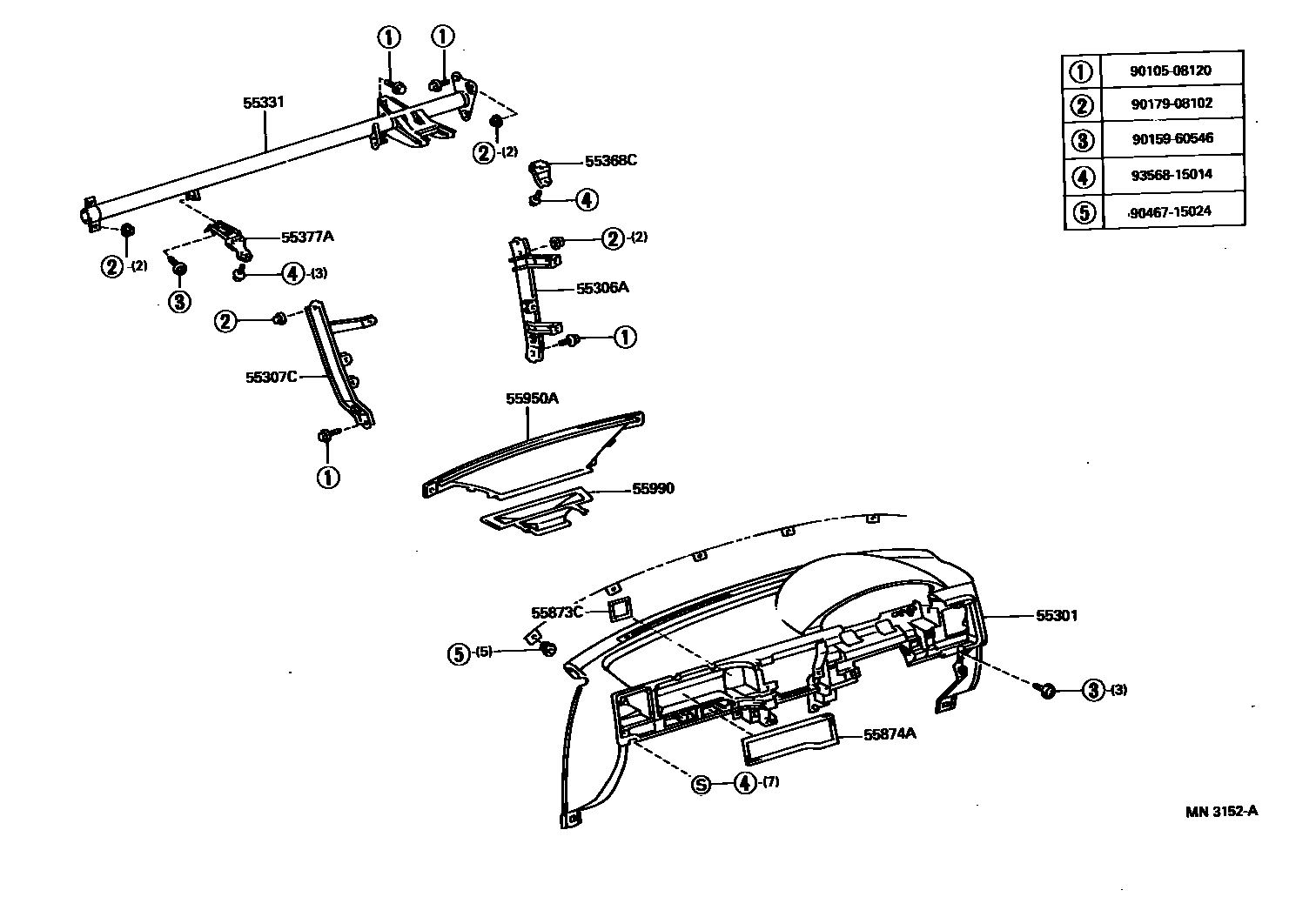

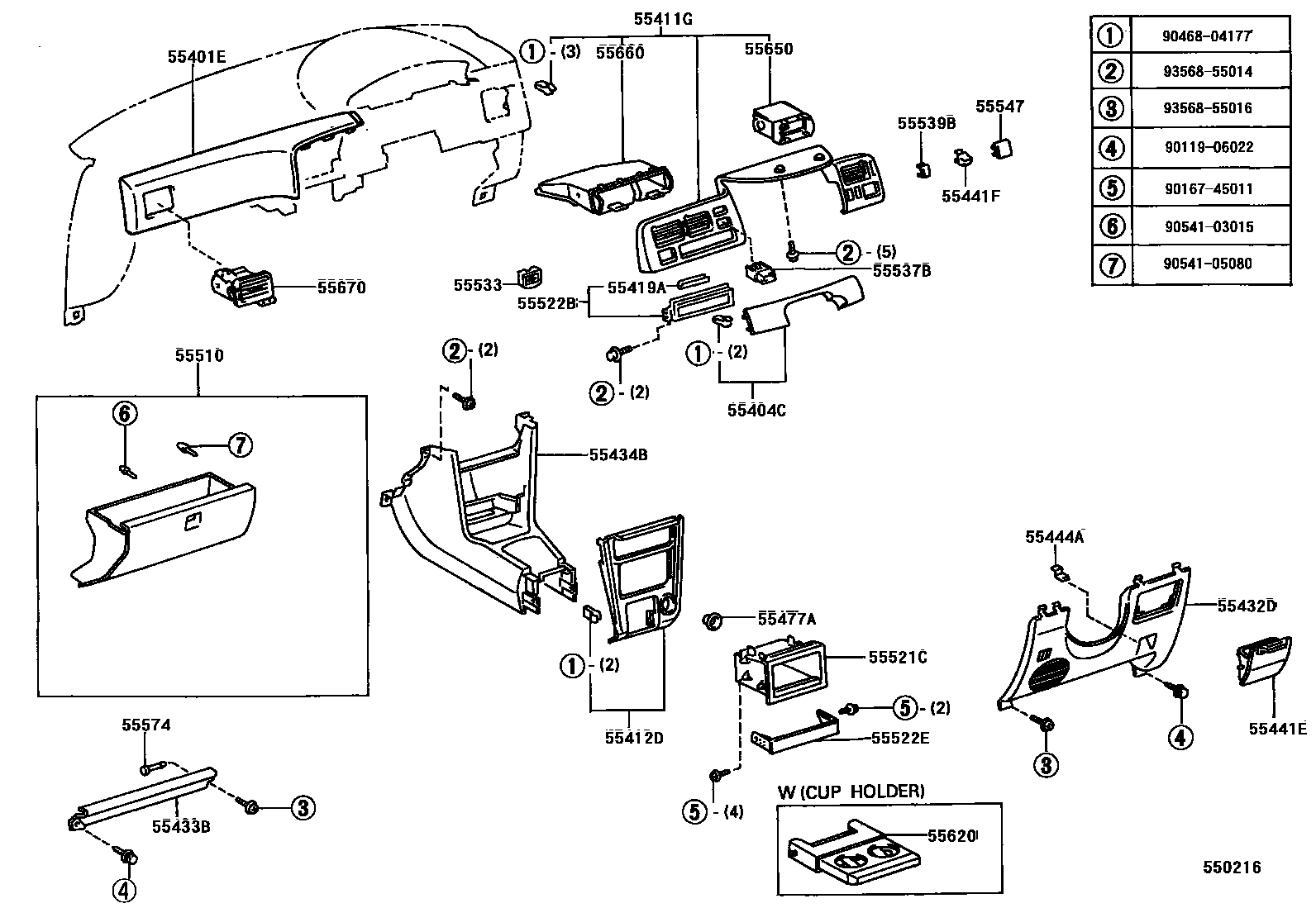

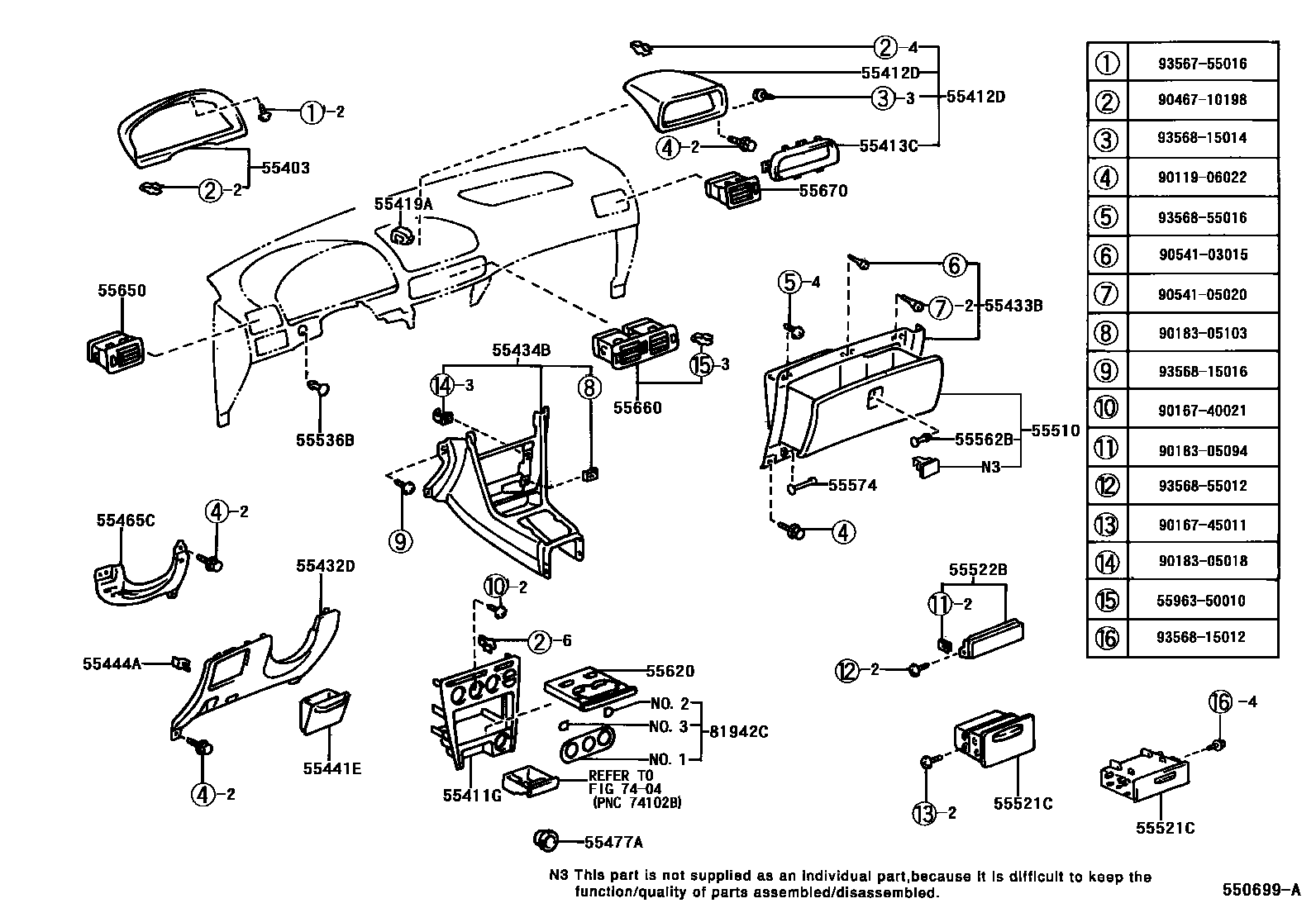

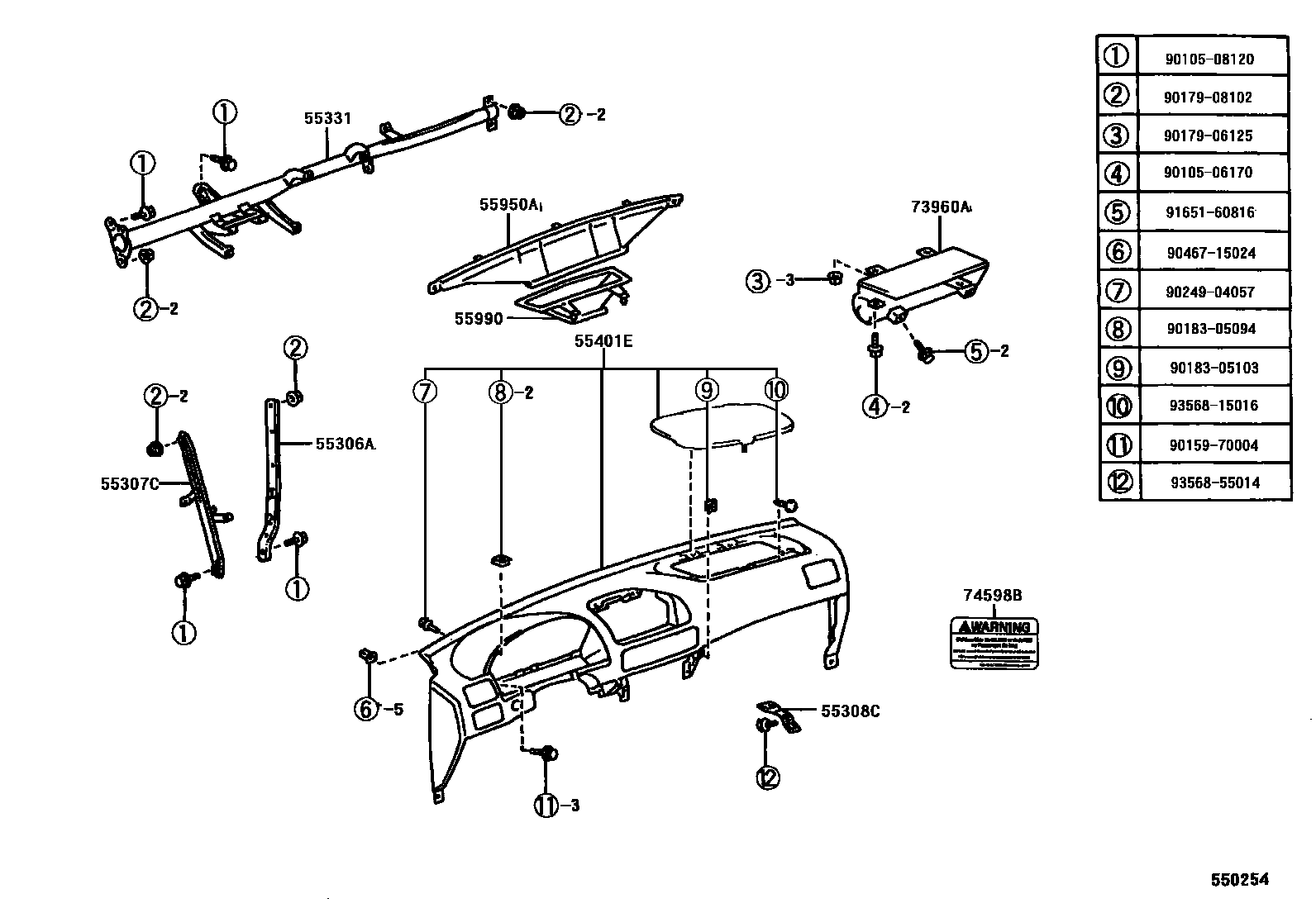

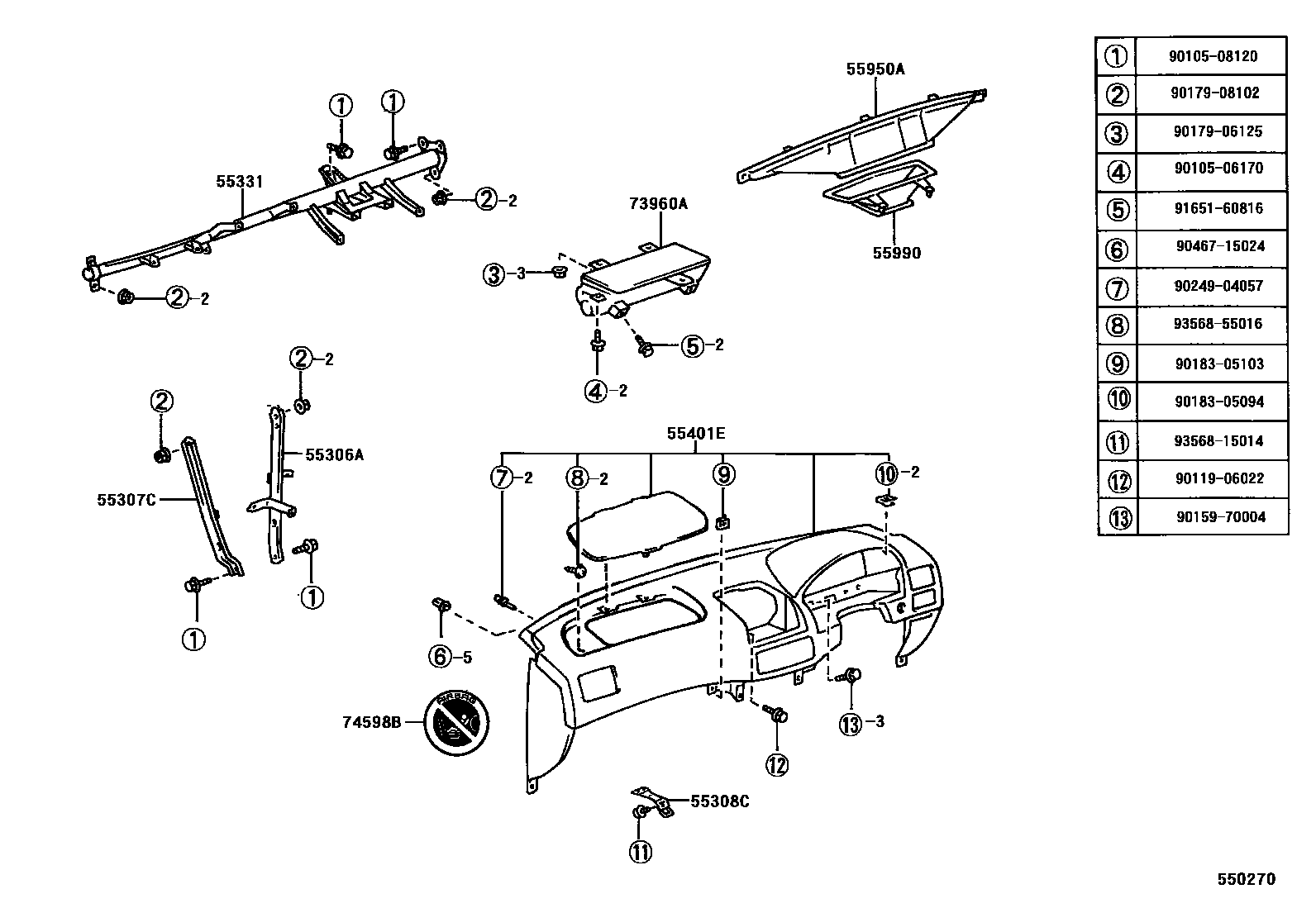

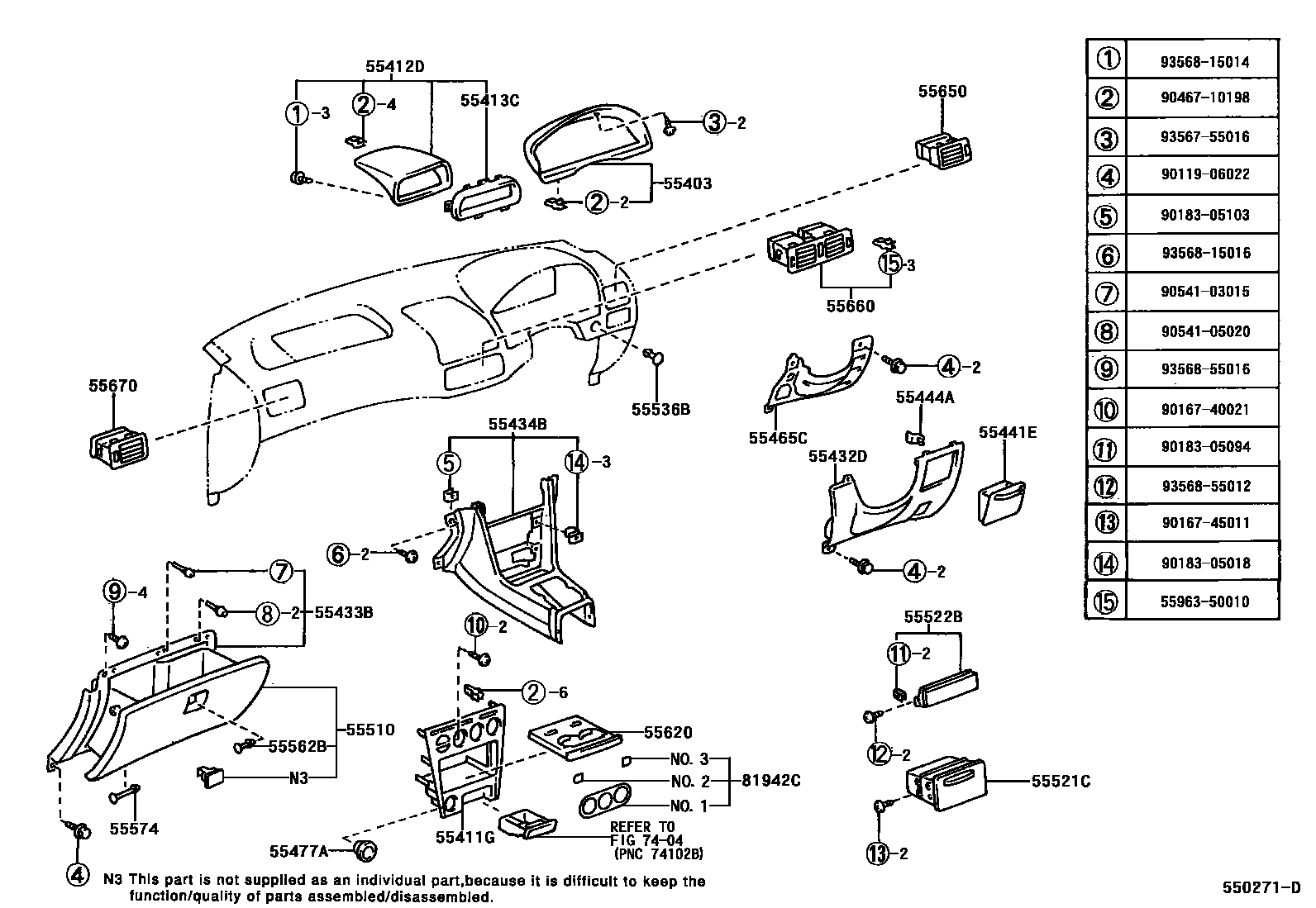

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 6 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-12230 · 55306-12260 · 55306-12290 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-12240 · 55307-12270 · 55307-12280 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-12260 |
| 55331 | Dashboard reinforcement | 55330-12280 · 55330-12340 · 55330-12341 · 55330-12370 · 55330-12371 |
| 55368C | Instrument mounting bracket | 55368-12050 |
| 55377A | Instrument panel mounting bracket No. 2 | 55377-12120 |
| 55403 | Instrument cover sub-assembly | 55403-12010 · 55403-12020 |
| 55404C | Instrument cluster No. 2 decorative panel sub-assembly | 55404-12680 · 55404-12690 |
| 55411G | Instrument cluster No. 1 decorative panel | 55410-1A160 |
| 55412D | Center instrument cluster decorative panel | 55405-12670 |
| 55413C | Center instrument cluster No. 2 decorative panel | 55413-12440 · 55413-12470 · 55413-12480 |
| 55419A | Instrument cluster decorative panel cushion | 55419-12070 · 55419-14020 |
| 55444A | Dashboard storage box spring | 55444-12050 |
| 55465C | Dashboard lower left pad insert | 55465-12060 · 55465-12070 |
| 55477A | Cigarette lighter hole frame | 55477-33010 |
| 55521C | stereo system hole cover | 55521-12160 · 55521-16040 |
| 55522B | Radio tuner opening cover | 55522-12120 · 55522-32010 |
| 55522E | Coaster opening cover | 55522-16030 |
| 55533 | automatic clock hole cover | 55533-12140 |
| 55537B | Rear defogger switch hole cover | 55537-12030 |
| 55547 | Remote control rearview mirror hole cover | 55547-12030 |
| 55562B | Glove box cover lock pin | 55562-10010 |
| 55574 | Glove box cover hinge shaft | 55574-10010 |
| 55620 | Dashboard cup holder assembly | 55620-12070 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-12210 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-12250 |
| 55873C | central duct seal | 55873-12140 |
| 55874A | No. 4 air duct seal | 55874-12100 |
| 55950A | Defroster nozzle assembly | 55950-12190 · 55950-12220 · 55950-12230 |
| 55990 | Central defroster nozzle assembly | 55990-12030 · 55990-12040 · 55990-12050 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-12020 · 73960-12090 |
| 74598B | Passenger air bag warning label | 74598-20010 |
